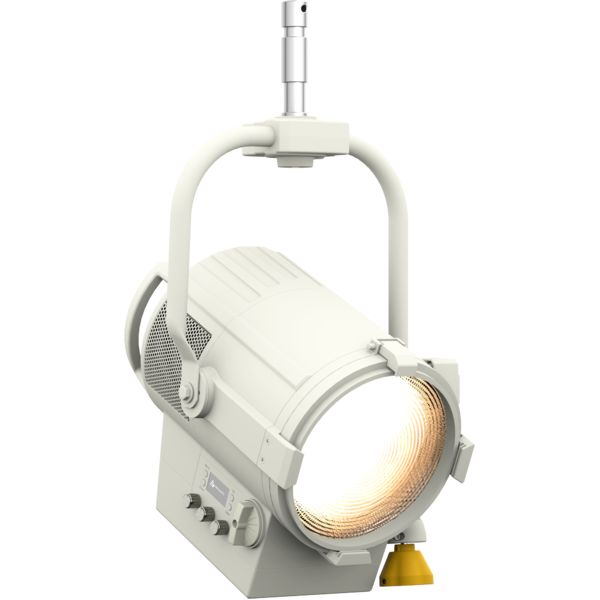

EclFresnel VW
ORDER CODE: ECLFRESNELVW
Share me

Immagine Principale
  • ECLFRESNELVW
  • ECLFRESNELVW
  • ECLFRESNELVW
  • ECLFRESNELVW
  • ECLFRESNELVW
  • ECLFRESNELVW
  • ECLFRESNELVW
  • ECLFRESNELVW
  • EclFresnel VW
    Code Finishing Yoke Avail.
    ECLFRESNELVWBK Black M.O.
    ECLFRESNELVWPOBK Black P.O.
    ECLFRESNELVWWH White M.O.

    The EclFresnel VW is a powerful LED Fresnel lamp, designed as a replacement for a 1,000W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 250W LED source.

    This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.

    The EclFresnel VW has a manual zoom range from 17° to 64°, with precise focusing, and an 8-leaf barndoor (included).

    This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

    Features:
    Linear white CCT, from 2,700K to 5,600K
    250W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
    Barndoor, 28 mm spigot and filter frame included

    LIGHT SOURCE
    • Source:
      250
      W
      Variable White LED
    • CCT:
      2.700 K - 5.600
      K
    • Luminous flux:
      (17°) 8'693 lm - (64°) 10'955
      lm
      @full
    • Lux:
      (17°) 9'492 lx - (64°) 2'557
      lx
      @3 m full
    • CRI:
      95 @WW; 95 @CW; 94 @full
    • R9:
      97 @WW; 92 @CW; 81 @full
    • TLCI:
      97 @WW; 98 @CW; 98 @full
    • TM30 Rf:
      >94 @WW; >92 @CW; >93 @full
    • TM30 Rg:
      >103 @WW; >103 @CW; >104 @full
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom:
      17° - 64
      °
      manual
    • Lens diameter:
      8'' - 200
      mm
    • Lens type:
      fresnel zoom lens
    COLOUR SYSTEM
    • Colour mixing:
      tunable white
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.700 K - 5.600
      K
    • Colour wheel:
      built-in white presets
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer
    • Static mode:
      selection of static dimmer and color temperature
    • Manual mode:
      manual adjustment of intensity and CT from knob
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Hardware on-board:
      filter frame, 8 doors barndoor, spigot
    • Pan angle:
      (for pole operated version) 360
      °
      with manual regulation
    • Tilt angle:
      (for pole operated version) 340
      °
      with manual regulation
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9004 or RAL 9003
    CONTROL
    • Protocols:
      DMX512, RDM
    • Stand Alone:
      3
      rotatory knobs
    • DMX channels:
      1 / 2 / 4 / 5 / 11
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -20° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      240
      W
    • Output (at 230V):
      14
      units on a single power line
    • Power factor:
      > 0,93
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Dimensions (WxHxD):
      283x440x343
      mm
    • Dimensions with PO system (WxHxD):
      341x545x343
      mm
    • Weight:
      7,8
      kg
    • Weight with PO system:
      10
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x ECLFRESNELVW
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 1 x ECLFRSPG
    • 1 x ECLFRSBD
    • 1 x ECLFRSTPG
    • User Manual
