EclFresnel JrPTW
ORDER CODE: ECLFRJPTW
Share me

Immagine Principale
  • ECLFRJPTW

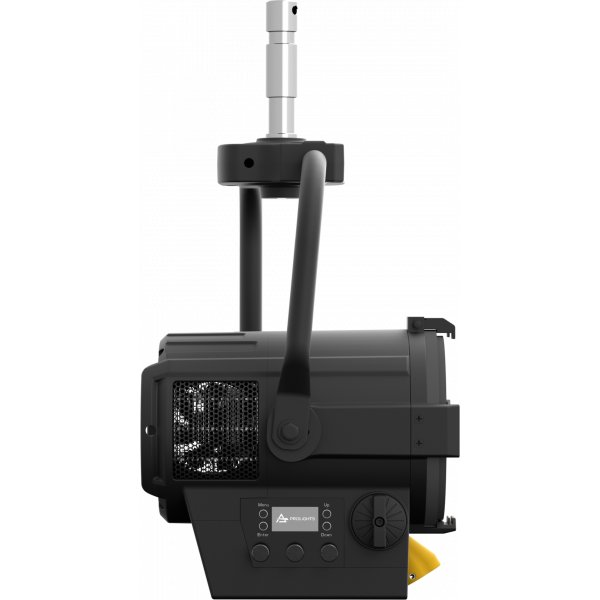

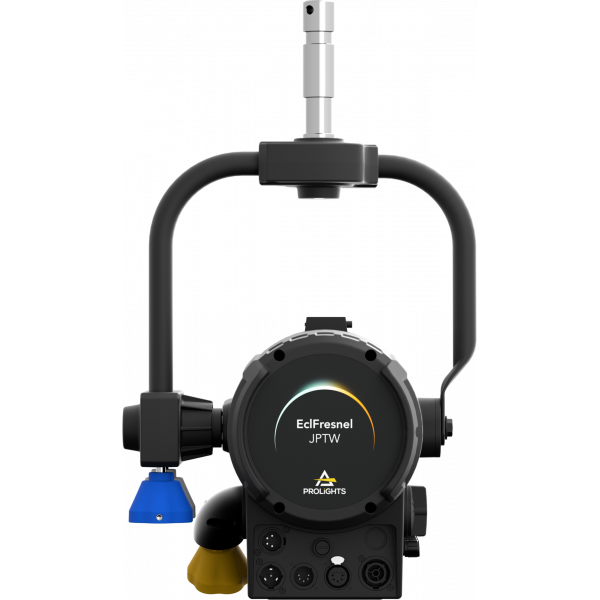

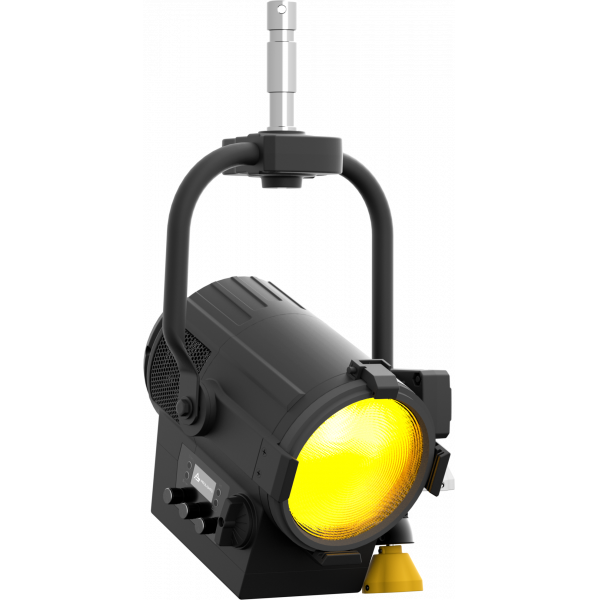

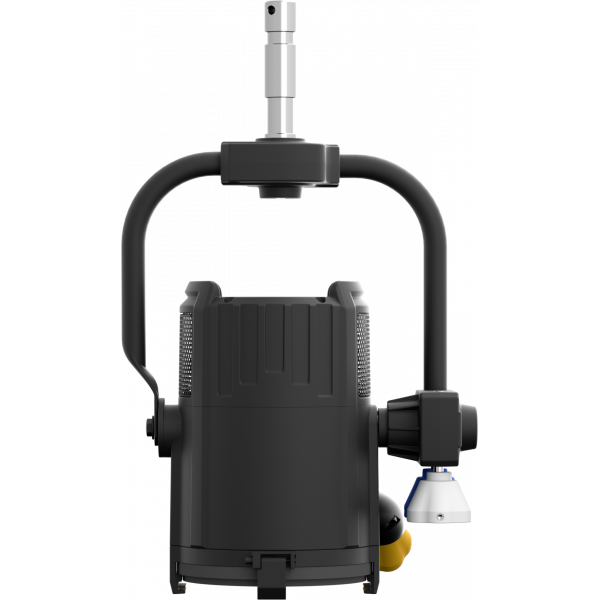

  • EclFresnel JrPTW is an advanced LED replacement of traditional 650W Fresnel lamps, featuring 6 colour mixing delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction.
    The optical system harnesses the power of a 130W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with added ability to apply +/- green and magenta correction to match other sources of light.
    Featuring HD dimming and tuning from 2.800 K to 10.000 K version with external battery capabilities, the EclFresnel JrPTW delivers the performance and quality of output demanded from this level of luminaire.

    Features:
    Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
    +/- green and magenta white tuning
    Silent operation for studio and stage use
    Battery ready, compatible with industry standard external batteries (optional)

    LIGHT SOURCE
    • Source:
      130
      W
      6 colour custom LEDs source (red, orange, cyan, royal blue, green, lime)
    • CCT:
      2.800 K - 10.000
      K
    • Luminous flux:
      (15,5°) 1'610 lm - (55°) 2'952
      lm
      @full
    • Lux:
      (15,5°) 709 lx - (55°) 145
      lx
      @5 m full
    • CRI:
      91 @3.200 K; 92 @5.600 K
    • R9:
      91 @3.200 K; 92 @5.600 K
    • TLCI:
      86 @5.600 K
    • TM30 Rf:
      88 @3.200 K; 86 @5.600 K
    • TM30 Rg:
      106 @3.200 K; 104 @5.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      15,5° - 55
      °
      half peak angle
    • Lens diameter:
      6'' - 150
      mm
    • Lens type:
      fresnel zoom lens
    COLOUR SYSTEM
    • Colour mixing:
      tunable white + colour
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K - 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of intensity, CT, colour correction from knob
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Hardware on-board:
      filter frame, 8 doors barndoor, spigot
    • Pan angle:
      360
      °
      with manual regulation
    • Tilt angle:
      340
      °
      with manual regulation
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    • Other:
      Spigot 28 mm
    CONTROL
    • Protocols:
      DMX512, RDM, rotatory knob
    • DMX channels:
      1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21
      channel
    • RDM:
      RDM ready for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Other:
      16bit control of dimmer and colour
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      100
      W
    • Output (at 230V):
      23
      units on a single power line
    • Power factor:
      >0,95
    BATTERY
    • Battery:
      29,6
      V
      4400 mAh external battery (optional ECLFRSJBP4)
    • Re-charge connection:
      connection for external battery throught
      XLR 4p
    • Other:
      Voltage range: 22,4V-33,6V
    PHYSICAL
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      298x496x260
      mm
    • Weight:
      7,5
      kg
    BOX CONTENT
    • 1 x ECLFRJPTW
    • 1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
    • 1 x ECLFRSJBD
    • 1 x ECLFRSJTPG
    • User Manual
