EclProfile FW
ORDER CODE: ECLFW
Share me

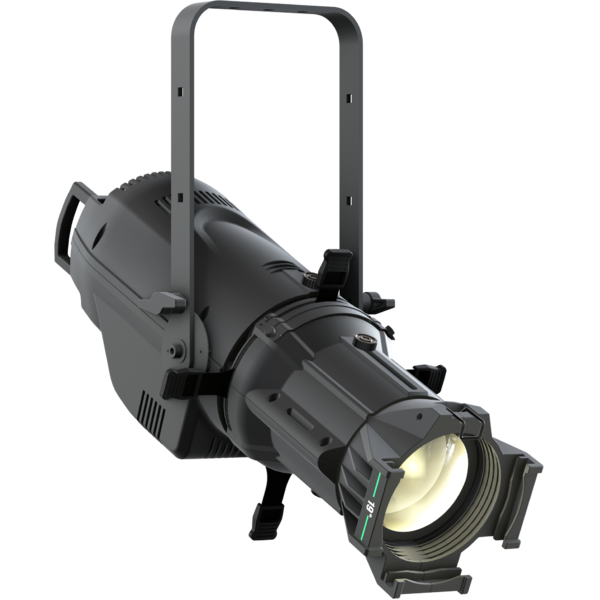

Immagine Principale

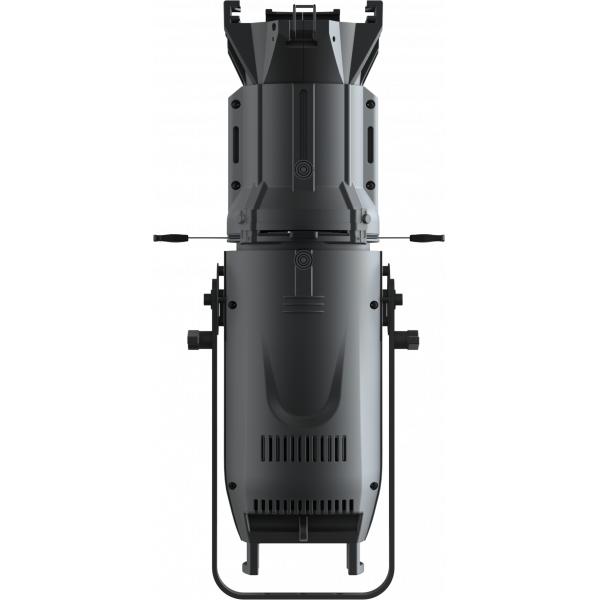

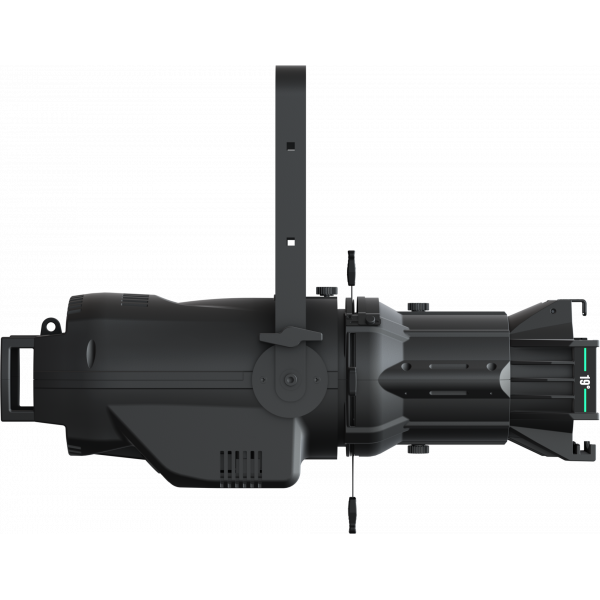

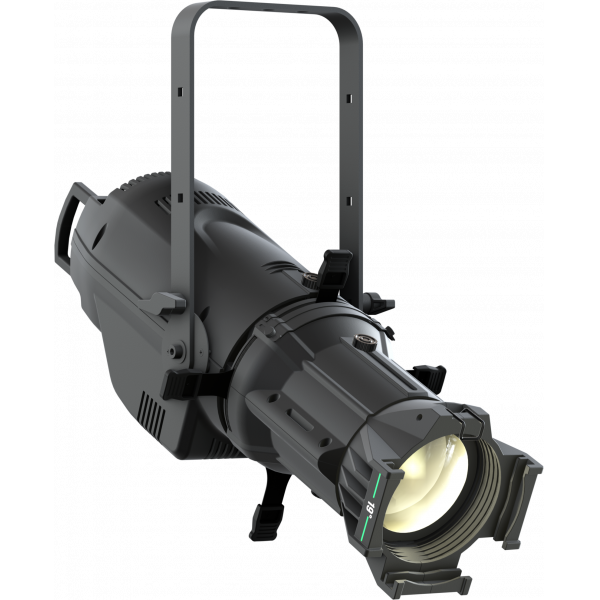

  • ECLFW
  • ECLFW
  • ECLFW
  • ECLFW
  • ECLFW
  • ECLFW
  • ECLFW
  • EclProfile FW
    Code CCT CRI R9 Lumen Avail.

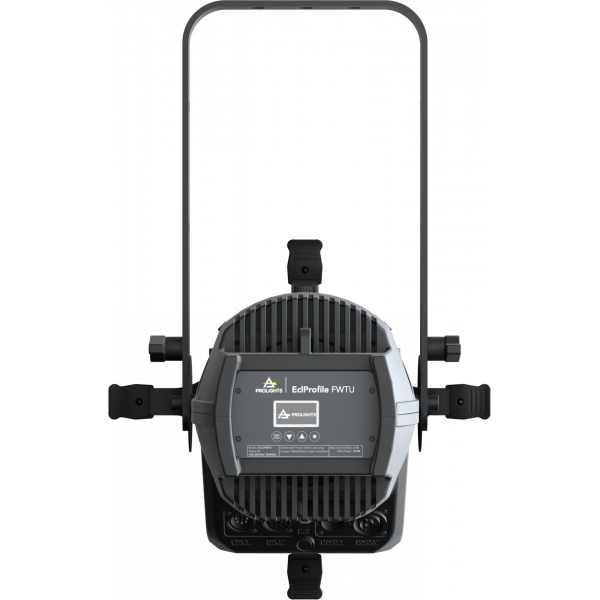

    ECLFWTUBK 3.200K 98 91 7'196 lm

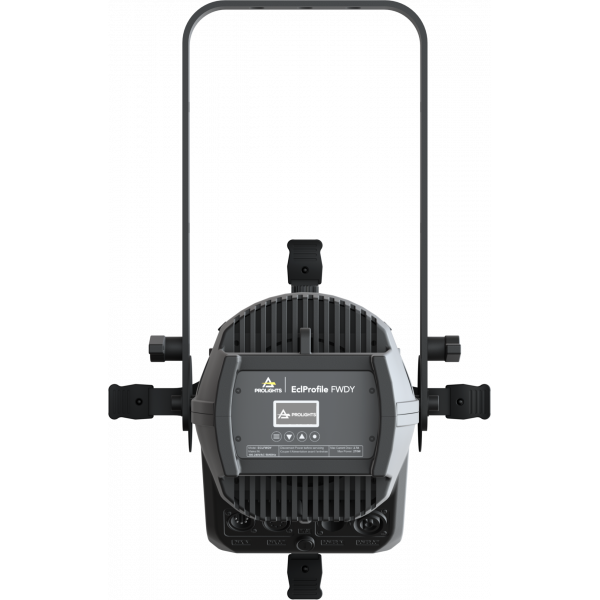

    ECLFWDYBK 5.600K 97 97 8'176 lm

    EclProfile FW is the Full White version of the new generation of Ecl Profile LED ellipsoidals, and it is available in the TU (tungsten) and DY (daylight) source variants. The EclProfile FW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

    Features:
    3.200 K (TU) and 5.600 K (DY) versions available.
    High lumen output and superior quality of whites (high CRI, TLCI, TM30).
    Silent operation and compatible with industry standard accessories.

    LIGHT SOURCE
    • Source:
      91x3
      W
      high-power white LED
    • CCT:
      (TU) 3.200 K - (DY) 5.600
    • Luminous flux:
      (TU) 5°: 6'662 - 10°: 8'005 - 14°: 7'283 lm -19°: 8'704 lm - 26°: 8'944 lm - 36°: 8'996 lm - 50°: 8'286 lm - 70°: 9'670
      lm
      @full
    • Luminous flux:
      (DY) 5°: 7'231 - 10°: 8'828 - 14°: 8'061 lm -19°: 7'664 lm - 26°: 9'826 lm - 36°: 9'707 lm - 50°: 9'017 lm - 70°: 11'708 lm @full
    • Lux:
      (TU) 5°: 30'529 - 10°: 14'813 - 14°: 7'197 lx - 19°: 4'218 lx - 26°: 2'459 lx - 36°: 1'323 lx - 50°: 680 lx - 70°: 419
      lx
      @5 m full
    • Lux:
      (DY) 5°: 35'955 - 10°: 16'083 - 14°: 7'894 lx - 19°: 4'626 lx - 26°: 2'722 lx - 36°: 1'450 lx - 50°: 766 lx - 70°: 494
      lx
      @5 m full
    • CRI:
      (TU) >98; (DY) >97
    • R9:
      (TU) >91; (DY) >97
    • TLCI:
      (TU) >98; (DY) >98
    • TM30 Rf:
      (TU) >94; (DY) >91
    • TM30 Rg:
      (TU) >99; (DY) >99
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
      °
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      manual
    • Other:
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      static white
    DYNAMIC EFFECTS
    • Shutter system:
      3 layers blades system and fast rehabilitation of blade in case of out of frame blade
    • Gobo size:
      B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
    • Static mode:
      selection of static dimmer
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      HIGH mode, AUTO mode and SILENT mode fan management
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      1 / 2 / 3 / 4
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      270
      W
    • Output (at 230V):
      11
      units on a single power line
    • Power factor:
      0,97
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      low noise fan
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors

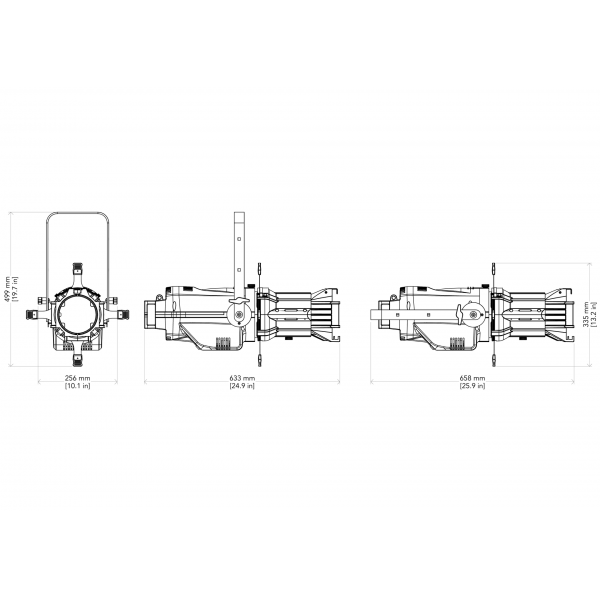

    • Dimensions (WxHxD):
      265x259x540
      mm
    • Weight:
      7,3
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ECLFW
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    ECLFW (optional)
    {ProdottiDaAccessorio}
    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Flightcase to contain 8 pcs ECLFS,ECLFW or ECLCTPLUS with lenses 19°,26°,36°,50°
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Flightcase to contain 8 ECLPRLZ zoom lenses
    ECLFW (optional)
    {ProdottiDaAccessorio}
    5° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    10° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    14° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    19° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    26° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    36° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    50° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    70° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Optics for ECLFC/HD profiler, TPG incl., zoom 15°-30°
    ECLFW (optional)
    {ProdottiDaAccessorio}
    90° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Optics for ECLFC/HD profiler, TPG incl., zoom 25°-50°
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Gel filter frame for ECL Profile PRL lens barrel, comp. with 19°,26°,36° and 50°
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Gobo holder for ECL Profile fixtures, A size
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Gobo holder for ECL Profile fixtures, B size
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Iris accessory for ECL Profile fixtures
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Soft edge filter and holder kit for ECL Profile fixtures
    ECLFW (optional)
    {ProdottiDaAccessorio}
    28mm spigot for fixtures, M10 bolt
    ECLFW (optional)
    {ProdottiDaAccessorio}
    28mm spigot for fixtures, M12 bolt
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
    ECLFW (optional)
    {ProdottiDaAccessorio}
    Hexagonal head screw, to adapt ECLLZ lenses on ECLCTPLUS, ECLFW and ECLFS
