IP65
EclProfile FWIPVW
| Code | Finishing | Avail. | |||||||||||
|
ECLFWIPVWBK | Black |

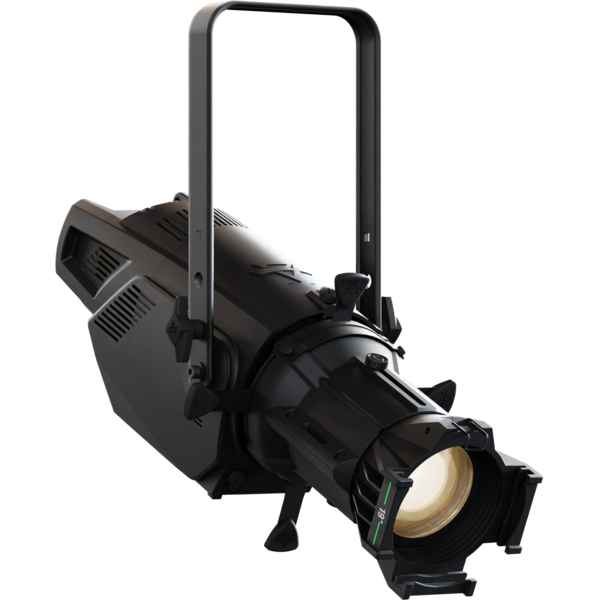

EclProfile FW IP VW is the IP Full White version of the new generation of Ecl Profile LED ellipsoidals with Variable White source variants. The EclProfile FW IP VW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.
Features:IP rated for exterior applications
Rotating gobo IP65 (optional)
Linear white CCT from 2,700 K to 5,600 K.
High lumen output and superior quality of whites (high CRI, TLCI, TM30).
Silent operation and compatible with industry standard accessories.
LIGHT SOURCE
- Source:91x3Whigh-power white LED
- CCT:from 2.700K to 6.500K
- Luminous flux:(26° only TU) 3'696 lm; (26° only DY) 4'406 lm; (26°) 7'951lm@full
- Lux:(26° only TU) 1'289 lx; (26° only DY) 1'524 lx; (26°) 2'759lx@5 m full
- CRI:(only TU) 97,7; (only DY) 95,7; (@full) 96.3
- R9:(only TU) 86,2; (only DY) 90,9; (@full) 90,5
- TLCI:(only TU) 97; (only DY) 97; (@full) 98
- TM30 Rf:(only TU) >92; (only DY) >90; (@full) >92
- TM30 Rg:(only TU) >96; (only DY) >99; (@full) <102
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°
- Lens type:HD anti-reflection lenses with achromatic coating
- Focus:manual

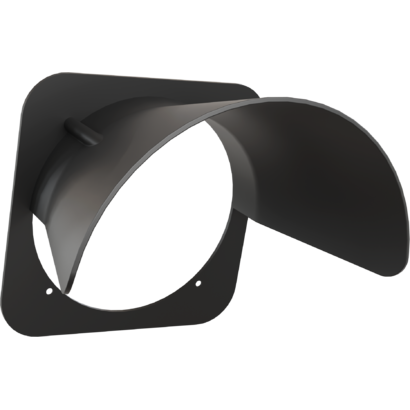

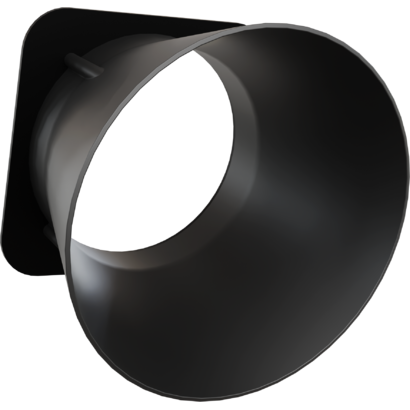

- Other:see available accessories
COLOUR SYSTEM
- Colour mixing:warm white + cold white
- White presets:2.700K - 5.600K
DYNAMIC EFFECTS
- Rotating gobos:optional, see available accessories
- Gobo size:B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
- Static mode:selection of static dimmer
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
- Special features:HIGH mode, AUTO mode and SILENT mode fan management
BODY
- Body:sturdy die-cast aluminium body
- Body colour:black
CONTROL
- Protocols:DMX512, RDM
- DMX channels:2 / 3 / 4 / 6 / 12channel
- RDM:RDM for remote monitoring and settings
- Display:Graphic User Interface
- Firmware upgrade:yes, via USB - DMX interface (UPBOX2) not included
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 ~ 100% electronic dimmer
- Strobe / shutter:1 - 25Hz, electronic
- Display battery:self-charging battery backup
- Operating temperature:-10° ~ +45°
- LED Control:flicker free operation
- Selectable PWM:600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption:264W
- Output (at 230V):11units on a single power line
- Power factor:0,97
PHYSICAL
- IP rating:65for temporary outdoor application, not for fixed installations
- Cooling:low noise fan
- Suspension and fixing:bracket for hanging and positioning
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD):324x540x660mm
- Weight:10kg
CERTIFICATIONS / APPROVALS
BOX CONTENT- Certifications / Approvals:CE, UKCA, RCM, cTUVus, FCC
- 1 x ECLFWIPVW
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- User Manual
