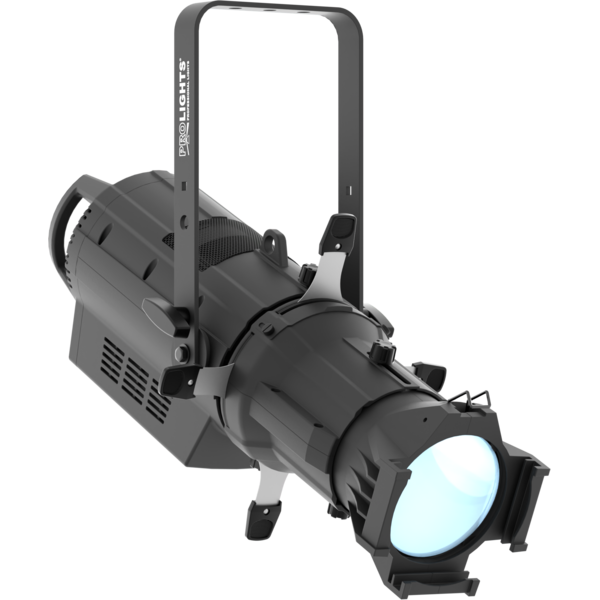

EclProfile HD2
ORDER CODE: ECLHD2
Share me

Immagine Principale
  • ECLHD2
  • ECLHD2
  • ECLHD2
  • ECLHD2
  • ECLHD2
  • ECLHD2
    • EclProfile HD2
    Code CCT CRI R9 Lumen Avail.
    ECLHD2TUBK 3.200 K 97 87 9'261 lm
    ECLHD2DYBK 5.700 K 96 96 10'974 lm

    EclProfile HD2 updates EclProfile HD ranges with extra brightness and higher CRI / R9 / TLCI. The fixture is a proper LED replacement for the traditional 750W Tungsten ellipsoidal luminaire. The optical system harnesses the power of a 230W COB LED to create an even beam with clean shutter cuts and beautiful sharp or soft edge gobo focusing. Featuring HD dimming and available in a 3.200 K or 5.700 K, the EclProfile HD2 delivers the performance and quality of output demanded from this level of the luminaire.

    Features:
    Outstanding brightness over 10K lm for DY and 9K lm for TU versions
    CRI > 97 (TU) and CRI > 96 (DY), High R9 and TLCI values

    LIGHT SOURCE
    • Source:
      230
      W
      high-power white LED
    • CCT:
      (TU) 3.200 K - (DY) 5.700
      K
    • Luminous flux:
      (TU) 5°: TBD - 10°: TBD - 14°: 8'562 lm -19°: 8'345 lm - 26°: 9'261 lm - 36°: 8'964 lm - 50°: 7'683
      lm
      @full
    • Luminous flux:
      (DY) 5°: TBD - 10°: TBD - 14°: 9'649 lm -19°: 9'822 lm - 26°: 10'974 lm - 36°: 10'781 lm - 50°: 9'053 lm @full
    • Lux:
      (TU) 5°: TBD - 10°: TBD - 14°: 11'055 lx - 19°: 6'495 lx - 26°: 4'954 lx - 36°: 2'728 lx - 50°: 1'381
      lx
      @5 m full
    • Lux:
      (DY) 5°: TBD - 10°: TBD - 14°: 12'000 lx - 19°: 7'118 lx - 26°: 5'571 lx - 36°: 3'105 lx - 50°: 1'569
      lx
      @5 m full
    • CRI:
      (TU) >97; (DY) >96
    • R9:
      (TU) >87; (DY) >96
    • TLCI:
      (TU) >97; (DY) >96
    • TM30 Rf:
      (TU) >92; (DY) >89
    • TM30 Rg:
      (TU) 100; (DY) 100
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / zoom 15°-30° / zoom 25°-50
      °
    • Lens type:
      high-quality glass lens optics
    • Focus:
      manual
    COLOUR SYSTEM
    • Colour mixing:
      static white
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer
    • Gobo size:
      B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      1 / 2 / 5
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      210
      W
    • Output (at 230V):
      15
      units on a single power line
    • Power factor:
      TU: >0.90 - DY: >0,94
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      342x506x530
      mm
    • Weight:
      7,11
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x ECLHD2
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
    • User Manual
