ECLJRG2

Share me

	Code	CT	COLOR	POWER	SIGNAL							Avail.
	ECLJRG2PROTUBK	TU - 3000K	Black	PowerCon IN/OUT	5p IN/OUT

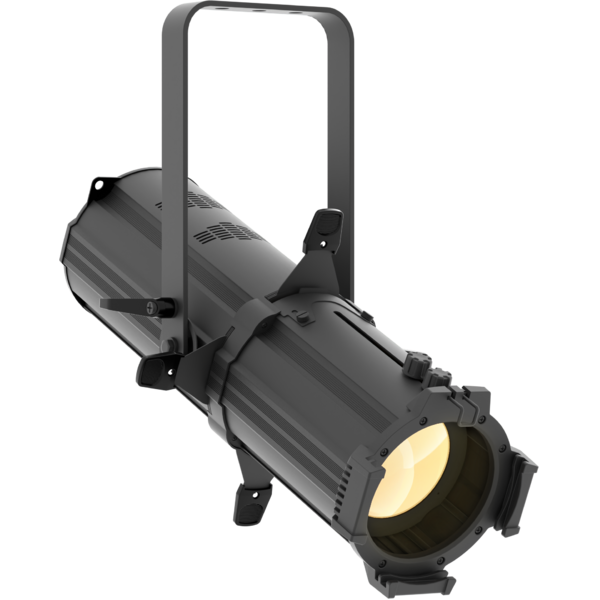

ECLJRG2 is the new affordable LED profile by TRIBE, featuring a new level of performance in the field of ellipsoidal with LED technology with a high flux 100W COB LED and a uniform projection. The design of the ECL makes it a flexible fixture to project from any distance thanks to the manual zoom.

Features:
Colour temperature: tungsten 3000 K, daylight 5000 K
High-efficiency optics maximising uniformity of projection, framing precision and colour temperature stability over the entire dimming curve
25° - 50° manual zoom
Includes gobos holder and gel frame holder

LIGHT SOURCE

Source:

100
W

high-power white LED
CCT:

(TU) 3.100 K - (DY) 5.000
K
Luminous flux:

(TU) 3'851 lm - (DY) 3'757
lm
Lux:

(25°) TU 3'990 lx - DY 3'243
lx

@3 m
Lux:

(50°) TU 1'340 lx - DY 1'262
lx

@3 m
CRI:

(TU) 83 - (DY) 81
Other:

TM30-15RF/RG: (TU) 83 / 96 - (DY) 80 / 97 - TLCI: (TU) 71 - (DY) 66
Source life expectancy:

> 50.000 h

OPTICS

Zoom:

25° - 50
°

manual zoom lens
Lens type:

high-quality glass lens optics
Other:

25° - 50° zoom lens included

DYNAMIC EFFECTS

Gobo size:

M, outer: 66 mm - image: 45 mm - thickness: 1,1 mm
Manual colour mode:

manual adjustment of dimmer and strobe

BODY

Body:

sturdy die-cast aluminium body
Body colour:

black, white finishing available

CONTROL

Protocols:

DMX512
DMX channels:

1 / 3
channel
Display:

LED display user interface
Firmware upgrade:

yes, via USB - DMX interface (UPBOX1) not included
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 ~ 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 ~ 30

Hz, electronic
Operating temperature:

-10° ~ +45°
LED Control:

flicker free operation

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption:

105,5
W
Max power consumption (at 120V):

105,2
W
Output (at 230V):

35

units on a single power line
Output (at 120V):

19

units on a single power line

PHYSICAL

Cooling:

active, silent operation
Suspension and fixing:

bracket for hanging and positioning
Signal connection:

DMX 5p IN/OUT
Power connection:

Seetronic powerCON IN/OUT connectors
IP rating:

20
Dimensions (WxHxD):

259x430x529
mm
Weight:

5,76
kg

BOX CONTENT

1 x ECLJRG2
1 x 1,5 meters power cable (SCHUKO plug - SEETRONIC power connector)
1 x ECLJRGH
1 x ECLJRTPG
User Manual

ITEMS REF.

Accessory Code

Description

ECLJRG2 (include)

ECLJRGH

Gobo holder for ECLJR profilers

ECLJRG2 (include)

ECLJRTPG

Filter frame for ECLJR profilers

ECLJRG2 (optional)

ECLJRIRIS

Steel iris diaphragm for ECLJR profiler

ECLJRG2 (optional)

UPBOX1U

Firmware uploader kit, USB IN, 3pin XLR DMX OUT, USB OUT

Firmware

Accomplish more with our product updates
Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and technical endurance.
Get in touch with our team for any questions or assistance.

Drawings

Ecljrg2protubk_CAD_2D.dwg	Download
Ecljrg2protubk_TECHNICAL_DRAWING.pdf	Download

Catalogues

#0Not available

Photometrics

Software Upgrades

Tech Docs

Ecljrg2protubk_DMX_CHARTS.pdf	Download
Ecljrg2protubk_USER_MANUAL.pdf	Download
