EclPanel TWC
ORDER CODE: ECLPANELTWC
Share me

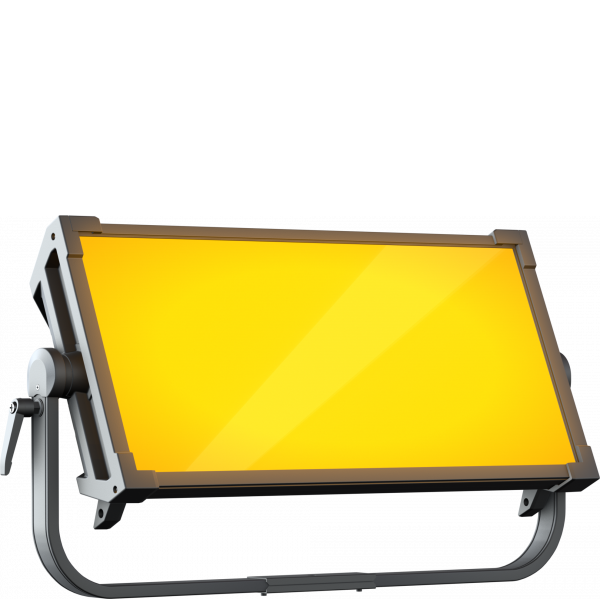

Immagine Principale
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC
  • ECLPANELTWC

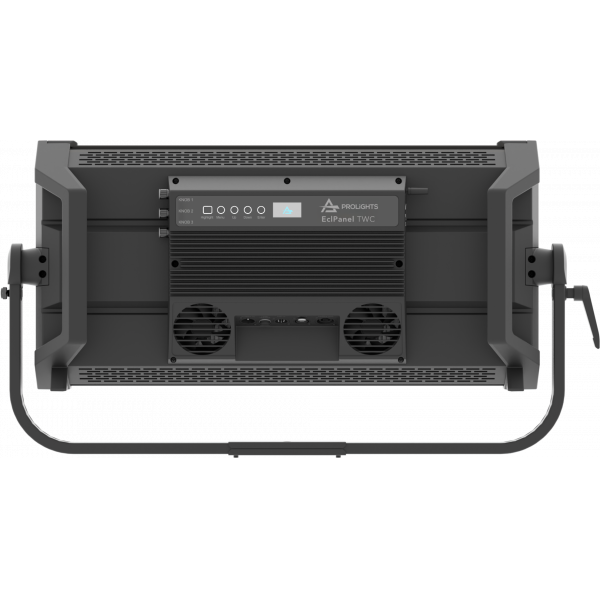

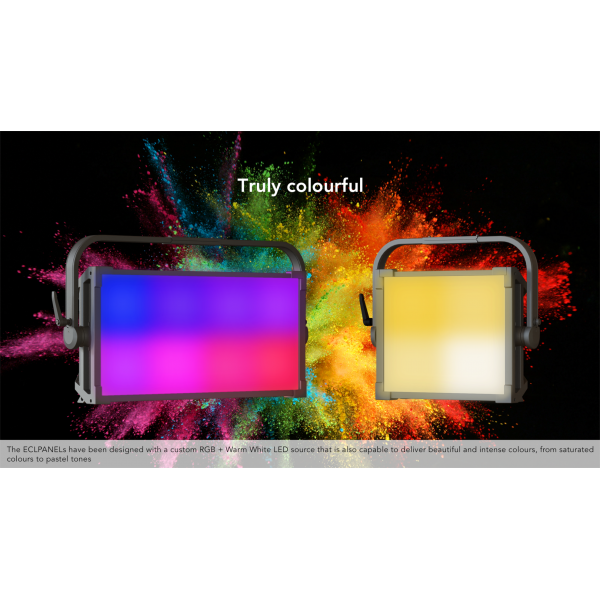

    • EclPanel TWC, is the compact 2x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWC comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30.

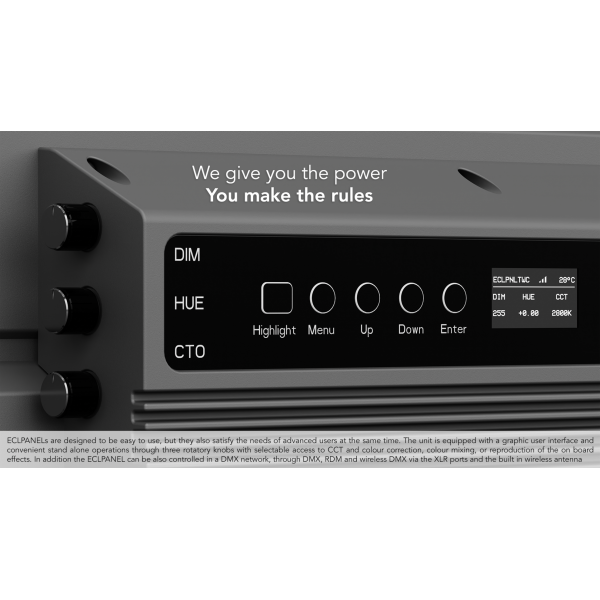

    The EclPanel TWC allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects.

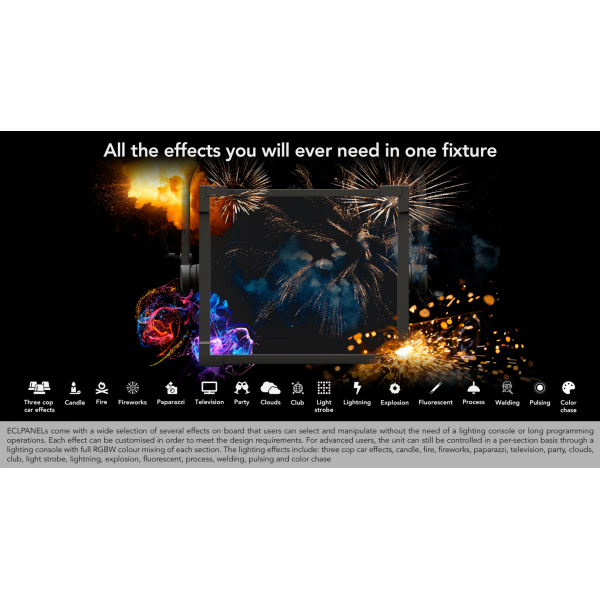

    The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk.

    Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects.

    The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWC offers easy rigging and cabling making it the perfect lighting tool for every location.

    Features:
    740W RGB + Warm White Led source (driven @430W)

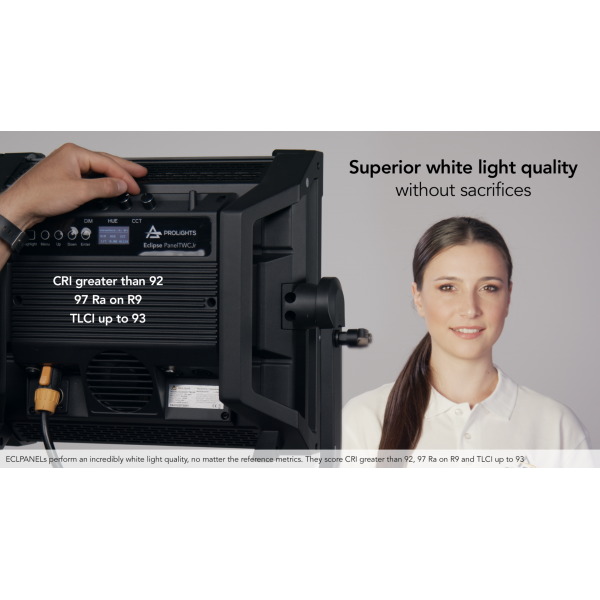

    CRI > 95,5; R9 > 92; TLCI > 92

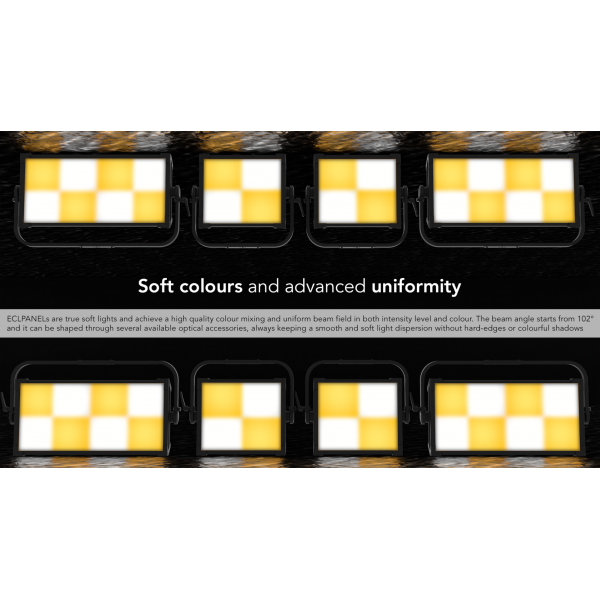

    8 section pixel control and built-in lighting effects for Cinema applications
    Silent operation with multiple fan modes

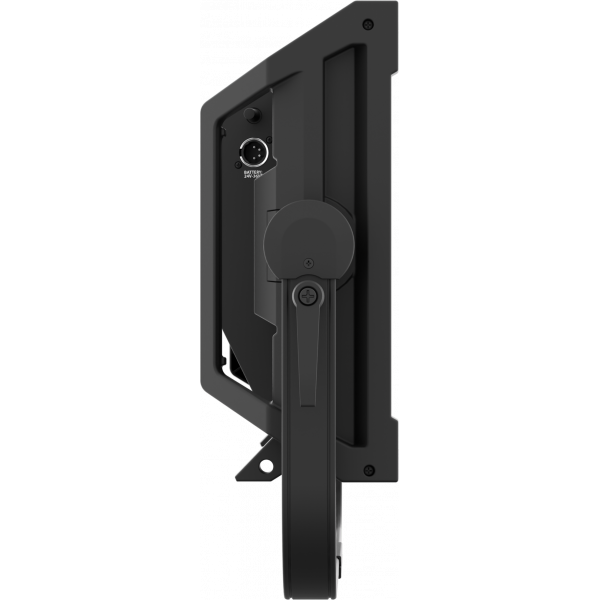

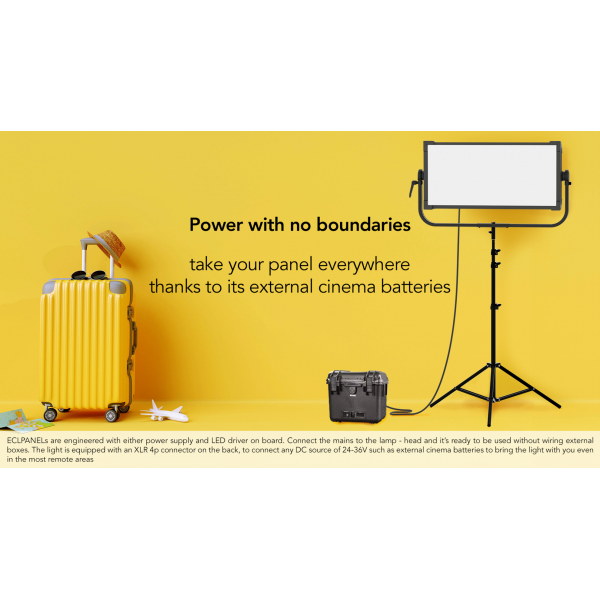

    Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)

    LIGHT SOURCE
    • Light source:
    • Source:
      740
      W
      RGB + Warm White LEDs (driven @ 430W)
    • Luminous flux:
      34'236
      lm
      @4.000 K with MD filter
    • Lux:
      @4000K, 517
      lx
      @5 m
    • CRI:
      94,6 @3.200 K; 95,5 @5.600 K
    • R9:
      97 @3.200 K; 92 @5.600 K
    • TLCI:
      92 @5.600 K
    • TM30 Rf:
      92 @3.200 K; 89,5 @5.600 K
    • TM30 Rg:
      103 @3.200 K; 102,4 @5.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      102
      °
    • Field angle:
      159
      °
    • Lens type:
      Medium Density
      diffusion panel (interchangeable)

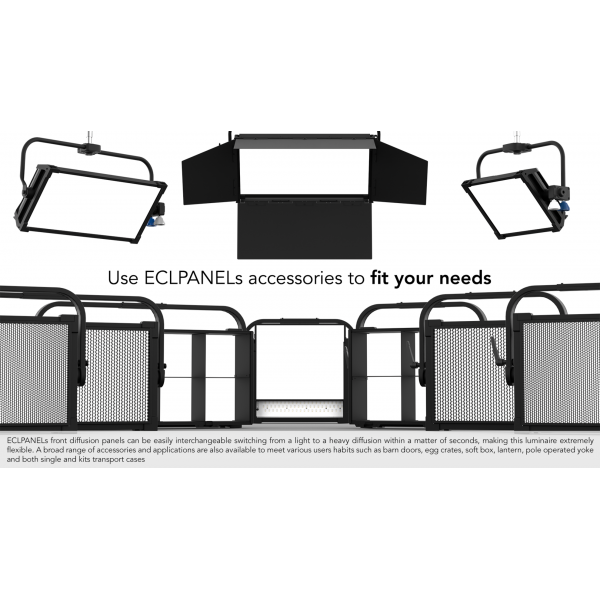

    • Additional optics:
      see available accessories
    COLOUR SYSTEM
    • Colour control:
      XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
    • Colour mixing:
      RGB + Warm White

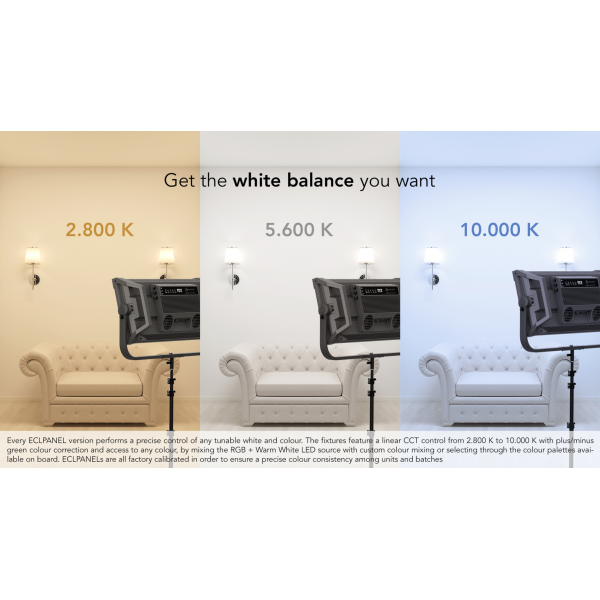

    • CCT:
      CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
    • White presets:
      2.800K - 10.000
      K
      with 28 K resolution
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      Gels library on-board
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer, colours
    • Pixel patterns:
      pre-programmed pixel macros and cinema lighting effects patterns
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, W-DMX, rotatory knob
    • Stand Alone:
      selectable mode through 3
      rotatory knobs
    • Pixel control:
      8
      section control
    • Wireless Control:
      integrated, CRMX + WDMX TRX
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 36.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Low Voltage DC mains:
      24-36V
    • Max power consumption:
      460
      W
    • Output (at 230V):
      5
      units on a single power line
    • Power factor:
      >0,94
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      bracket for hanging and positioning

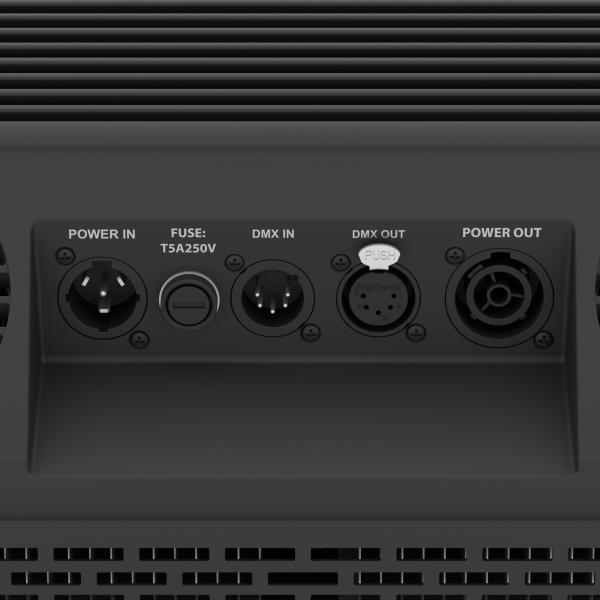

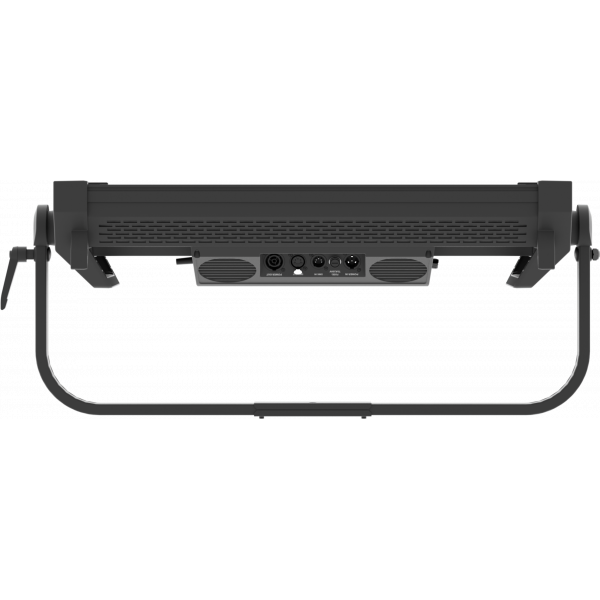

    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Low Voltage DC connector:
      XLR 4p

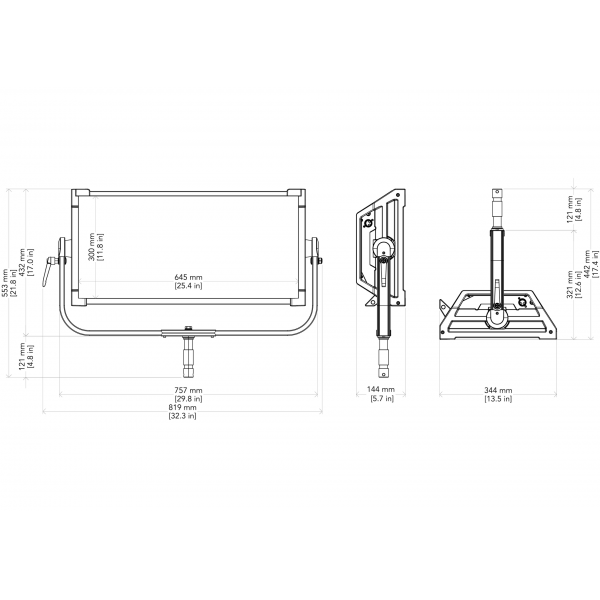

    • Dimensions (WxHxD):
      819x431x144
      mm
    • Dimensions with PO system (WxHxD):
      836x431x144
      mm
    • Weight:
      15,3
      kg
    • Weight with PO system:
      17,1
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ECLPANELTWC
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 1 x ECLFRSPG
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
