EclPanel TWCJr
ORDER CODE: ECLPANELTWCJR
Share me

Immagine Principale
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR
  • ECLPANELTWCJR

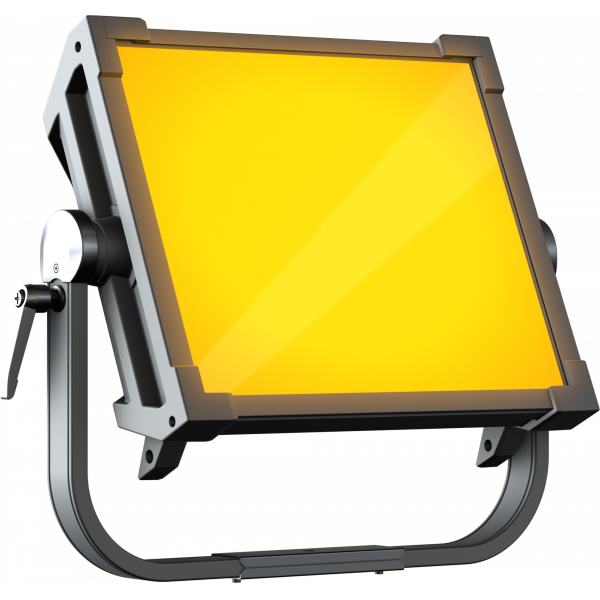

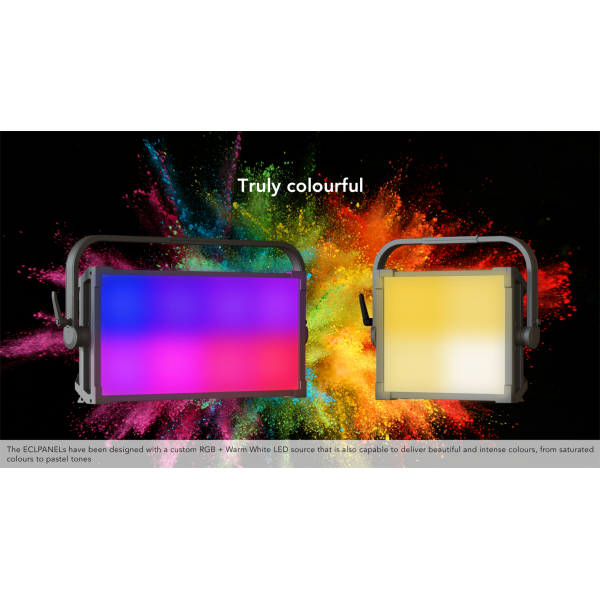

    • EclPanel TWCJr, is the compact 1x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWCJr comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30.

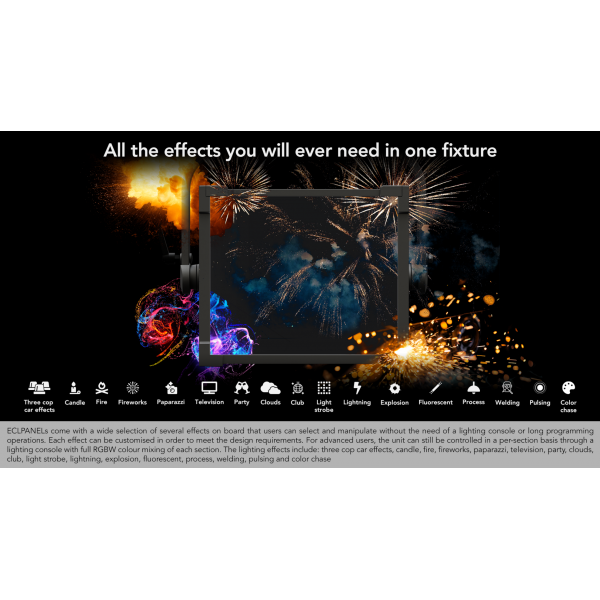

    The EclPanel TWCJr allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects.

    The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk.

    Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects.

    The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWCJr offers easy rigging and cabling making it the perfect lighting tool for every location.

    Features:
    370W RGB + Warm White LED source (driven @ 220W)

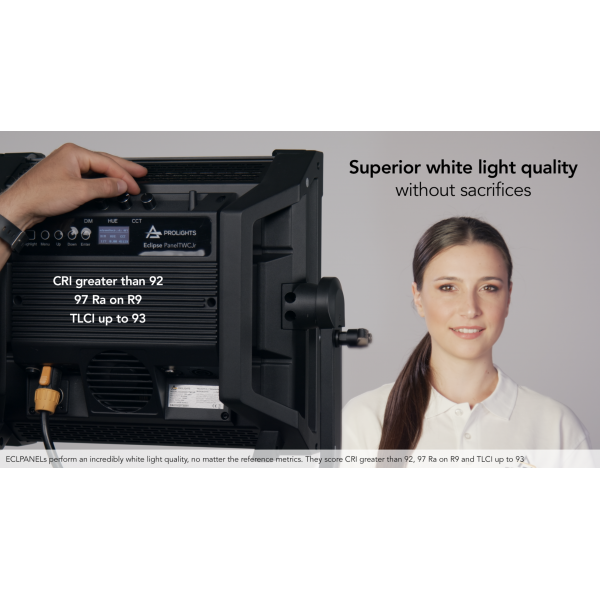

    CRI > 94; R9 > 88,8; TLCI > 92

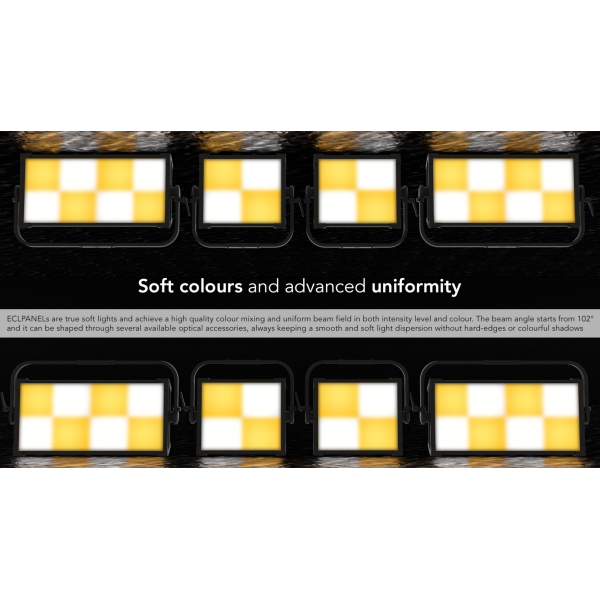

    4 section pixel control and built-in lighting effects for cinema applications
    Silent operation with multiple fan modes

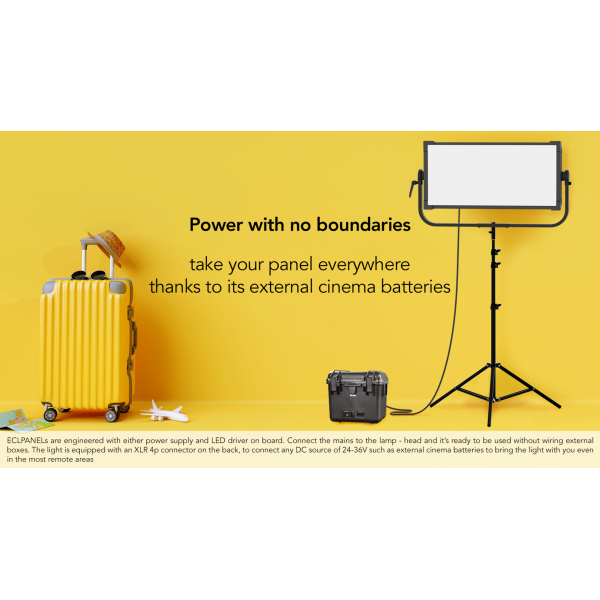

    Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)

    LIGHT SOURCE
    • Source:
      370
      W
      RGB + Warm White LEDs (driven @ 220W)
    • Luminous flux:
      17'109
      lm
      @4.000 K with LD filter
    • Lux:
      @4000K, 265
      lx
      @5 m
    • CRI:
      90 @3.200 K; 94 @5.600 K
    • R9:
      84,1 @3.200 K; 88,8 @5.600 K
    • TLCI:
      92 @5.600 K
    • TM30 Rf:
      90 @3.200 K; 89,4 @5.600 K
    • TM30 Rg:
      105 @3.200 K; 104 @5.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      102
      °
    • Field angle:
      158
      °
    • Lens type:
      medium density
      diffusion panel (interchangeable)
    • Additional optics:
      see available accessories
    COLOUR SYSTEM
    • Colour control:
      XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
    • Colour mixing:
      RGB + Warm White

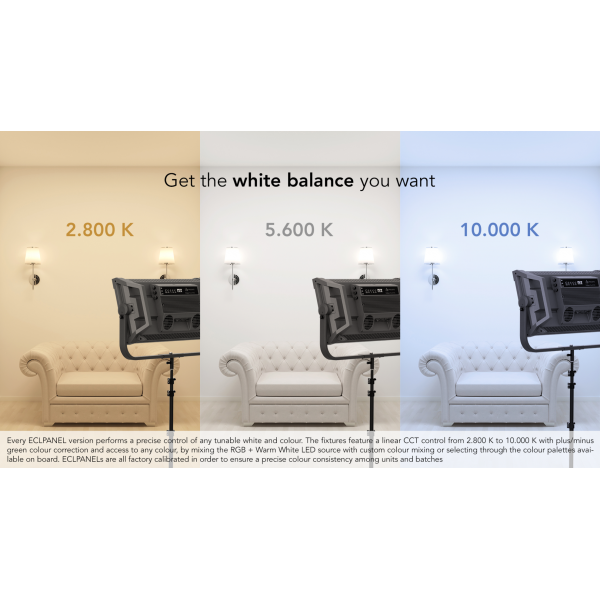

    • CCT:
      CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
    • White presets:
      2.800 K - 10.000
      K
      with 28 K resolution
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      Gels library on-board
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer, colours
    • Pixel patterns:
      pre-programmed pixel macros and cinema lighting effects patterns
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, W-DMX, rotatory knob

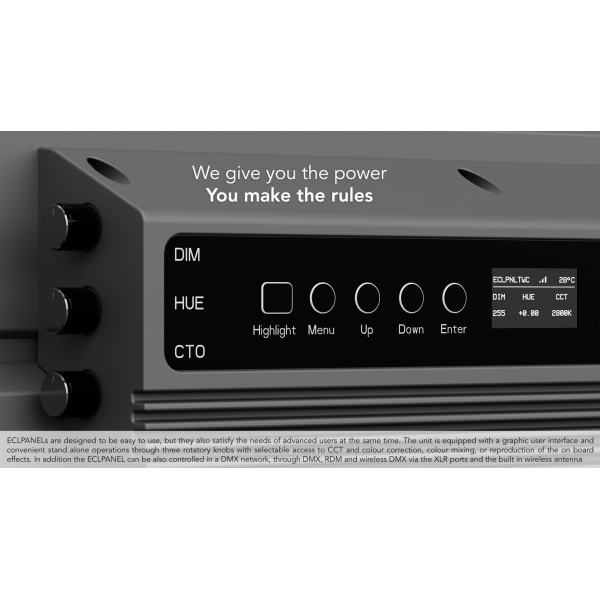

    • Stand Alone:
      selectable mode through 3
      rotatory knobs
    • Pixel control:
      4
      section control
    • Wireless Control:
      included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 40.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Low Voltage DC mains:
      24-36V
    • Max power consumption:
      230
      W
    • Output (at 230V):
      10
      units on a single power line
    • Power factor:
      >0,97
    • Inrush current:
      230VAC/10.7A, 100VAC/11.2A
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation

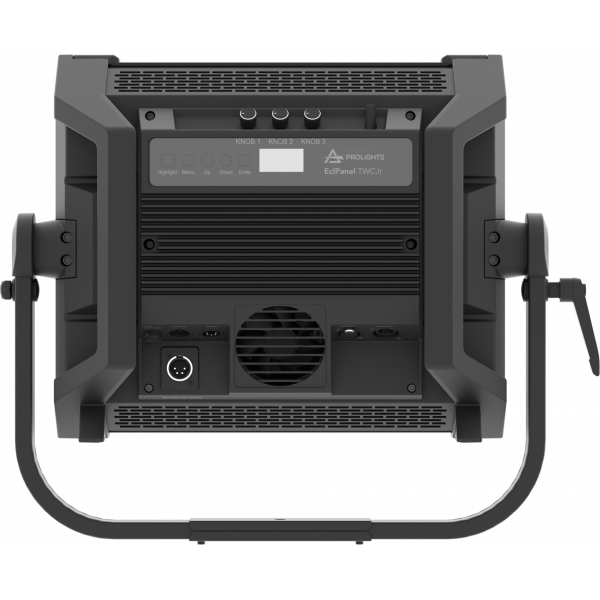

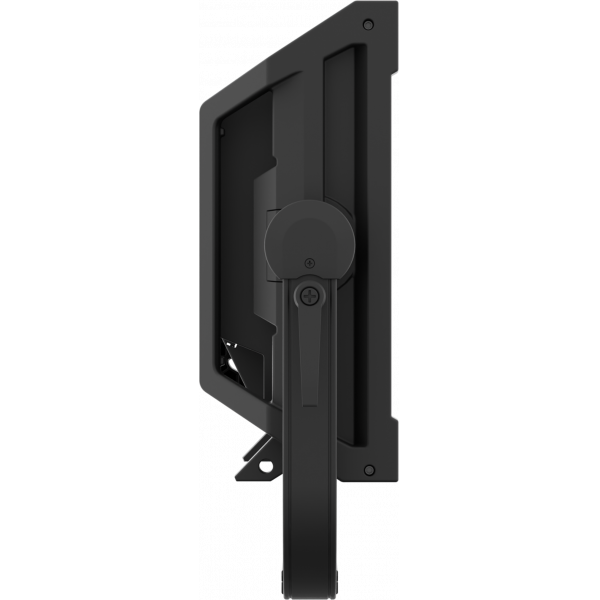

    • Suspension and fixing:
      bracket for hanging and positioning

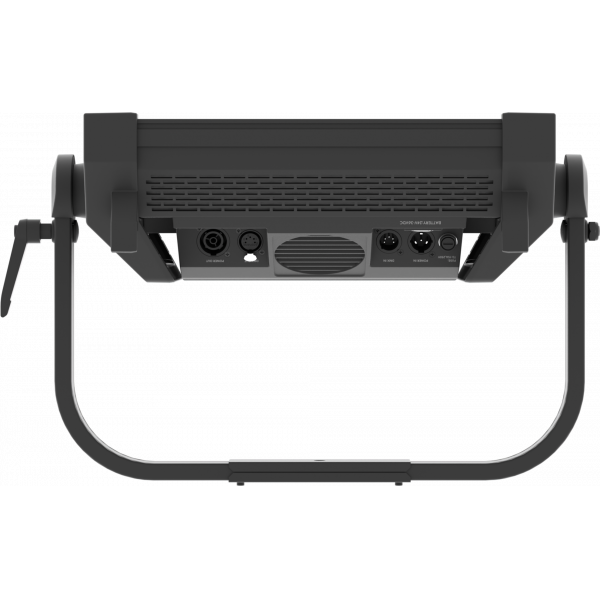

    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Low Voltage DC connector:
      XLR 4p

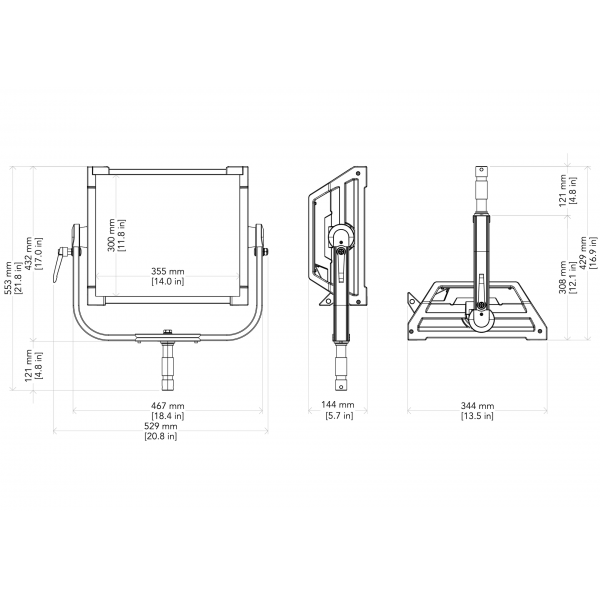

    • Dimensions (WxHxD):
      529x432x144
      mm
    • Dimensions with PO system (WxHxD):
      546x556x144
      mm
    • Weight:
      10,5
      kg
    • Weight with PO system:
      11,8
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ECLPANELTWCJR
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 1 x ECLFRSPG
    • User Manual

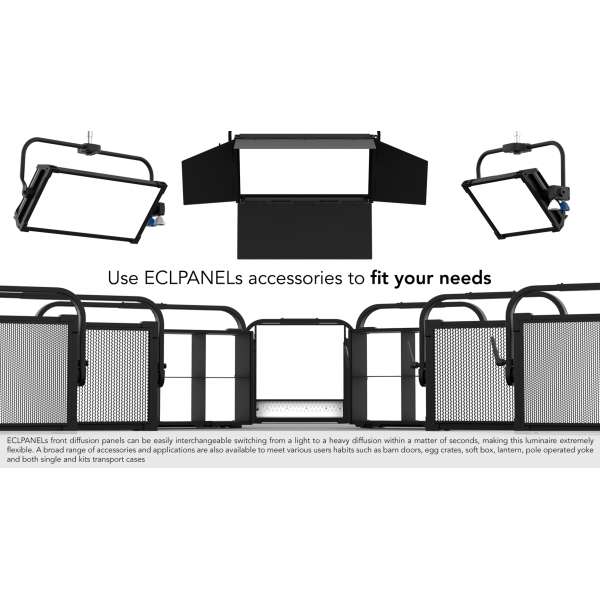

    ITEMS REF.
    Accessory Code
    Description
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    WSBBR512G5WSBBR512G5
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    WSBBR512G6WSBBR512G6
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    WSBBF1G6WSBBF1G6
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    WSBBF1G5WSBBF1G5
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    TOUR53415L03TOUR53415L03
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    958225L03958225L03
    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    9513FXWL039513FXWL03
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    FCLPANELJR4UFCLPANELJR4U
    Flight case for 4 pcs of ECLPANELTWCJR
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    9533FXWL039533FXWL03
    Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    C6040BC6040B
    Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    FCLPANELJR1UFCLPANELJR1U
    Flight case for 1 pc of ECLPANELTWCJR
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJRRCEPTWCJRRC
    Rain Cover for ECLPANELTWCJR
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    ECLPANELJRPOYOECLPANELJRPOYO
    Pole operated aluminium yoke bracket for ECLPANELTWCJR
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJRBAG1UEPTWCJRBAG1U
    Bag for 1 pc of ECLPANELTWCJR
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCBRKMEPTWCBRKM
    Center mount bracket for ECLPANELTWCJR and ECLPANELTWCM2X1
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCBHEADEPTWCBHEAD
    Ball head joint for center mount bracket EPTWCBRK series
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJRFILTERINTEPTWCJRFILTERINT
    Front intensified diffusion filter for ECLPANELTWCJR
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJRFILTERHDEPTWCJRFILTERHD
    Front high diffusion filter (less output) for ECLPANELTWCJR
    ECLPANELTWCJR (include)
    {ProdottiDaAccessorio}
    EPTWCJRFILTERMDEPTWCJRFILTERMD
    Front medium diffusion filter for ECLPANELTWCJR
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJRFILTERLDEPTWCJRFILTERLD
    Front low diffusion filter (more output) for ECLPANELTWCJR
    ECLPANELTWCJR (include)
    {ProdottiDaAccessorio}
    ECLFRSPGECLFRSPG
    Spigot for PROLIGHTS fixtures
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJREC30EPTWCJREC30
    30 degree egg crate for ECLPANELTWCJR
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJREC60EPTWCJREC60
    60 degree egg crate for ECLPANELTWCJR
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJREC4CEPTWCJREC4C
    4 chamber egg crate for ECLPANELTWCJR
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJRBDEPTWCJRBD
    Barn door with 4 directional flaps to adjust the light beam
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJRSB11EPTWCJRSB11
    SnapBag 1x1 for ECLPANELTWCJR by DoP choice
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJRSG4SB1140EPTWCJRSG4SB1140
    40° SnapGrid for SnapBag, 1x1 for ECLPANELTWCJR by DoP choice
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJRSG1140EPTWCJRSG1140
    40° SnapGrid, 1x1 for ECLPANELTWCJR by DoP choice
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSREMEPSREM
    Rabbit-Ears 1x1 MINI for ECLPANELTWCJR by DoP choice
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBRL3EPSBRL3
    Snapbag Lantern 3' for Rabbit-Ears by DoP. Incl. Lantern, Carry Bag
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBRL3C4EPSBRL3C4
    Cover for Snapbag Lantern 3' (EPSBRL3) by DoP choice; 4 sides, adj. with zipper
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBRMEPSBRM
    SnapBag Medium to be mounted on Rabbit Ears by DoP.
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSGCM40EPSGCM40
    40° SnapGrid, to be mounted on Snap Bag Medium (EPSBRM)
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBRO3EPSBRO3
    Snapbag Octa 3' to be mounted on Rabbit-Ears by DoP.
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSGC3W40EPSGC3W40
    40° SnapGrid, to be mounted on Snap Bag Octa 3' (EPSBRO3)
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBRO5EPSBRO5
    Snapbag Octa 5' to be mounted on Rabbit-Ears by DoP.
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSGC5W40EPSGC5W40
    40° SnapGrid, to be mounted on Snap Bag Octa 5' (EPSBRO5)
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBRO7EPSBRO7
    Snapbag Octa 7' to be mounted on Rabbit-Ears by DoP.
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSGC7W40EPSGC7W40
    40° SnapGrid, to be mounted on Snap Bag Octa 7' (EPSBRO7)
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBCMNSMEPSBCMNSM
    Diffusion MAGIC cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBCMNSFEPSBCMNSF
    Diffusion FULL Grid cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBCMNSHEPSBCMNSH
    Diffusion HALF Grid cloth for Snapbag 60x60cm(EPTWCJRSB11) by DoP choice
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBCMNSQEPSBCMNSQ
    Diffusion QUARTER Grid cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPSBCMNSQFMEPSBCMNSQFM
    Diff. cloth SET (1/4, 1/1,MAGIC) for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    EPTWCJRLANT11EPTWCJRLANT11
    Snapbag Lantern for ECLPANELTWCJR by DoP. Incl. Lantern, Backcovers, Carry Bag
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    SPGM12SPGM12
    28mm spigot for fixtures, M12 bolt
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    SPGM10SPGM10
    28mm spigot for fixtures, M10 bolt
    ECLPANELTWCJR (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Eclpaneltwcjr_A4_DATASHEET_(ITA).pdf 2MB
    Eclpaneltwcjr_LETTER_DATASHEET_(EN).pdf 297KB
    Eclpaneltwcjr_A4_DATASHEET_(EN).pdf 2MB
    Eclpaneltwcjr_LETTER_DATASHEET_(EN).pdf 2MB
    Eclpaneltwcjr_TENDER_SPECIFICATION.pdf 5MB

    User manual

    File name File size Download
    Eclpaneltwcjr_USER_MANUAL_EN.pdf 6MB
    GENERAL_SAFETY_INFORMATION.pdf 12MB

    DMX chart & personalities

    File name File size Download
    Eclpaneltwcjr_DMX_CHARTS.pdf 620KB
    ECLPANELTWCJR_VECTORWORKS_SYMBOLS.vwx 346KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 295MB
    ECLPANELTWCJR_+PO_VECTORWORKS_SYMBOLS.vwx 3MB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 422MB
    ECLPTR+BRKL+BHEAD_VW_SYMBOLS.vwx 2MB
    ECLPTJR+BRKL_VW_SYMBOLS.vwx 606KB
    ECLPANELTWCJR Firmware rev. 2.2
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    prolights_eclpaneltwcjr_1chtheater.hedDownload
    prolights_eclpaneltwcjr_2hpixels.hedDownload
    prolights_eclpaneltwcjr_2vpixels.hedDownload
    prolights_eclpaneltwcjr_4chtheater.hedDownload
    prolights_eclpaneltwcjr_4chtour.hedDownload
    prolights_eclpaneltwcjr_4pixels.hedDownload
    prolights_eclpaneltwcjr_5ch1theater.hedDownload
    prolights_eclpaneltwcjr_5ch2theater.hedDownload
    prolights_eclpaneltwcjr_6chtheater.hedDownload
    prolights_eclpaneltwcjr_6chtour.hedDownload
    prolights_eclpaneltwcjr_10chtheater.hedDownload
    prolights_eclpaneltwcjr_10chtour.hedDownload
    prolights_eclpaneltwcjr_11chtour.hedDownload
    prolights_eclpaneltwcjr_15chtheater.hedDownload
    prolights_eclpaneltwcjr_15chtour.hedDownload
    prolights_eclpaneltwcjr_17chtheater.hedDownload
    eclpaneltwcjr_pixel1_7ch.fdfDownload
    eclpaneltwcjr_pixel2h_11ch.fdfDownload
    eclpaneltwcjr_pixel2v_11ch.fdfDownload
    eclpaneltwcjr_pixel4_19ch.fdfDownload
    eclpaneltwcjr_theatre_1ch.fdfDownload
    eclpaneltwcjr_theatre_2ch.fdfDownload
    eclpaneltwcjr_theatre_4ch.fdfDownload
    eclpaneltwcjr_theatre_5ch1.fdfDownload
    eclpaneltwcjr_theatre_5ch2.fdfDownload
    eclpaneltwcjr_theatre_6ch.fdfDownload
    eclpaneltwcjr_theatre_10ch.fdfDownload
    eclpaneltwcjr_theatre_17ch.fdfDownload
    eclpaneltwcjr_theatre_21ch.fdfDownload
    eclpaneltwcjr_tour_4ch.fdfDownload
    eclpaneltwcjr_tour_6ch.fdfDownload
    eclpaneltwcjr_tour_10ch.fdfDownload
    eclpaneltwcjr_tour_11ch.fdfDownload
    eclpaneltwcjr_tour_15ch.fdfDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    prolights@eclpaneltwcjr@rev 1.6.gdtfDownload
    manufacturer fixture library (Link) Link
    prolights@eclpaneltwcjr@1ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@1pixel@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@2ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@2h_pixels@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@2v_pixels@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@4ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@4ch_tour@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@4h_pixels@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@5ch-1_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@5ch-2_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@6ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@6ch_tour@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@10ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@10ch_tour@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@11ch_tour@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@15ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@15ch_tour@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@17ch_theatre@rev_1.6.xmlDownload
    eclpaneltwcjr.zipDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    ecl panel twc jr 1 channel theatre.v3fDownload
    ecl panel twc jr 1 pixel.v3fDownload
    ecl panel twc jr 2 channel theatre.v3fDownload
    ecl panel twc jr 2h pixel.v3fDownload
    ecl panel twc jr 2v pixel.v3fDownload
    ecl panel twc jr 4 channel theatre.v3fDownload
    ecl panel twc jr 4 channel tour.v3fDownload
    ecl panel twc jr 4 pixel.v3fDownload
    ecl panel twc jr 5 channel 1 theatre.v3fDownload
    ecl panel twc jr 5 channel 2 theatre.v3fDownload
    ecl panel twc jr 6 channel theatre.v3fDownload
    ecl panel twc jr 6 channel tour.v3fDownload
    ecl panel twc jr 10 channel theatre.v3fDownload
    ecl panel twc jr 10 channel tour.v3fDownload
    ecl panel twc jr 11 channel tour.v3fDownload
    ecl panel twc jr 15 channel theatre.v3fDownload
    ecl panel twc jr 15 channel tour.v3fDownload
    ecl panel twc jr 17 channel theatre.v3fDownload
    ECLPANELTWCJR Firmware rev. 1.1
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    prolights_eclpaneltwcjr_1chtheater.hedDownload
    prolights_eclpaneltwcjr_2hpixels.hedDownload
    prolights_eclpaneltwcjr_2vpixels.hedDownload
    prolights_eclpaneltwcjr_4chtheater.hedDownload
    prolights_eclpaneltwcjr_4chtour.hedDownload
    prolights_eclpaneltwcjr_4pixels.hedDownload
    prolights_eclpaneltwcjr_5ch1theater.hedDownload
    prolights_eclpaneltwcjr_5ch2theater.hedDownload
    prolights_eclpaneltwcjr_6chtheater.hedDownload
    prolights_eclpaneltwcjr_6chtour.hedDownload
    prolights_eclpaneltwcjr_10chtheater.hedDownload
    prolights_eclpaneltwcjr_10chtour.hedDownload
    prolights_eclpaneltwcjr_11chtour.hedDownload
    prolights_eclpaneltwcjr_15chtheater.hedDownload
    prolights_eclpaneltwcjr_15chtour.hedDownload
    prolights_eclpaneltwcjr_17chtheater.hedDownload
    eclpaneltwcjr_pixel1_7ch.fdfDownload
    eclpaneltwcjr_pixel2h_11ch.fdfDownload
    eclpaneltwcjr_pixel2v_11ch.fdfDownload
    eclpaneltwcjr_pixel4_19ch.fdfDownload
    eclpaneltwcjr_theatre_1ch.fdfDownload
    eclpaneltwcjr_theatre_2ch.fdfDownload
    eclpaneltwcjr_theatre_4ch.fdfDownload
    eclpaneltwcjr_theatre_5ch1.fdfDownload
    eclpaneltwcjr_theatre_5ch2.fdfDownload
    eclpaneltwcjr_theatre_6ch.fdfDownload
    eclpaneltwcjr_theatre_10ch.fdfDownload
    eclpaneltwcjr_theatre_17ch.fdfDownload
    eclpaneltwcjr_theatre_21ch.fdfDownload
    eclpaneltwcjr_tour_4ch.fdfDownload
    eclpaneltwcjr_tour_6ch.fdfDownload
    eclpaneltwcjr_tour_10ch.fdfDownload
    eclpaneltwcjr_tour_11ch.fdfDownload
    eclpaneltwcjr_tour_15ch.fdfDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    prolights@eclpaneltwcjr@rev 1.6.gdtfDownload
    manufacturer fixture library (Link) Link
    prolights@eclpaneltwcjr@1ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@1pixel@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@2ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@2h_pixels@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@2v_pixels@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@4ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@4ch_tour@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@4h_pixels@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@5ch-1_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@5ch-2_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@6ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@6ch_tour@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@10ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@10ch_tour@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@11ch_tour@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@15ch_theatre@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@15ch_tour@rev_1.6.xmlDownload
    prolights@eclpaneltwcjr@17ch_theatre@rev_1.6.xmlDownload
    eclpaneltwcjr.zipDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    ecl panel twc jr 1 channel theatre.v3fDownload
    ecl panel twc jr 1 pixel.v3fDownload
    ecl panel twc jr 2 channel theatre.v3fDownload
    ecl panel twc jr 2h pixel.v3fDownload
    ecl panel twc jr 2v pixel.v3fDownload
    ecl panel twc jr 4 channel theatre.v3fDownload
    ecl panel twc jr 4 channel tour.v3fDownload
    ecl panel twc jr 4 pixel.v3fDownload
    ecl panel twc jr 5 channel 1 theatre.v3fDownload
    ecl panel twc jr 5 channel 2 theatre.v3fDownload
    ecl panel twc jr 6 channel theatre.v3fDownload
    ecl panel twc jr 6 channel tour.v3fDownload
    ecl panel twc jr 10 channel theatre.v3fDownload
    ecl panel twc jr 10 channel tour.v3fDownload
    ecl panel twc jr 11 channel tour.v3fDownload
    ecl panel twc jr 15 channel theatre.v3fDownload
    ecl panel twc jr 15 channel tour.v3fDownload
    ecl panel twc jr 17 channel theatre.v3fDownload

    Photometrics

    File name File size Download
    prolights_eclpaneltwcjr_ies files.zip 29KB
    prolights_eclpaneltwcjr_ldt files.zip 24KB
    Eclpaneltwcjr_PHOTOMETRICS_REPORT.pdf 5MB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    ECLPANELTWCJR_3D_REVIT.zip 3MB
    ECLPANELTWCJR_3D_SKETCHUP.zip 2MB
    ECLPANELTWCJR_2D.zip 15MB
    ECLPANELTWCJR_3D.zip 1MB
    ECLPANELTWCJR_2DSYMBOLS.zip 146KB
    ECLPANELTWCJR_TECHNICAL DRAWINGS.zip 659KB

    Tech docs

    File name File size Download
    Eclpaneltwcjr_NOISE_REPORT.pdf 249KB

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5
    Check hardware changelog before downloading firmware
    Revision Release date HW Compatibility
    2.2 STABLE 23/12/2021

    Firmware for Hardware revision: 2.0, 3.0, 4.0, 5.0 - To check revision please refer to label on product.
    Equivalent firmware version for Hardware revision <2.0: 1.1
    Equivalent firmware version for ECLPANELTWC: 2.9 / 1.6
    Equivalent firmware version for ECLPANELTWCJR4X1: 1.0
    Equivalent firmware version for ECLPANELTWCM2X1: 1.0

    New functions:

    • Added Dimmer End selector, possibility to have Snap or Fade at dimmer ends. Default for Standard: Fade , for Film: Snap
    • Added XY DMX Chart.
    • Added XY mode into Stand Alone mode.
    • Added Display value selector, possibility to show Raw DMX value or Percentage while using Stand Alone mode.
    • Added 21Ch Theater Mode.

    Improvements:
    • Improved dimming at High Frequencies.
    • Improved dimming while using RGBW channels as dimmer.
    • Improved dimmer cut on Film DMX Charts.
    		 Rev. 4.0
    Rev. 5.0
    1.1 STABLE 22/12/2021

    Firmware for Hardware revision: 1.0 - To check revision please refer to label on product.
    Equivalent firmware version for Hardware revision >1.0: 2.2
    Equivalent firmware version for ECLPANELTWC: 2.9 / 1.6
    Equivalent firmware version for ECLPANELTWCJR4X1: 1.0
    Equivalent firmware version for ECLPANELTWCM2X1: 1.0


    New functions:

    • Added Dimmer End selector, possibility to have Snap or Fade at dimmer ends. Default for Standard: Fade , for Film: Snap
    • Added XY DMX Chart.
    • Added XY mode into Stand Alone mode.
    • Added Display value selector, possibility to show Raw DMX value or Percentage while using Stand Alone mode.
    • Added 21Ch Theater Mode.

    Improvements:
    • Improved dimming at High Frequencies.
    • Improved dimming while using RGBW channels as dimmer.
    • Improved dimmer cut on Film DMX Charts.
    Subscribe to our Newsletter
