EclPar
ORDER CODE: ECLPAR
Share me

Immagine Principale
  • ECLPAR
  • ECLPAR
  • ECLPAR
  • ECLPAR
  • ECLPAR
  • ECLPAR
  • EclPar
    Code CT CRI R9 Lumen Avail.
    ECLPARDY 5.600 K > 96 > 96 13'739
    ECLPARTU 3.200 K > 97 > 97 12'454
    ECLPARUV - - - -

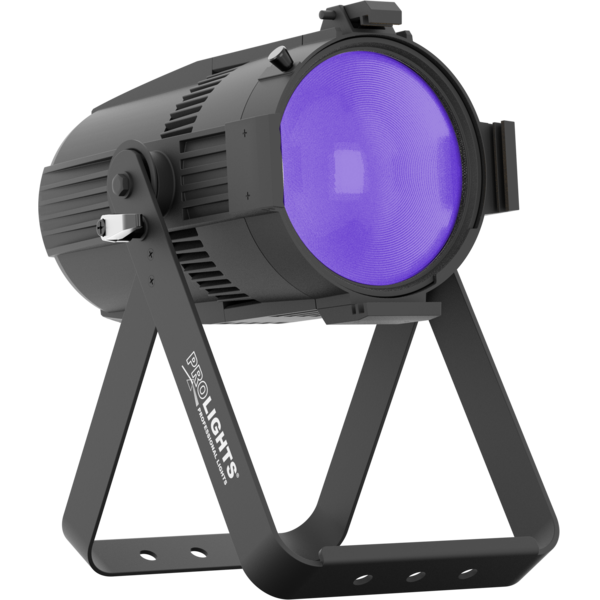

    EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.

    Features:
    177W White LED source (3.200 K TU; 5.600 K DY) with CRI and R9 > of 96; UV 108W 365nm wavelength LED source
    Flex lens system: TU and DY 24° on-board - 12° and 73° included - 40° optional - UV 40° on-board
    Silent operation and adjustable PWM

    LIGHT SOURCE
    • Source:
      177 W white LED / 108
      W
      UV LED
    • CCT:
      (TU) 3.200K - (DY) 5.600
    • Luminous flux:
      (TU) 12°: 11'726 lm - 24°: 12'454 lm - 73°: 11'834
      lm
      @full
    • Luminous flux:
      (DY) 12°: 13'739 lm - 24°: 14'436 lm - 73°: 13'913 lm; (UV) 229,07 lm
    • Lux:
      (TU) 12°: 5'102 lx - 24°: 2'333 lx - 73°: 344
      lx
      @5 m full
    • Lux:
      (DY) 12°: 5'947 lx - 24°: 2'777 lx - 73°: 413 lx; (UV) 5'724
      lx
      @5 m full
    • CRI:
      > 97 for TU; > 96 for DY
    • R9:
      > 97 for TU; > 96 for DY
    • TLCI:
      > 98 for TU; > 95 for DY
    • TM30 Rf:
      > 93 for TU; > 90 for DY
    • TM30 Rg:
      < 102 for TU; < 101 for DY
    • Source life expectancy:
      > 70.000 h
    OPTICS
    • Beam angle:
      with different lens included: 12° / 24° / 73
      °
    • Field angle:
      with different lens included: 28° / 41° / 104
      °
    • Lens diameter:
      163
      mm
    • Lens type:
      fresnel lens
    • Additional optics:
      24° (onboard - for TU and DY versions), 12° and 73° lens included (for TU and DY versions), 40° lens optional (for TU and DY versions)
    • Other:
      40° lens included on board in UV version; no other lenses availables
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      aluminium die-casting
    • Body colour:
      black
    • Other:
      gel frame holder included in the box (for TU and DY versions) - egg crate optional - barndoors optional
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      1 / 2 / 3 / 6
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      OLED display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      (TU, DY) 207 W - (UV) 204
      W
    • Output (at 230V):
      (TU, DY) 12 - (UV) 16
      units on a single power line
    • Power factor:
      > 0.95
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      Amphenol XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      316x404x317
      mm
    • Weight:
      5,5
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x ECLPAR
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
    • 1 x ECLPARLENS24
    • 1 x ECLPARLENS65
    • 1 x ECLPARTPG
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FCA socket
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Flightcase for 6 pcs of ECLPAR
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Barn door with directional flaps to adjust the light beam for ECLPAR series
    ECLPAR (include)
    {ProdottiDaAccessorio}
    Lens for ECLPAR projectors series
    ECLPAR (include)
    {ProdottiDaAccessorio}
    Lens for ECLPAR projectors series
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Lens for ECLPAR projectors series
    ECLPAR (include)
    {ProdottiDaAccessorio}
    Lens for ECLPAR projectors series
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Egg crate for ECLPAR projectors series
    ECLPAR (include)
    {ProdottiDaAccessorio}
    Gel filter frame for ECLPAR projectors
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    28mm spigot for fixtures, M10 bolt
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    28mm spigot for fixtures, M12 bolt
    ECLPAR (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5p XLR DMX OUT, DMX OUT
