EclSoft Tube100 new
ORDER CODE: ECLSOFTTUBE100
Share me

Immagine Principale
  • ECLSOFTTUBE100
  • ECLSOFTTUBE100
  • ECLSOFTTUBE100
  • ECLSOFTTUBE100
  • ECLSOFTTUBE100
  • ECLSOFTTUBE100
  • ECLSOFTTUBE100

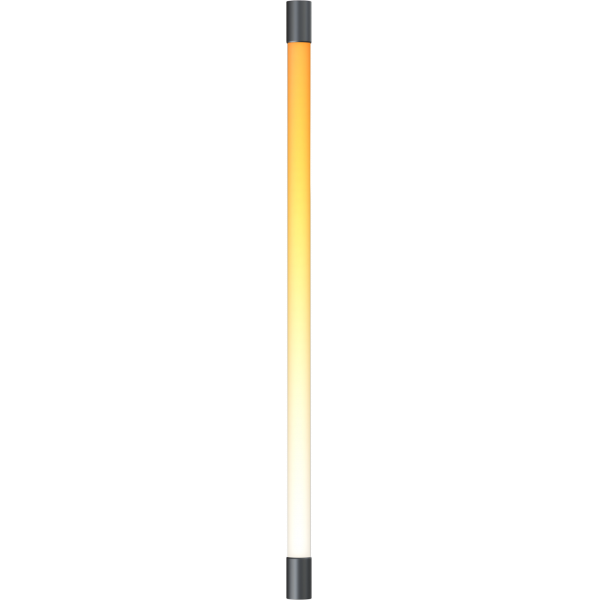

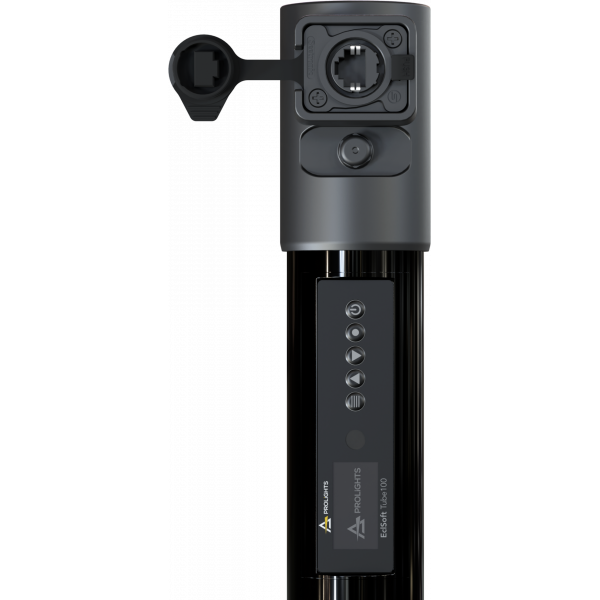

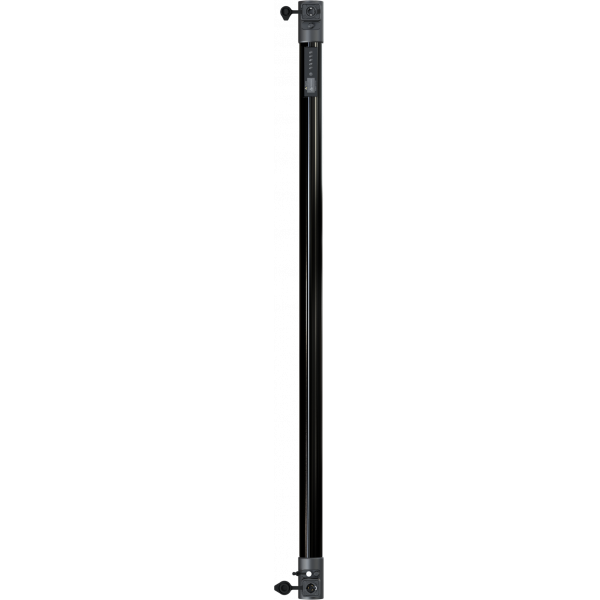

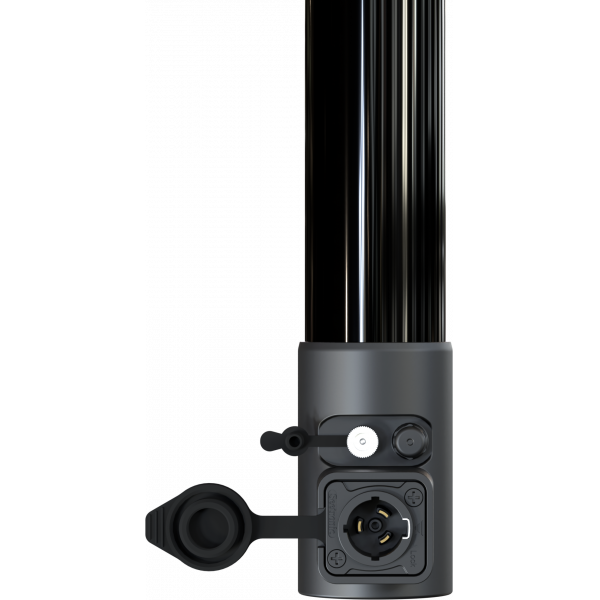

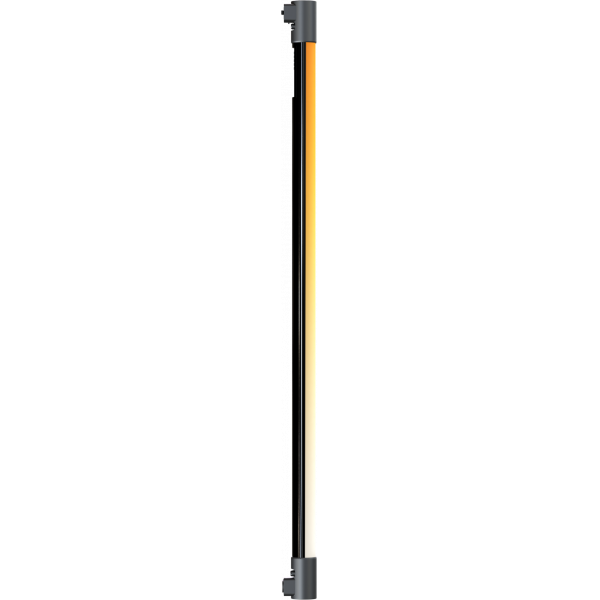

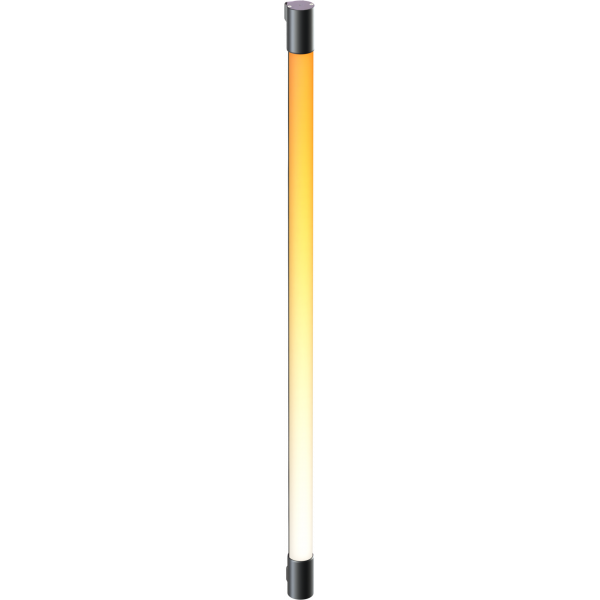

    • The EclSoft Tube100 is a multipurpose, IP65 wireless linear pixel tube designed for Film & TV, indoor and outdoor environments. The EclSoft Tube100 has a 48W RGB + Warm White LED source with 16 independently-controlled sections. Similar the other fixtures in the soft light range, it has an RGBW mode, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels. This fixture has high-quality tunable white with ultra-high CRI, as well as on-board cinema effects and pixel effects. This fixture is also “Spektra™ Calibrated”, sharing the same colour calibration standard as some other luminaires. The EclSoft Tube100 can be used wirelessly with its on-board battery and Wireless DMX control (CRMX + W-DMX). There is also a wired connection for mains power and an ethernet port for Art-Net or s/ACN.

    Features:
    Hybrid fixture, Wireless DMX (CRMX+W-DMX) / ethernet control, battery/mains power
    Pixel control, on-board cinema pixel engine, RGB + Warm White LED source with high CRI (up to 93) and TLCI
    IP65 for outdoor applications

    LIGHT SOURCE
    • Source:
      48
      W
      RGB + Warm White
    • Luminous flux:
      2'386
      lm
      @full
    • Lux:
      71
      lx
      @3 m
    • Lux:
      161
      lx
      @2 m
    • CRI:
      93
    • R9:
      92
    • TLCI:
      91
    • TM30 Rf:
      91
    • TM30 Rg:
      105
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      128
      °
    • Field angle:
      199
      °
    • Lens type:
      frosted acrylic tube
    COLOUR SYSTEM
    • Colour control:
      XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
    • Colour mixing:
      RGB + Warm White
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K - 10.000
      K
      with 28 K resolution
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer, colours
    • Pixel patterns:
      pre-programmed pixel macros and cinema lighting effects patterns
    • FX generator:
      16 sections with
      adjustable foreground/background colour, index, speed, direction
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Body:
      sturdy policarbonate and die casting aluminium
    • Body colour:
      black on the back and white wash on the front
    CONTROL
    • Protocols:
      Art-Net, Kling-Net, sACN, CRMX+W-DMX
    • DMX channels:
      main personality 1 / 2 / 13 / 14 / 18 / 19 / 20 / 23 / 33 / 43
      channel
    • Wireless Control:
      included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1+EST100UPBOXI) not included
    • IR:
      infrared sensor controlled by remote (included in the pack, not included in single unit)
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      0° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      3.000 / 6.000 /12.000 / 24.000 Hz
    ELECTRICAL
    • Max power consumption:
      34 W
    • Mains power supply:
      100-240V - 50/60Hz
    • Low Voltage DC mains:
      24V
    • Power factor:
      >0,96
    BATTERY
    • Battery:
      24
      V
      lithium
    • Estimated battery life:
      Selectable 3h / 6h / 8h / 12h / 16h / 18
      h
    • Re-charge connection:
      DC with jack and AC with standard powercon connector
    • Re-charge time:
      5
      h/max
    • Battery status:
      shown on display
    • Other:
      Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through external charger
    PHYSICAL
    • IP rating:
      IP65
      for temporary outdoor application, not for fixed installations
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      M5 threaded insert for eye bolt, floor stand and clamp for wall installation
    • Data connection:
      Seetronic RJ45 IP65 IN
    • Power connection:
      DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN
    • Dimensions (WxHxD):
      1.163x50x50
      mm
    • Weight:
      2,4
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ECLSOFTTUBE100
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100OSPLUSEST100OSPLUS
    Clamp for ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100OSEST100OS
    Clamp for ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    ENPTWCMAGENPTWCMAG
    Fixing system with magnet for ECLNANOPANELTWC and ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100MAGADPEST100MAGADP
    M10 to M5 adapter to use ENPTWCMAG with ECLNANOPANELTWC and ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100FYEST100FY
    Tripod for ECLNANOPANELTWC and ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100EBEST100EB
    Eyebolt for ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100BPEST100BP
    Baby Pin for ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100WPEST100WP
    Wingplate for ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100CPEST100CP
    Crossplate for ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100SPCREST100SPCR
    Spacer for ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100POWER8EST100POWER8
    8-way charger for ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100POWEREST100POWER
    Single charger for ECLSOFTTUBE100
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    PRL-IRCPRL-IRC
    RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100SBEST100SB
    SnapBag per fino a 4 pcs ECLSOFTTUBE100 by DoP choice
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100SG40EST100SG40
    40° SnapGrid, for ECLSOFTTUBE100 by DoP choice
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    LRLUNALRLUNA
    Single Universe DMX transceiver with Bluetooth
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    EST100UPBOXIEST100UPBOXI
    Interface for UPBOX1 and ECLSOFTTUBE100 for firmware upgrade and DMX control
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    IPTESTBOXIPTESTBOX
    Portable vacuum and pressure tester for ProLights IP fixtures
    ECLSOFTTUBE100 (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Letter datasheet Eclsofttube100_A4_DATASHEET_(EN).pdf 462KB
    Tender Specification Eclsofttube100_TENDER_SPECIFICATION.pdf 3MB

    User manual

    File name File size Download
    User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
    User manual Eclsofttube100_USER_MANUAL_EN.pdf 4MB
    General safety info GENERAL_SAFETY_INFORMATION.pdf 10MB
    User manual Eclsofttube100_Wireless_Protocol_Compatibilit_EN.pdf 4MB

    DMX chart & personalities

    File name File size Download
    DMX chart Eclsofttube100_DMX_CHARTS.pdf 539KB
    VectorWorks VECTORWORKS_SYMBOLS.vwx 212KB
    VectorWorks +EST100FY_VECTORWORKS_SYMBOLS.vwx 658KB
    VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
    VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    ECLSOFTTUBE100 Firmware rev. 1.1.01.0
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    ECLSOFTTUBE100 Firmware rev. 1.1.00.0
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    IES prolights_eclsofttube100_ldt_ies files.zip 52KB
    PDF Photometrics Eclsofttube100_PHOTOMETRICS_REPORT.pdf 3MB
    Dialux Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    3D sketchup ECLSOFTTUBE100_3D_SKETCHUP.zip 3MB
    3D ECLSOFTTUBE100_3D.zip 3MB
    2D Eclsofttube100_2D.dwg 12MB
    2D cad symbols Eclsofttube100_2DSYMBOLS.dwg 48KB

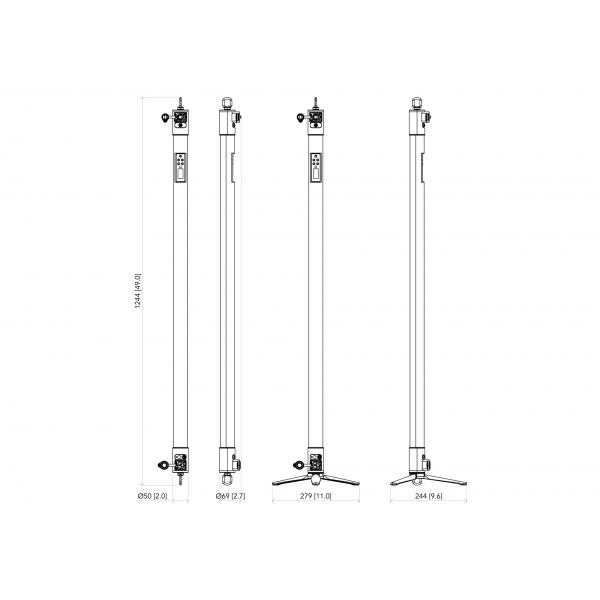

    Technical drawing Eclsofttube100_TECHNICAL_DRAWING.pdf 570KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5 {CodiceUpBox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.1.01.0 STABLE 29/05/2023 New functions:
    • Power Mode selector replaces FIXTURE TYPE.
      Power Mode selector allows you to select between 3 options:
      • BATTERY:
        • If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged in, fixture will draw power from the mains and status of light output won't be affected (only max power will be higher than what available on battery).
        • If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged out, fixture will draw power from the battery and status of light output won't be affected (only max power will be reduced) .
        • Pressing Power button for 3 seconds without mains present --> fixture will turn on and follow its settings (Standalone or DMX/WDMX)
        • Pressing Power button for 3 seconds while using without mains present --> fixture will turn off.
        • Pressing Power button for 3 seconds while charging --> fixture will turn on and follow its settings (Standalone or DMX/WDMX), or would keep charging if nothing is setted/no signal received
        • Pressing Power button for 3 seconds while using with mains present--> fixture will turn off and start charging.
        • Plugging Mains power for 3 seconds while fixture is off --> fixture will start charghing.
        • Plugging Mains power OFF for 3 seconds while fixture is charghing --> fixture will stop charging and turn off.
      • AC:
        • Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally.
        • If Battery recharge is enabled, battery will be recharged as soon as dimmer@0 dmx value or pressing the power button for 3 seconds.
        • If Battery recharge is disabled, battery won't be recharged.
        • Fixture will turn off as soon as AC is plugged out.
      • AC EMERGENCY:
        • Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally.
        • If Battery recharge is enabled, battery will be recharged as soon as dimmer@0 dmx value or pressing the power button.
        • If Battery recharge is disabled, battery won't be recharged.
        • Fixture will turn on at full power with 6000K White as soon as AC is missing. To turn off the fixture user can use control channel dedicated parameter or power button on the fixture.
    • Spektra Calibration: new modes available
      • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
      • PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
      • OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.
    • Added Dimmer Speed Off.
    Improvements:
    • Power On/Off button requires 3 seconds to take effect.
    • Jump prediction added to crossfade channel.
    • Improve processing speed/loss ETH signal data.
    • Improved CMY colors.
    • Improved sync on Stand Alone Effects mode.
    • Improved Stand Alone Tour Effects, Color Macro, XY, Source Emulation.
    • Improved Tungsten Emulation.
    • Improved wireless indicator symbology.
    • Adjusted Control Channel to fit new functions as follows.
      • Spektra Calibration On (Control channel values 26 - 27 )
      • Spektra Calibration Pure Colors  (Control channel values 28 - 29)
      • Spektra Calibration Off (Control channel values 60-61)
      • Dimmer Speed Off (Control channel values 62-63)
      • Power Mode Battery (Control channel values 98-99)
      • Power Mode AC (Control channel values 100-101)
      • Power Mode AC Emergency (Control channel values 102-103)
      • Shutdown Fixture (Control channel values 104-105)
      • Battery Recharge Enable (Control channel values 110-111)
      • Battery Recharge Disable (Control channel values 112-113)
    Fixed bugs:
    • Crossfade from Color to Pixel Engine not working correctly while using ArtNet in Unicast mode.
    • Fixed bugs related to switching between WDMX/ETH protocols.
    • Data Signal-DMX Fault transition is not instantaneous but takes place in fade.
    • Process Effect in Cine FX does not work properly.
    • Color Macro's "Bright Red" gel is missing.
    • Control Mode Selector does not work correctly.
    • Wireless Quality is not updated in real time.
    		 Rev. 1.0
    Rev. 1.1

    Info Request
