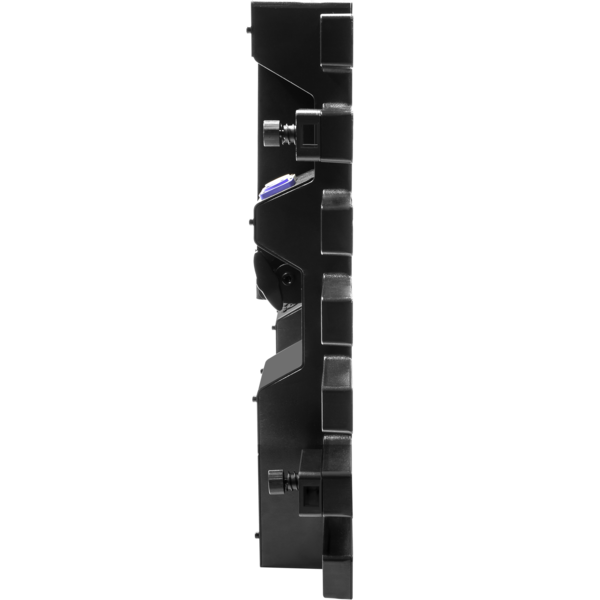

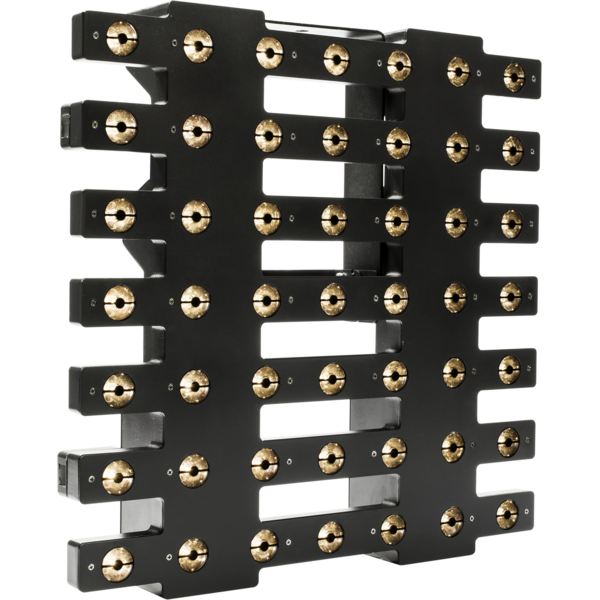

  • Halu Pix is a LED matrix module capable of projecting volumetric graphics, simulating a 3D effect. The cutting-edge optic design combines warm white 2.800 K LED source with special 8° optic reflectors which generates a long through projection of sharp beams in the air. It offers great flexibility of control with various static alphanumeric and gobo pattern, dynamic pattern, with speed, index, rotation, background and foreground control, dimmer fade which can be controlled by DMX, ArtNet and KlingNet.

    Features:

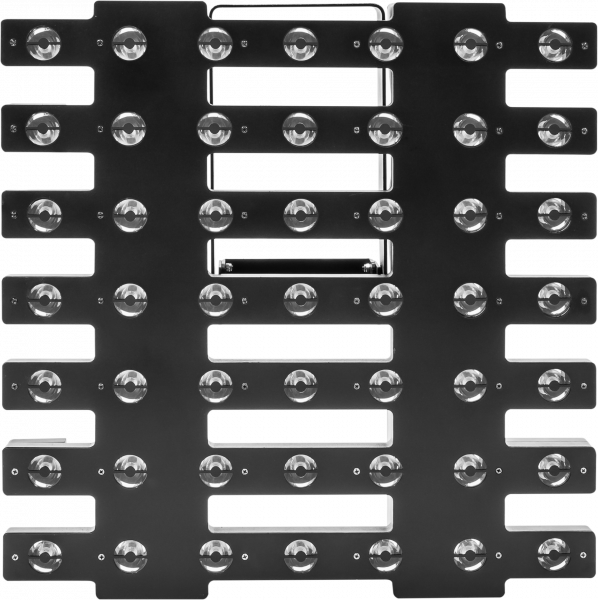

    49(7x7 matrix)x 3W CREE Warm White LEDs, with a 2.800 K colour temperature
    8° tight light beams through high definition optic collimator
    DMX, Art-Net and Kling-Net control protocol supported
    Pixel control: singular control of each individual LED
    Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background dimmer, dimmer fade, speed and rotation

    LIGHT SOURCE
    • Source:
      49(7x7)x3
      W
      Warm White LED
    • CCT:
      2.800
      K
    • Luminous flux:
      5'300
      lm
    • Lux:
      30'239
      lx
      @3 m
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      7
      °
    • Field angle:
      8
      °
    • Pixel pitch:
      72
      mm

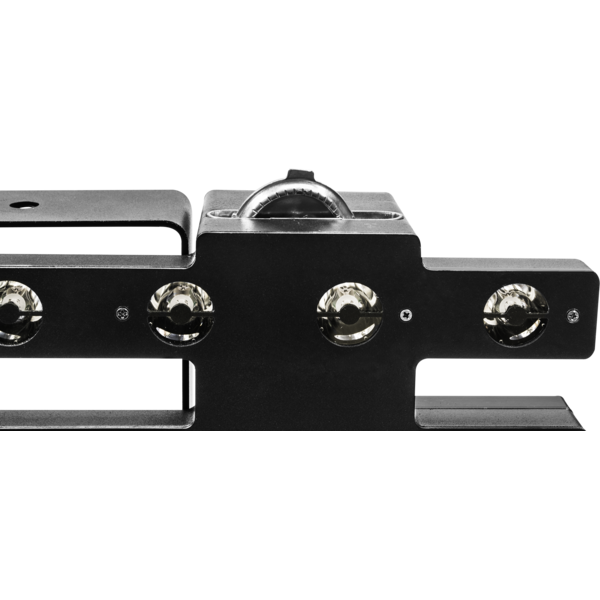

    • Lens type:
      HD anti-reflection lenses with achromatic coating
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Hardware on-board:
      on board mechanics for modular assembly of multiple fixtures
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, Art-Net, Kling-Net
    • DMX channels:
      5 / 49 / 54
      channel
    • Pixel control:
      pixel2pixel control

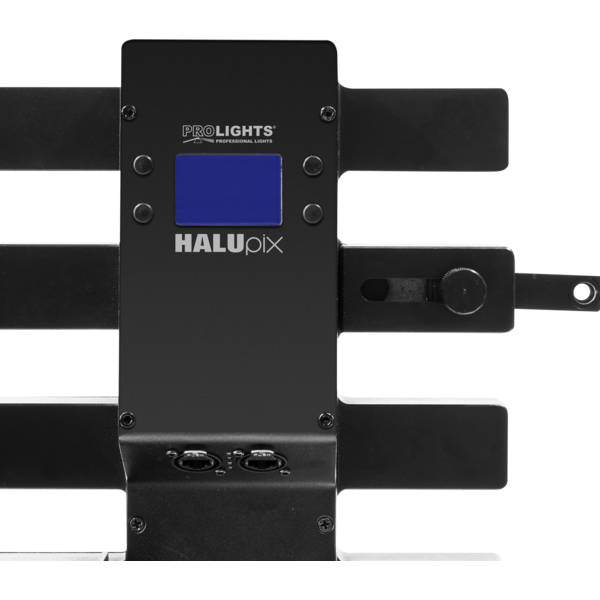

    • Display:
      LCD display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      Selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      175
      W
    • Max power consumption (at 120 V):
      173
      W
    • Output (at 230 V):
      12
      units on a single power line
    PHYSICAL
    • Cooling:
      active, silent operation

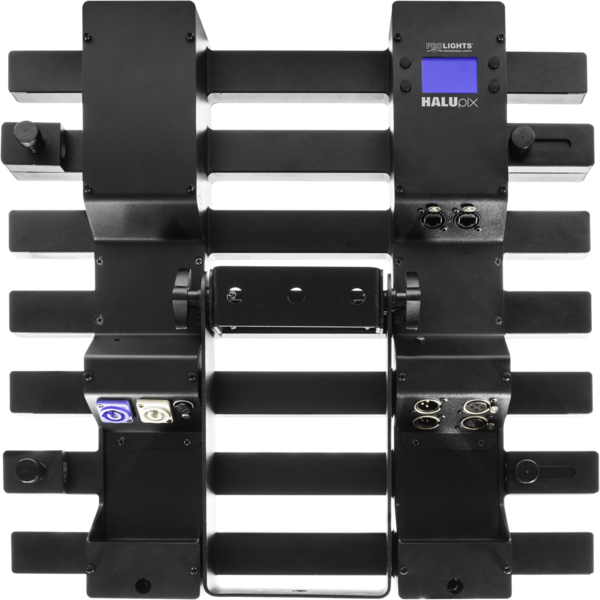

    • Sospension and fixing:
      bracket for truss rigging and hardware for connection of more units
    • Signal connection:
      Neutrik XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      500x500x81
      mm
    • Weight:
      7,5
      kg
