Jade
ORDER CODE: JADE
Share me

280W

Immagine Principale
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE
  • JADE

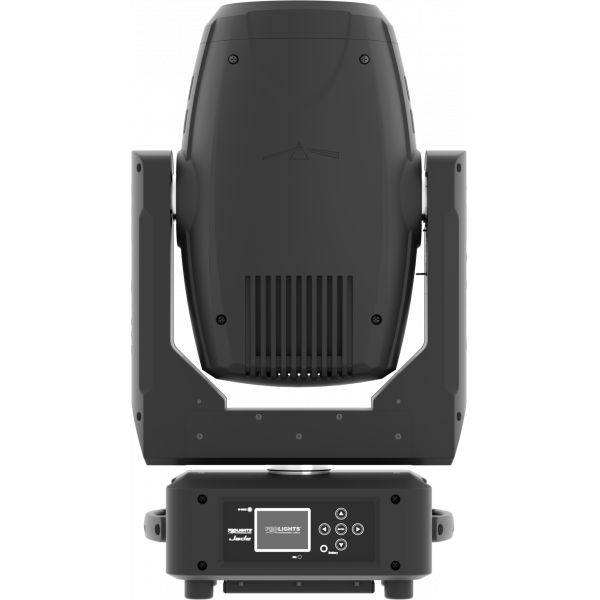

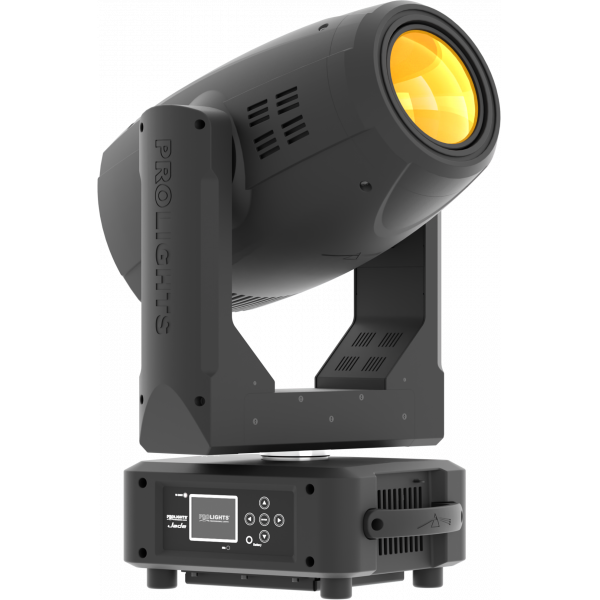

    • Jade is a hybrid moving light delivering a full toolkit for designers in a single, compact fixture. Harnessing the power of the 280W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot - all from a single unit.

    Features:
    Massive 2° to 23° zoom range with beam and spot modes
    13 position colour wheel including CTC filters
    Extensive effects including: rotating gobo wheel, static gobo wheel, dual prisms and linear frost

    LIGHT SOURCE
    • Source:
      280
      W
      S Osram Sirius HRI
    • CCT:
      7.800
    • Luminous flux:
      8'866
      lm
    • Lux:
      (1.5°) 288'031
      lx
      @5 m full
    • Lux:
      (4.5°) 42'264
      lx
      @5 m
    • Source life expectancy:
      2.000 h
    OPTICS

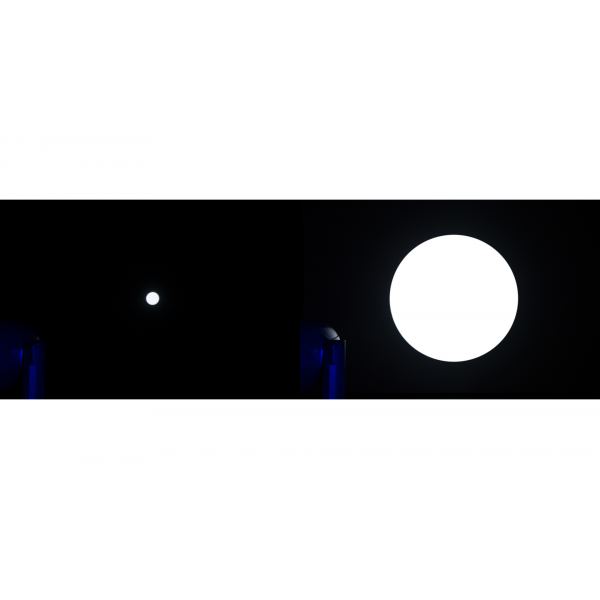

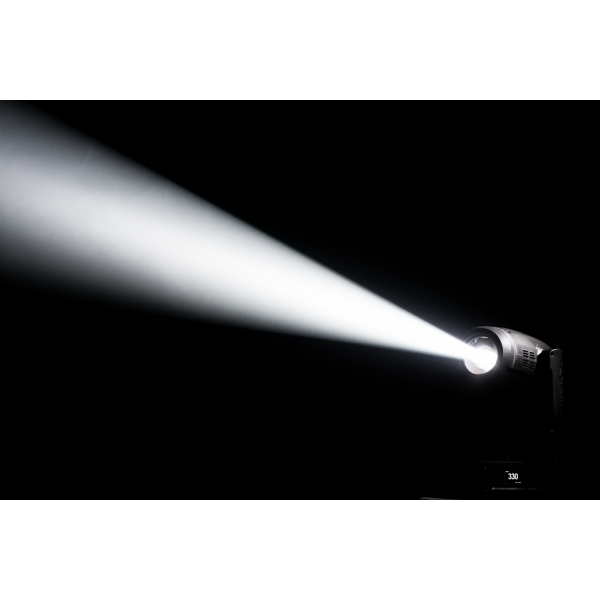

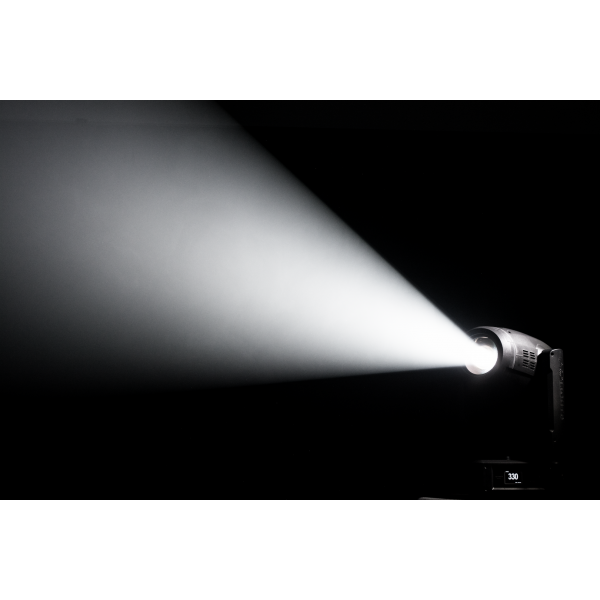

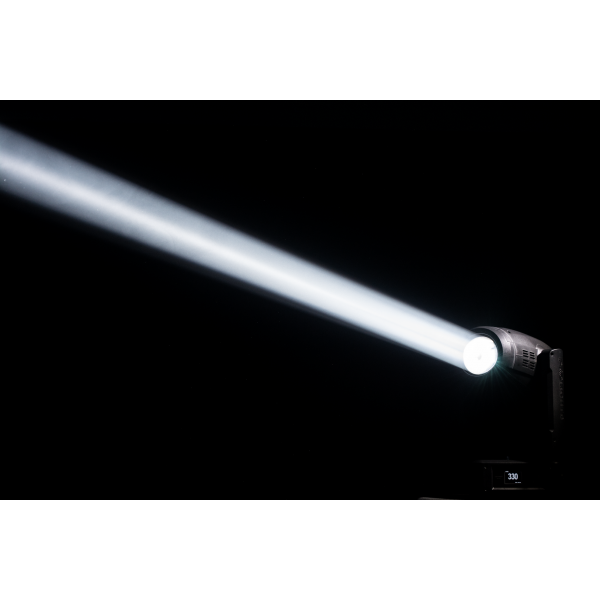

    • Zoom:
      beam: 2° - 10° / spot: 5,5° - 23
      °
      motorised linear zoom
    • Lens diameter:
      117
      mm
    • Lens type:
      high-quality glass lens optics
    • Additional optics:
      heat filter to switch from beam to spot modes
    • Focus:
      motorised with auto-focus
    COLOUR SYSTEM

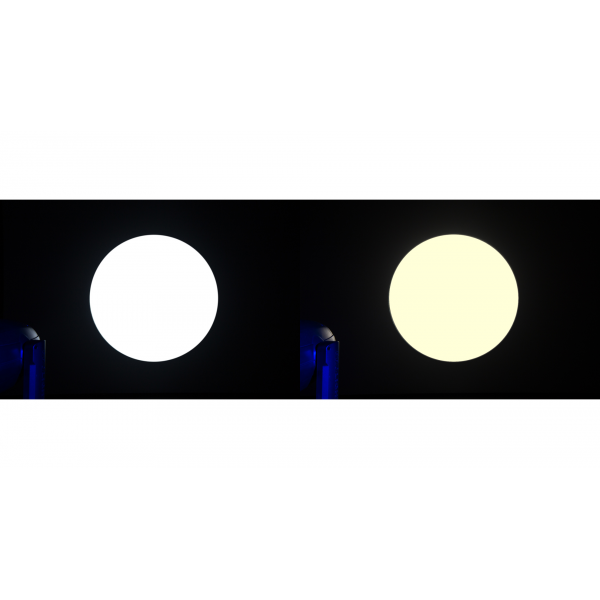

    • CCT:
      on wheel 2.500 K and 3.200 K + CTB
    • Colour wheel:
      13
      colour filters
    • Macros:
      linear, half colours, colour bounce
    DYNAMIC EFFECTS

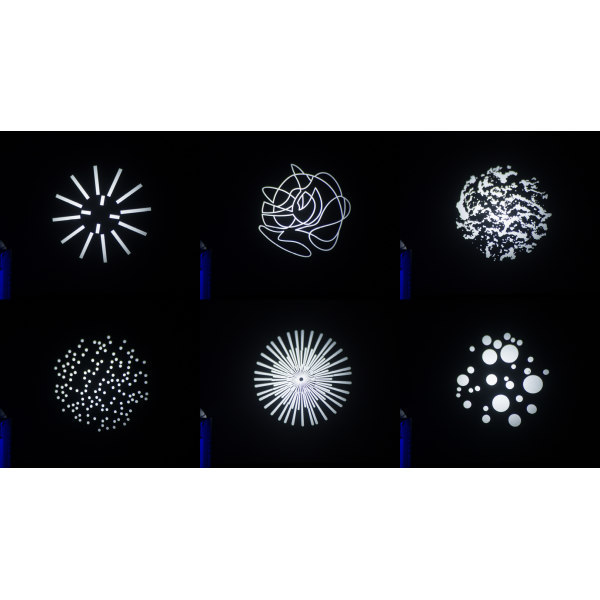

    • Rotating gobos:
      9
      rotating gobos + open, interchangeable
    • Gobo size:
      outer: 15,7 mm - image: 12 mm - thickness: 1,1 mm

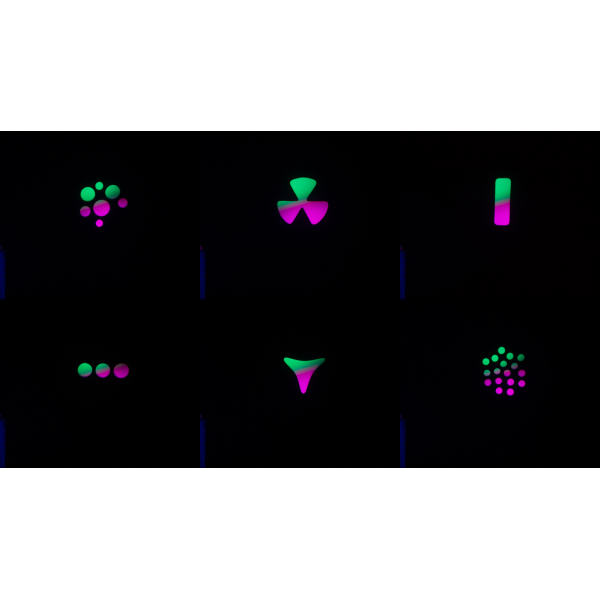

    • Fixed gobos:
      14
      fixed gobos + open

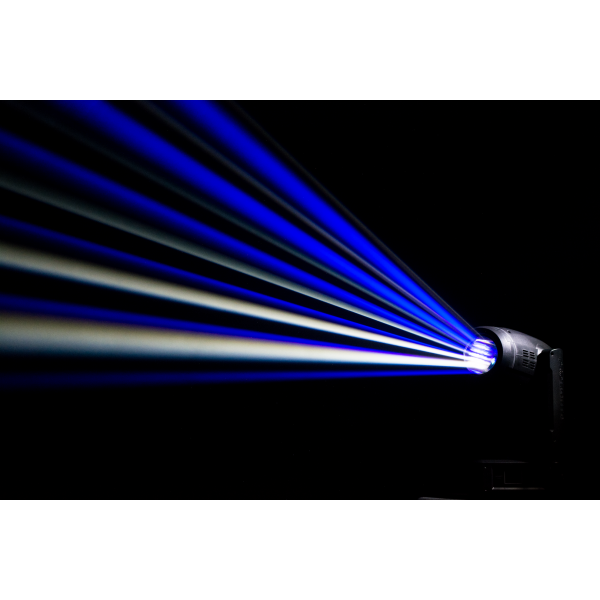

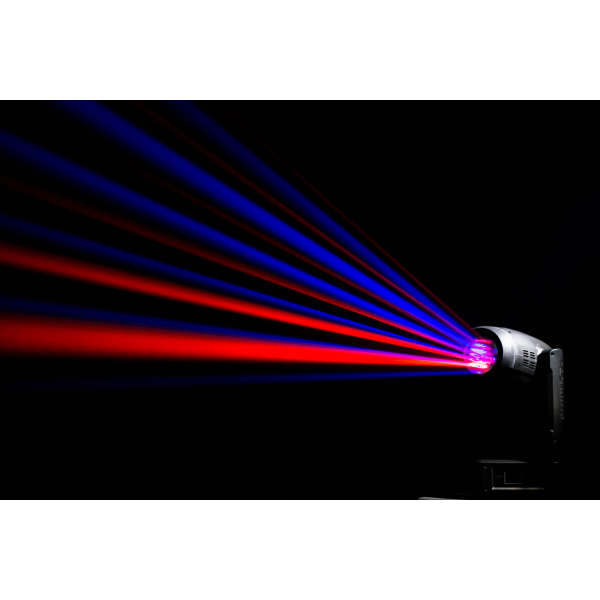

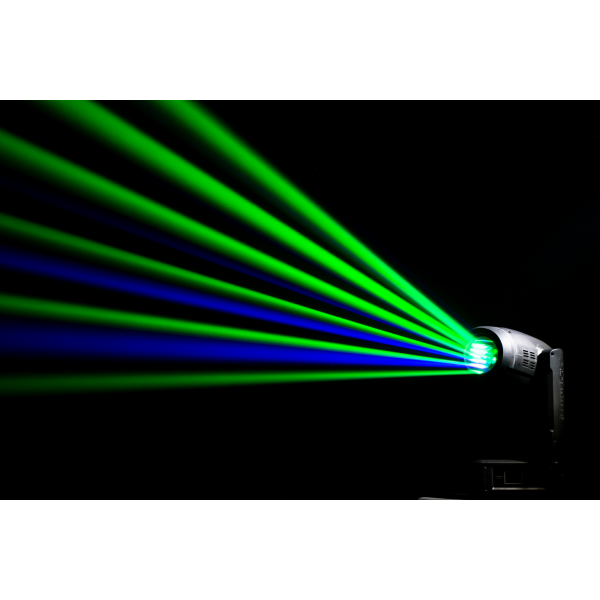

    • Circular prism:
      8
      f
      with bi-directional rotation, indexing
    • Linear prism:
      6
      f
      with bi-directional rotation, indexing
    • Frost:
      frost unit to soften the beam edge

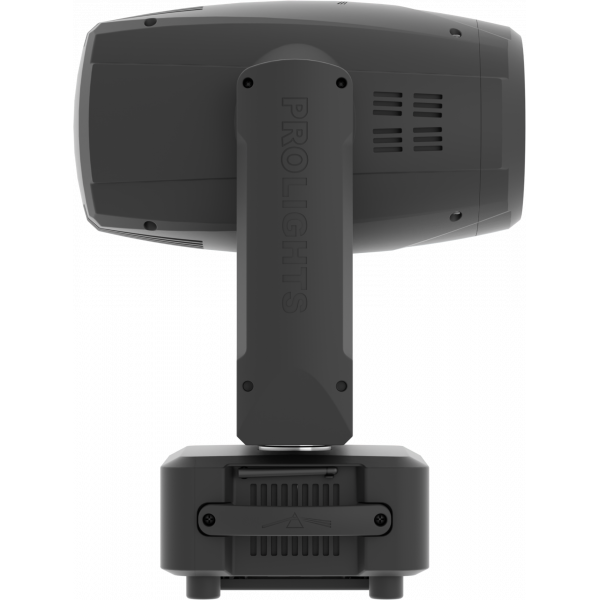

    BODY
    • Pan angle:
      630° - 540
      °
    • Tilt angle:
      265
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, W-DMX
    • DMX channels:
      14 / 16 / 22 / 23
      channel
    • Wireless Control:
      included, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% mechanical dimmer
    • Strobe / shutter:
      1 - 25
      flash(s), mechanical
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      423
      W
    • Max power consumption (at 120V):
      423
      W
    • Power factor:
      0,99
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      any position with quick-lock omega brackets

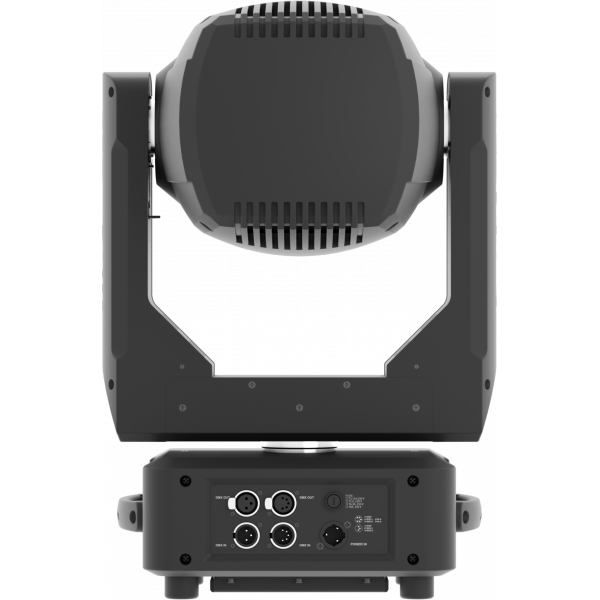

    • Signal connection:
      Amphenol XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN connector
    • Dimensions (WxHxD):
      355x619x235
      mm
    • Weight:
      17
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x JADE
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 2 x OS24
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    JADE (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    JADE (optional)
    {ProdottiDaAccessorio}
    958225L03958225L03
    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    JADE (optional)
    {ProdottiDaAccessorio}
    9513FXWL039513FXWL03
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    JADE (optional)
    {ProdottiDaAccessorio}
    9533FXWL039533FXWL03
    Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
    JADE (optional)
    {ProdottiDaAccessorio}
    TOUR53415L03TOUR53415L03
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    JADE (optional)
    {ProdottiDaAccessorio}
    C6016BC6016B
    Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
    JADE (optional)
    {ProdottiDaAccessorio}
    TOUR53413L03TOUR53413L03
    Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
    JADE (optional)
    {ProdottiDaAccessorio}
    LRLUNALRLUNA
    Single Universe DMX transceiver with Bluetooth
    JADE (optional)
    {ProdottiDaAccessorio}
    OS24D13OS24D13
    Quick-lock omega bracket, M12 hole
    JADE (include)
    {ProdottiDaAccessorio}
    OS24OS24
    Quick-lock omega bracket, M10 hole
    JADE (include)
    {ProdottiDaAccessorio}
    WSA40501WSA40501
    WDMX, antenna 2.4Ghz 2dBi omnidirectional, folding, SMA-male, indoor
    JADE (optional)
    {ProdottiDaAccessorio}
    FCLJADEFCLJADE
    Flight case for 2pcs of JADE
    JADE (optional)
    {ProdottiDaAccessorio}
    FCLJADE4EFCLJADE4E
    Flight case for 4pcs of JADE, made in UE
    JADE (optional)
    {ProdottiDaAccessorio}
    UPBOX2P5UPBOX2P5
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
    JADE (optional)
    {ProdottiDaAccessorio}
    UPBOXPROUPBOXPRO
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
