Jet Beam2
ORDER CODE: JETBEAM2
Share me

Immagine Principale
  • JETBEAM2
  • JETBEAM2
  • JETBEAM2
  • JETBEAM2
  • JETBEAM2
  • JETBEAM2
  • JETBEAM2
  • JETBEAM2
  • JETBEAM2
  • JETBEAM2
  • JETBEAM2
  • JETBEAM2
  • Jet Beam2
    Code Housing Avail.
    JETBEAM2BK Black
    JETBEAM2WH White

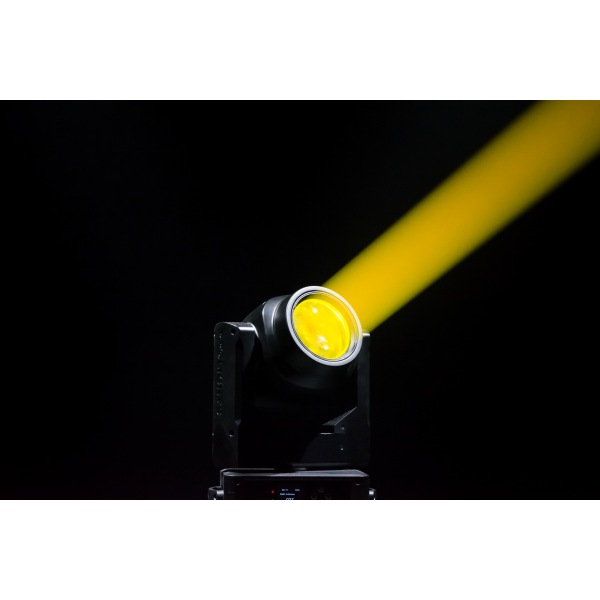

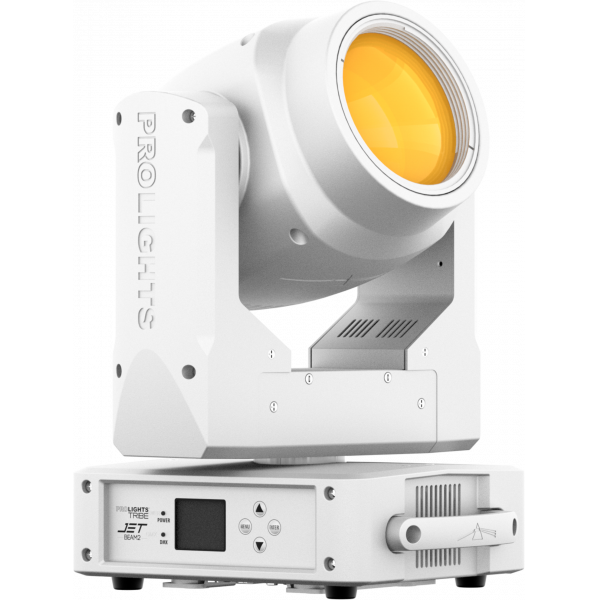

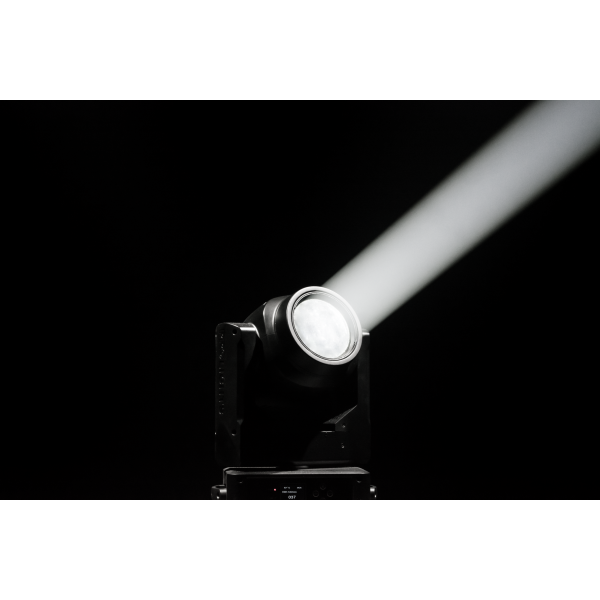

    Jet Beam2 is a LED beam luminaire designed to be truly comparable to a discharge source. Ideal both for installation and rental, the Jet Beam2 focuses on maximising the light output from its LED source all the way throughout the glass optical system delivering a cutting-edge beam effect even on the brightest stage.

    Features:
    Ultra-efficient 100W white LED with glass optics, delivering an incredibly bright and sharp 2° beam.
    Professional grade product at an affordable price, with low cost of ownership.
    14 colours, 18 gobos and 8 facet prism for a huge range of effect options.

    LIGHT SOURCE
    • Source:
      100
      W
      high-power white LED
    • CCT:
      6.300
    • Luminous flux:
      1'756
      lm
    • Lux:
      150'000
      lx
      @3 m
    • Lux:
      18'000
      lx
      @10 m
    • CRI:
      72
    • TLCI:
      46,8
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Beam angle:
      2,5
      °
    • Lens diameter:
      120
      mm
    • Lens type:
      high-quality glass lens optics
    COLOUR SYSTEM

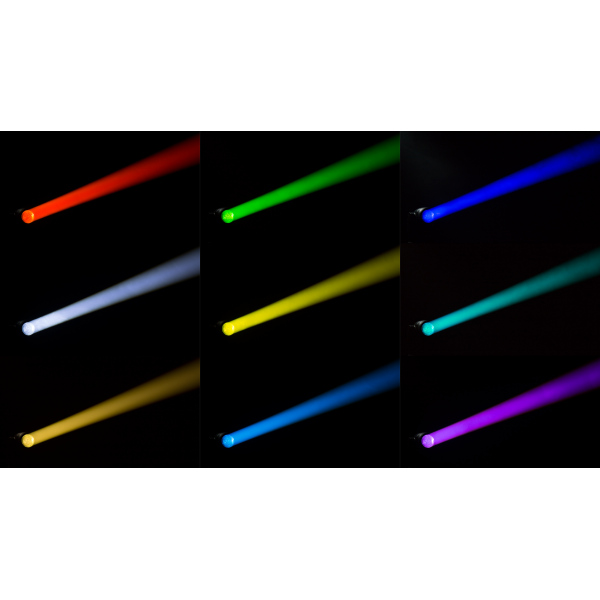

    • Colour wheel:
      14
      colour filters
    DYNAMIC EFFECTS
    • Fixed gobos:
      18
      fixed gobos + open

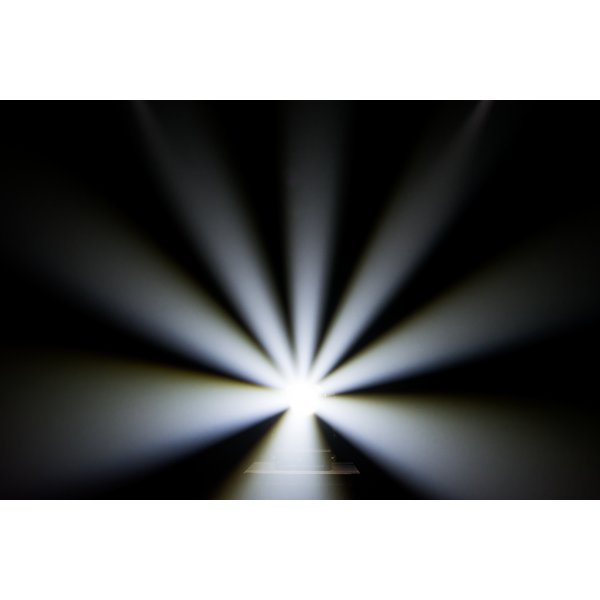

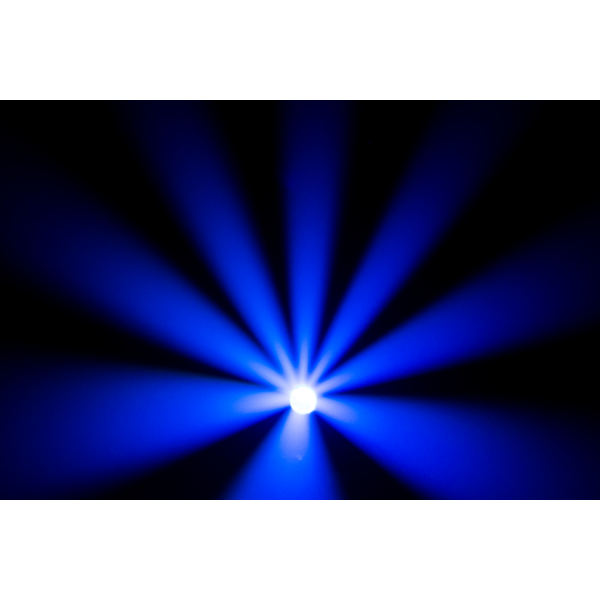

    • Circular prism:
      8
      f
      with bi-directional rotation, indexing
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Pan angle:
      540
      °
    • Tilt angle:
      270
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      9 / 11
      channel
    • RDM:
      RDM for remote monitoring and settings

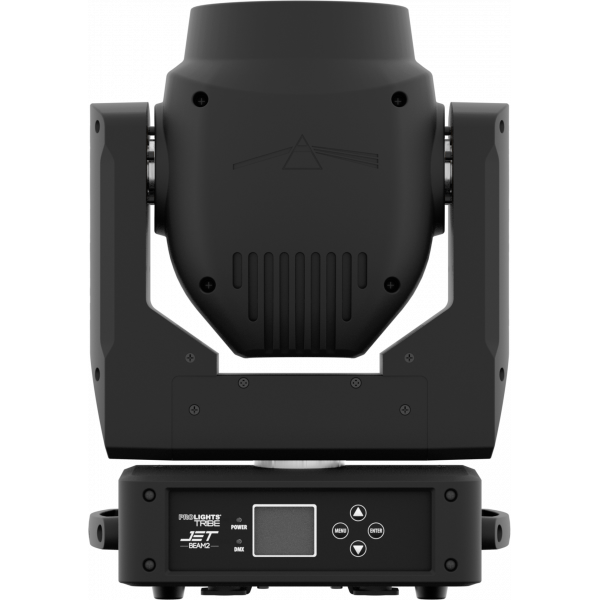

    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      0 ~ 30
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      163
      W
    • Max power consumption (at 120V):
      161
      W
    • Output (at 230V):
      26
      units on a single power line
    • Output (at 120V):
      14
      units on a single power line
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      any position with quick-lock omega brackets

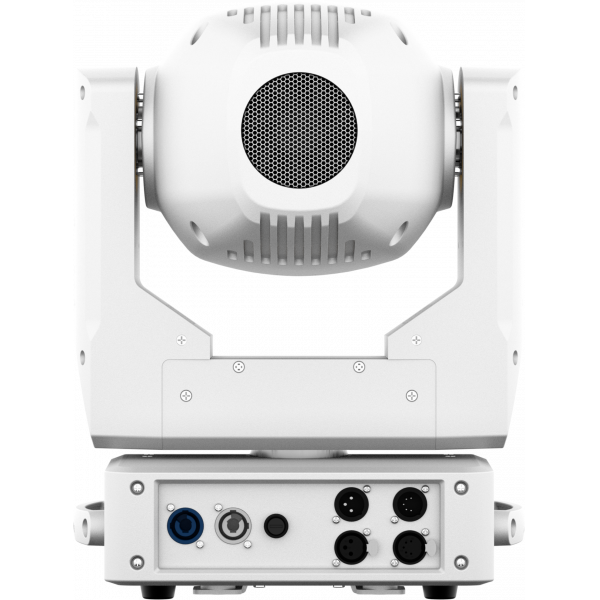

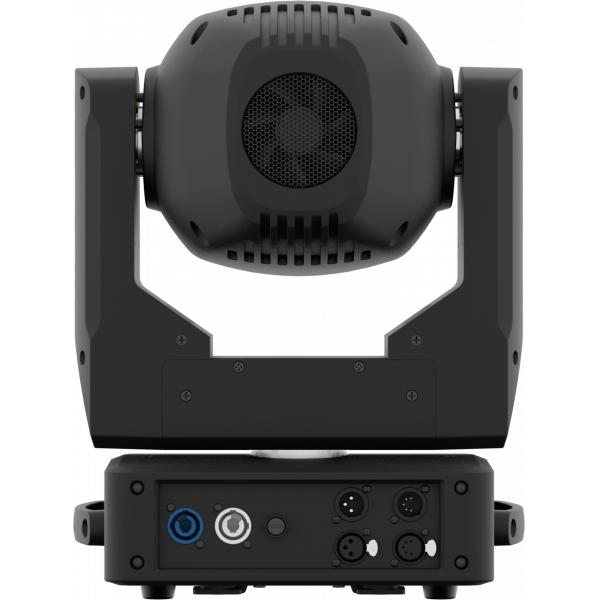

    • Signal connection:
      XLR 5p IN/OUT connectors
    • Power connection:
      Seetronic powerCON IN/OUT connectors

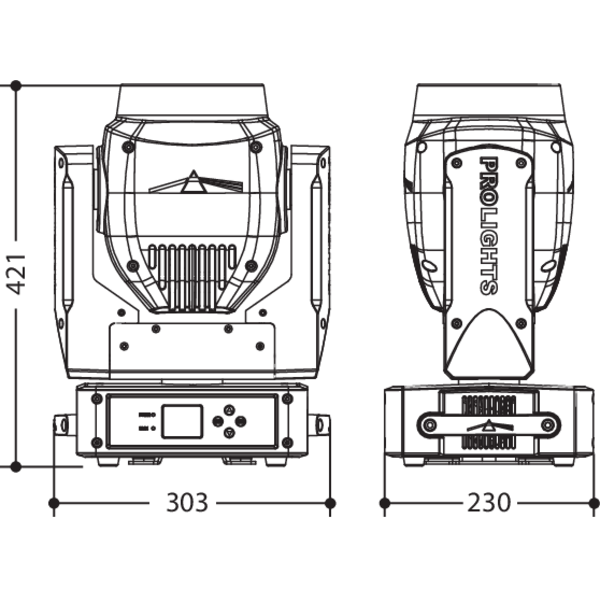

    • Dimensions (WxHxD):
      303x421x230
      mm
    • Weight:
      13
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x JETBEAM2
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC power connector)
    • 1 x OS24
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    JETBEAM2 (optional)
    {ProdottiDaAccessorio}
    Flight case per 4 pcs of JETBEAM2 / JETSPOT2
    JETBEAM2 (optional)
    {ProdottiDaAccessorio}
    Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
    JETBEAM2 (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    JETBEAM2 (optional)
    {ProdottiDaAccessorio}
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    JETBEAM2 (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Letter datasheet Jetbeam2_A4_DATASHEET_(EN).pdf 172KB
    Letter datasheet Jetbeam2_A4_DATASHEET_(IT).pdf 188KB

    User manual

    File name File size Download
    User manual Jetbeam2_USER_MANUAL_ITEN.pdf 6MB

    DMX chart & personalities

    File name File size Download
    DMX chart Jetbeam2_DMX_CHARTS.pdf 59KB
    VectorWorks VECTORWORKS_SYMBOLS.vwx 500KB
    VectorWorks VECTORWORKS_SYMBOLS.vwx 495KB
    VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
    JETBEAM2 Firmware rev. 1.3
    manufacturer fixture library (Link) Link
    prolights_jetbeam2.d4Download
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    jetbeam2_9ch.fdfDownload
    jetbeam2_11ch.fdfDownload
    jetbeam2_9ch.sslDownload
    jetbeam2_11ch.sslDownload
    jetbeam2_9ch.ssl2Download
    jetbeam2_11ch.ssl2Download
    manufacturer fixture library (Link) Link
    prolights@jetbeam-2_bas16@.xmlDownload
    manufacturer fixture library (Link) Link
    jetbeam2_11ch.hog4showDownload
    jetbeam2_9ch.hog4showDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    jetbeam 2 basic 8.fix2Download
    jetbeam 2 basic 16.fix2Download

    Photometrics

    File name File size Download
    PDF Photometrics Jetbeam2_PHOTOMETRICS.pdf 170KB
    Dialux Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    3D SKP Jetbeam2_3D_SKETCHUP.skp 2MB
    2D Jetbeam2_2D.dwg 4MB
    3D Jetbeam2_3D.dwg 1MB
    Technical drawing Jetbeam2_TECHNICAL_DRAWING.pdf 338KB

    Tech docs

    File name File size Download
    Color Document Jetbeam2_COLOR.pdf 32KB
    Gobos Document Jetbeam2_GOBOS.pdf 37KB

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5 {CodiceUpBox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.3 STABLE 25/11/2017 Added password on calibration function. The password is 050. Rev. 1
