Jet Wash7

Share me

Jet Wash7

Code	Finishing	RAL	Avail.

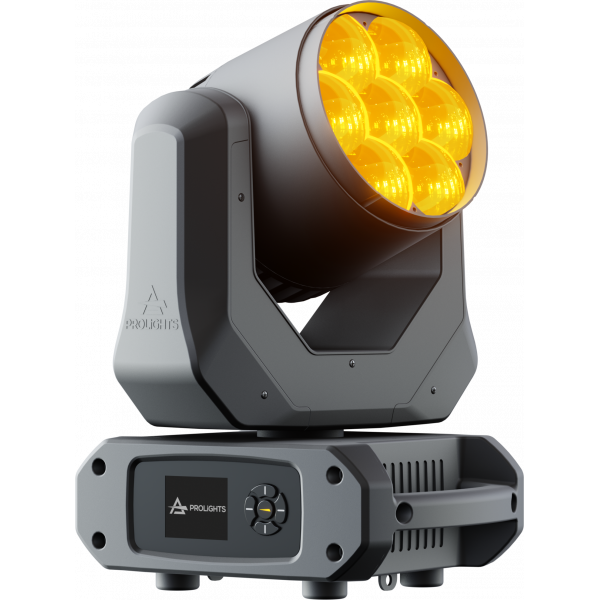

JETWASH7	Black	9004

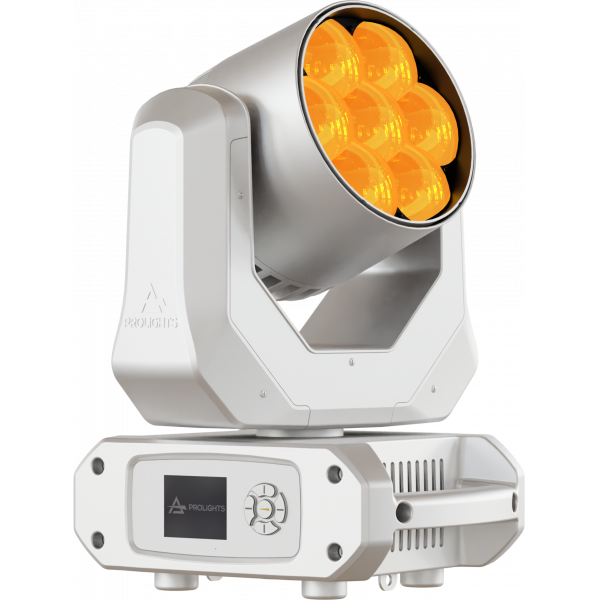

JETWASH7WH	White	9010

The Jet Wash7 is a compact and fast LED moving wash light with motorized zoom control.

The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 55°, this unit can easily work as beam or wash light.

The Jet Wash7's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.

Features:
Compact form factor and fast movements
Zoom from 4° to 55° with high optical efficiency
Precise white CCT and colour mixing

LIGHT SOURCE

Source:

7x20
W

RGBW Osram Ostar LEDs
Luminous flux:

(4°) 1'232 lm - (55°) 1'993
lm

@full
Lux:

(4°) 28'754 lx - (55°) 611
lx

@3 m full
Source life expectancy:

> 50.000 h

OPTICS

Zoom:

4° - 55
°

motorised linear zoom
Lens type:

honeycomb gapless plano-convex optics

COLOUR SYSTEM

Colour mixing:

RGBW / FC
CCT:

CCT control, + / - green correction, tungsten emulation
White presets:

2.800 K ~ 10.000
K
Colour wheel:

virtual colour wheel with macros

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer
Special features:

linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

Hardware on-board:

sockets for quick-Lock Omega bracket (clamp not included)
Pan angle:

540
°
Tilt angle:

233
°
Pan/Tilt resolution:

bit

16-bit
Feedback:

automatic repositioning after accidental movement
Body:

aluminium structure with high-resistance polycarbonate cover
Body colour:

see variants

CONTROL

Protocols:

DMX512, RDM
DMX channels:

23
channel
RDM:

RDM for remote monitoring and settings
Display:

LCD high resolution colour display with autoflip
Firmware upgrade:

yes, via USB - DMX interface (UPBOX2) not included

ELECTRONICS

Dimmer:

linear 0 ~ 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Operating temperature:

-10° ~ +45°
LED Control:

flicker free operation
Selectable PWM:

600 ~ 50.000 Hz

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption:

160
W
Output (at 230V):

up to 15

units on a single power line
Power factor:

> 0,94

PHYSICAL

IP rating:

20
Cooling:

forced air with fan
Suspension and fixing:

any position with quick-lock omega brackets

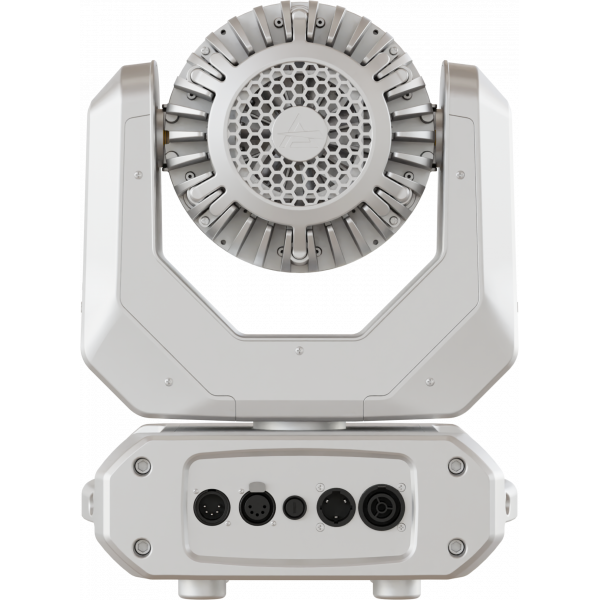

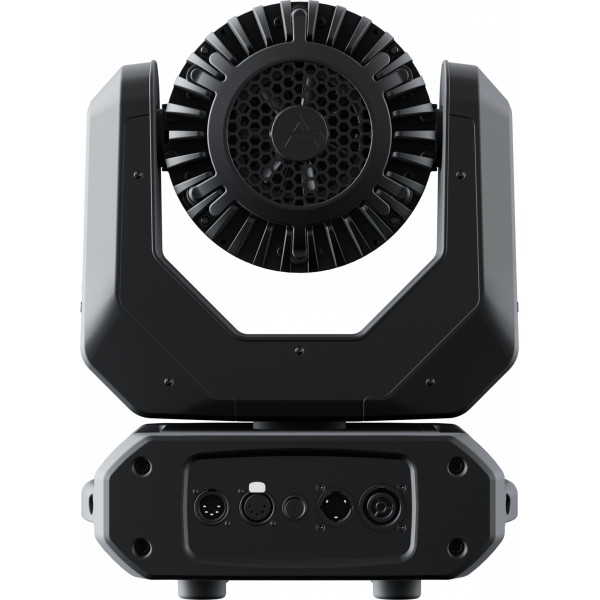

Signal connection:

Amphenol XLR 5p IN/OUT connectors
Power connection:

Neutrik powerCON TRUE1 IN/OUT connectors

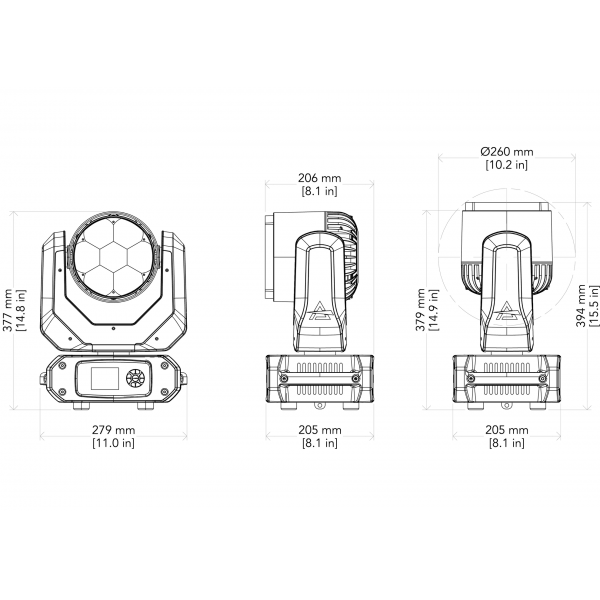

Dimensions (WxHxD):

279x377x205
mm
Weight:

8,3
kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals:

CE, UKCA, RCM

BOX CONTENT

1 x JETWASH7
1 x OS24
1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
1 x User Manual

ITEMS REF.

Accessory Code

Description

JETWASH (optional)

TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

JETWASH (optional)

958225L03

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

JETWASH (optional)

9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

JETWASH (optional)

9533FXWL03

Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m

JETWASH (optional)

RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

JETWASH (optional)

C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

JETWASH (optional)

FCLASTRAW7PIX

Flight case for 6 pcs of ASTRAWASH7PIX

JETWASH (optional)

ASTRAW7PEC

Egg Crate for ASTRAWASH7PIX

JETWASH (include)

OS24

Quick-lock omega bracket, M10 hole

JETWASH (optional)

UPBOX2P5

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
