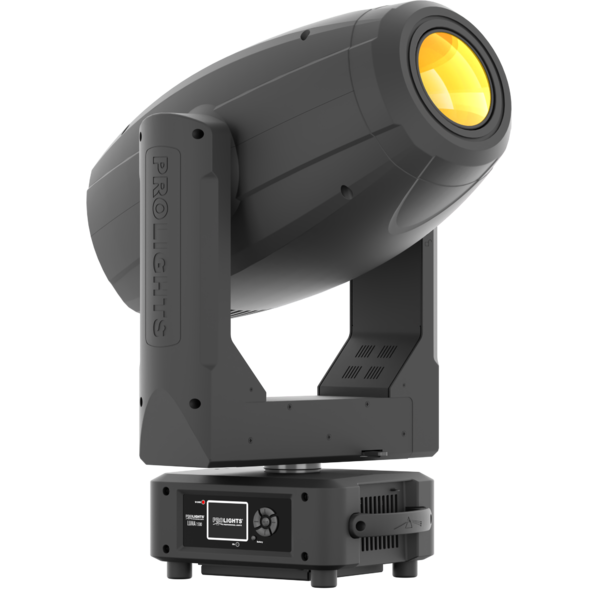

  • Luma 1500SH is a 440W 6.500 K LED profile light designed to replace the 1.200W discharge fixture used in theatres, concerts, events and broadcast. The custom optical system delivers a consistent output with a flat-field and crisp gobo projection right through the massive 5° to 50° zoom range.

    Features:
    Rotating gobo wheel, static gobo wheel and either full framing shutter (SH) or animation wheel (SP) interchangeable modules.
    Full CMY colour mixing system with separate linear CTO, plus colour wheel.
    Full framing shutter core module with individual depth and angle control of each blade as well as module index.

    LIGHT SOURCE
    • Source:
      440
      W
      high-power white LED
    • CCT:
      6.500
      K
    • Lux:
      (5°) 26'533 lx - (50°) 1'535
      lx
      @5 m full
    • Source life expectancy:
      > 20.000 h
    OPTICS
    • Zoom:
      5° - 50
      °
      motorised linear zoom
    • Lens diameter:
      120
      mm
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      motorised with auto-focus
    • Other:
      high-quality flat-field projection
    COLOUR SYSTEM
    • Colour mixing:
      linear CMY
    • CTC:
      linear CTO correction 2.700 K ~ 6.000 K
    • Colour wheel:
      7
      colour filters
    DYNAMIC EFFECTS
    • Shutter system:
      (inc)
      4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel:
      (opt)
      animation wheel with CW and CCW rotation
    • Rotating gobos:
      6
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 26,7 mm - image: 20 mm - thickness: 1,1 mm
    • Fixed gobos:
      7
      fixed gobos + open, interchangeable
    • Gobo size:
      outer: 26,7 mm - image: 20 mm - thickness: 1,1 mm
    • Circular prism:
      3
      f
      with bi-directional rotation, indexing
    • Frost:
      linear 0 - 100% frost filter
    • Iris:
      5 - 100
      %
      motorised iris
    BODY
    • Pan angle:
      630° - 540
      °
    • Tilt angle:
      267
      °
    • Pan/Tilt resolution:
      bit
      8 / 16 bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with hi-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, W-DMX
    • DMX channels:
      28 / 30 / 37 / 38
      channel
    • W-DMX:
      included, wireless solution receiver
    • RDM:
      RDM ready for remote monitoring and settings
    • Display:
      LCD high resolution colour display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      650
      W
    • Max power consumption (at 120 V):
      650
      W
    • Power factor:
      0,98
    PHYSICAL
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Sospension and fixing:
      any position with quick-lock omega brackets
    • Pan / tilt lock:
      pan / tilt locking for transportation and maintenance
    • Signal connection:
      Amphenol XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN connector
    • IP rating:
      20
    • Dimensions (WxHxD):
      428x757x291
      mm
    • Weight:
      31
      kg
