LumiPix 12QIP discontinued
ORDER CODE: LUMIPIX12QIP
Share me

IP65

Immagine Principale
  • LUMIPIX12QIP
  • LUMIPIX12QIP
  • LUMIPIX12QIP
  • LUMIPIX12QIP
  • LUMIPIX12QIP
  • LUMIPIX12QIP
  • LUMIPIX12QIP
  • LUMIPIX12QIP

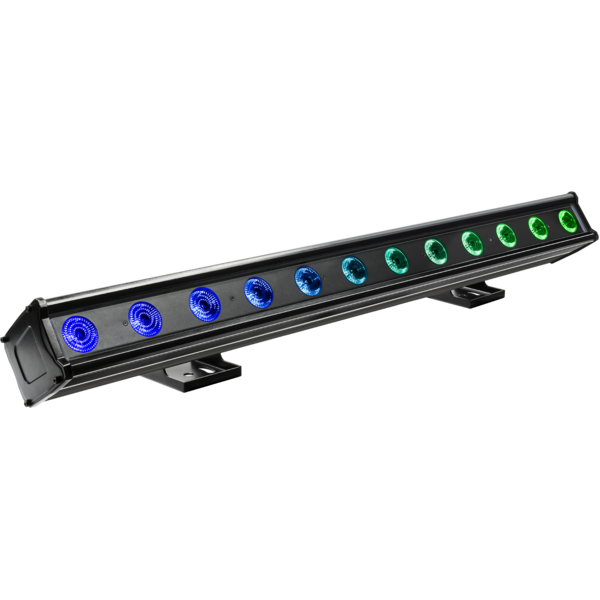

    • LUMIPIX12QIP is an outdoor linear LED batten of 100 cm size designed for professional use giving unprecedented chromatic performance. The super-slim design coupled with its extreme colour precision and light output make LUMIPIX12QIP a flexible and versatile solution for every kind of application as architectural, cyclorama, wall-washer, pixel effect, blinder.

    Features:
    12x8W RGBW / FC high-power LED
    Pixel control of every individual LED
    IP65 design to be robust, waterproof and silent for studio application
    Flicker free operations
    Silent operation and linear dimming system

    LIGHT SOURCE
    • Source:
      12x8
      W
      RGBW LED
    • Luminous flux:
      3'550
      lm
    • Lux:
      (15°) 2'902
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      15
      °
    • Field angle:
      19
      °
    • Lens diameter:
      42
      mm
    • Additional optics:
      25° - 45° (optional)
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      4 / 6 / 10 / 48 / 53
      channel
    • Pixel control:
      pixel2pixel control
    • Display:
      LCD display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      5
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      120
      W
    • Max power consumption (at 120V):
      120
      W
    • Output (at 230V):
      16
      units on a single power line
    PHYSICAL
    • IP rating:
      65
      with a protective vent to prevent condensation, dust, compensate pressure
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      bracket for hanging and positioning
    • Adaptors:
      XLR and BARE END 16A adaptors included
    • Signal connection:
      IP IN/OUT DMX connector
    • Power connection:
      IP IN/OUT power connector
    • Dimensions (WxHxD):
      995x100x186
      mm
    • Weight:
      7,1
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x LUMIPIX12QIP
    • 1 x BARE END - IP connection adapter
    • 1 x 5p XLR - IP connection male adapter
    • 1 x 5p XLR - IP connection female adapter
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    LUMIPIX12QIP (include)
    {ProdottiDaAccessorio}
    ARCLUMIL15D42ARCLUMIL15D42
    Optic lens 15°, D.42mm
    LUMIPIX12QIP (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    LUMIPIX12QIP (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    LUMIPIX12QIP (optional)
    {ProdottiDaAccessorio}
    BAG030LBAG030L
    Nylon bag for LUMIPIX bars, 2(int) compartments, dim.1080x180x180 mm
    LUMIPIX12QIP (optional)
    {ProdottiDaAccessorio}
    ARCEXAC3ARCEXAC3
    IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
    LUMIPIX12QIP (optional)
    {ProdottiDaAccessorio}
    ARCEXDC3ARCEXDC3
    IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors
    LUMIPIX12QIP (optional)
    {ProdottiDaAccessorio}
    ARCLUMIL25D42ARCLUMIL25D42
    Optic lens 25°, D.42mm
    LUMIPIX12QIP (optional)
    {ProdottiDaAccessorio}
    ARCLUMIL45D42ARCLUMIL45D42
    Optic lens 45°, D.42mm
    LUMIPIX12QIP (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Letter datasheet Lumipix12qip_A4_DATASHEET.pdf 521KB

    User manual

    File name File size Download
    User manual Lumipix12qip_USER_MANUAL_ITEN.pdf 3MB

    DMX chart & personalities

    File name File size Download
    DMX chart Lumipix12qip_DMX_CHARTS.pdf 51KB
    LUMIPIX12QIP Firmware rev. 1.5
    manufacturer fixture library (Link) Link
    prolights_lumipix12qip.d4Download
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    lumipix12qip_4ch.fdfDownload
    lumipix12qip_6ch.fdfDownload
    lumipix12qip_10ch.fdfDownload
    lumipix12qip_48ch.fdfDownload
    lumipix12qip_53ch.fdfDownload
    lumipix12qip_4ch.ssl2Download
    lumipix12q_6ch.ssl2Download
    lumipix12q_10ch.ssl2Download
    lumipix12qip_48ch.ssl2Download
    lumipix12qip_53ch.ssl2Download
    manufacturer fixture library (Link) Link
    prolights@lumipix12qip_4ch@.xmlDownload
    prolights@lumipix12qip_6ch@.xmlDownload
    prolights@lumipix12qip_10ch@.xmlDownload
    prolights@lumipix_12q_ip@53_channel@ma_library_update_v15.0.xmlpDownload
    prolights@lumipix_12q_ip@48_channel@ma_library_update_v13.5.xmlpDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    lumipix 12q ip 4 channel.fix2Download
    lumipix 12q ip 6 channel.fix2Download
    lumipix 12q ip 10 channel.fix2Download
    lumipix 12q ip 48 channel.fix2Download
    lumipix 12q ip 53 channel.fix2Download
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    IES prolights_lumipix12qip_blue_15°.ies 64KB
    IES prolights_lumipix12qip_full_15°.ies 64KB
    IES prolights_lumipix12qip_green_15°.ies 64KB
    IES prolights_lumipix12qip_red_15°.ies 64KB
    IES prolights_lumipix12qip_white_15°.ies 64KB
    Dialux Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    2D Lumipix12qip_2D.dwg 602KB
    Technical drawing Lumipix12qip_TECHNICAL_DRAWING.pdf 123KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5 {CodiceUpBox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
