Lumipix 15IP
ORDER CODE: LUMIPIX15IP
Share me

IP65

Immagine Principale
  • LUMIPIX15IP
  • LUMIPIX15IP
  • LUMIPIX15IP
  • LUMIPIX15IP
  • LUMIPIX15IP
  • LUMIPIX15IP

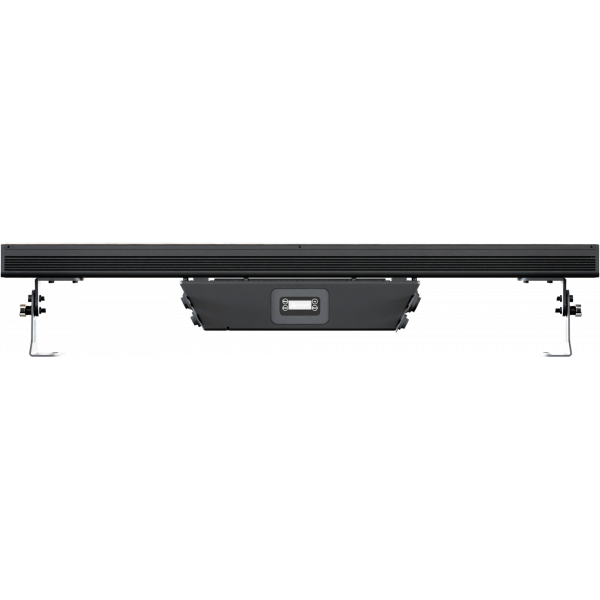

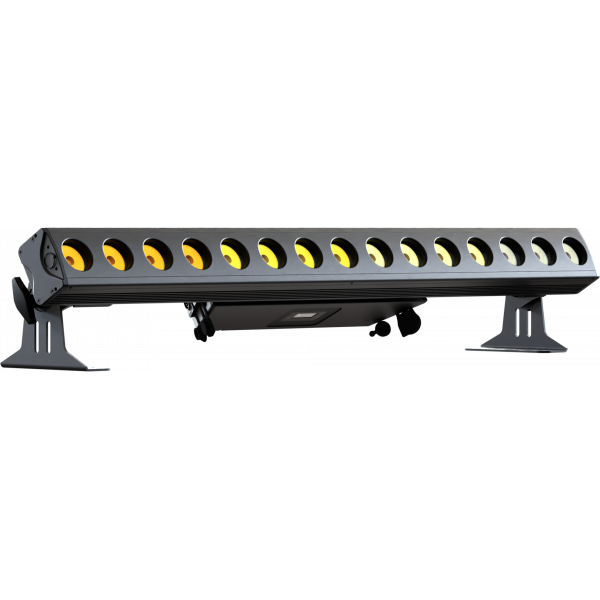

    • Lumipix 15IP is a tour-ready LED pixel batten conceived to be fully versatile and perform outdoor, delivering advanced brightness and colour mixing by offering individual pixel control of each cell. The robust die-cast aluminium structure with omega quick lock socket on the bracket and the waterproof power and signal connector make Lumipix 15IP suitable for the most demanding environments.

    Features:
    LED batten with 15 individually controllable RGBW LED
    Waterproof housing and connections for outdoor usage
    Extensive colour palette with precise mixing and powerful output

    LIGHT SOURCE
    • Source:
      15x10
      W
      RGBW LEDs
    • Luminous flux:
      (16° + diffused) 4'983 lm - (16°) 5'394
      lm
      @full
    • Lux:
      (16° + diffused) 1'886 lm - (16°) 2'454
      lx
      @5 m full
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Beam angle:
      16
      °
    • Field angle:
      31
      °
    • Additional optics:
      magnetic frost holder on board
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.800 K - 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    BODY
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp included)
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      4 / 6 / 10 / 60 / 65
      channel
    • Pixel control:
      pixel2pixel control
    • Wireless Control:
      included, wireless solution receiver
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      0 ~ 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      161
      W
    • Max power consumption (at 120V):
      162
      W
    • Output (at 230V):
      23
      units on a single power line
    • Output (at 120V):
      12
      units on a single power line
    PHYSICAL
    • IP rating:
      65
      for temporary outdoor application, not for fixed installations
    • Cooling:
      passive cooling and fan-free

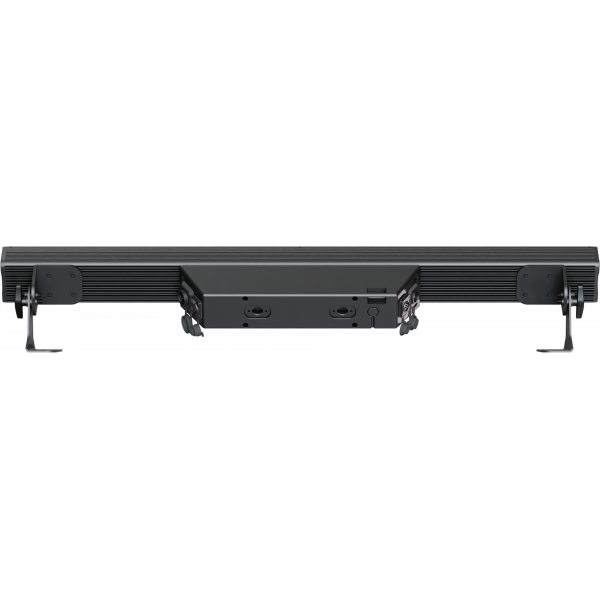

    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning

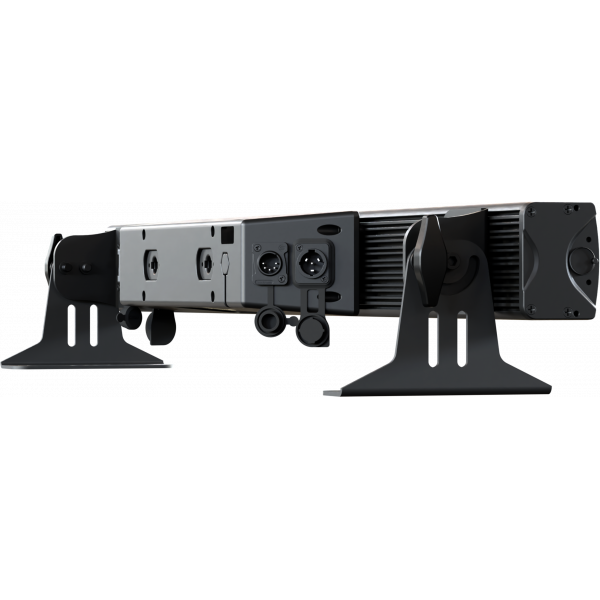

    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Data connection:
      W-DMX receiver

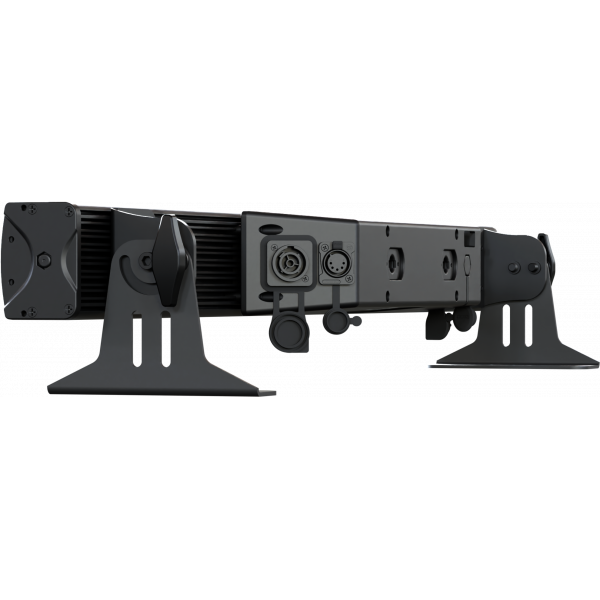

    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors

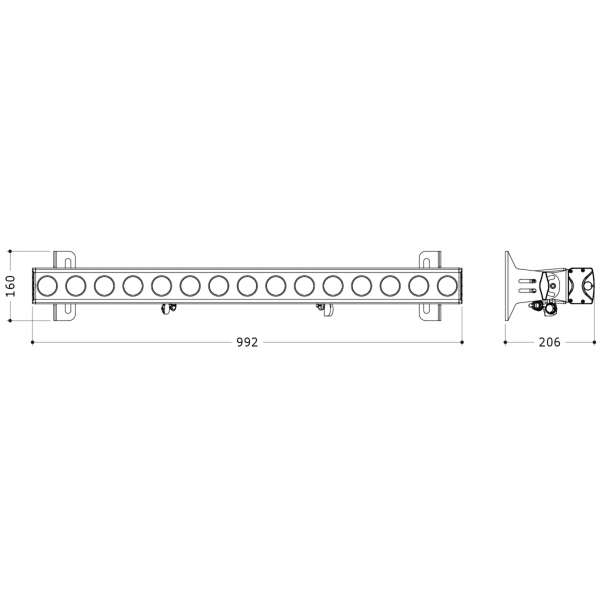

    • Dimensions (WxHxD):
      992x206x160
      mm
    • Weight:
      8,6
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x LUMIPIX15IP
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
    • 2 x side floor brackets
    • 1 x OS25
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    LUMIPIX15IP (optional)
    {ProdottiDaAccessorio}
    WSBBR512G6WSBBR512G6
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    LUMIPIX15IP (optional)
    {ProdottiDaAccessorio}
    WSBBR512G5WSBBR512G5
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    LUMIPIX15IP (optional)
    {ProdottiDaAccessorio}
    WSBBF1G6WSBBF1G6
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    LUMIPIX15IP (optional)
    {ProdottiDaAccessorio}
    WSBBF1G5WSBBF1G5
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    LUMIPIX15IP (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    LUMIPIX15IP (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    LUMIPIX15IP (include)
    {ProdottiDaAccessorio}
    OS25OS25
    Quick-Lock omega bracket, M10 hole
    LUMIPIX15IP (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Lumipix15ip_A4_DATASHEET_(EN).pdf 348KB
    Lumipix15ip_A4_DATASHEET_(IT).pdf 327KB

    User manual

    File name File size Download
    Lumipix15ip_USER_MANUAL_ITEN.pdf 2MB

    DMX chart & personalities

    File name File size Download
    Lumipix15ip_DMX_CHARTS.pdf 51KB
    VECTORWORKS_SYMBOLS.vwx 200KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 295MB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 422MB
    LUMIPIX15IP Firmware rev. 1.3
    manufacturer fixture library (Link) Link
    prolights_lumipix15ip.d4Download
    manufacturer fixture library (Link) Link
    prolights@lumipix_15_ip@4_channel@ma_library_update_v15.0.xmlpDownload
    prolights@lumipix_15_ip@6_channel@ma_library_update_v15.0.xmlpDownload
    prolights@lumipix_15_ip@10_channel@ma_library_update_v15.0.xmlpDownload
    prolights@lumipix_15_ip@60_channel@ma_library_update_v15.0.xmlpDownload

    Photometrics

    File name File size Download
    tribe_lumipix15ip_ies files.zip 17KB
    tribe_lumipix15ip_ldt files.zip 12KB
    Lumipix15ip_PHOTOMETRICS_REPORT.pdf 3MB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    Lumipix15ip_3D_REVIT.rfa 576KB
    Lumipix15ip_3D_SKETCHUP.skp 441KB
    Lumipix15ip_2D.dwg 1MB
    Lumipix15ip_3D.dwg 652KB
    Lumipix15ip_2DSYMBOLS.dwg 21KB
    Lumipix15ip_TECHNICAL_DRAWING.pdf 204KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5
    Check hardware changelog before downloading firmware
    Revision Release date HW Compatibility
    1.3 STABLE 02/01/2019 Improved power on feature with high temperture. Rev. 1
