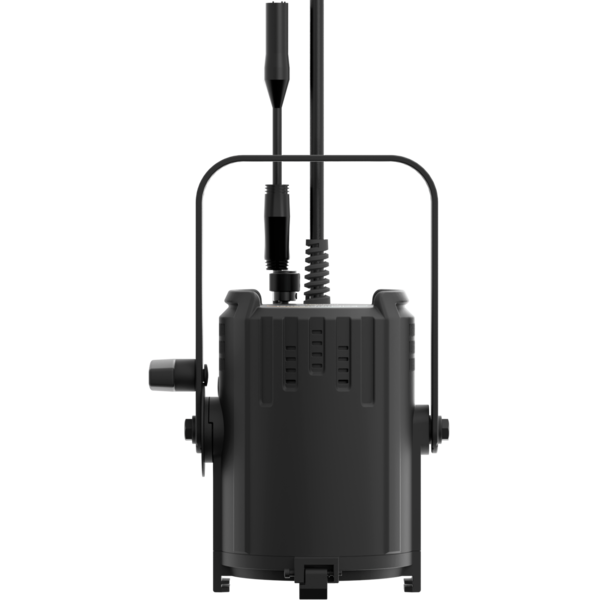

EclMiniFresnel
ORDER CODE: MINIECLFR
Share me

Immagine Principale
  • MINIECLFR
  • MINIECLFR
  • MINIECLFR
  • MINIECLFR
  • MINIECLFR
  • MINIECLFR
  • MINIECLFR
  • MINIECLFR
    • EclMiniFresnel
    Code CT CRI Lumen Avail.
    MINIECLFRTU 3.000K 92 2'183 lm
    MINIECLFRDY 5.000K 81 2'851 lm

    EclMiniFresnel is the LED replacement for a standard tungsten 300W Fresnel. Featuring all the output characteristics of a traditional Fresnel, but with the added benefits of beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclMiniFresnel adds all the advantages of the LED to the traditional Fresnel.

    Features:
    TU (3.000 K) and DY (5.000 K) versions available both with HD dimming
    Fresnel lens with 20° to 64° manual zoom range
    Truly silent operation making it perfect for studio and stage use

    LIGHT SOURCE
    • Source:
      40
      W
      LEDs
    • CCT:
      (TU) 3.000 K - (DY) 5.000
      K
    • Luminous flux:
      (TU) (20°) 856 lm; (64°) 2'183
      lm
      @full
    • Luminous flux:
      (DY) (20°) 1'168 lm (64°) 2'851 lm @full
    • Lux:
      (TU) (20°) 236 lx - (64°) 86
      lx
      @5 m full
    • Lux:
      (DY) (20°) 321 lx - (64°) 113
      lx
      @5 m full
    • CRI:
      (TU) >92 - (DY) >81
    • TLCI:
      (TU) >93; (DY) >67
    • TM30 Rf:
      (TU) >90; (DY) >80
    • TM30 Rg:
      (TU) >99; (DY) >95
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      20° - 64
      °
      half peak angle
    • Lens diameter:
      3,93'' - 100
      mm
    • Lens type:
      Fresnel zoom lens
    • Other:
      spigot not included; gel frame and barndoors included
    COLOUR SYSTEM
    • Macros:
      several pre-built macros with adjustable speed
    DYNAMIC EFFECTS
    • Static mode:
      selection of static dimmer
    • Manual mode:
      manual adjust of dimmer throught menu and knob
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      aluminium die-casting
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, rotatory knob
    • DMX channels:
      1 / 2-1 / 2-2 / 3 / 5
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    • Other:
      16bit control of dimmer
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100%, manual knob dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      35
      W
    • Power factor:
      >0,55
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      DMX 5p IN/OUT
    • Power connection:
      bare end connection
    • Dimensions (WxHxD):
      191x281x203
      mm
    • Weight:
      2,38
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x MINIECLFR
    • 1 x MINIECLFRBD
    • 1 x MINIECLFRTPG
    • User Manual
