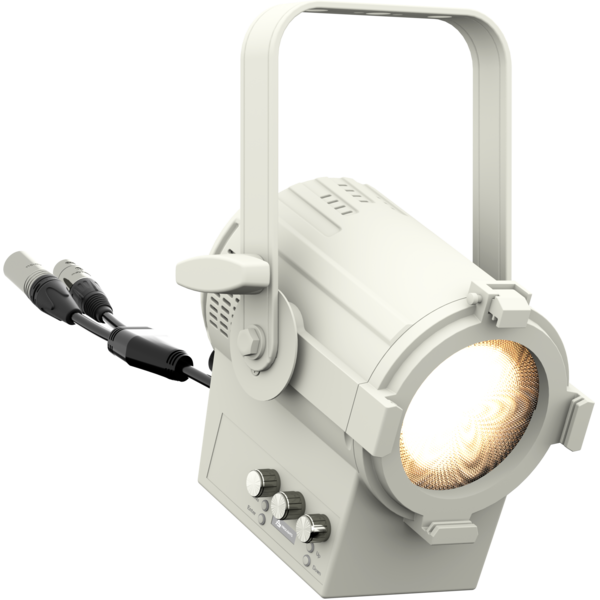

EclMiniFresnel VW
ORDER CODE: MINIECLFRVW
Share me

Immagine Principale
  • MINIECLFRVW
  • MINIECLFRVW
  • MINIECLFRVW
  • MINIECLFRVW
  • MINIECLFRVW
  • MINIECLFRVW
  • MINIECLFRVW
  • EclMiniFresnel VW
    Code Finishing Pole Operated Avail.
    MINIECLFRVWBK Black No
    MINIECLFRVWWH White No

    The EclMiniFresnel VW is an ultra-compact LED Fresnel lamp, designed as a replacement for a 300W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 60W LED source.

    This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.

    The EclMiniFresnel VW has a manual zoom range from 21° to 83°, with precise focusing, and barndoors (included).

    This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

    Features:
    Linear white CCT, from 2,700K to 5,600K
    60W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
    Barndoor and filter frame included

    LIGHT SOURCE
    • Source:
      60
      W
      Variable White LED
    • CCT:
      2.700 K - 5.600
      K
    • Luminous flux:
      (21°) 877 lm - (83°) 2'320
      lm
      @full
    • Lux:
      (21°) 630 lx - (83°) 238
      lx
      @3 m
    • CRI:
      96 @WW; 95 @CW; 95 @full
    • R9:
      91 @WW; 88 @CW; 86 @full
    • TLCI:
      95 @WW; 98 @CW; 97 @full
    • TM30 Rf:
      > 94 @WW; >93 @CW; > 94 @full
    • TM30 Rg:
      < 103 @WW; < 104 @CW; < 104 @full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      21° - 83
      °
      manual
    • Lens diameter:
      3,93'' - 100
      mm
    • Lens type:
      fresnel zoom lens
    COLOUR SYSTEM
    • Colour mixing:
      tunable white
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.700 K - 5.600
      K
    • Colour wheel:
      built-in white presets
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer
    • Static mode:
      selection of static dimmer and color temperature
    • Manual mode:
      manual adjustment of intensity and CT from knob
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Hardware on-board:
      filter frame, 4 doors barndoor, spigot
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9004 or RAL 9003
    CONTROL
    • Protocols:
      DMX512, RDM
    • Stand Alone:
      3
      rotatory knobs
    • DMX channels:
      1 / 2 / 4 / 5 / 11
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -20° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      55
      W
    • Power factor:
      > 0,52
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Dimensions (WxHxD):
      191x281x203
      mm
    • Weight:
      2,5
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x MINIECLFRVW
    • 1 x MINIECLFRBD
    • 1 x MINIECLFRTPG
    • User Manual
