MoonStone
ORDER CODE: MOONSTONE
Share me

Immagine Principale
  • MOONSTONE
  • MOONSTONE
  • MOONSTONE
  • MOONSTONE
  • MOONSTONE
  • MOONSTONE
  • MOONSTONE
  • MOONSTONE
  • MOONSTONE
  • MOONSTONE
  • MOONSTONE
  • MOONSTONE
    • MoonStone
    Code Housing Avail.
    MOONSTONEBK Black

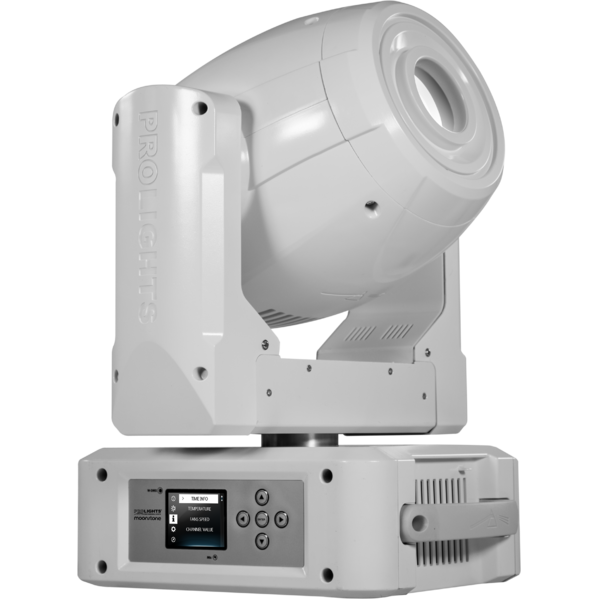

    MOONSTONEWH
    		 White

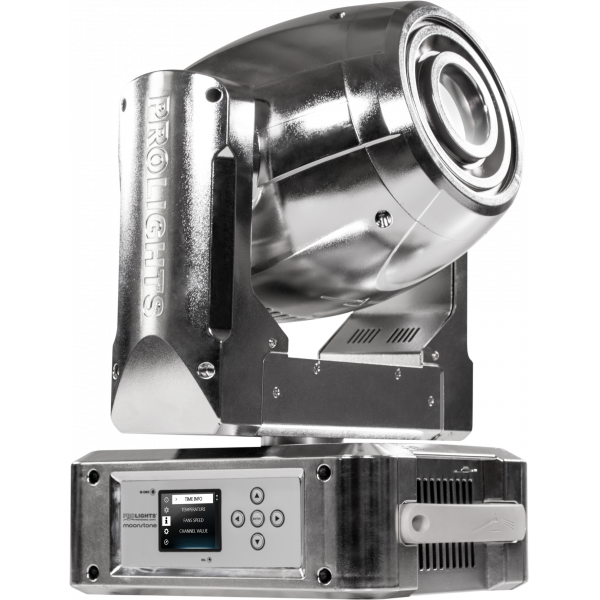

    MOONSTONECR
    		 Chrome

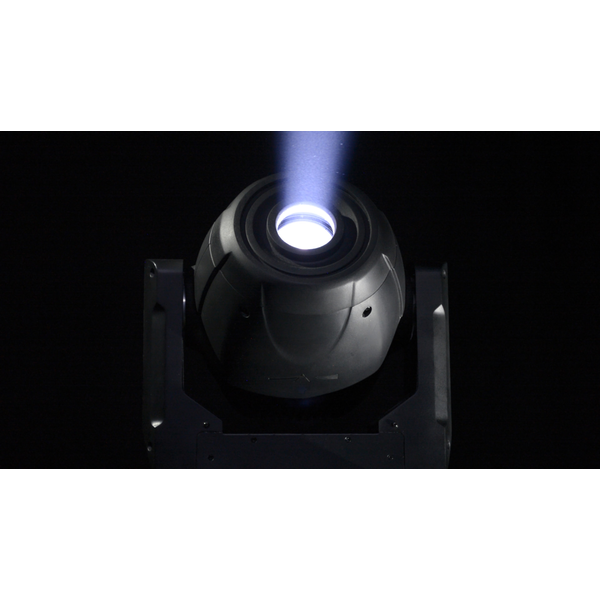

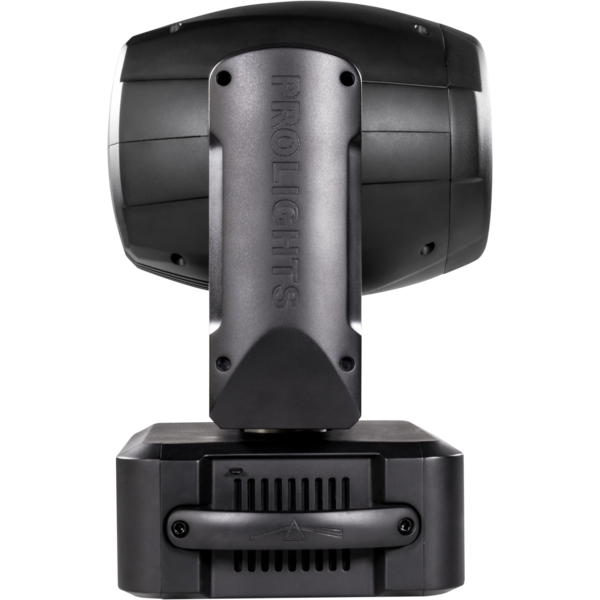

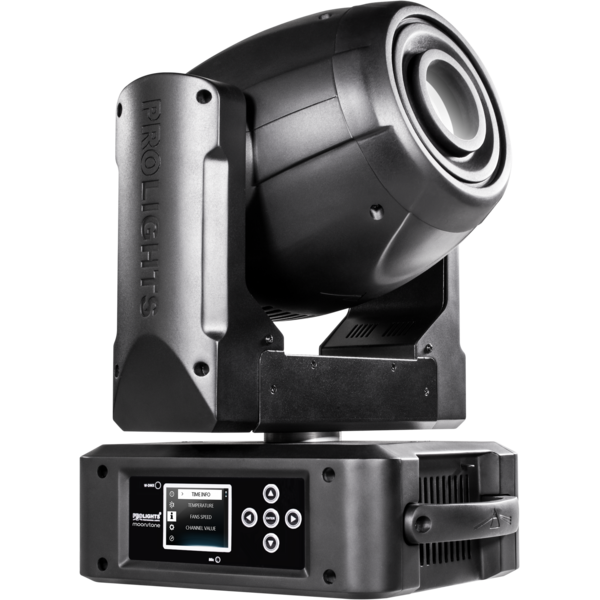

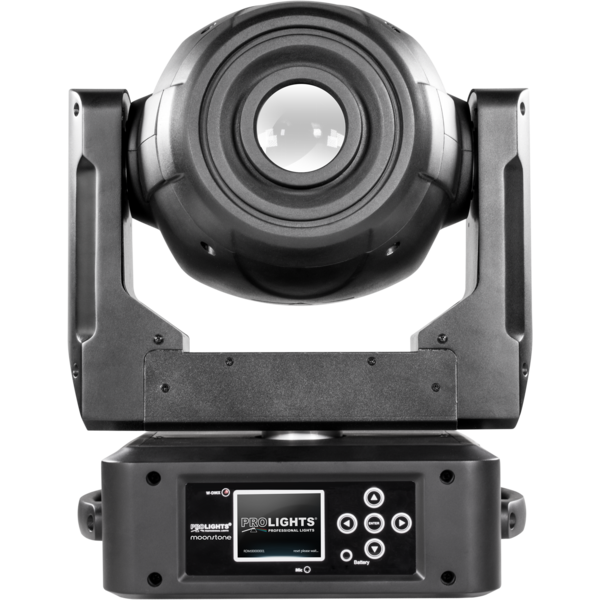

    MoonStone is a LED spot moving head that can replace a traditional 575W HID fixture. It's equipped with a bright white 180W LED source which allows a superior light output and keep compact sizes and light-weight. Bright, lightweight and noiseless - this fixture has been designed to generate a sharp and high-density beam, ideal for use in events, concerts, congress and for every installation.

    Features:
    Effect section equipped with 3f circular prism, 8f circular prism, iris and frost filter
    Colour system: a colour wheel with 8 colour filters
    1st gobo wheel: 7 rotating gobos / 2nd gobo wheel: 7 fixed gobos
    DMX and RDM control protocols supported

    LIGHT SOURCE
    • Source:
      180
      W
      high-power white LED
    • CCT:
      7.000
    • Luminous flux:
      5'000
      lm

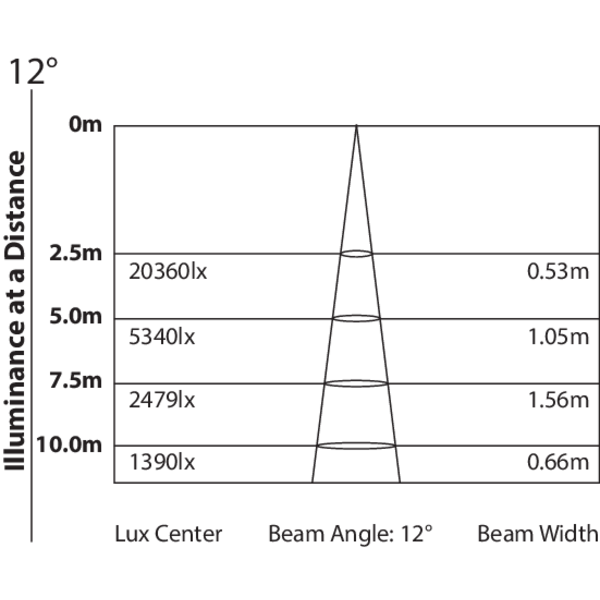

    • Lux:
      5'340
      lx
      @5 m full
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Beam angle:
      12
      °
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised with auto-focus
    COLOUR SYSTEM
    • Colour wheel:
      8
      colour filters
    • Macros:
      linear, half colours, colour bounce
    DYNAMIC EFFECTS
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 25,8 mm - image: 20 mm - thickness: 1,1 mm
    • Fixed gobos:
      7
      fixed gobos + open
    • Circular prism:
      3 and 8
      f
      with bi-directional rotation
    • Frost:
      frost unit to soften the beam edge
    • Iris:
      5 - 100
      %
      motorised iris
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Pan angle:
      630
      °
    • Tilt angle:
      265
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:

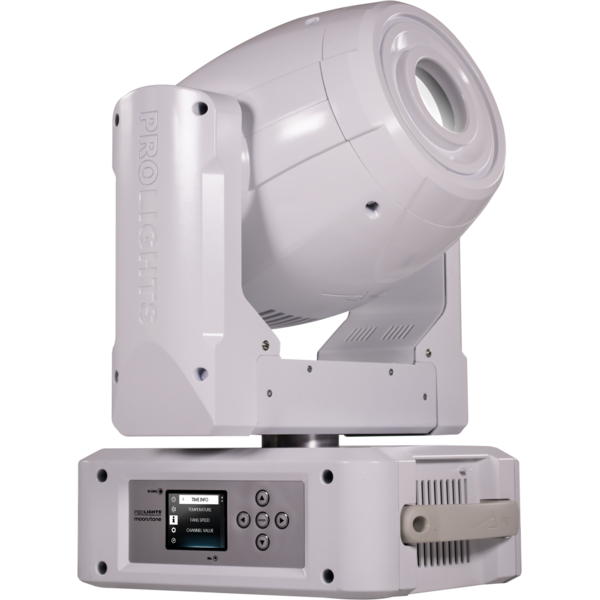

      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      14 / 16 / 21 / 24
      channel
    • Wireless Control:
      optional, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 20
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      210
      W
    • Output (at 230V):
      8
      units on a single power line
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      any position with quick-lock omega brackets

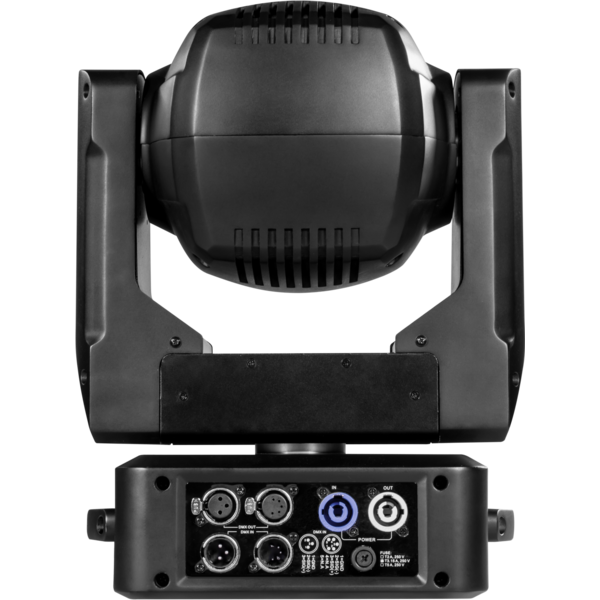

    • Signal connection:
      Amphenol XLR 3p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors

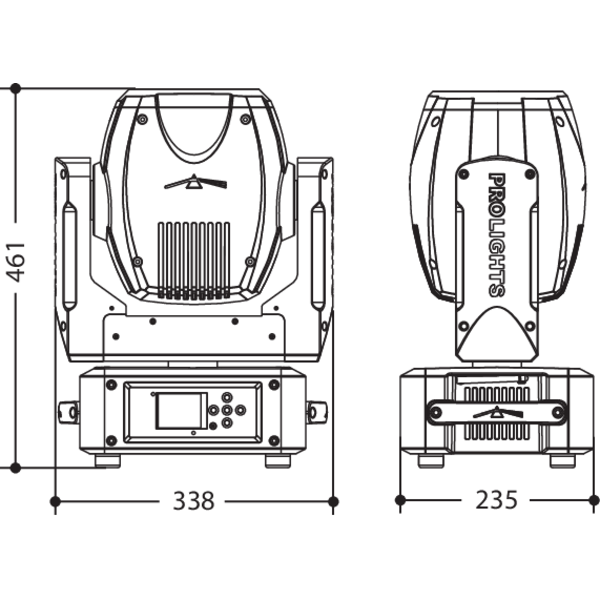

    • Dimensions (WxHxD):
      338x472x235
      mm
    • Weight:
      13
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA
    BOX CONTENT
    • 1 x MOONSTONE
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
    • 2 x OS24
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    MOONSTONE (optional)
    {ProdottiDaAccessorio}
    TOUR53415L03TOUR53415L03
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    MOONSTONE (optional)
    {ProdottiDaAccessorio}
    TOUR53413L03TOUR53413L03
    Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
    MOONSTONE (optional)
    {ProdottiDaAccessorio}
    958025L03958025L03
    3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
    MOONSTONE (optional)
    {ProdottiDaAccessorio}
    9513FCAL039513FCAL03
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
    MOONSTONE (optional)
    {ProdottiDaAccessorio}
    9533FCAL039533FCAL03
    Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FCA socket, L.3m
    MOONSTONE (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    MOONSTONE (optional)
    {ProdottiDaAccessorio}
    C6016BC6016B
    Quick-trigger slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
    MOONSTONE (optional)
    {ProdottiDaAccessorio}
    FCLMOONSTONEFCLMOONSTONE
    Flight case for 2pcs of MOONSTONE
    MOONSTONE (optional)
    {ProdottiDaAccessorio}
    WSA40501WSA40501
    WDMX, antenna 2.4Ghz 2dBi omnidirectional, folding, SMA-male, indoor
    MOONSTONE (include)
    {ProdottiDaAccessorio}
    OS24OS24
    Quick-lock omega bracket, M10 hole
    MOONSTONE (optional)
    {ProdottiDaAccessorio}
    UPBOX2P5UPBOX2P5
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
