MOSAICO
Share me

IP66

Immagine Principale
  • MOSAICO
  • MOSAICO
  • MOSAICO
  • MOSAICO
  • MOSAICO

    • Mosaico is a powerful exterior LED image projector for projection of textures, images and logos onto buildings and landscapes. The outstanding 11'000 lumens output allows for replacement of the 1.200 HID fixture with this far more durable and advanced tool. The complete set of on board effects allow for extreme creative integration in any context and the zoomable optics makes it a truly versatile fixture for both near-field and long-throw installations.

    Features:
    IP66 allowing long-lasting installation with minimal maintenance
    Beam angle zooming from 10° to 45° allows for flexible use and opens up a new level of effects
    Extremely bright with over 11'000 lumens, crisp focus and with 5 layers of effects allowing for limitless combinations

    LIGHT SOURCE
    • Source:
      250
      W
      high-power white LED
    • CCT:
      7.300
      K
    • Luminous flux:
      (10°) 4'037 lm - (45°) 8'196
      lm
    • Lux:
      (10°) 39'895 lx- (45°) 3'482
      lx
      @3 m full
    • Lux:
      (10°) 14'362 lx - (45°) 1'253
      lx
      @5 m full
    • Source life expectancy:
      30.000 hrs (L70 @25° C / 77° F)
    • Other:
      TM-30-15RF/RG: 71/95 - TLCI: (10°) 47,6 - (45°) 49,2
    OPTICS
    • Zoom:
      10° - 45
      °
      motorised linear zoom
    • Lens diameter:
      109
      mm
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised
    COLOUR SYSTEM
    • Colour wheel:
      14
      colour filters on two colour wheels
    DYNAMIC EFFECTS
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 26,7 mm - image: 23 mm - thickness: 1,1 mm
    • Circular prism:
      3
      f
      with bi-directional rotation, indexing
    • Frost:
      linear 0 - 100% frost filter
    • Iris:
      5 - 100
      %
      motorised iris
    • Special features:
      interchangeable animation wheel through magnets
    BODY
    • Body:
      aluminium die-casting
    • Body colour:
      RAL 9006
    • Other:
      Inspectable cover window for image replacement and maintenance
    CONTROL
    • Protocols:
      DMX512, RDM, W-DMX, Stand Alone programmer and playback
    • DMX channels:
      12 / 14 / 16 / 19
      channel
    • W-DMX:
      included, wireless solution receiver
    • RDM:
      RDM ready for fixture remote monitor and settings
    • Display:
      black OLED touch display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      different dimming curves available
    • Strobe / shutter:
      1~30
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      316
      W
    • Power consumption (at 120 V):
      320
      W
    • Output (at 230 V):
      11
      units on a single power line
    • Output (at 120 V):
      6
      units on a single power line
    PHYSICAL
    • Cooling:
      active, with IP low noise fan
    • Sospension and fixing:
      hanging bracket suitable for safe hanging and positioning
    • Adaptors:
      XLR and Schuko 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP power IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      332x425x453
      mm
    • Weight:
      19,3
      kg
    Product Code
    Accessory Code
    Description
    MOSAICO (optional)
    MOSUNIBRACKMOSUNIBRACK

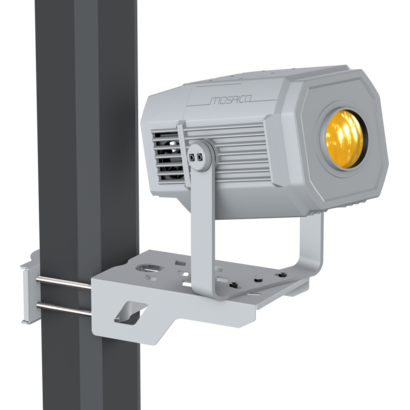

    Bracket for MOSAICO for wall mounting and suspension on poles
