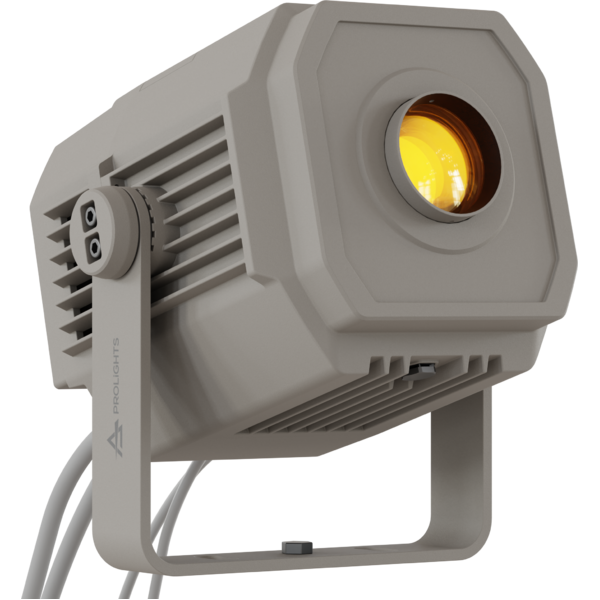

  • MOSAICOJR is a compact IP rated LED gobo projector designed for the projection of logos, images and textures onto commercial buildings, hotels and city facades. The small size allows for mounting anywhere without any impact on the surrounding environment or architecture. The onboard zoom ranges from 14° to 44° allowing for an extensive user-flexibility, from projecting crisp and accurate logos to textured projections.

    Features:
    70 W White LED engine delivering 2'900 lumens
    IP66 and equipped with 14° - 44° linear zoom system to meet any install
    On-board rotating gobo wheel, colour wheel and wireless DMX

    LIGHT SOURCE
    • Source:
      70
      W
      white LED
    • CT:
      7.900
      K
    • Luminous flux:
      (14°) 2'861 lm - (44°) 2'681
      lm
    • Lux:
      (14°) 6'070 lux - (44°) 848
      lx
      @3 m
    • Lux:
      (14°) 2'250 lux - (44°) 315
      lx
      @5 m
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      14° - 44
      °
      motorised linear zoom
    • Lens diameter:
      63
      mm
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised
    COLOUR SYSTEM
    • Colour wheel:
      7
      dichroic filters + open
    DYNAMIC EFFECTS
    • Rotating gobos:
      7
      rotating gobos + open, indexing
    • Gobo size:
      gobo Ø 15,9 mm - img Ø 12,5 mm - 0,2 mm
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      record scenes and create chases and shows throughout these scenes
    BODY
    • Hardware on-board:
      on board mechanics for rigging to the ceiling
    • Body:
      aluminium die-casting
    • Body colour:
      cool gray 6C
    CONTROL
    • Protocols:
      DMX512, RDM, W-DMX
    • DMX channels:
      8 / 14
      channel
    • W-DMX:
      included, wireless solution receiver
    • RDM:
      RDM ready for fixture remote monitor and settings
    • Display:
      black OLED high resolution display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      different dimming curves available
    • Strobe / shutter:
      1 - 21
      Hz, electronic
    • Battery backup:
      battery backup for user operation without connecting to the main power
    • Operating temperature:
      -20° ~ +45°
    • Flicker:
      flicker free frequency with adjustable PWM
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      (static) 86,5 W - (dinamic) 91,3
      W
    • Power consumption (at 120 V):
      (static) 85 W - (dinamic) 84,4
      W
    • Output (at 230 V):
      23
      units on a single power line
    • Output (at 120 V):
      13
      units on a single power line
    • Power factor:
      pF 0,98 @230 V - pF 0,99 @120 V
    PHYSICAL
    • Cooling:
      forced air with IP low noise fan
    • Sospension and fixing:
      hanging bracket suitable for safe hanging and positioning
    • Adaptors:
      XLR and Shuko 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Data connection:
      W-DMX receiver
    • Power connection:
      moulded IP power IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      247x258x244
      mm
    • Weight:
      10
      kg
