Mosaico L
ORDER CODE: MOSAICOL

Share me

IP66

The Mosaico L is a bright outdoor LED image projector, designed for long-range image, textures and logo projections.

Built in a durable IP66 die-cast housing, the Mosaico L offers a phenomenal output of 11,700 lumens and an extensive set of features including a rotating animation wheel, 7 interchangeable gobos, and motorized framing shutters that precisely focus within a certain projection area.

It has an exceptional zoom range, from 7° to 49°, making it versatile in both near-field and long-throw installations, or even for static and animated facade building lighting.

Features:
IP66 for long-lasting installations, with minimal maintenance needed
7°- 49° linear zoom system, for both near and long throw installation
300W White LED engine (8,000K), with up to 11'700 lumen output
Extensive feature set including 7 colour-filters on wheel, 7 interchangeable rotating gobos, animation wheel and motorized framing shutters

LIGHT SOURCE

Source:

300
W

high-power white LED
CCT:

8.000
Luminous flux:

(7°) 8'536 lm - (49°) 11'729

@full
Lux:

(7°) 28'230 lx - (49°) 867
lx

@5 m full
Source life expectancy:

> 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom:

7°- 49
°

motorised linear zoom
Lens diameter:

110
mm
Lens type:

HD anti-reflection lenses with achromatic coating
Focus:

motorised

COLOUR SYSTEM

Colour mixing:

cold white LED with colour wheel
Colour wheel:

open + 7

colour filters

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer
Shutter system:

4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel:

magnetic interchangeable

animation wheel with CW and CCW rotation
Rotating gobos:

open + 7

rotating gobos + open, interchangeable, indexing
Gobo size (BW):

outer: 26,9 mm - image: 23 mm
Gobo size (Color):

outer: 26,9 mm - image: 20,5 mm
FX generator:

shutter macros with adjustable speed
Circular prism:

3f
f

with bi-directional rotation, indexing
Frost:

linear 0 - 100% frost filter
Special features:

record scenes and create chases and shows throughout these scenes

BODY

Body:

weatherproof IP66 construction
Body colour:

RAL 9006
Other:

Inspectable cover window for gobos replacement and maintenance

CONTROL

Protocols:

DMX512, RDM, W-DMX
Stand Alone:

Stand Alone programmer and playback
DMX channels:

22 / 32 / 43
channel
Wireless Control:

included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM:

RDM for remote monitoring and settings
Display:

Graphic User Interface
Firmware upgrade:

yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included

ELECTRONICS

Dimmer:

linear 0 ~ 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1~30

Hz, electronic
Display battery:

self-charging battery backup
Operating temperature:

-20° C / +45° C (-4° F / +113° F)
LED Control:

flicker free frequency with adjustable PWM
Selectable PWM:

600 ~ 25.000 Hz

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption:

440
W
Output (at 230V):

4

units on a single power line
Power factor:

> 0,98
Inrush current:

230VAC/44A

PHYSICAL

IP rating:

66

for outdoor installations
IK rating:

09
Cooling:

combination of heat pipe cooling system and low noise fan
Suspension and fixing:

bracket for hanging and positioning
Adaptors:

XLR and BARE END 16A adaptors included
Signal connection:

1,8 m

moulded IP signal IN/OUT connectors
Data connection:

W-DMX transreceiver
Power connection:

1,8 m

moulded IP power IN/OUT connectors
Dimensions (WxHxD):

362x428x451
mm
Weight:

25
kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals:

CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

1 x MOSAICOL
1 x BARE END - IP connection adapter
1 x 5p XLR - IP connection male adapter
1 x 5p XLR - IP connection female adapter
User Manual

ITEMS REF.

Accessory Code

Description

AWEXAC12ADP

optional

Power adapter from AWEXAC1 cable series to AWEXAC2 cable series

AWEXDC1221ADP

optional

Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa

FCLMOSAICOL

optional

Flightcase for 2 pcs of MOSAICOL

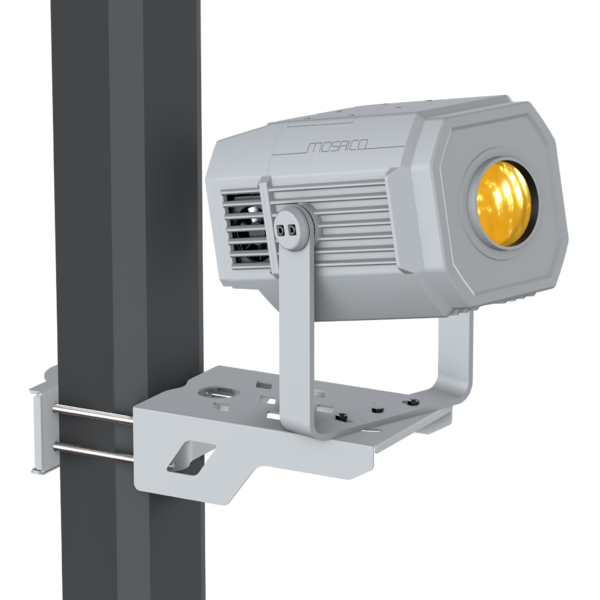

MOSBRACK

optional

Bracket for MOSAICO series for wall mounting and suspension on poles

MOSLCCW1

optional

Optional color wheel 1 for MOSAICOL

MOSLCCW2

optional

Optional color wheel 2 for MOSAICOL

MOSUNIBRACKXL

optional

Bracket for MOSAICOXL for wall mounting and suspension on poles

GBVMAP00123F00

optional

Gobo Mapping, F size, black and white

AWEXAC1L03

optional

IP67 power extension cable for outdoor architectural projectors, L.03 m

AWEXAC1L05

optional

IP67 power extension cable for outdoor architectural projectors, L.05 m

AWEXAC1L10

optional

IP67 power extension cable for outdoor architectural projectors, L.10 m

AWEXAC1L20

optional

IP67 power extension cable for outdoor architectural projectors, L.2 0m

AWEXDC1L03

optional

IP67 DMX extension cable for outdoor architectural projectors, L.03 m

AWEXDC1L05

optional

IP67 DMX extension cable for outdoor architectural projectors, L.05 m

AWEXDC1L10

optional

IP67 DMX extension cable for outdoor architectural projectors, L.10 m

AWEXDC1L20

optional

IP67 DMX extension cable for outdoor architectural projectors, L.20 m

UPBOX1UP5

optional

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

UPBOXPRO

optional

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

LRLUNA

optional

Single Universe DMX transceiver with Bluetooth

RSR1235B

optional

Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black

C6002B

optional

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
