NOVACVT
ORDER CODE: NOVACVT
Share me

Immagine Principale
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • NOVACVT
  • Code TRASMISSION MODE IN/OUT INCLUDED ACCESSORY Avail.
    NOVACVT4K-S Single mode 16xRJ45, 4xOptical 4xNOVASFP4K
    NOVACVT310 Multi mode 1xRJ45, 1xOptical 1xNOVASFP4K-M
    NOVACVT320 Single mode 1xRJ45, 1xOptical 1xNOVASFP4K

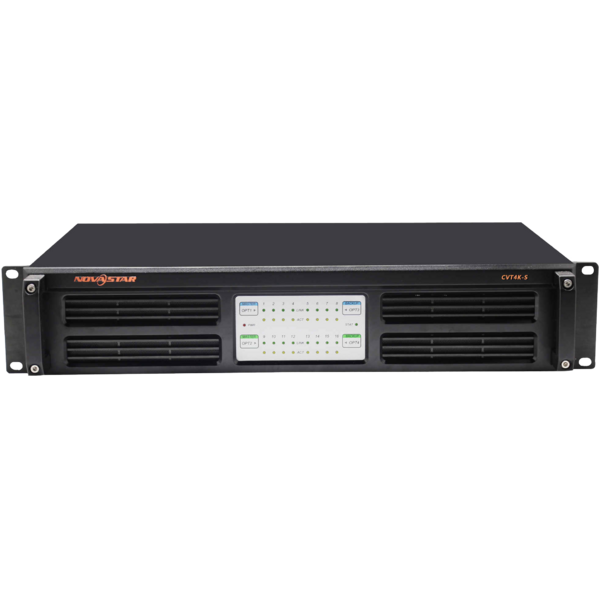

    NOVACVT4K-S and NOVACVT4K-M are a high performance fiber converter developed by NovaStar. Featuring photoelectric conversion of signals signals, the NOVACVT4K-S and NOVACVT4K-M realize signal transmission via optical fiber and twisted pair. They allows long long-distance signal transmission that is stable and not be easily interfered. Being easy to use, the NOVACVT4K-S and NOVACVT4K-M make it convenient to connect terminal devices as well as simpler for onsite wiring connections.

    • Compatibles NovaStar ALL-IN-ONE and sending card: NOVAPROUHD, NOVAPROUHDJR, NOVAMCTRL4K, NOVAMCTRLR5, NOVAMCTRL660PRO, NOVAVX1000.
    • Supports 16 Neutrik Ethernet inputs and outputs.
    • NOVACVT4K-S supports 4 single-mode twin-core optical fiber and LC optical connectors (compatible with NOVASFP4K). Two of them are master input inputs and outputs and the other two are the backups.
    • NOVACVT4K-M supports 4 multi-mode twin-core optical fiber and LC optical connectors (compatible with NOVASFP4K-M). Two of them are master input inputs and outputs and the other two are the backups.
    • Features dual-power redundancy backup inside for more stability and reliability.
    • Features 2 types of power connectors (3 -pin power socket and PowerCON ), satisfying different needs of customers.
    • Features various indicator indicators on the front panel, showing device statusstatuses clearly.
    • Features USB and Ethernet control connectorsconnectors, making it more flexible and much easier to connect the control computer computer.
    • Input voltage: 100-240 VAC, 50/60 Hz.
    • Rated power consumption: 10W.
    • Operating temperature: -20°C - +60°C.
    • Storage temperature: -20°C - +70°C.
    • Operating humidity: 10% - 90% RH.
    • Dimensions: 500 mm ×386 mm ×96 mm.
    • Net weight: 4.6 kg.







    NOVACVT310 and NOVACVT320 are Nova EO converter device. They have the following characteristics:

    • 1 cable interface, 1 fiber interface.
    • 100-240 VAC 50/60HZ power supply.
    • NOVACVT310 use multi-mode dual-core optical fiber with LC interface, the transmission distance is 300 m. It is compatible with NOVASFP4K-M.
    • NOVACVT320 Use single-mode dual-core optical fiber with LC interface, the transmission distance is 15 Km. It is compatible with NOVASFP4K.
    • No driver required, immediately use after connection.







    NOVACVTRACK310 and NOVACVTRACK320 are a multi-channel fiber converter developed by NovaStar based on NOVACVT310 and NOVACVT320 to meet different customers requirements. With configuration flexibility, the converter provides customers with flexible choices to choose the number of channels according to their own requirements.

    They have the following characteristics:

    • Multiple network cable interfaces and optical fiber interfaces.
    • Power supply: 100-240V AC 50/60HZ.
    • NOVACVTRACK310 use multi-mode dual core and LC interface optical fiber, with 300 m of transmission distance. It is compatible with NOVASFP4K-M.
    • NOVACVTRACK320 use single-mode dual core and LC interface optical fiber, with 15 Km of transmission distance. It is compatible with NOVASFP4K.
    • No drive is needed and start to use it after connection.
    • Available in different variants with 4 channels, 8 channels, 12 channels and 16 channels.
    • Operating temperature: -20°C - +60°C
    • Operating relative humidity: 10% - 90% RH
    • Net weight: 6.9 kg







    The NOVACVT10 fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission. The NOVACVT10 hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT10 devices, or one CVT10 device and a connecting piece can be combined into one assembly that is 1U in width.

    • Compatibles NovaStar ALL-IN-ONE and sending card: NOVAPROUHD, NOVAPROUHDJR, NOVAMCTRL4K, NOVAMCTRLR5, NOVAMCTRL660PRO, NOVAPROHD, NOVAVX1000.
    • Models include the CVT10-S (single-mode) and the CVT10-M (multi-mode).
    • 2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s
    • 10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/sFiber in and Ethernet out: 8x Ethernet ports available (ports 1-8), ports 9-10 currently unavailable (to beavailable in the future upgrade)
    • Ethernet in and fiber out: 10x Ethernet ports available
    • 2 types of power connectors, including a 3-pin power socket and a PowerCON socket
    • 1x type-B USB control port
    • Power supply: 100-240V~, 50/60Hz, 0.7A
    • Rated power consumption: 22 W
    • Operating Environment Temperature: -20ºC to +60ºC
    • Operating Environment Humidity: 10% RH to 80% RH, non-condensing
    • Storage Environment Temperature: -20°C to +70°C
    • Storage Environment Humidity: 10% RH to 95% RH, non-condensing
    • Dimensions: 254.3 mm × 50.1 mm × 290.0 mm
    • Net weight: 2.1 kg; Note: It is the weight of a single product only.
    • Gross weight: 3.1 kg; Note: It is the total weight of the product, accessories, printed materials and packing materials packed according to the packing specifications.
    • Packing box: 362.0 mm × 141.0 mm × 331.0 mm, kraft paper box
    • Outer box: 387.0 mm × 173.0 mm × 359.0 mm, kraft paper box
    • Packing list: 1x CVT10, 1x Power cord, 1x USB cable, 1x Ethernet cable, 1x Supporting bracket A (with nuts), 1x Supporting bracket B (without nuts), 1x Connecting piece, 12x M3*8 screws, 1x Assembling diagram, 1x Certificate of Approval
    • Certifications: RoHS, FCC, CE, IC
    ITEMS REF.
    Accessory Code
    Description
    NOVACVT (include)
    NOVAPROUHDJR (optional)
    NOVAPROUHD (optional)
    NOVAMCTRL4K (optional)
    NOVAMCTRLR5 (optional)
    NOVAMCTRL660PRO (optional)
    NOVAPROHD (optional)
    NOVASTAR, single mode optic fibre adapter for 10G Novastar controllers
    NOVACVT (optional)
    NOVAPROUHDJR (optional)
    NOVAPROUHD (optional)
    NOVAMCTRL4K (optional)
    NOVAMCTRLR5 (optional)
    NOVAMCTRL660PRO (optional)
    NOVAPROHD (optional)
    NOVASTAR, multy mode optic fibre adapter for 10G Novastar controllers

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    Tech Docs

    Novacvt10m_GUIDE.pdfDownload
    Novacvt10s_GUIDE.pdfDownload
