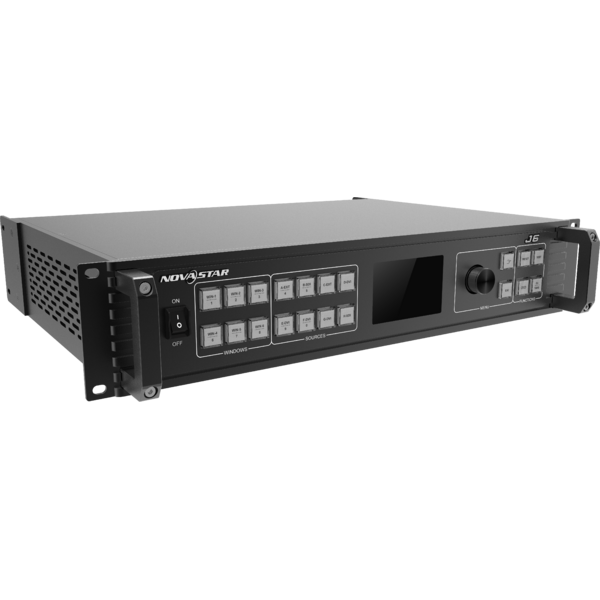

  • Developed by NovaStar, J6 is a high-performance multi-screen splicing processor featuring powerful image processing. Multiple video inputs can be overlapped and displayed on a display system composed of 4 screens after each of the input is scaled. J6 supports a wide range of inputs which can be spliced into a bigger picture.
    Based on a powerful FPGA processing platform, J6 supports quick seamless switch between input sources and supports transition effects such as fade, etc., allows you to experience more flexible screen layouts.
    In addition, J6 can work with V-Can, a new smart management software, to enable more screen splicing effects and better satisfy your needs.

    Features:
    INPUTS:
    1x DuallinkDVI / HDMI1.4 / DP1.1 (choose one from these inputs), supports 4K*2K@30Hz, 2560x1600@60Hz (downward compatible);
    4x DVI-D, VESA standard 1920×1080@60Hz (downward compatible);
    1x CVBS (BNC) / VGA (DB25) / HDMI / DVI-D (choose one from these inputs), VESA standard 1920x1080@60Hz (downward compatible);
    2x SDI (BNC), 720p, 1080p.

    STANDARD INPUTS CONFIGURATION:
    1x HDMI1.4, supports 4K*2K@30Hz, 2560x1600@60Hz (downward compatible);
    1x HDMI, VESA standard 1920x1080@60Hz (downward compatible);
    4x DVI-D, VESA standard 1920x1080@60Hz (downward compatible);
    2x SDI (BNC), 720p, 1080p.

    OUTPUTS:
    4 groups (8 channels) DVI-D, Maximum supported resolution of each interface: 1080p (DualLink output is available for DVI1 and DVI3 DualLink);
    2x SDI Loop (BNC), 480i, 576i, 720p, 1080i/p (3G SDI), same as SDI input;
    1x HDMI (Type A), Supported output resolution: 1920x1080@60 Hz, capable of previewing the status of 8 input sources.

    CONTROLS:
    1x ETHERNET (RJ45) Control interface;
    1x USB (Type-B) Control interface for connecting the upper computer;
    1x USB (Type-A) Interface for cascading more J6 units.

    OVERALL SPECIFICATIONS:
    Input power: AC 100V-240V, 50/60Hz;
    Overall power consumption: 50W;
    Operating temperature: -20°C +60°C;
    Dimensions (L×W×H): 482.6x373.5x96 (mm).

    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
