PINSPOTD
Share me

Immagine Principale
  • PINSPOTD
  • PINSPOTD
  • PINSPOTD
  • PINSPOTD
  • PINSPOTD
  • PINSPOTD
    Code CT CRI Lumen Avail.
    PINSPOTDTU 2900K 90Ra 755lm
    PINSPOTDDY 6100K 80Ra 978lm

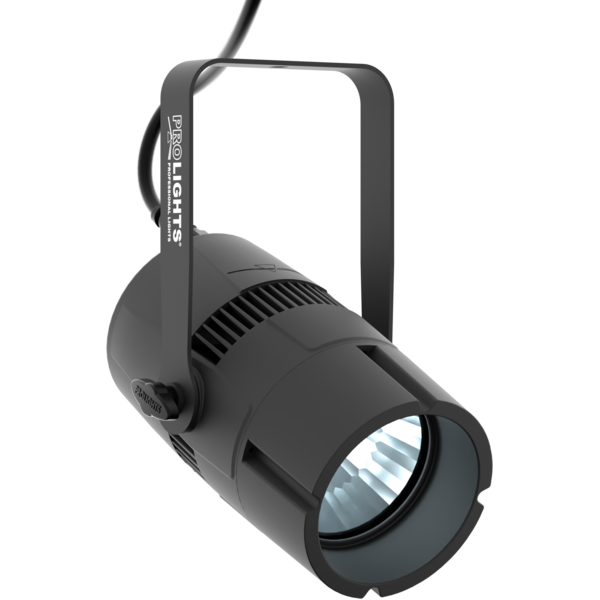

    PINSPOT LED is a true LED replacement for a traditional PINSPOT. Featuring both the beam and output characteristics of the original, the PINSPOT is able to be used in all the same applications.

    Features:
    High power LED source and parabolic reflector delivering a tight, bright beam
    Available in both tungsten and daylight colour temperature versions
    Remove heat, dimmers and lamp changes in one go.

    LIGHT SOURCE
    • Source:
      13
      W
      high-power white LED
    • CT:
      (TU) 2900 K - (DY) 6100
      K
    • CRI:
      (TU) 90 - (DY) 80
    • Luminous flux:
      (TU) 755 lm - (DY) 978
      lm
    • Lux:
      (TU) 5030 lux - (DY) 6320
      lux
      @3m
    • Source life expectancy:
      >30.000 h
    OPTICS
    • Beam angle:
      6
      °
    • Field angle:
      12
      °
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static dimmer
    • Manual colour mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      1 / 3
      channel
    • RDM:
      RDM ready for fixture remote monitor and settings
    • Display:
      black OLED high resolution display
    • Firmware upgrade:
      yes, via USB-DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0~100% electronic dimmer
    • Dimmer curves:
      3
      different dimming curves available
    • Strobe / shutter:
      1-28
      Hz, electronic
    • Battery backup:
      battery backup for user operation without connecting to the main power
    • Operating temperature:
      -10° ~ +45°
    ELECTRICAL
    • Power supply:
      100-240V – 50/60Hz
    • Power consumption (at 230V):
      18,9
      W
    • Power consumption (at 120V):
      19,6
      W
    PHYSICAL
    • Cooling:
      forced air with low noise fan
    • Sospension and fixing:
      hanging bracket suitable for safe hanging and positioning
    • Signal connection:
      XLR 5p IN/OUT connectors
    • Power connection:
      moulded IP power IN connector
    • IP rating:
      30
    • Dimensions (WxHxD):
      209x167x238
      mm
    • Weight:
      1.8
      kg
    Product Code
    Accessory Code
    Description
    PINSPOTD (optional)
    PINSPOT (optional)
    Black filter frame kit for PINSPOT projectors
    PINSPOTD (optional)
    SMARTBOOK (optional)
    LUMI4COB (optional)
    WIFIBOX (optional)
    ARTNETNODE (optional)
    SUNBAR2000FC (optional)
    SUNBAR2500MAX (optional)
    BEAMSPOT10 (optional)
    PIXBAR3E (optional)
    PIXROLL12TRI (optional)
    HALUSTRIP (optional)
    POLAR3000 (optional)
    LUMIPIX15IP (optional)
    SUNRISE4 (optional)
    SUNRISE2 (optional)
    SUNRISE2L (optional)
    PIXPAN9E (optional)
    JETSPOT4Z (optional)
    UVSTRIP18 (optional)
    6BEAMQ (optional)
    LUMIPAR7QTOUR (optional)
    JETBEAM2 (optional)
    WDBOX (optional)
    ACCENT1Q (optional)
    LUMIPAR18QTOUR (optional)
    UVPANEL18 (optional)
    LUMIPIX12QTOUR (optional)
    CHROMAPIX (optional)
    PIXIEZOOM (optional)
    POLAR500 (optional)
    POLAR1000 (optional)
    HALUROCK (optional)
    HALUPIX (optional)
    LUMIPIX6TRI (optional)
    CHROMAROCK (optional)
    Z8STRIP (optional)
    Z7SPOT (optional)
    TRUSSPOD3T (optional)
    SMARTDISK (optional)
    RA2000PROFILE (optional)
    SMARTTORCH (optional)
    TRUSSPOD3BAT (optional)
    ECLIPSEFRESNELJ (optional)
    TABLEDC (optional)
    PIXIEWASHXB (optional)
    PIXIEZOOMXB (optional)
    BATSTRIP160 (optional)
    BATPAR180 (optional)
    PIXPAN16 (optional)
    PIXIESPOT (optional)
    MINIVERSAPAR (optional)
    JETSPOT1 (optional)
    ECLIPSEJR (optional)
    FLATPAR3Q (optional)
    ECLIPSEFRESNELTW (optional)
    DISPLAYCOBWW (optional)
    DISPLAYCOBFC (optional)
    MINIECLFRFC (optional)
    ARCPOINT1 (optional)
    ECLFR2K (optional)
    ECLFR2KTW (optional)
    MINIECLFR (optional)
    JETBEAM1 (optional)
    VERSAPAR (optional)
    DISPLAYCOBDY (optional)
    LUMIPAR7HPRO (optional)
    FLATPAR3H (optional)
    FLATPAR6H (optional)
    MOBIBLAST (optional)
    LION (optional)
    LUMIPIX12UT (optional)
    ARCPAR7 (optional)
    LUMIPIX8H (optional)
    SOLAR21 (optional)
    QUADRO18UTRI (optional)
    ARIA700SPOT (include)
    ECLIPSEFRESNEL (optional)
    ARIA700PROFILE (optional)
    ECLIPSEJZIP (optional)
    STUDIOCOBPLUSUV (optional)
    LUMIPIX12UQPRO (optional)
    SUNBLAST3000FC (optional)
    SUNBLAST3500MAX (optional)
    DISPLAYCOBTRWDDY (optional)
    LUMIPAR12HPRO (optional)
    LUMIPAR18VWPRO (optional)
    FLATCOB80 (optional)
    FLATCOB40 (optional)
    FLATCOB80UV (optional)
    LUMIPIX12Q (optional)
    LUMIPIX12TRIIP (optional)
    POLAR700 (optional)
    LUMIPACK7UTRI (optional)
    LUMIPAR7UTRI (optional)
    DISPLAYCOBTRWDFC (optional)
    LUMIPAR12UQPRO (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12UAW (optional)
    LUMIPACK12UQ (optional)
    LUMIPAR6UQ (optional)
    LUMIPACK6UQ (optional)
    LUMIPACK12UTRI (optional)
    LUMIPAR12UTRI (optional)
    LUMIPIX12UQ (optional)
    STUDIOCOBPLUSDY (optional)
    LUMI4UTRI (optional)
    VISUALGOB (optional)
    AQUA (optional)
    PIXIEWASH (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSTU (optional)
    DISPLAYCOBTRWDWW (optional)
    ARCSHINE6 (optional)
    ARCSHINE12 (optional)
    ARCPOD36 (optional)
    ARCPOD21 (optional)
    ARCPAR18 (optional)
    ARCPOD8 (optional)
    LUMIPAR6Q (optional)
    ARENACOB4FC (optional)
    LUMIPIX16H (optional)
    ARENACOB4HALO (optional)
    LUMIPAR12UQ (optional)
    ECLIPSEPARFC (optional)
    ECLPANELTWC800 (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBTU (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBWW (optional)
    ECLIPSEPAR (optional)
    SMARTBATTENQ (optional)
    ECLIPSEHD2 (optional)
    SOLAR (optional)
    RA3000PROFILE (optional)
    ECLIPSEHD (optional)
    LUMIPIX12QIP (optional)
    ECLIPSE (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    ECLIPSEHDTWC (optional)
    SOLAR48Q (optional)
    ECLIPSEFC (optional)
    SMARTBAT (optional)
    SMARTBATHEX (optional)
    SMARTBATIP (optional)
    SOLAR27Q (optional)
    ARCPOD48Q (optional)
    ARCPOD27Q (optional)
    MOSAICO (optional)
    Firmware uploader kit, USB IN, 3-pin XLR DMX OUT, USB OUT

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    CAD 2DDownload
    DRAWINGDownload

    Fixture Libraries / DMX Charts

    Download dmx charts
    Firmware rev. 1.0
    AVOLITES Titan
    prolights_pinspotddy.d4Download
    prolights_pinspotdtu.d4Download
    CHAMSYS
    prolights_pinspot+d_1ch.hed Download
    prolights_pinspot+d_3ch.hed Download

    Photometrics

    Software Upgrades

    User Manuals


    Italian/English manual
    Download
