Pixie Beam
ORDER CODE: PIXIEBEAM
Share me

Immagine Principale
  • PIXIEBEAM
  • PIXIEBEAM
  • PIXIEBEAM
  • PIXIEBEAM
  • PIXIEBEAM
  • PIXIEBEAM
  • PIXIEBEAM

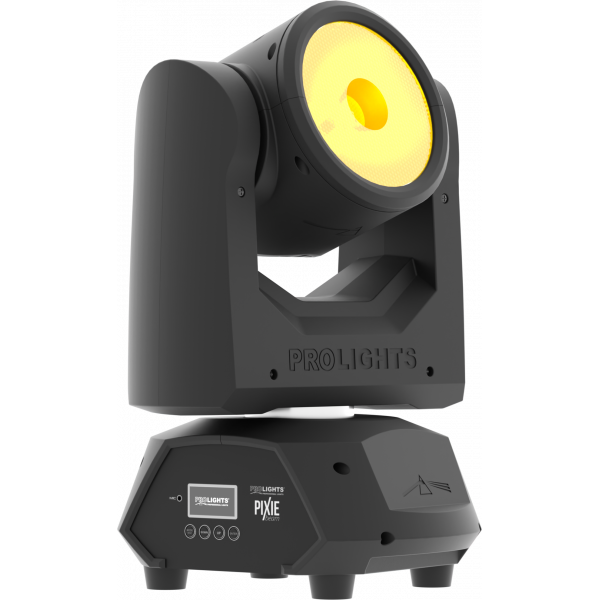

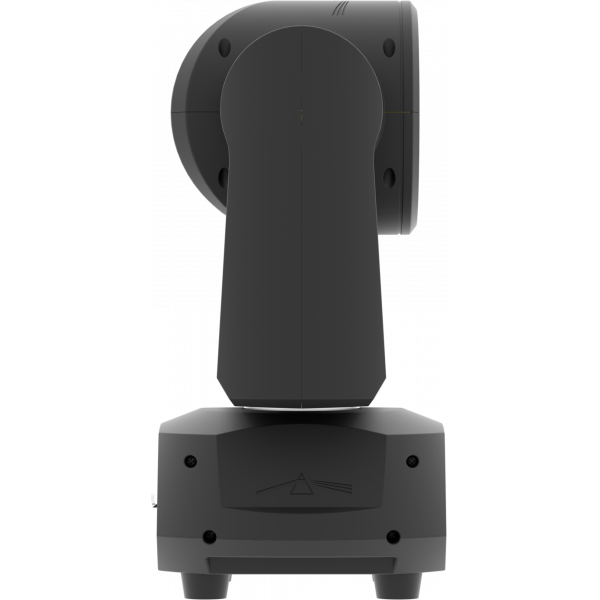

    • Pixie Beam is a fast, bright and compact moving LED beam luminaire. Some looks are all about scale. The Pixie Beam takes this idea to a different level featuring incredible speed and infinite rotation of both pan and tilt.

    Features:
    Single 60 W Osram Ostar RGBW LED with 100 mm lens delivers a bright, consistent 4,5° beam
    Compact, lightweight and incredibly fast - the Pixie Beam moves with 'moving mirror' speed
    Infinite pan and tilt rotation for additional effects

    LIGHT SOURCE
    • Source:
      60
      W
      RGBW Osram Ostar LEDs
    • Lux:
      11'120
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      4,5
      °
    • Lens diameter:
      100
      mm
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.000 K ~ 8.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    BODY
    • Pan angle:
      °
      with 360° continuous rotation
    • Tilt angle:
      °
      with 360° continuous rotation
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      14 / 16 / 18
      channel
    • RDM:
      RDM for remote monitoring and settings

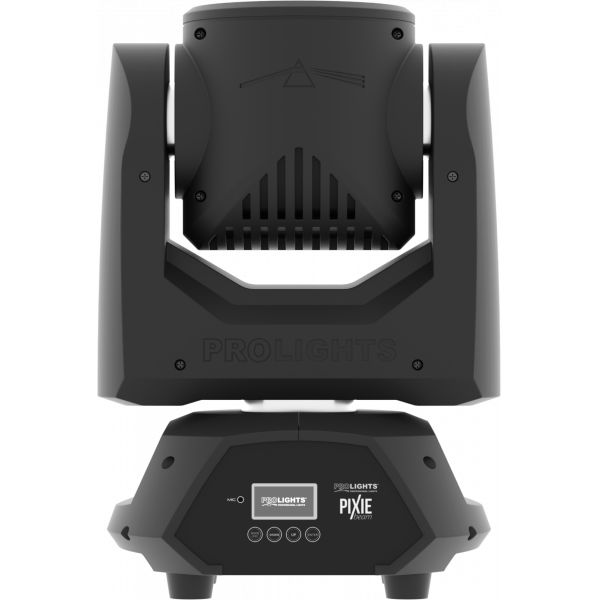

    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      82
      W
    • Max power consumption (at 120V):
      82
      W
    • Output (at 230V):
      15
      units on a single power line
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      any position with quick-lock omega brackets

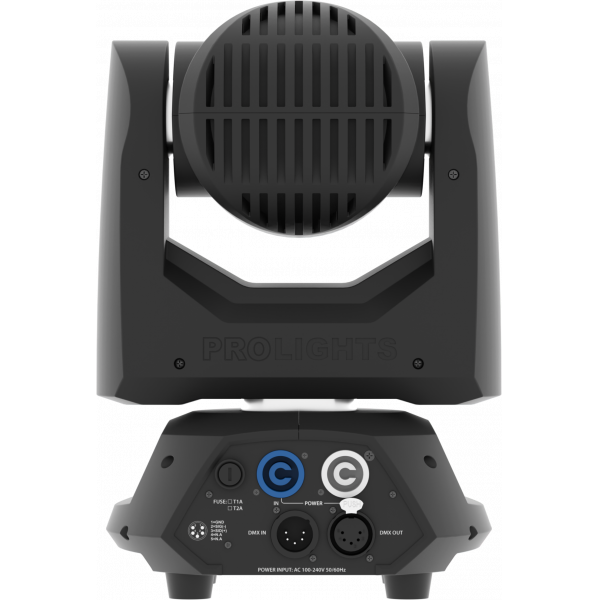

    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      208x300x144
      mm
    • Weight:
      4
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x PIXIEBEAM
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
    • 1 x OS24
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    PIXIEBEAM (include)
    {ProdottiDaAccessorio}
    OS105OS105
    Quick-lock omega bracket compatible with PIXIEBEAM
    PIXIEBEAM (optional)
    {ProdottiDaAccessorio}
    C6016BC6016B
    Quick-trigger slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
    PIXIEBEAM (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    PIXIEBEAM (optional)
    {ProdottiDaAccessorio}
    9533FCAL039533FCAL03
    Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FCA socket, L.3m
    PIXIEBEAM (optional)
    {ProdottiDaAccessorio}
    9513FCAL039513FCAL03
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
    PIXIEBEAM (optional)
    {ProdottiDaAccessorio}
    958025L03958025L03
    3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
    PIXIEBEAM (optional)
    {ProdottiDaAccessorio}
    TOUR53415L03TOUR53415L03
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    PIXIEBEAM (optional)
    {ProdottiDaAccessorio}
    FCLPIXIEBEAMFCLPIXIEBEAM
    Flight case for 8pcs of PIXIEBEAM
    PIXIEBEAM (optional)
    {ProdottiDaAccessorio}
    UPBOX2P5UPBOX2P5
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

    Data sheet & specs

    File name File size Download
    Pixiebeam_A4_DATASHEET_(EN).pdf 151KB
    Pixiebeam_A4_DATASHEET_(IT).pdf 150KB

    User manual

    File name File size Download
    Pixiebeam_USER_MANUAL_ITEN.pdf 4MB

    DMX chart & personalities

    File name File size Download
    Pixiebeam_DMX_CHARTS.pdf 47KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VECTORWORKS_SYMBOLS.vwx 475KB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    PIXIEBEAM Firmware rev. 1.2.02
    manufacturer fixture library (Link) Link
    prolights_pixiebeam.d4Download
    manufacturer fixture library (Link) Link
    prolights_pixiebeam_14ch.hedDownload
    prolights_pixiebeam_16ch.hedDownload
    manufacturer fixture library (Link) Link
    pixiebeam_14ch.fdfDownload
    pixiebeam_16ch.fdfDownload
    pixiebeam_ssl1.zipDownload
    pixiebeam_ssl2.zipDownload
    manufacturer fixture library (Link) Link
    prolights@pixiebeam_14@basic1.xmlDownload
    prolights@pixiebeam_16@standard.xmlDownload
    manufacturer fixture library (Link) Link
    pixiebeam_hog3.zipDownload
    pixiebeam_bas.hog4showDownload
    pixiebeam_std.hog4showDownload
    manufacturer fixture library (Link) Link
    pixiebeam_martin.zipDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    pixie beam basic1.fix2Download
    pixie beam standard.fix2Download
    manufacturer fixture library (Link) Link
    PIXIEBEAM Firmware rev. 2.0.00
    manufacturer fixture library (Link) Link
    prolights_pixiebeam.d4Download
    manufacturer fixture library (Link) Link
    prolights_pixiebeam_14ch.hedDownload
    prolights_pixiebeam_16ch.hedDownload
    manufacturer fixture library (Link) Link
    pixiebeam_14ch.fdfDownload
    pixiebeam_16ch.fdfDownload
    pixiebeam_ssl1.zipDownload
    pixiebeam_ssl2.zipDownload
    manufacturer fixture library (Link) Link
    prolights@pixiebeam_14@basic1.xmlDownload
    prolights@pixiebeam_16@standard.xmlDownload
    manufacturer fixture library (Link) Link
    pixiebeam_hog3.zipDownload
    pixiebeam_bas.hog4showDownload
    pixiebeam_std.hog4showDownload
    manufacturer fixture library (Link) Link
    pixiebeam_martin.zipDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    pixie beam basic1.fix2Download
    pixie beam standard.fix2Download
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    Pixiebeam_PHOTOMETRICS.pdf 215KB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    Pixiebeam_3D_REVIT.rfa 8MB
    Pixiebeam_2D.dwg 2MB
    Pixiebeam_3D.dwg 31MB
    Pixiebeam_2DSYMBOLS.dwg 69KB
    Pixiebeam_TECHNICAL_DRAWING.pdf 281KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX2P5
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.2.02 STABLE 18/11/2019 Improved display management. Rev. 1
    Rev. 2
    2.0.00 STABLE 17/11/2019 Firmware for Hardware Revision 2. Rev. 1
    Rev. 2
    Rev. 3
