    Code Housing Avail.
    PIXIEWASHBK Black

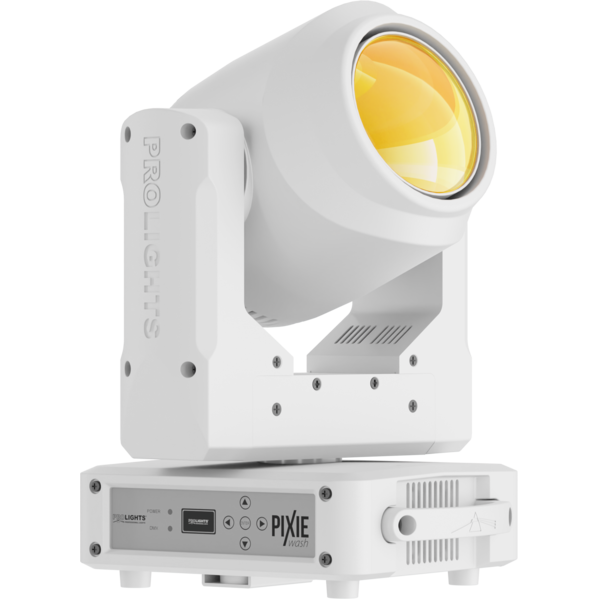

    PIXIEWASHWH White

    PIXIEWASH is a single source, compact LED wash luminaire with a 6° to 50° zoom. Featuring a single 60 W LED, its small form factor and near-silent cooling make it ideal for low ceilings or noise-sensitive environments.

    Features:
    Single 60 W Osram Ostar RGBW LED with extensive colour range
    Massive 6° to 50° linear zoom with a smooth, even beam
    HD dimming

    LIGHT SOURCE
    • Source:
      60
      W
      RGBW Osram Ostar LED
    • Luminous flux:
      1'230
      lm
    • Lux:
      (6°) 11'100 lx - (50°) 705
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      6° - 50
      °
      motorised linear zoom
    • Lens diameter:
      100
      mm
    • Lens type:
      high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CTC:
      CTC control through independent DMX channel
    • White presets:
      2.800 K ~ 8.000
      K
    • Colour wheel:
      virtual colour wheel with presets
    DYNAMIC EFFECTS
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Pan angle:
      540
      °
    • Tilt angle:
      260
      °
    • Pan/Tilt resolution:
      bit
      8 / 16 bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with hi-resistance polycarbonate cover
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      13 / 16
      channel
    • Display:
      black OLED high resolution display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      different dimming curves available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Battery backup:
      battery backup for user operation without connecting to the main power
    • Operating temperature:
      -10° ~ +45°
    • Flicker:
      flicker free operation
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      113
      W
    • Output (at 230 V):
      22
      units on a single power line
    PHYSICAL
    • Cooling:
      forced air with low noise fan
    • Sospension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      253x329x205
      mm
    • Weight:
      7
      kg
