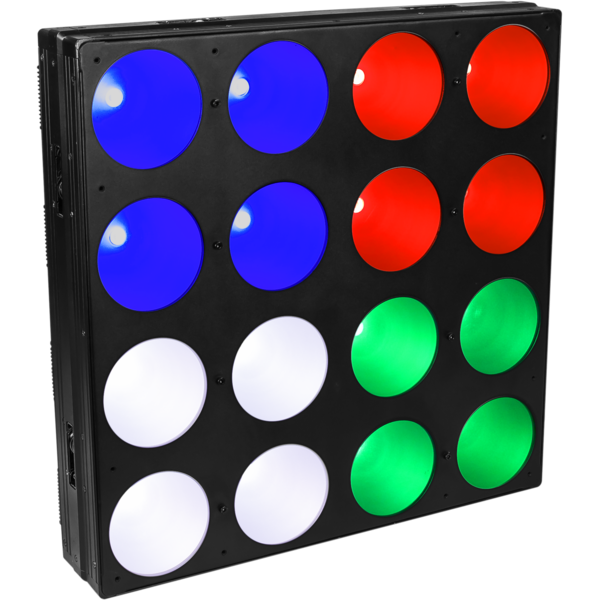

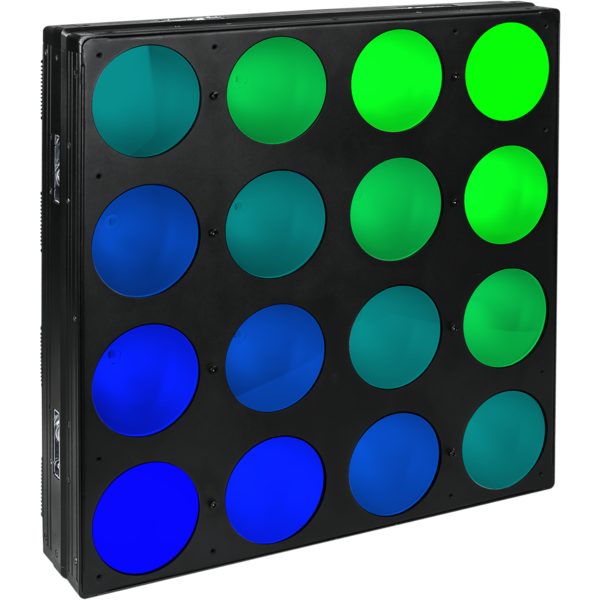

  • PIXPAN16 is a LED matrix consisting of 16x30W RGB/FC COB LEDs, conceived to revolutionize the concept of pixel-control applied to lighting by LED sources.
    The special optics reflectors in combination with 30W COB (chip-on-board) LEDs give PIXPAN16 an unprecedented light output capable of impressing and dazzling the audience. Mechanical components of PIXPAN16 consist of locks and coupling inserts, allowing a highly versatile use in suspension on truss, stacked on the floor or in low-res LED Wall composition.

    Features:
    16 (4x4 matrix) x 30W COB RGB/full colour LEDs
    LED + parabolic reflector featuring wide beam coverage like classic DWE lamps
    Pixel control: individual control of each single LEDs
    Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background colours, dimmer fade, speed and rotation

    LIGHT SOURCE
    • Source:
      16x30
      W
      COB RGB LED
    • Luminous flux:
      5251
      lm
    • Lux:
      827
      lux
      @3m full
    • Source life expectancy:
      >30.000 h
    OPTICS
    • Beam angle:
      47
      °
    • Field angle:
      79
      °
    • Pixel pitch:
      115
      mm
    • Lens type:
      dichroic parabolic reflector in combination with HD fresnel lens
    COLOUR SYSTEM
    • Colour mixing:
      RGB/FC
    • White presets:
      2800-10000
      K
    • Colour wheel:
      virtual colour wheel with presets
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Hardware on-board:
      on board mechanics for rigging to the ceiling
    • Body:
      sturdy aluminum profile
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      3/5/7/48
      channel
    • Pixel control:
      pixel2pixel control
    • Display:
      LCD display
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0~100% electronic dimmer
    • Dimmer curves:
      4
      different dimming curves available
    • Strobe / shutter:
      1-25
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • Flicker:
      flicker free operation
    ELECTRICAL
    • Power supply:
      100-240V – 50/60Hz
    • Power consumption (at 230V):
      390
      W
    • Output (at 230V):
      5
      units on a single power line
    PHYSICAL
    • Cooling:
      forced air with low noise fan
    • Sospension and fixing:

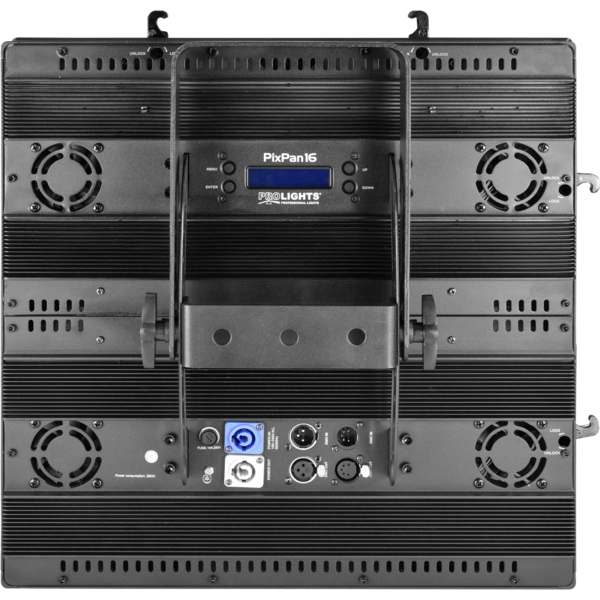

      bracket for truss rigging and hardware for connection of more units
    • Signal connection:
      3p IN/OUT
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • IP rating:
      44
    • Dimensions (WxHxD):
      460x460x360
      mm
    • Weight:
      8
      kg
    Product Code
    Accessory Code
    Description
    PIXPAN16 (optional)
    Flight case for 4 PIXPAN16, 950x570x515 mm, 37 kg
    PIXPAN16 (optional)
    SMARTBOOK (optional)
    DATAMASTER (optional)
    LUMIPAR7QTOUR (optional)
    POLAR3000 (optional)
