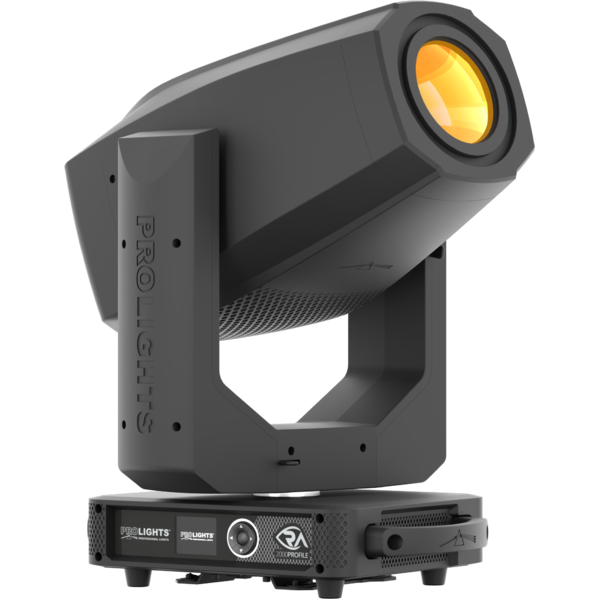

Ra 2000Profile
Share me

Immagine Principale
  • RA2000PROFILE
  • RA2000PROFILE
  • RA2000PROFILE
  • RA2000PROFILE
  • The Ra 2000Profile has been designed in response to feedback from global users and by lighting designers. A universal moving profile/spot that lighting designers and users can use for theatrical, touring and TV productions. Powerful but silent, compact but fully equipped with both framing shutters and animation wheel, all whilst delivering a superior light quality, the Ra 2000Profile is an indispensable tool for any show.

    The 6.500 K LED engine has been custom engineered to make the Ra 2000Profile hit a 13'900 lumen output, keeping a native CRI of 93, TLCI of 93, high R9 and TM30 making all skin tones and colours come to life on stage or in front of a camera.

    The Ra 2000Profile’s CMY system delivers beautiful pastels, stunning saturated colours and powerful primaries. One colour wheel provides split colours, and linear CTO allows the Ra 2000Profile to blend in with traditional sources.

    Packed with a full feature set composed of a gobo wheel, adjustable framing shutters, animation wheel, iris, prism and dual linear frost. The highly efficient optical system delivers a 1:8 zoom from 8° to 48°, and crisp focus to perfectly merge multi-layer effects.

    The Ra 2000Profile is the real embodiment of solid-state LED technology.

    Features:
    540W LED engine with 6.500 K CT featuring high CRI, TLCI, R9 and TM30.
    13'900 lumen fixture output with flat-field projection and silent operation.
    Equipped with both adjustable framing shutters and an animation wheel.

    LIGHT SOURCE
    • Source:
      540
      W
      LED
    • CCT:
      6.500
      K
    • Luminous flux:
      13'900
      lm
    • Lux:
      (8°) 24'537 lx - (48°) 991
      lx
      @5 m
    • CRI:
      >93
    • R9:
      >73
    • TLCI:
      >92
    • TM30 Rf:
      >89
    • TM30 Rg:
      >99
    • Source life expectancy:
      50.000 h
    OPTICS
    • Zoom:
      8° - 48
      °
      motorised linear zoom
    • Lens diameter:
      120
      mm
    • Focus:
      motorised
    COLOUR SYSTEM
    • Colour mixing:
      linear CMY
    • CTC:
      amber shift activation by DMX and linear CTO correction 2700 K ~ 6000 K
    • Colour wheel:
      6
      colour filters
    DYNAMIC EFFECTS
    • Shutter system:
      4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 26,7 mm - image: 20 mm - thickness: 1,1 mm
    • FX generator:
      shutter macros with adjustable speed
    • Circular prism:
      4
      f
      with bi-directional rotation, indexing
    • Frost:
      dual frost filter system, 1° soft-edge frost gobo, 5° frost wash, with linear 0 - 100% frost filter
      frost unit to soften the beam edge
    • Iris:
      5 - 100
      %
      motorised iris
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of dimmer and strobe
    • Special features:
      OFF, ON and AUTO setup options for manage red LED
    BODY
    • Pan angle:
      540
      °
    • Tilt angle:
      270
      °
    • Pan/Tilt resolution:
      bit
      16bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body colour:
      black finishing
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net, W-DMX
    • DMX channels:
      38 / 39 / 40 / 41/ 44
      channel
    • W-DMX:
      included, wireless solution receiver
    • RDM:
      RDM ready for remote monitoring and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +50°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      685
      W
    • Output (at 230V):
      4
      units on a single power line
    • Power factor:
      >0,95
    PHYSICAL
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      hanging bracket for floor positioning with "Quick-Lock" system
    • Pan / tilt lock:
      for transportation and maintenance
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      443x697x293
      mm
    • Weight:
      32
      kg
