Ra 2000ProfileHB
ORDER CODE: RA2000PROFILEHB
Share me

Immagine Principale
  • RA2000PROFILEHB
  • RA2000PROFILEHB
  • RA2000PROFILEHB
  • RA2000PROFILEHB

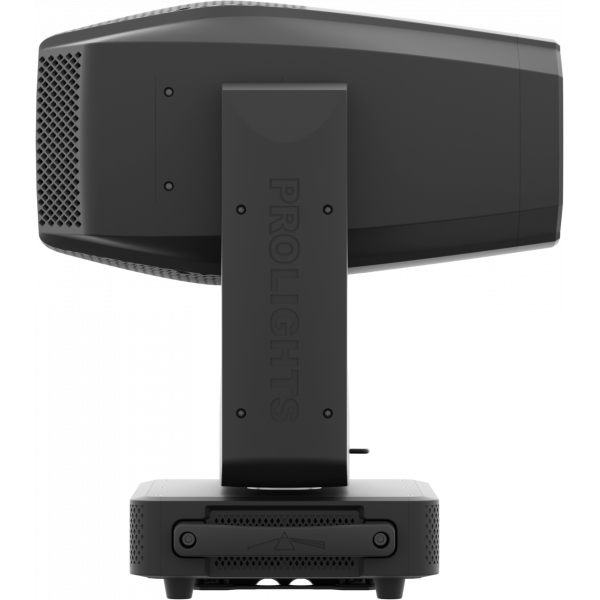

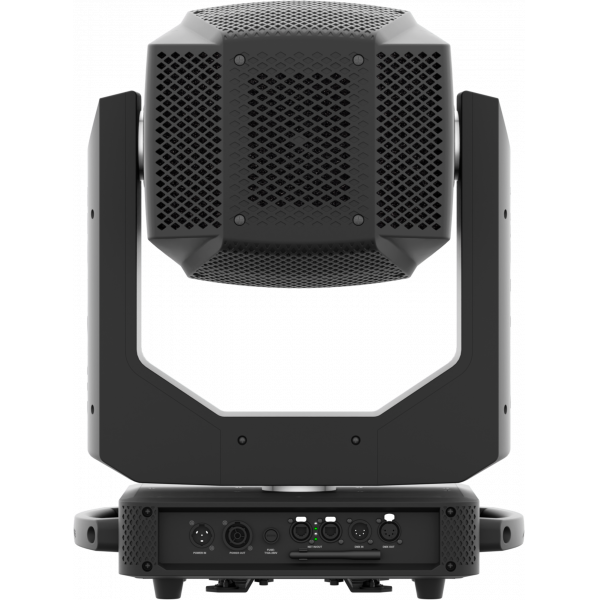

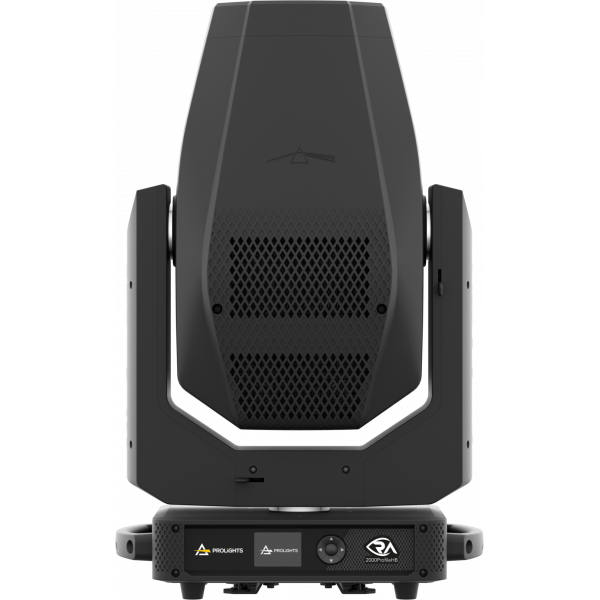

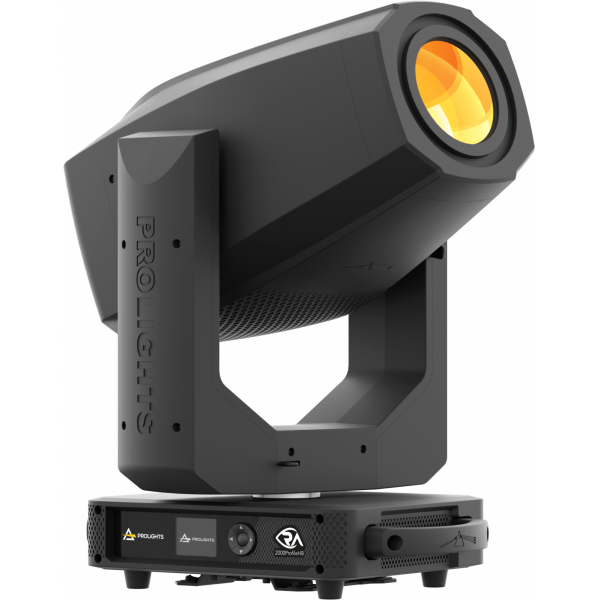

  • The Ra 2000ProfileHB is the high-flux variant of the Ra 2000Profile designed for touring applications, offering the same footprint and feature set, but engineered around an LED source, which scores 40% higher intensity with lower colour rendering. Powerful, compact and fully equipped with both framing shutters and an animation wheel, all whilst delivering a superior brightness, the Ra 2000ProfileHB is an indispensable tool for any show. The 6.300 K LED engine has been custom-engineered to make the Ra 2000ProfileHB hit a 18'900 lumen output, and the on-board CRI enhancement filter still allows the possibility to obtain a CRI > 83. The Ra 2000ProfileHB CMY system delivers beautiful pastels, stunning saturated colours and powerful primaries. One colour wheel provides split colours, and linear CTO allows the Ra 2000ProfileHB to blend in with traditional sources. This unit is packed with powerful features like a gobo wheel, adjustable framing shutters, an animation wheel, iris, prism and dual linear frost. The highly efficient optical system delivers a 1:6 zoom from 8° to 50°, and crisp focus to perfectly merge multi-layer effects. The Ra 2000ProfileHB is the embodiment of solid-state LED technology.

    Features:
    540W LED engine with 6.300 K CT
    18'900 lumen fixture output with flat-field projection and silent operation
    Equipped with both 4 layers framing shutters and an animation wheel

    LIGHT SOURCE
    • Source:
      540
      W
      LED
    • CCT:
      6.300
    • Luminous flux:
      18'900
      lm
      @full
    • Lux:
      (8°) 38'509 lx - (50°) 1'333
      lx
      @5 m full
    • CRI:
      >69 (83 with High CRI filter on color wheel)
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      8° - 50
      °
      motorised linear zoom
    • Lens diameter:
      120
      mm
    • Focus:
      motorised
    COLOUR SYSTEM
    • Colour mixing:
      linear CMY
    • CCT:
      linear CTO correction 2.700 K ~ 6.000 K
    • Colour wheel:
      6
      colour filters
    DYNAMIC EFFECTS
    • Shutter system:
      4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 26,7 mm - image: 20 mm - thickness: 1,1 mm
    • FX generator:
      shutter macros with adjustable speed
    • Circular prism:
      4
      f
      with bi-directional rotation, indexing
    • Frost:
      dual frost filter system, 1° soft-edge frost gobo, 5° frost wash, with linear 0 - 100% frost filter
      frost unit to soften the beam edge
    • Iris:
      5 - 100
      %
      motorised iris
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of dimmer and strobe
    BODY
    • Pan angle:
      540
      °
    • Tilt angle:
      270
      °
    • Pan/Tilt resolution:
      bit
      16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body colour:
      black finishing
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net, sACN, W-DMX
    • DMX channels:
      38 / 39 / 40 / 41/ 42
      channel
    • Wireless Control:
      included, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +50°
    • LED Control:
      24KHz
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      640
      W
    • Output (at 230V):
      3
      units on a single power line
    • Power factor:
      >0,96
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      hanging bracket for floor positioning with "Quick-Lock" system
    • Pan / tilt lock:
      for transportation and maintenance
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Dimensions (WxHxD):
      443x697x293
      mm
    • Weight:
      35
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x RA2000PROFILEHB
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 2 x OS25
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    Quick-trigger slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    Flight case for 2 piece RA2000PROFILE
    RA2000PROFILEHB (include)
    {ProdottiDaAccessorio}
    Quick-Lock omega bracket, M10 hole
    RA2000PROFILEHB (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Ra2000profilehb_A4_DATASHEET_(IT).pdf 1MB
    Ra2000profilehb_A4_DATASHEET_(EN).pdf 1MB
    Ra2000profilehb_LETTER_DATASHEET_(EN).pdf 1MB
    Ra2000profilehb_TENDER_SPECIFICATION.pdf 5MB

    User manual

    File name File size Download
    Ra2000profilehb_USER_MANUAL.pdf 29MB
    GENERAL_SAFETY_INFORMATION.pdf 12MB

    DMX chart & personalities

    File name File size Download
    Ra2000profilehb_DMX_CHARTS.pdf 561KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 295MB
    VECTORWORKS_SYMBOLS.vwx 406KB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 422MB
    RA2000PROFILEHB Firmware rev. 1.2
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    prolights_ra2000profilehb_ies files.zip 5KB
    prolights_ra2000profilehb_ldt files.zip 3KB
    Ra2000profilehb_PHOTOMETRICS_REPORT.pdf 2MB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    Ra2000profilehb_3D_SKETCHUP.skp 725KB
    Ra2000profilehb_3D_REVIT.rfa 8MB
    Ra2000profilehb_3D.dwg 931KB
    Ra2000profilehb_2D.dwg 41MB
    Ra2000profilehb_2DSYMBOLS.dwg 281KB
    Ra2000profilehb_TECHNICAL_DRAWING.pdf 3MB

    Tech docs

    File name File size Download
    Ra2000profilehb_COLOR.pdf 48KB
    Ra2000profilehb_GOBOS.pdf 491KB
    Ra2000profilehb_NOISE_REPORT.pdf 306KB

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5
    Check hardware changelog before downloading firmware
    Revision Release date HW Compatibility
    1.2 STABLE 06/10/2020 Improved Gobo Rotation Management. Rev. 1
