RUBY
Share me

132W

Immagine Principale
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
    • RUBY
    Code Housing Avail.
    RUBYBK Black
    RUBYWH White
    RUBYCR
    		 Chrome

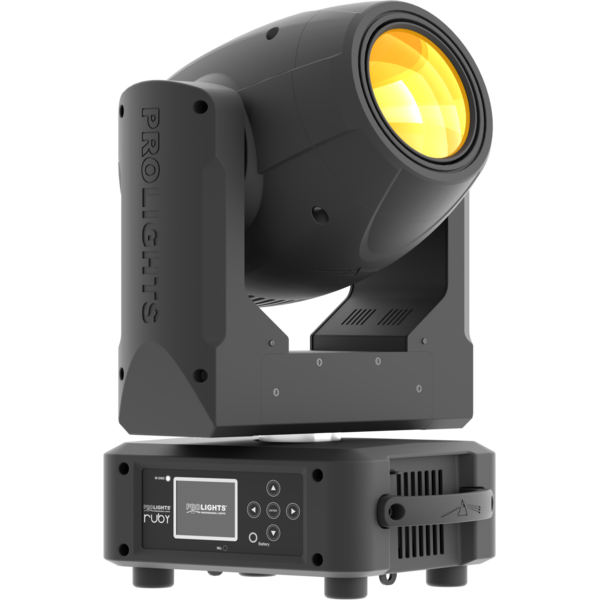

    Ruby is a compact beam light that harnesses all the power of its Osram Sirius 132 W lamp into a tight, bright and sharp 2° beam. Designed to cut through even the brightest stage, the Ruby's clean and concentrated beam competes with much more powerful beam lights.

    Features:
    14 position colour wheel including CTC filters
    Compact and lightweight design for creative freedom and easy rigging
    Extensive effect options: frost, fixed gobo wheel and dual indexing with rotating prisms

    LIGHT SOURCE
    • Source:
      132
      W
      S Osram Sirius HRI
    • CCT:
      9.200
      K
    • CRI:
      60
    • Luminous flux:
      5'150
      lm
    • Lux:
      393'000
      lx
      @5 m
    • Source life expectancy:
      6.000 h
    OPTICS
    • Beam angle:
      2
      °
    • Lens diameter:
      98
      mm
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised
    COLOUR SYSTEM
    • CTC:
      on wheel 2.500 K and 3.200 K + CTB
    • Colour wheel:
      14
      colour filters
    • Macros:
      linear, half colours, colour bounce
    DYNAMIC EFFECTS
    • Fixed gobos:
      17
      fixed gobos + open
    • FX generator:
    • Circular prism:
      8
      f
      with bi-directional rotation, indexing
    • Linear prism:
      6
      f
      with bi-directional rotation, indexing
    • Frost:
      frost unit to soften the beam edge
    BODY
    • Pan angle:
      630° - 540
      °
    • Tilt angle:
      265
      °
    • Pan/Tilt resolution:
      bit
      8 / 16 bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with hi-resistance polycarbonate cover
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      11 / 13 / 14 / 17
      channel
    • W-DMX:
      optional, wireless solution receiver
    • RDM:
      RDM ready for fixture remote monitor and settings
    • Display:
      LCD high resolution colour display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% mechanical dimmer
    • Strobe / shutter:
      1 - 25
      flash(s), mechanical
    • Battery backup:
      battery backup for user operation without connecting to the main power
    • Operating temperature:
      -10° ~ +45°
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      212
      W
    • Power consumption (at 120 V):
      212
      W
    • Output (at 230 V):
      8
      units on a single power line
    PHYSICAL
    • Cooling:
      forced air with low noise fan
    • Sospension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      Amphenol XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      294x437x200
      mm
    • Weight:
      10,5
      kg
    Product Code
    Accessory Code
    Description
    RUBY (include)
    MINIRUBY (include)
    OSHRI132WOSHRI132W
    Sirius HRI 132W 1.9A discharge lamp
    RUBY (include)
    LUMA700 (include)
    STARK1000CC (include)
    AIR5FAN (optional)
    PIXIEWASH (include)
    STARK400 (include)
    STARKBAR1000 (optional)
    STARKBLADE8 (optional)
    RUBYFCX (optional)
    PIXIEWASHXB (include)
    AIR6PIX (include)
    AIR18Z (include)
    DIAMOND7 (include)
    DIAMOND19 (include)
    DIAMOND19TW (include)
    DIAMOND37 (include)
    DIAMOND19CC (include)
    STARK1000 (include)
    JETSPOT4Z (optional)
    JADE (include)
    MINIRUBY (include)
    PIXIESPOT (include)
    RAZOR440 (include)
    LUMA1500SH (include)
    ONYX (include)
    CRYSTAL (include)
    MOONSTONE (include)
    LUMA1500SP (include)
    OS24OS24
    Quick-lock omega bracket.
    RUBY (optional)
    CRYSTAL (optional)
    ONYX (optional)
    FCLSHINE332FCLSHINE332
    Flight case for 4pcs of RUBY / ONYX / CRYSTAL
    RUBY (optional)
    CRYSTAL (optional)
    ONYX (optional)
    FCLSHINE332EFCLSHINE332E
    Flight case for 4pcs of RUBY / ONYX / CRYSTAL, made in UE
    RUBY (optional)
    MOONSTONE (optional)
    DIAMOND37 (include)
    STARK400 (include)
    STARK1000CC (include)
    STARK1000 (include)
    LUMA1500SP (include)
    LUMA700 (include)
    SMARTBATPLUS (include)
    AIR6PIX (optional)
    DIAMOND19TW (include)
    DIAMOND19CC (include)
    DIAMOND19 (include)
    ONYX (optional)
    DIAMOND7 (optional)
    JADE (include)
    AIR18Z (optional)
    LUMA1500SH (include)
    AIR5FAN (optional)
    RAZOR440 (include)
    WR24ANG5WR24ANG5
    WIRELESS SOLUTION, nano RX DMX 3.3V/5V-18V MCX
    RUBY (optional)
    WR24A (optional)
    DIAMOND19CC (include)
    DIAMOND19 (include)
    DIAMOND19TW (include)
    DIAMOND7 (optional)
    LUMA700 (include)
    WR24ANG5 (optional)
    CRYSTAL (optional)
    DIAMOND37 (include)
    LUMA1500SH (include)
    STARK1000 (include)
    STARK400 (include)
    AIR18Z (optional)
    LUMA1500SP (include)
    ONYX (optional)
    MOONSTONE (optional)
    RAZOR440 (include)
    AIR6PIX (optional)
    JADE (include)
    STARK1000CC (optional)
    CROMOWASH601 (optional)
    LUXOR (optional)
    AIR5FAN (optional)
    WSA40501WSA40501
    WDMX, antenna 2.4Ghz 2dBi omnidirectional, folding, SMA-male, indoor
    RUBY (optional)
    SUNRISE4 (optional)
    SUNRISE2 (optional)
    RAZOR440 (optional)
    LUMA700 (optional)
    JADE (optional)
    LUMA1500SP (optional)
    LUMA1500SH (optional)
    C6016C6016
    Quick-trigger slim clamp, 250 kg load, 48-51 mm tubes, M10 bolt incl,
    RUBY (optional)
    DOTQ (optional)
    LION (optional)
    Z8STRIP (optional)
    Z7SPOT (optional)
    SOLAR (optional)
    MINIECLIPSEWD (optional)
    GENESIS (optional)
    DISPLAYCOBTRWDWW (optional)
    SMARTBATPLUS (optional)
    DISPLAYCOBTRWDDY (optional)
    RAZOR440 (optional)
    LUMA700 (optional)
    LUMA1500SP (optional)
    JADE (optional)
    LUMA1500SH (optional)
    BLACKBOXF1G4MK2BLACKBOXF1G4MK2
    DISCONTINUED
    *BlackBox F-1 G4 MK2, Transceiver 2.4/5.8 GHz, 512 ch DMX/RDM
    RUBY (optional)
    PANORAMAIPAB (optional)
    MODULASPOT (optional)
    STARKBLADE8 (optional)
    MODULAWASH (optional)
    STARKBAR1000 (optional)
    STARK1000 (optional)
    PIXIEBEAM (optional)
    MINIRUBY (optional)
    ONYX (optional)
    CRYSTAL (optional)
    DIAMOND7 (optional)
    AIR18Z (optional)
    AIR6PIX (optional)
    MOONSTONE (optional)
    LUMA700 (optional)
    DIAMOND37 (optional)
    STARK400 (optional)
    SMARTMODULA (optional)
    LUMA1500SP (optional)
    SMARTOWER (optional)
    SMARTOWERPACK (optional)
    LUMA1500SH (optional)
    DIAMOND19CC (optional)
    DIAMOND19TW (optional)
    DIAMOND19 (optional)
    RAZOR440 (optional)
    PANORAMAIPWBX (optional)
    RUBYFCX (optional)
    PANORAMAIPSPOT (optional)
    JADE (optional)
    AIR5FAN (optional)
    UPBOX2UPBOX2
    Firmware uploader kit, USB IN, 3-pin XLR DMX OUT

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Rubybk_3D.rvtDownload
    Rubybk_3D.skpDownload
    Rubybk_CAD_2D.dwgDownload
    Rubybk_CAD_3D.dwgDownload
    Rubybk_CAD_2DSYMBOLS.dwgDownload

    Fixture Libraries / DMX Charts

    RUBY Firmware rev. 1.0.05
    AVOLITES Titan
    prolights_ruby.d4Download
    CHAMSYS
    prolights_ruby_11ch.hedDownload
    prolights_ruby_13ch.hedDownload
    prolights_ruby_14ch.hedDownload
    prolights_ruby_17ch.hedDownload
    DIGILITE
    ruby_11ch.fdfDownload
    ruby_13ch.fdfDownload
    ruby_14ch.fdfDownload
    ruby_17ch.fdfDownload
    DMXControlCenter
    ruby_ssl.zipDownload
    ruby_ssl2.zipDownload
    ETC Eos Family
    manufacturer fixture libraryLink
    Grand Ma 2
    prolights@ruby@standard.xmlDownload
    prolights@ruby@extended.xmlDownload
    prolights@ruby@basic-8bit@initial.xmlpDownload
    prolights@ruby@basic-16bit@initial.xmlpDownload
    HOG Consoles
    ruby_hog3.zipDownload
    ruby basic-16bit_bck.hog4showDownload
    JANDS Vista
    ruby basic-8bit.fix2Download
    ruby basic-16bit.fix2Download
    ruby extended.fix2Download
    ruby standard.fix2Download
    MARTIN M-Series
    manufacturer fixture libraryLink
    OBSIDIAN Onyx
    manufacturer fixture libraryLink
    WYSIWYG r41
    manufacturer fixture libraryLink
    VECTOR WORKS
    LIBRARY
    VECTORWORKS_LIBRARY.vwxDownload
    SYMBOLS
    Rubybk_VECTORWORKS_SYMBOLS.vwxDownload

    Photometrics

    prolights_ruby_white_2°.iesDownload
    Rubybk_PHOTOMETRICS.pdfDownload

    Software Upgrades

    Tech Docs


    Italian/English manual    		Download
    Rubybk_A4_DATASHEET.pdfDownload
