Smart BatPlusG2 new
ORDER CODE: SMARTBATPLUSG2
Share me

IP65

Immagine Principale
  • SMARTBATPLUSG2
  • SMARTBATPLUSG2
  • SMARTBATPLUSG2
  • SMARTBATPLUSG2
  • SMARTBATPLUSG2
  • SMARTBATPLUSG2
  • SMARTBATPLUSG2
  • SMARTBATPLUSG2

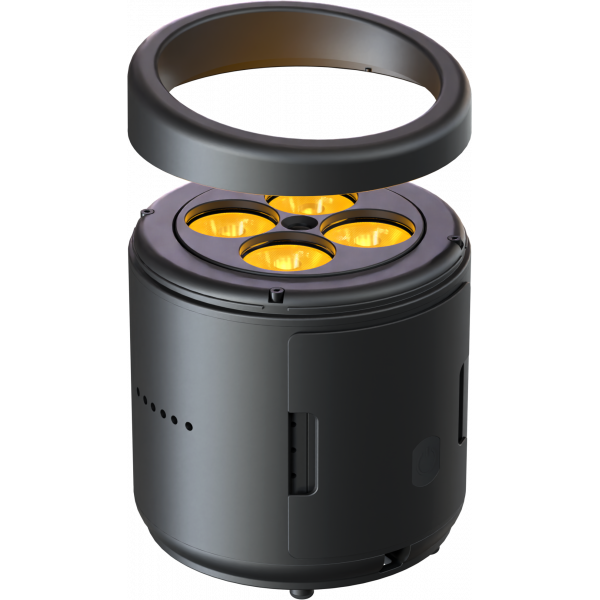

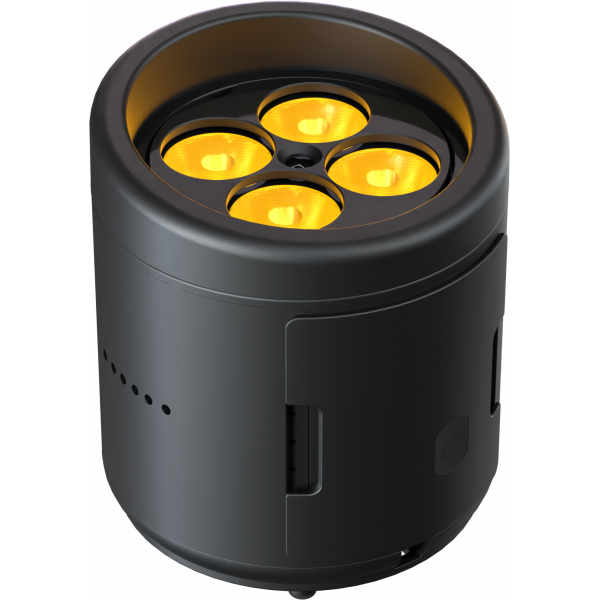

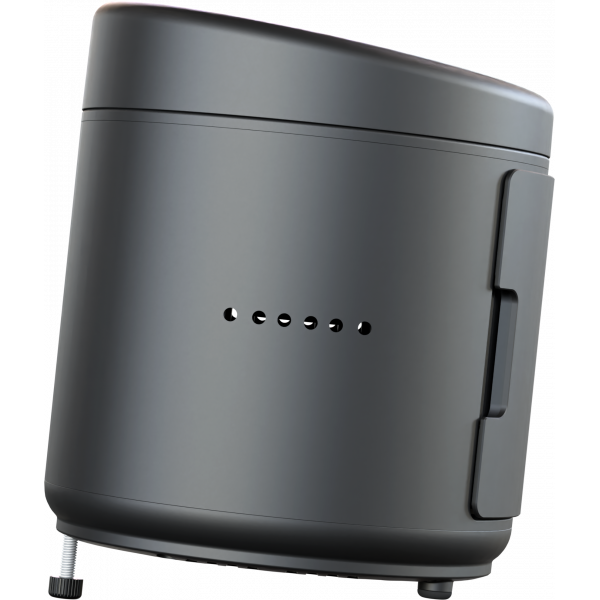

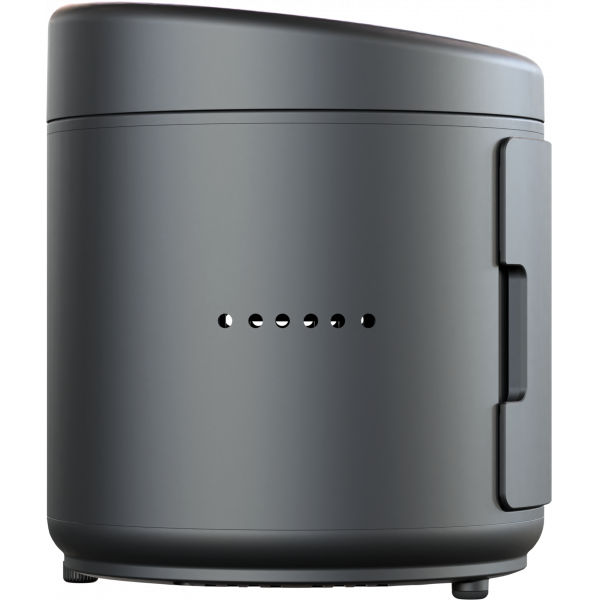

  • The Smart BatPlusG2 is a high-end version of the iconic Smart Bat uplighters designed with enhanced output and battery performance, IP65 with a stunning new look.

    The clever mechanical design of the Smart BatPlusG2 allows turning the unit from an uplighter into a spot/flood light by combining filters, using the suspension yoke or floor bracket without compromising the aesthetics of the fixture.

    The Smart BatPlus G2 introduces new features such as interchangeable batteries and easy covers with multiple colours, making it possible to change its look as desired.

    The 4x20W RGB + Warm White LED emitters are Spektra™ calibrated and guarantee incredibly high-quality white CCT reproduction (CRI>93) and boosted output when operated directly through mains.

    The Smart BatPlusG2 is very user-friendly - it can be used wirelessly with a built-in battery, CRMX/W-DMX and RDM control, or wired through the PSU and XLR connectors (bypassing the battery).

    Features:
    Multipurpose design: uplighter/spotlight, customisable coloured covers
    Wireless DMX (CRMX+W-DMX) / wired control, battery/PSU power
    4x20W RGB + Warm White calibrated LED source with high CRI (>93)
    Interchangeable battery and magnetic holographic filters for multiple beam angles

    LIGHT SOURCE
    • Source:
      4x20
      W
      RGB + Warm White LED
    • Luminous flux:
      2'051
      lm
      @full
    • Lux:
      1'723
      lx
      @5 m without filter
    • CRI:
      94 @3.200 K; 92 @5.600 K
    • R9:
      96 @3.200 K; 96 @5.600 K
    • TLCI:
      92 @5.600 K
    • TM30 Rf:
      93 @3.200 K; 91 @5.600 K
    • TM30 Rg:
      105 @3.200 K; 106 @5.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      10
      °
    • Additional optics:
      filters to achieve 20°, 40°, 60°, 10°x60°
    COLOUR SYSTEM
    • Colour mixing:
      RGBWW
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2'800K - 10'000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer, colours
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9004
    • Other:
      Quick release foot to achieve 20° adjustable tilt
    CONTROL
    • Protocols:
      CRMX+W-DMX, DMX512, RDM
    • Wireless Control:
      included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • IR:
      infrared sensor controlled by remote
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      0° ~ +45°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      (with mains) 80
      W
    • Power factor:
      >0,98

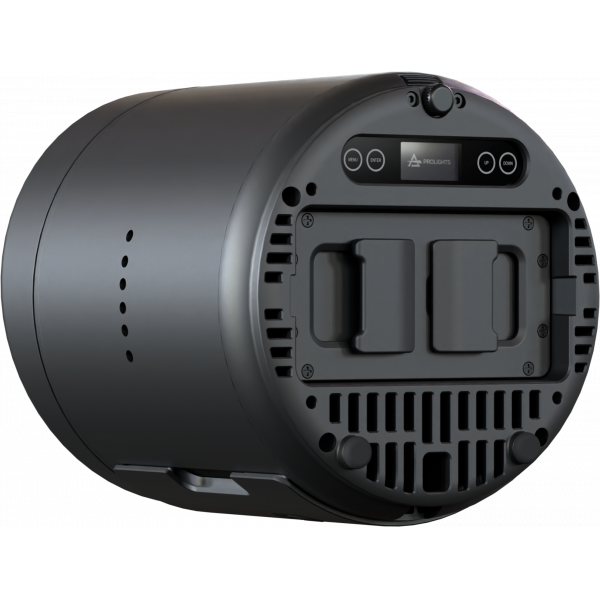

    BATTERY

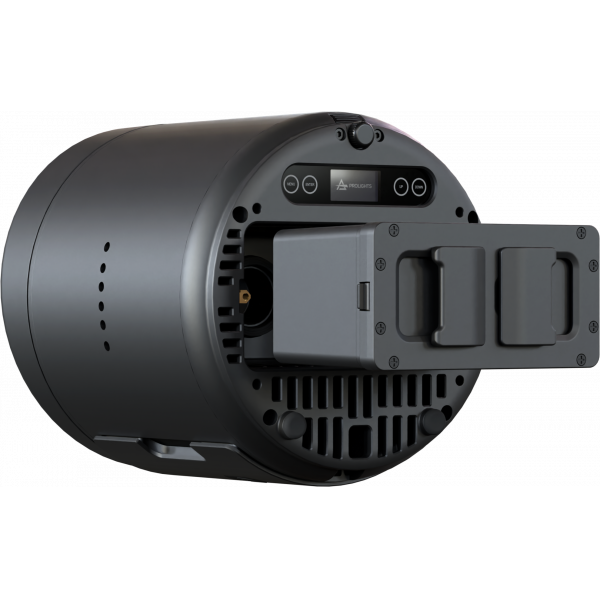

    • Battery:
      removible 16,8
      V
      lithium
    • Estimated battery life:
      Selectable 3h / 6h / 8h / 12h / 16h / 18
      h
    • Re-charge connection:
      Battery Pack fast-charge in Case
    • Re-charge time:
      4
      h/max
    • Battery status:
      shown on display
    • Other:
      Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through the quick charger connector
    PHYSICAL
    • IP rating:
      65
      for temporary outdoor application, not for fixed installations
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      bracket for hanging and positioning

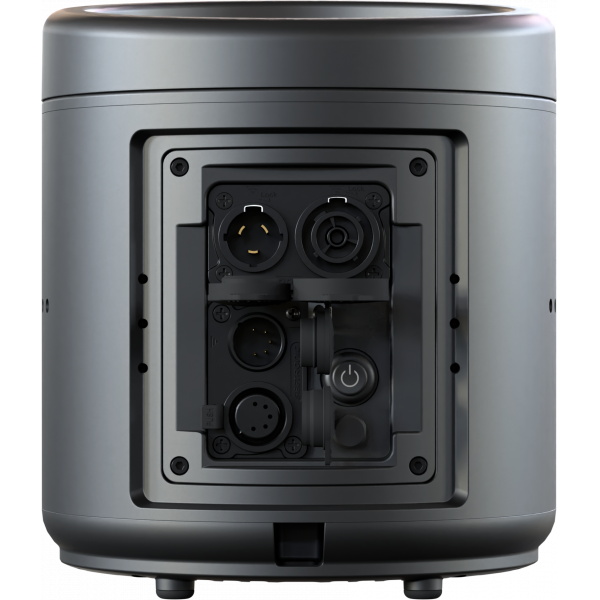

    • Signal connection:
      IP65
      Seetronic XLR 5p IN/OUT connectors
    • Power connection:
      IP65
      Seetronic powerCON IN/OUT connectors

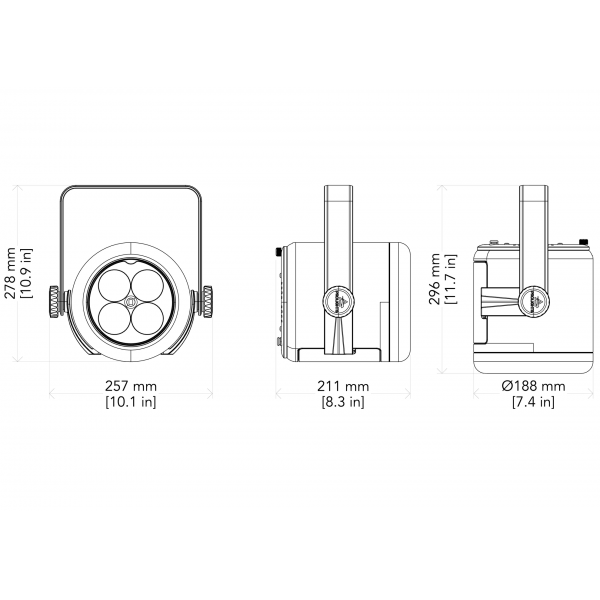

    • Dimensions (WxHxD):
      192x188x192
      mm
    • Weight:
      5,7
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x SMARTBATPLUSG2
    • 1 x filter frame
    • 1 x half top hat
    • 1 x connector cover plate
    • 1 x SBPG2BAT
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    SMARTBATPLUSG2 (include)
    {ProdottiDaAccessorio}
    Single battery for SMARTBATPLUSG2
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Floor bracket for SMARTBATPLUSG2, black
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Floor bracket for SMARTBATPLUSG2, white
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Floor bracket for SMARTBATPLUSG2, chrome
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Floor bracket for SMARTBATPLUSG2, gold
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Hanging bracket for SMARTBATPLUSG2, black
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Hanging bracket for SMARTBATPLUSG2, white
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Hanging bracket for SMARTBATPLUSG2, chrome
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Hanging bracket for SMARTBATPLUSG2, gold
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Cover kit for SMRATBATPLUSG2, black
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Cover kit for SMRATBATPLUSG2, white
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Cover kit for SMRATBATPLUSG2, chrome
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Cover kit for SMRATBATPLUSG2, gold
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Simmetric 20° light diffusion filter for SMARTBATPLUSG2 projector
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Simmetric 40° light diffusion filter for SMARTBATPLUSG2 projector
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Simmetric 60° light diffusion filter for SMARTBATPLUSG2 projector
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Asymmetric 10°x60° Light diffusion filter for SMARTBATPLUSG2 projector
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Flight case for 6 SMARTBATPLUSG2, battery charger included
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Charger for 2 x SBPG2BAT battery for SMARTBATPLUSG2
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Battery compartment closing cap for SMARTBATPLUSG2
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Single Universe DMX transceiver with Bluetooth
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Portable vacuum and pressure tester for ProLights IP fixtures
    SMARTBATPLUSG2 (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Letter datasheet Smartbatplusg2_A4_DATASHEET_(EN).pdf 547KB
    Letter datasheet Smartbatplusg2_LETTER_DATASHEET_(EN).pdf 556KB
    Tender Specification Smartbatplusg2_TENDER_SPECIFICATION.pdf 3MB

    User manual

    File name File size Download
    User manual GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
    User manual Smartbatplusg2_USER_MANUAL_EN.pdf 4MB
    General safety info GENERAL_SAFETY_INFORMATION.pdf 10MB
    User manual Smartbatplusg2_Wireless_Protocol_Compatibilit_EN.pdf 4MB

    DMX chart & personalities

    File name File size Download
    DMX chart Smartbatplusg2_DMX_CHARTS.pdf 118KB
    VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
    VectorWorks VECTORWORKS_SYMBOLS.vwx 385KB
    VectorWorks +SBPG2CKBK_VECTORWORKS_SYMBOLS.vwx 434KB
    VectorWorks +SBPG2HYBK_VECTORWORKS_SYMBOLS.vwx 844KB
    VectorWorks +SBPG2FYBK_VECTORWORKS_SYMBOLS.vwx 1MB
    VectorWorks +SBPG2HYWH_VECTORWORKS_SYMBOLS.vwx 848KB
    VectorWorks +SBPG2CKWH_VECTORWORKS_SYMBOLS.vwx 469KB
    VectorWorks +SBPG2FYWH_VECTORWORKS_SYMBOLS.vwx 1MB
    VectorWorks +SBPG2CKCR_VECTORWORKS_SYMBOLS.vwx 485KB
    VectorWorks +SBPG2HYCR_VECTORWORKS_SYMBOLS.vwx 680KB
    VectorWorks +SBPG2FYCR_VECTORWORKS_SYMBOLS.vwx 1MB
    VectorWorks +SBPG2CKGL_VECTORWORKS_SYMBOLS.vwx 478KB
    VectorWorks +SBPG2HYGL_VECTORWORKS_SYMBOLS.vwx 624KB
    VectorWorks +SBPG2FYGL_VECTORWORKS_SYMBOLS.vwx 1MB
    SMARTBATPLUSG2 Firmware rev. 1.1.01.0
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    IES prolights_smartbatplusg2_ldt_ies files.zip 140KB
    PDF Photometrics Smartbatplusg2_PHOTOMETRICS_REPORT.pdf 6MB
    Dialux Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    3D sketchup SMARTBATPLUSG2_3D_SKETCHUP.zip 10MB
    2D SMARTBATPLUSG2_2D.zip 16MB
    3D SMARTBATPLUSG2_3D.zip 7MB
    2D cad symbols SMARTBATPLUSG2_2DSYMBOLS.zip 1MB
    Technical drawing SMARTBATPLUSG2_TECHNICAL DRAWINGS.zip 2MB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5 {CodiceUpBox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.1.01.0 STABLE 08/03/2023 New functions:
    • Power Mode selector replaces FIXTURE TYPE.
      Power Mode selector allows you to select between 3 options:
      • BATTERY
        • If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged in, fixture will draw power from the mains and status of light output won't be affected (only max power will be higher than what available on battery).
        • If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged out, fixture will draw power from the battery and status of light output won't be affected (only max power will be reduced) .
        • Pressing Power button for 3 seconds without mains present --> fixture will turn on and follow its settings (Standalone or DMX/WDMX)
        • Pressing Power button for 3 seconds while using without mains present --> fixture will turn off.
        • Pressing Power button for 3 seconds while charging --> fixture will turn on and follow its settings (Standalone or DMX/WDMX), or would keep charging if nothing is setted/no signal received
        • Pressing Power button for 3 seconds while using with mains present--> fixture will turn off and start charging.
        • Plugging Mains power for 3 seconds while fixture is off --> fixture will start charghing.
        • Plugging Mains power OFF for 3 seconds while fixture is charghing --> fixture will stop charging and turn off.
      • AC
        • Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally.
        • If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button for 3 seconds.
        • If Battery recharge is disabled, battery won't be recharged.
        • Fixture will turn off as soon as AC is plugged out.
      • AC EMERGENCY:
        • Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally.
        • If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button.
        • If Battery recharge is disabled, battery won't be recharged.
        • Fixture will turn on at full power with 6000K White as soon as AC is missing. To turn off the fixture user can use control channel dedicated parameter or power button on the fixture.
    • Spektra Calibration: new modes available
      • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
      • PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
      • OFF:  CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.
    Improvements:
    • Power On/Off button requires 3 seconds to take effect.
    • Improved dimming performances.
    • Jump prediction added to crossfade channel.
    Rev. 1.0
