Smart BatWash
ORDER CODE: SMARTBATWASH
Share me

IP65

Immagine Principale
  • SMARTBATWASH
  • SMARTBATWASH
  • SMARTBATWASH
  • SMARTBATWASH
  • SMARTBATWASH
  • SMARTBATWASH
  • SMARTBATWASH
  • SMARTBATWASH

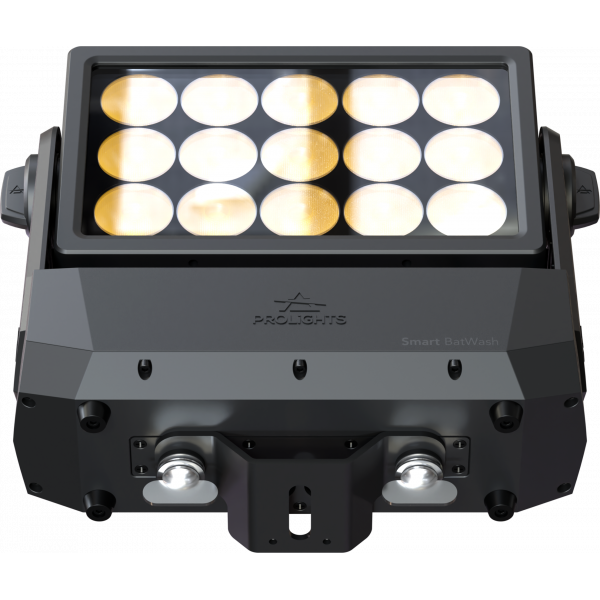

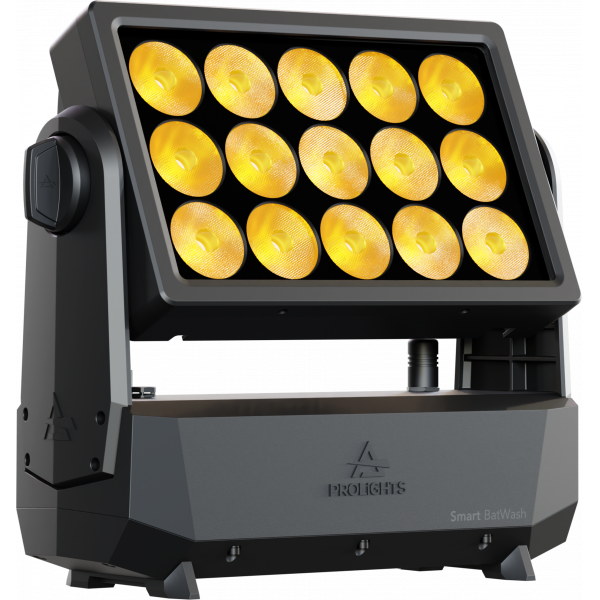

    • The Smart BatWash is a high-powered LED Wash light that can be operated wirelessly or wired.

    This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, and it's Spektra™ calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282-lumen output.

    The Smart BatWash is very flexible - it can be used wirelessly with the built-in battery, using CRMX or W-DMX or, alternatively, wired with power and data cables, bypassing the battery and enabling higher brightness levels.

    The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a broader coverage whilst keeping a high output. The Smart BatWash has all the software features of the Ecl range, sharing the same user settings and capabilities.

    Features:
    High-powered IP65 LED Wash light, wireless (CRMX+W-DMX)/wired control, battery/AC power
    15x20W RGB + Warm White LED source, powerful 6,282-lumen output high CRI (>93)

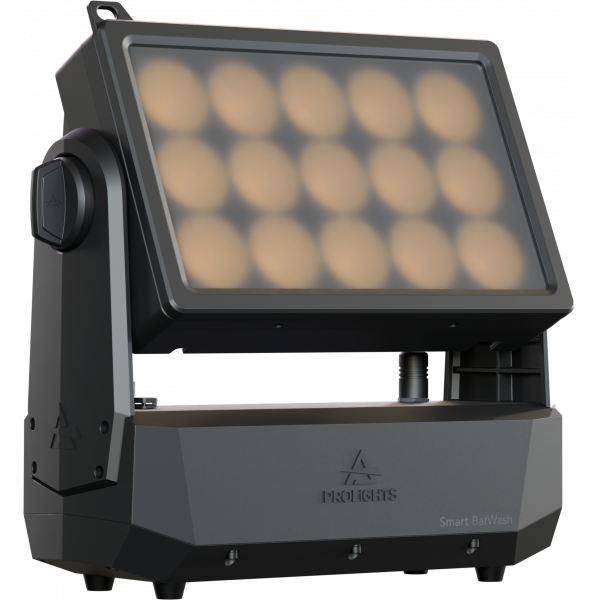

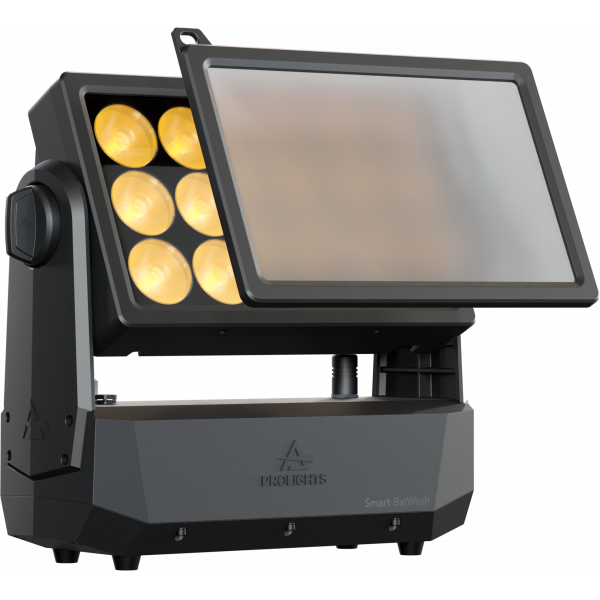

    Range of holographic filters that modify the shape of the beam angle

    LIGHT SOURCE
    • Source:
      15x20
      W
      RGB + Warm White LED
    • Luminous flux:
      6'300 lm @full
    • Lux:
      4'451
      lx
      @5 m full
    • CRI:
      > 95 @3200K ; > 93 @5600K
    • R9:
      > 98 @3200K ; > 93 @5600K
    • TLCI:
      > 84 @5600K
    • TM30 Rf:
      94.2 @3200K ; > 92 @5600K
    • TM30 Rg:
      104.4 @3200K ; > 105 @5600K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      10
      °
    COLOUR SYSTEM
    • Colour mixing:
      RGBWW
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2'800K - 10'000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer, colours
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9004
    CONTROL
    • Protocols:
      CRMX+W-DMX, DMX512, RDM
    • Wireless Control:
      included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • IR:
      infrared sensor controlled by remote
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      0° ~ +45°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      180
      W
    • Output (at 230V):
      11
      units on a single power line
    • Output (at 120V):
      5
      units on a single power line
    • Power factor:
      >0,94
    BATTERY
    • Battery:
      16,8
      V
      lithium
    • Estimated battery life:
      Selectable 3h / 6h / 8h / 12h / 16h / 18
      h
    • Re-charge connection:
      Directly from the mains power or magnetic fast-charge in case
    • Re-charge time:
      5
      h/max
    • Battery status:
      shown on display
    • Other:
      Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase
    PHYSICAL
    • IP rating:
      65
      for temporary outdoor application, not for fixed installations
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      any position with quick-lock omega brackets

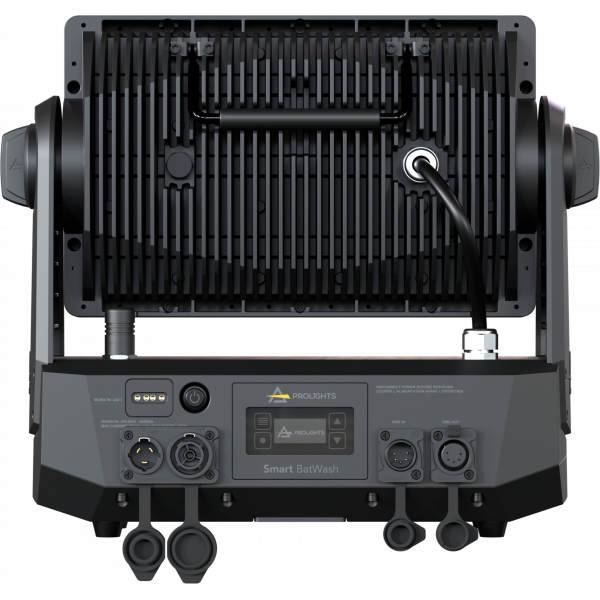

    • Signal connection:
      IP65
      Seetronic XLR 5p IN/OUT connectors
    • Power connection:

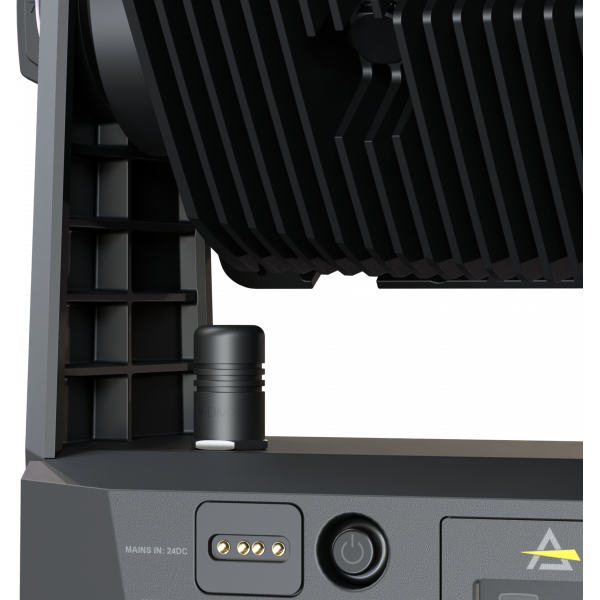

      magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector

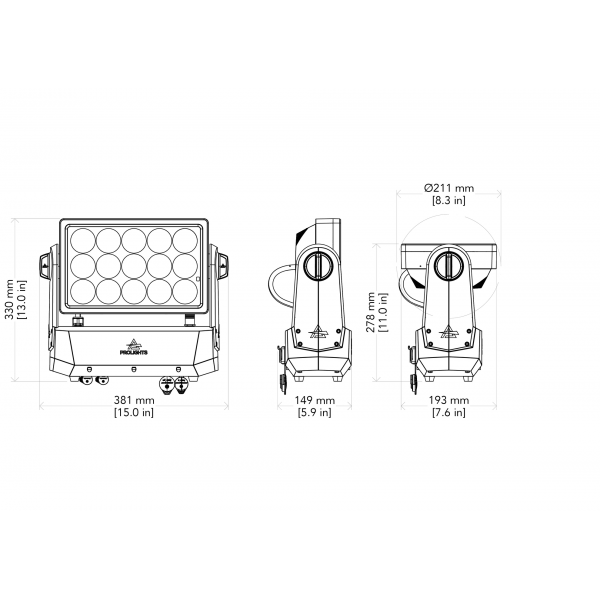

    • Dimensions (WxHxD):
      381x344x143
      mm
    • Weight:
      9,8
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x SMARTBATWASH
    • 1 x SBWFILTER25
    • 1 x OS25D13
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    FCLSMARTBATWASHFCLSMARTBATWASH
    Flight case for 4 SMARTBATPLUSWASH, internal AC battery charging
    SMARTBATWASH (include)
    {ProdottiDaAccessorio}
    SBWFILTER25SBWFILTER25
    25° symmetric light diffusion filter for SMARTBATWASH
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    SBWFILTER40SBWFILTER40
    40° symmetric light diffusion filter for SMARTBATWASH
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    SBWFILTER1060SBWFILTER1060
    10x60° asymmetric light diffusion filter for SMARTBATWASH
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    SBWBDSBWBD
    Black barn door 4 directional flaps to adjust the light beam, comp. SMARTBATWASH
    SMARTBATWASH (include)
    {ProdottiDaAccessorio}
    OS25D13OS25D13
    Quick-Lock omega bracket, M12 hole
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    SBWPOWERSBWPOWER
    Single charger for SMARTBATWASH
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    PRL-IRCPRL-IRC
    RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    9533FXWL039533FXWL03
    Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    WSBBF1G5WSBBF1G5
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    WSBBF1G6WSBBF1G6
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    WSBBR512G5WSBBR512G5
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    WSBBR512G6WSBBR512G6
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    IPTESTBOXIPTESTBOX
    Portable vacuum and pressure tester for ProLights IP fixtures
    SMARTBATWASH (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Smartbatwash_A4_DATASHEET_(EN).pdf 690KB
    Smartbatwash_LETTER_DATASHEET_(EN).pdf 704KB
    Smartbatwash_TENDER_SPECIFICATION.pdf 3MB

    User manual

    File name File size Download
    GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
    Smartbatwash_USER_MANUAL_EN.pdf 3MB
    GENERAL_SAFETY_INFORMATION.pdf 10MB

    DMX chart & personalities

    File name File size Download
    Smartbatwash_DMX_CHARTS.pdf 116KB
    VECTORWORKS_SYMBOLS.vwx 692KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    SMARTBATWASH Firmware rev. 1.1.01.0
