Smart Tower
ORDER CODE: SMARTOWER
Share me

IP65

Immagine Principale
  • SMARTOWER
  • SMARTOWER
  • SMARTOWER
  • SMARTOWER
  • SMARTOWER
  • SMARTOWER

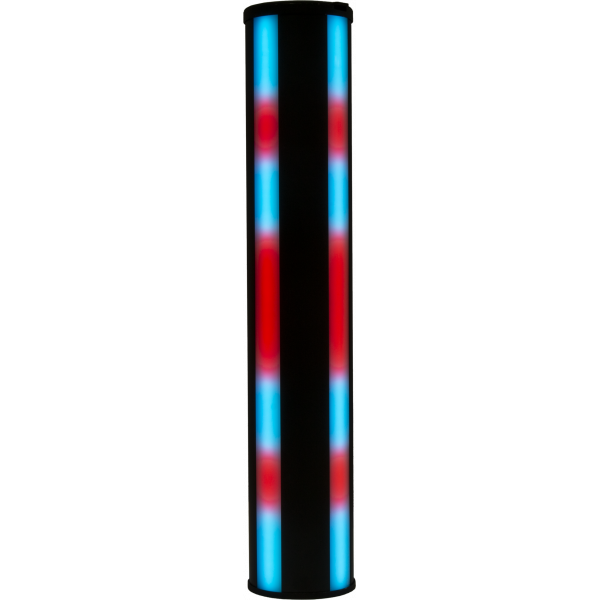

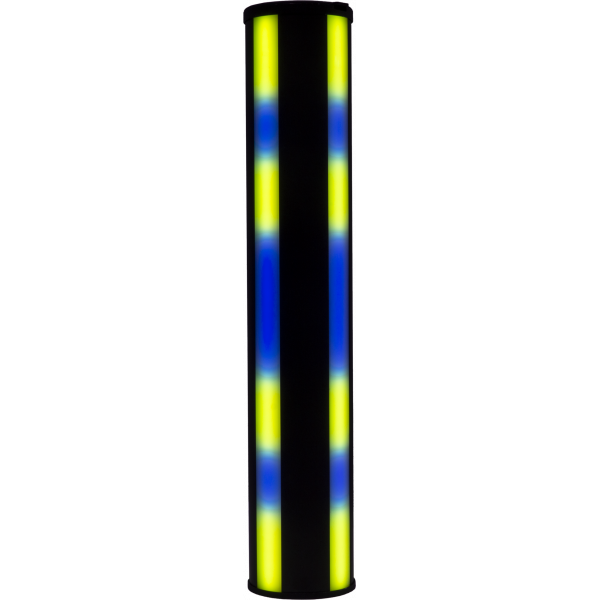

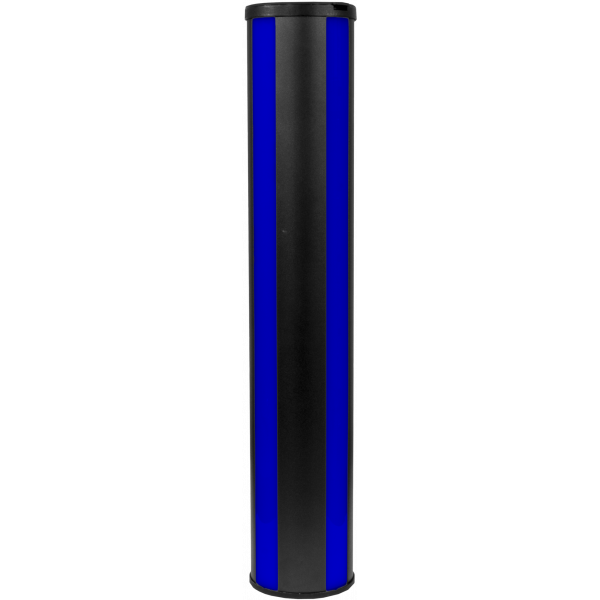

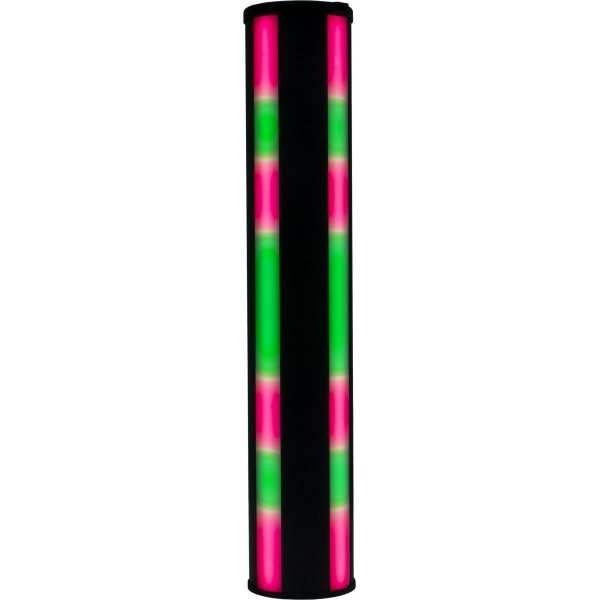

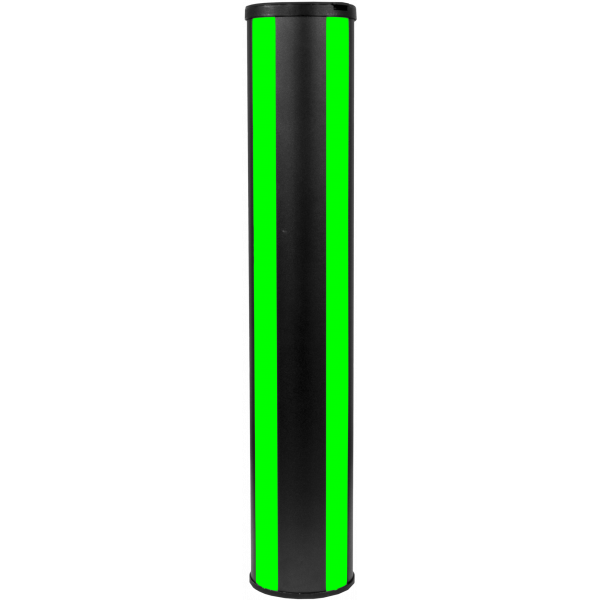

    • Smart Tower is a new concept of outdoor portable pixel and decor luminaire, featuring a full cable-free operation and delivering a multitude of visual effects projecting a full 360°. Smart Tower consists of a vertical tubular housing with pixel battens on 4 sides delivering both colourful accent lighting as well as eye-catching visual effects through the many built-in pixel macros which can be easily individually customised. The unit is waterproof and equipped with on-board Wireless DMX and can be used anywhere from corporate events and weddings right through to showrooms.



    Features:
    Battery operated 360° pixel controlled LED fixtures
    IP rated for outdoor events and with on-board wireless DMX
    Built-in and customisable pixel effects and static looks

    LIGHT SOURCE
    • Light source:
      360° projection with 4 pcs strips of 60x0,2 W RGB / FC LEDs working together
    • Source:
      4x60x0,2
      W
      RGB / FC LED
    COLOUR SYSTEM
    • Colour mixing:
      RGB / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      linear change from 2.600 K to 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Hardware on-board:
      fixture for independent use, adjustable height of the base
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black with white wash strips
    • Other:
      stand-up usable as accessorie for increase height of installation
    CONTROL
    • Control units:
      WDMX
    • Protocols:
      DMX512
    • DMX channels:
      8 / 15 / 18
      channel
    • Pixel control:
      4 pcs strips pixel2pixel controllable all together
    • Wireless Control:
      included, wireless solution receiver

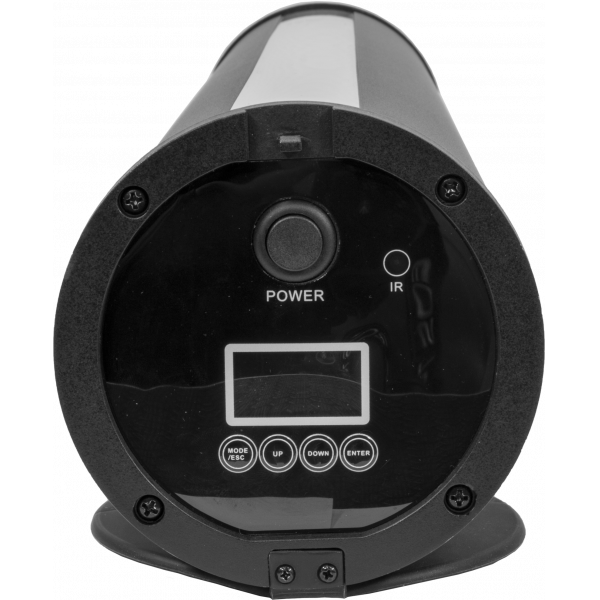

    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    • IR:
      infrared sensor controlled by remote (included in the pack, not included in single unit)
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -20° ~ +40°
    • LED Control:
      flicker free operation
    BATTERY
    • Battery:
      lithium battery 14,8
      V
    • Estimated battery life in colour change mode up to:
      12
      h
    • Estimated battery life in single colour mode up to:
      18
      h
    • Estimated battery life in full-mode up to:
      6
      h
    • Re-charge time:
      6
      h/max
    • Battery status:
      shown on display
    PHYSICAL
    • IP rating:
      65
      for temporary outdoor application, not for fixed installations
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      M10 threaded insert for easy clamp installation
    • Signal connection:
      WDMX
    • Power connection:
      adaptor base with external charger (included)
    • Dimensions (WxHxD):
      119x632x119
      mm
    • Weight:
      6
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x SMARTOWER
    • 1 x STPOWER
    • 1 x PRL-IRC
    • 1 x eye bolt
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    SMARTOWER (optional)
    {ProdottiDaAccessorio}
    WSBBR512G5WSBBR512G5
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    SMARTOWER (optional)
    {ProdottiDaAccessorio}
    WSBBF1G6WSBBF1G6
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    SMARTOWER (optional)
    {ProdottiDaAccessorio}
    WSBBF1G5WSBBF1G5
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    SMARTOWER (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    SMARTOWER (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    SMARTOWER (optional)
    {ProdottiDaAccessorio}
    WSBBR512G6WSBBR512G6
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    SMARTOWER (optional)
    {ProdottiDaAccessorio}
    WDBBOXWDBBOX
    WDMX battery transmitter, mini 5p DMX and WIFI IN, 2.4 GHz, 0.4 kg
    SMARTOWER (optional)
    {ProdottiDaAccessorio}
    PRL-IRCPRL-IRC
    RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
    SMARTOWER (include)
    {ProdottiDaAccessorio}
    STPOWERSTPOWER
    Charger for SMARTOWER
    SMARTOWER (optional)
    {ProdottiDaAccessorio}
    UPBOX2P5UPBOX2P5
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
