Stark Blade8
ORDER CODE: STARKBLADE8
Share me

Immagine Principale
  • STARKBLADE8
  • STARKBLADE8
  • STARKBLADE8
  • STARKBLADE8

    • Stark Blade8 is a moving batten light designed to deliver a powerful and zoomable 'blade' of beams. Each of the 40W Osram Ostar RGBW LED pixels are individually controllable and completely consistent with the rest of the Stark family.

    Features:
    8x40W RGBW LED with massive 3° to 45° zoom range
    Infinite pan and tilt rotation
    Individual pixel control with an on-board generator for precise and fast to create effects

    LIGHT SOURCE
    • Source:
      8x40
      W
      RGBW Osram Ostar LEDs
    • CCT:
      Tunable 2.000 K ~ 10.000
    • Lux:
      (3°) 36'391 lx - (45°) 3'113
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      3° - 45
      °
      motorised linear zoom
    • Lens diameter:
      square 50x50
      mm
    • Lens type:
      high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      2.000 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    BODY
    • Pan angle:
      540° / 630
      °
      with 360° continuous rotation
    • Tilt angle:
      360
      °
      with 360° continuous rotation
    • Pan/Tilt resolution:
      bit
      16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net, W-DMX
    • DMX channels:
      17 / 27 / 55
      channel
    • Pixel control:
      pixel2pixel control
    • Wireless Control:
      included, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      via menu with internal memory or via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      310
      W
    • Max power consumption (at 120V):
      310
      W
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN connector
    • Dimensions (WxHxD):
      560x433x206
      mm
    • Weight:
      12
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x STARKBLADE8
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 2 x OS24
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    WSBBR512G6WSBBR512G6
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    WSBBR512G5WSBBR512G5
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    WSBBF1G6WSBBF1G6
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    WSBBF1G5WSBBF1G5
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    TOUR53415TOUR53415L03
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    958225958225L03
    3x2.5mm TH07. Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    9513FXW9513FXWL03
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    9533FXW9533FXWL03
    Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    RSRRSR0630B
    Steel security cable for hanging bodies, inox steel shackle
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    C6016C6016B
    Quick-trigger slim clamp, 250 kg load, 48-51 mm tubes, M10 bolt incl,
    STARKBLADE8 (include)
    {ProdottiDaAccessorio}
    OS24OS24
    Quick-lock omega bracket, M10 hole
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}

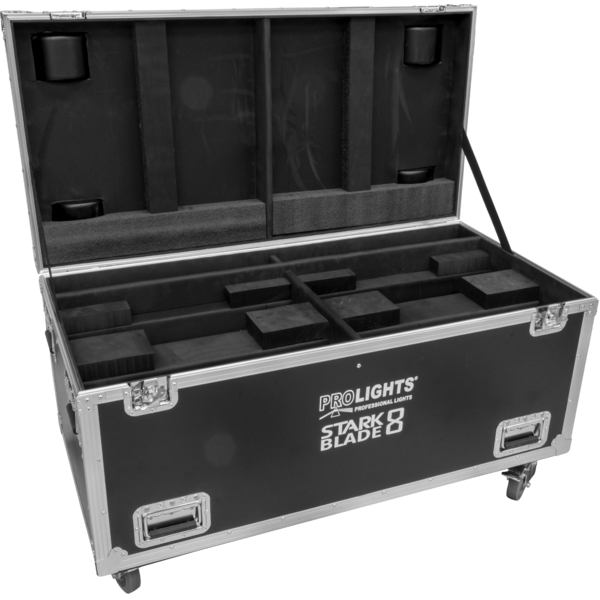

    FCLSB8FCLSB8
    Flight case for 4x STARKBLADE8
    STARKBLADE8 (optional)
    {ProdottiDaAccessorio}
    UPBOX2P5UPBOX2P5
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
