StudioCob PlusDY2
ORDER CODE: STUDIOCOBPDY2
Share me

IP65

Immagine Principale
  • STUDIOCOBPDY2
  • STUDIOCOBPDY2
  • STUDIOCOBPDY2
  • STUDIOCOBPDY2
    • StudioCob PlusDY2
    Code Housing Avail.
    STUDIOCOBPDY2BK Black
    STUDIOCOBPDY2WH
    		 White

    StudioCob PlusDY2 is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.

    Features:
    IP65 rated connectors for easy use both indoor and outdoor
    150W 5.000 K COB LED source with HD dimming and high CRI
    Flexible lens options of 19° - 37° - 53,8°

    LIGHT SOURCE
    • Source:
      150
      W
      daylight white LED
    • CCT:
      5.100
    • Luminous flux:
      (19°) 9'822 lm; (37°) 8'595
      lm
    • Lux:
      (19°) 2'337 lx; (37°) 600
      lx
      @5 m full
    • CRI:
      > 83
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      (on-board) 19°, (inc) 37°, (opt) 53,8
      °
    • Field angle:
      (on-board) 36,5°, (inc) 75,5°, (opt) 77,6
      °
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      flood (without lens)
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      1 / 2 / 5
      channel
    • Display:
      LCD high resolution colour display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -20° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      165
      W
    • Output (at 230V):
      15
      units on a single power line
    • Power factor:
      > 0.96
    PHYSICAL
    • IP rating:
      65
      for temporary outdoor application, not for fixed installations
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:

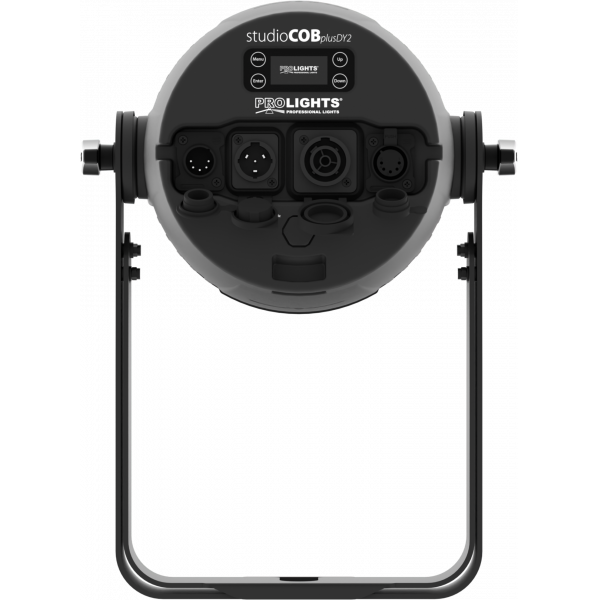

      Seetronic XLR 5p IN/OUT connectors
    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors
    • Dimensions (WxHxD):
      258x354x257
      mm
    • Weight:
      4,95
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x STUDIOCOBPDY2
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    STUDIOCOBPDY2 (include)
    {ProdottiDaAccessorio}
    STUDIOCOBPLUSL18STUDIOCOBPLUSL18
    Optics for STUDIOCOBPLUS projectors series, 18°
    STUDIOCOBPDY2 (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    STUDIOCOBPDY2 (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    STUDIOCOBPDY2 (include)
    {ProdottiDaAccessorio}
    STUDIOCOBPLUSL38STUDIOCOBPLUSL38
    Optics for STUDIOCOBLUS projectors series, 38°
    STUDIOCOBPDY2 (optional)
    {ProdottiDaAccessorio}
    STUDIOCOBTPGSTUDIOCOBTPG
    Filter frame for STUDIOCOB projectors
    STUDIOCOBPDY2 (optional)
    {ProdottiDaAccessorio}
    STUDIOCOBPLUSL60STUDIOCOBPLUSL60
    Optics for STUDIOCOBLUS projectors series, 60°
    STUDIOCOBPDY2 (optional)
    {ProdottiDaAccessorio}
    STUDIOCOBBDSTUDIOCOBBD
    Barn door 4 directional flaps to adjust the light beam, f. frame included
    STUDIOCOBPDY2 (optional)
    {ProdottiDaAccessorio}
    FCLCOBPLUSFCLCOBPLUS
    Flight case for 8 STUDIOCOBPLUS
    STUDIOCOBPDY2 (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Studiocobpdy2_A4_DATASHEET_(EN).pdf 367KB
    Studiocobpdy2_A4_DATASHEET_(IT).pdf 366KB

    User manual

    File name File size Download
    Studiocobpdy2_USER_MANUAL.pdf 2MB

    DMX chart & personalities

    File name File size Download
    Studiocobpdy2_DMX_CHARTS.pdf 45KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VECTORWORKS_SYMBOLS.vwx 627KB
    VECTORWORKS_SYMBOLS.vwx 543KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB

    Photometrics

    File name File size Download
    prolights_studiocobplusdy_ies files.zip 4KB
    prolights_studiocobplusdy_ldt files.zip 3KB
    Studiocobpdy2_PHOTOMETRICS_REPORT.pdf 2MB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    Studiocobpdy2bk_3D_REVIT.rfa 1MB
    Studiocobpdy2_2D.dwg 5MB
    Studiocobpdy2bk_2DSYMBOLS.dwg 25KB
    STUDIOCOBPDY2_3D.zip 1MB
    Studiocobpdy2_TECHNICAL_DRAWING.pdf 226KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    2.3 STABLE 24/09/2019 Improved RDM functionality. Rev. 1
