StudioCob PlusDY

Share me

IP65

StudioCob PlusDY

Code	Housing	Avail.

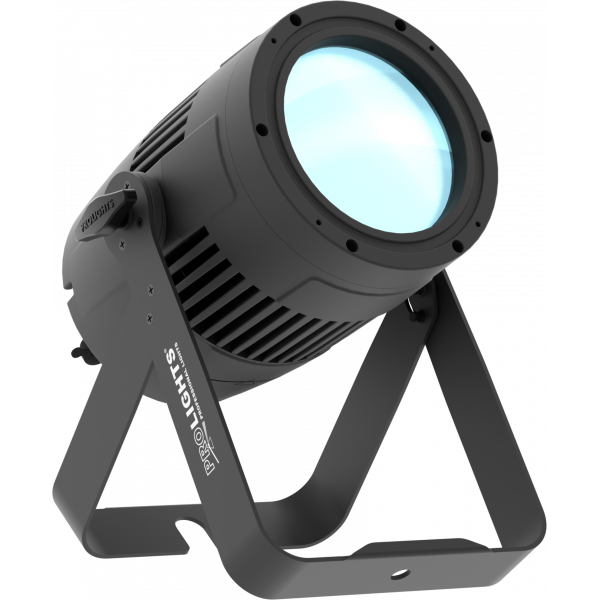

STUDIOCOBPLUSDYBK	Black

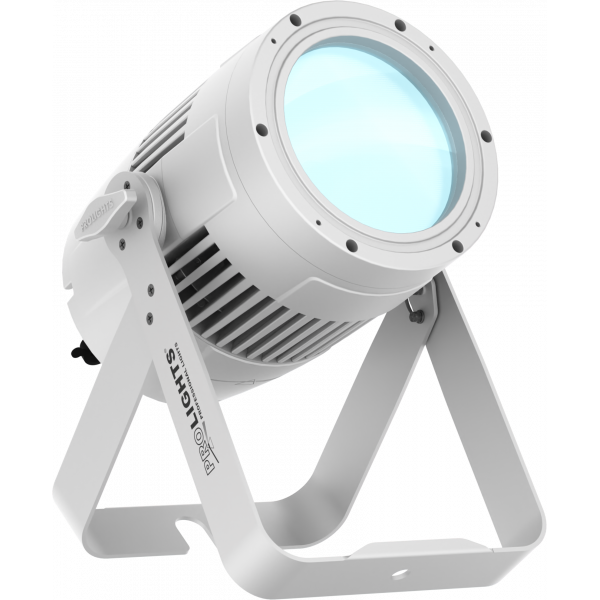

STUDIOCOBPLUSDYWH	White

StudioCob PlusDY is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.

Features:
IP65 rated connectors for easy use both indoor and outdoor
150W 5.000 K COB LED source with HD dimming and high CRI
Flexible lens options of 18° - 38° - 60°

LIGHT SOURCE

Source:

150
W

daylight white LED
CCT:

5.000
Luminous flux:

(18°) 11'233lm - (38°) 10'429
lm
Lux:

(18°) 8'454
lx

@3 m
Lux:

(38°) 1'994
lx

@3 m
CRI:

> 83
Source life expectancy:

> 30.000 h

OPTICS

Beam angle:

(on-board) 18° - (inc) 38°, (opt) 60
°
Field angle:

(on-board) 36° - (inc) 63
°
Lens type:

parabolic reflector in combination with HD fresnel lens
Additional optics:

flood (without lens) - 38° (inc)

DYNAMIC EFFECTS

Static mode:

selection of static colour
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

BODY

Body:

sturdy die-cast aluminium body
Body colour:

black, white finishing available

CONTROL

Protocols:

DMX512, RDM
DMX channels:

1 / 2 / 5
channel
RDM:

RDM for remote monitoring and settings
Display:

black OLED touch display
Firmware upgrade:

yes, via USB - DMX interface (UPBOX1) not included
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 ~ 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 28

Hz, electronic
Display battery:

self-charging battery backup
Operating temperature:

-20° ~ +45°
LED Control:

flicker free frequency with adjustable PWM
Selectable PWM:

600 ~ 25.000 Hz

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption:

145
W
Max power consumption (at 120V):

145
W
Output (at 230V):

12

units on a single power line

PHYSICAL

IP rating:

65

for outdoor installations
Cooling:

active, silent operation
Suspension and fixing:

double hanging bracket suitable for safe hanging and for floor positioning
Signal connection:

Seetronic XLR 5p IN/OUT connectors
Power connection:

Seetronic powerCON waterproof IN/OUT connectors
Dimensions (WxHxD):

258x354x257
mm
Weight:

4,95
kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals:

CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

1 x STUDIOCOBPLUSDY
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
User Manual

ITEMS REF.

Accessory Code

Description

STUDIOCOBPLUSDY (include)

STUDIOCOBPLUSL18

Optics for STUDIOCOBPLUS projectors series, 18°

STUDIOCOBPLUSDY (include)

STUDIOCOBPLUSL38
