    Code Housing Avail.
    STUDIOCOBPLUSDYBK Black

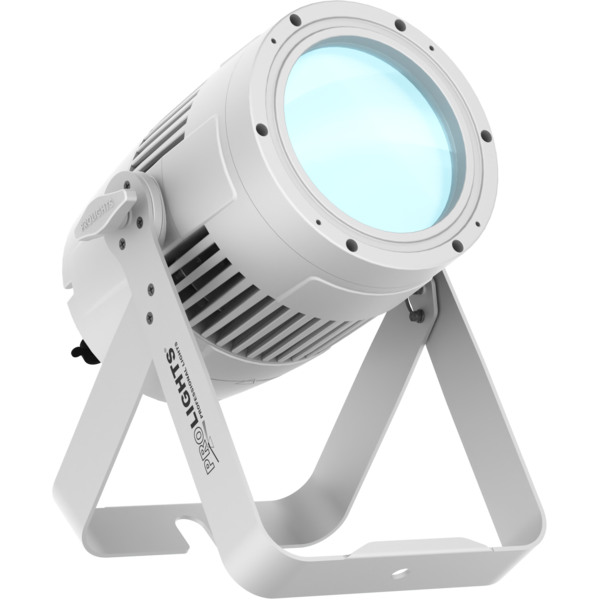

    STUDIOCOBPLUSDYWH White

    STUDIOCOBPLUSDY is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.

    Features:
    IP65 rated connectors for easy use both indoor and outdoor
    150 W 5.000 K COB LED source with HD dimming and high CRI
    Flexible lens options of 18° - 38° - 60°

    LIGHT SOURCE
    • Source:
      150
      W
      daylight white LED
    • CCT:
      5.000
      K
    • Luminous flux:
      (18°) 11'233lm - (38°) 10'429
      lm
    • Lux:
      (18°) 8'454
      lx
      @3 m
    • Lux:
      (38°) 1'994
      lx
      @3 m
    • CRI:
      > 83
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Beam angle:
      (on-board) 18° - (inc) 38°, (opt) 60
      °
    • Field angle:
      (on-board) 36° - (inc) 63
      °
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      flood (without lens) - 38° (inc)
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      1 / 2 / 5
      channel
    • RDM:
      RDM ready for remote monitoring and settings
    • Display:
      black OLED touch display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      Selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -20° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      145
      W
    • Max power consumption (at 120 V):
      145
      W
    • Output (at 230 V):
      12
      units on a single power line
    PHYSICAL
    • Cooling:
      active, silent operation
    • Sospension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors
    • IP rating:
      65
      for outdoor installations
    • Dimensions (WxHxD):
      258x354x257
      mm
    • Weight:
      4,95
      kg
    CODICE_PRODOTTO
    Accessory Code
    Description
    STUDIOCOBPLUSDY (include)
    STUDIOCOBPLUSFC (include)
    STUDIOCOBPLUSTW (include)
    STUDIOCOBPLUSTU (include)
    STUDIOCOBPDY2 (include)
    STUDIOCOBPLUSUV (optional)
    Optics for STUDIOCOBPLUS projectors series, 18°
    STUDIOCOBPLUSDY (include)
    STUDIOCOBPLUSFC (include)
    STUDIOCOBPLUSTW (include)
    STUDIOCOBPLUSTU (include)
    STUDIOCOBPDY2 (include)
    STUDIOCOBPLUSUV (optional)
    Optics for STUDIOCOBLUS projectors series, 38°
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBBD (include)
    STUDIOCOBPDY2 (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBTU (optional)
    STUDIOCOBFC (optional)
    Filter frame for STUDIOCOB projectors
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPDY2 (optional)
    STUDIOCOBPLUSUV (optional)
    Optics for STUDIOCOBLUS projectors series, 60°
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBTU (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBFC (optional)
    VERSAPAR (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPDY2 (optional)
    Barn door 4 directional flaps to adjust the light beam, f. frame included
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPDY2 (optional)
    Flight case for 8 STUDIOCOBPLUS
