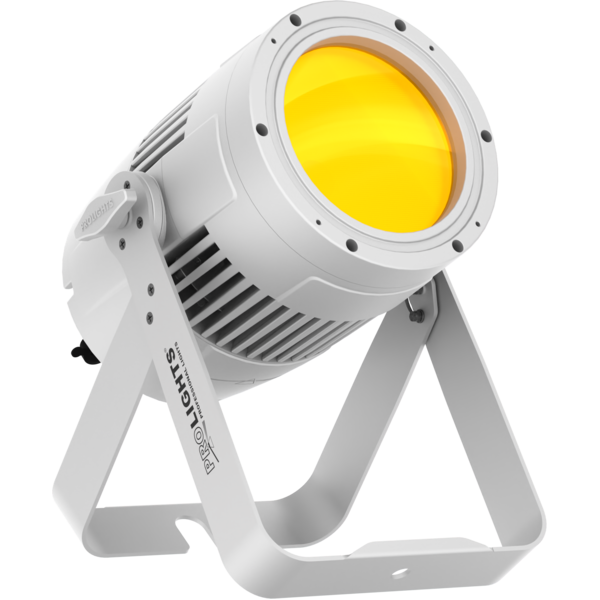

StudioCob PlusFC
Share me

IP65

Immagine Principale
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • STUDIOCOBPLUSFC
  • StudioCob PlusFC
    Code Housing Avail.
    STUDIOCOBPLUSFCBK Black
    STUDIOCOBPLUSFCWH White

    StudioCob PlusFC is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

    Features:
    IP65 rated connectors for easy use both indoor and outdoor
    150W RGBW COB LED source with HD dimming with an extensive and even colour palette
    Flexible lens options of 18° - 38° - 60°

    LIGHT SOURCE
    • Source:
      150
      W
      COB RGBW / FC LED
    • Luminous flux:
      (18°) 3'949 lm - (38°) 3'869
      lm
    • Lux:
      (18°) 3'190
      lx
      @3 m full
    • Lux:
      (38°) 734
      lx
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      (on-board) 18° - (inc) 38° - (opt) 60
      °
    • Field angle:
      (on-board) 36° - (inc) 63
      °
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      38° (inc)
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.000 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      4 / 6 / 10
      channel
    • RDM:
      RDM ready for remote monitoring and settings
    • Display:
      black OLED touch display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -20° ~ +45°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      135
      W
    • Max power consumption (at 120V):
      137
      W
    • Output (at 230V):
      12
      units on a single power line
    PHYSICAL
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors
    • IP rating:
      65
      for temporary outdoor application, not for fixed installation
    • Dimensions (WxHxD):
      259x187x370
      mm
    • Weight:
      5,6
      kg
    BOX CONTENT
    • 1 x STUDIOCOBPLUSFC
    • 1 x 1,5 meters SCHUKO - SEETRONIC POWERCON TRUE1 power cable
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    STUDIOCOBPLUSFC (include)
    STUDIOCOBPLUSTW (include)
    STUDIOCOBPLUSTU (include)
    STUDIOCOBPLUSDY (include)
    STUDIOCOBPDY2 (include)
    STUDIOCOBPLUSUV (optional)
    Optics for STUDIOCOBPLUS projectors series, 18°
    STUDIOCOBPLUSFC (include)
    STUDIOCOBPLUSTW (include)
    STUDIOCOBPLUSTU (include)
    STUDIOCOBPLUSDY (include)
    STUDIOCOBPDY2 (include)
    STUDIOCOBPLUSUV (optional)
    Optics for STUDIOCOBLUS projectors series, 38°
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBBD (include)
    STUDIOCOBPDY2 (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBTU (optional)
    STUDIOCOBFC (optional)
    Filter frame for STUDIOCOB projectors
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPDY2 (optional)
    STUDIOCOBPLUSUV (optional)
    Optics for STUDIOCOBLUS projectors series, 60°
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBTU (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBFC (optional)
    VERSAPAR (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPDY2 (optional)
    Barn door 4 directional flaps to adjust the light beam, f. frame included
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPDY2 (optional)
    Flight case for 8 STUDIOCOBPLUS
    STUDIOCOBPLUSFC (optional)
    SMARTBOOK (optional)
    LUMIPAR7IP (optional)
    DATAMASTER (optional)
    LUMI4COB (optional)
    SUNRISE2L (optional)
    WIFIBOX (optional)
    PINSPOTD (optional)
    ARTNETNODE (optional)
    UVSTRIP18 (optional)
    UVPANEL18 (optional)
    PIXROLL12TRI (optional)
    HALUSTRIP (optional)
    POLAR3000 (optional)
    SUNRISE4 (optional)
    SUNRISE2 (optional)
    SUNBAR2000FC (optional)
    SUNBAR2500MAX (optional)
    PIXBAR3E (optional)
    JETBEAM2 (optional)
    ACCENT1Q (optional)
    6BEAMQ (optional)
    LUMIPAR7QTOUR (optional)
    WDBOX (optional)
    LUMIPAR12IP (optional)
    LUMIPIX15IP (optional)
    PIXPAN16 (optional)
    SMARTDISK (optional)
    PIXIEZOOM (optional)
    SMARTTORCH (optional)
    POLAR500 (optional)
    POLAR1000 (optional)
    HALUROCK (optional)
    CHROMAROCK (optional)
    CHROMAPIX (optional)
    Z8STRIP (optional)
    Z7SPOT (optional)
    BATPAR180 (optional)
    PIXIEWASHXB (optional)
    TRUSSPOD3T (optional)
    TRUSSPOD3BAT (optional)
    PIXIEWASH (optional)
    LUMIPIX6TRI (optional)
    JETSPOT4Z (optional)
    PIXIEZOOMXB (optional)
    BATSTRIP160 (optional)
    HALUPIX (optional)
    PIXIESPOT (optional)
    MINIVERSAPAR (optional)
    ECLFRESNELPT (optional)
    DISPLAYCOBWW (optional)
    ECLJRG2 (optional)
    ARCPOINT1 (optional)
    DISPLAYCOBDY (optional)
    DISPLAYCOBFC (optional)
    ECLJR (optional)
    RA2000PROFILE (optional)
    VERSAPAR (optional)
    JETBEAM1 (optional)
    JETSPOT1 (optional)
    LUMIPAR7HPRO (optional)
    FLATPAR3Q (optional)
    MOBIBLAST (optional)
    FLATPAR6H (optional)
    FLATPAR3H (optional)
    LION (optional)
    SOLAR21 (optional)
    ECLFRESNELJT (optional)
    ECLFR2KPT (optional)
    ARIA700SPOT (optional)
    ARIA700PROFILE (optional)
    SUNBLAST3000FC (optional)
    ECLFRESNELT (optional)
    ECLFRESNELJ (optional)
    SUNBLAST3500MAX (optional)
    DISPLAYCOBTRWDWW (optional)
    LUMIPIX12QTOUR (optional)
    STUDIOCOBPLUSUV (optional)
    ECLFR2KT (optional)
    ECLFR2K (optional)
    MINIECLFR (optional)
    MINIECLFRFC (optional)
    LUMIPIX12UQPRO (optional)
    ECLFRJP (optional)
    ECLFRJPTW (optional)
    QUADRO18UTRI (optional)
    DISPLAYCOBTRWDDY (optional)
    LUMIPAR18VWPRO (optional)
    FLATCOB80 (optional)
    FLATCOB40 (optional)
    LUMIPIX12TRIIP (optional)
    POLAR700 (optional)
    ARCPOD36 (optional)
    LUMIPAR12HPRO (optional)
    LUMIPAR7UTRI (optional)
    LUMIPAR12UTRI (optional)
    DISPLAYCOBTRWDFC (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12UAW (optional)
    LUMIPACK12UQ (optional)
    LUMIPAR6UQ (optional)
    LUMIPACK6UQ (optional)
    FLATCOB80UV (optional)
    LUMIPACK12UTRI (optional)
    ARCPOD8 (optional)
    ARCPAR18 (optional)
    ARCPOD21 (optional)
    LUMIPACK7UTRI (optional)
    AQUA (optional)
    LUMIPIX8H (optional)
    VISUALGOB (optional)
    ARCPAR7 (optional)
    LUMIPIX12UQ (optional)
    LUMI4UTRI (optional)
    LUMIPIX12UT (optional)
    ARCSHINE6 (optional)
    ARCSHINE12 (optional)
    ECLJZIP (optional)
    STUDIOCOBPLUSDY (optional)
    ARENACOB4HALO (optional)
    STUDIOCOBPDY2 (optional)
    LUMIPAR12UQPRO (optional)
    LUMIPAR12UQ (optional)
    ARENACOB4FC (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSTW (optional)
    ECLFRESNEL (optional)
    LUMIPIX16H (optional)
    STUDIOCOBFC (optional)
    SMARTBATTENQ (optional)
    TABLEDW (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBWW (optional)
    SOLAR (optional)
    STUDIOCOBTU (optional)
    STUDIOCOBDY (optional)
    ECLPARFC (optional)
    ECL (optional)
    LUMIPIX12QIP (optional)
    RA3000PROFILE (optional)
    ECLPAR (optional)
    ECLCYC050 (optional)
    ECLCYC100 (optional)
    TABLEDC (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    SOLAR48Q (optional)
    SMARTBATHEX (optional)
    SMARTBAT (optional)
    SMARTBATIP (optional)
    ECLHD (optional)
    ECLHDTWC (optional)
    ECLHD2 (optional)
    ECLFC (optional)
    SOLAR27Q (optional)
    ARCPOD96Q (optional)
    ARCPOD48Q (optional)
    ARCPOD27Q (optional)
    ARCPOD15Q (optional)
    MOSAICO (optional)
    ECLPANELTWCJR (optional)
    ECLPANELTWC (optional)
    Firmware uploader kit, USB IN, 3pin XLR DMX OUT, USB OUT

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Studiocobplusfcbk_3D.rvtDownload
    Studiocobplusfcbk_3D.skpDownload
    Studiocobplusfcbk_CAD_3D.dwgDownload
    Studiocobplusfcbk_CAD_2D.dwgDownload
    Studiocobplusfcbk_CAD_2DSYMBOLS.dwgDownload
    Studiocobplusfcbk_TECHNICAL_DRAWING.pdfDownload

    Fixture Libraries / DMX Charts

    STUDIOCOBPLUSFC Firmware rev. 2.3
    AVOLITES Titan
    manufacturer fixture libraryLink
    CHAMSYS
    prolights_studiocobplusfc_4ch.hedDownload
    prolights_studiocobplusfc_6ch.hedDownload
    prolights_studiocobplusfc_10ch.hedDownload
    ETC Eos Family
    manufacturer fixture libraryLink
    Grand Ma 2
    prolights_studiocobplusfc_ma2.zipDownload
    HOG Consoles
    manufacturer fixture libraryLink
    Vista by ChromaQ
    studio cob plus fc 4 channel.fix2Download
    studio cob plus fc 6 channel.fix2Download
    studio cob plus fc 10 channel.fix2Download
    VECTORWORKS
    LIBRARY
    VECTORWORKS_LIBRARY.vwxDownload
    SYMBOLS
    Studiocobplusfcbk_VECTORWORKS_SYMBOLS.vwxDownload

    Photometrics

    prolights_studiocobflusfc_blue.iesDownload
    prolights_studiocobflusfc_blue_18°.iesDownload
    prolights_studiocobflusfc_blue_38°.iesDownload
    prolights_studiocobflusfc_blue_60°.iesDownload
    prolights_studiocobflusfc_full.iesDownload
    prolights_studiocobflusfc_full_18°.iesDownload
    prolights_studiocobflusfc_full_38°.iesDownload
    prolights_studiocobflusfc_full_60°.iesDownload
    prolights_studiocobflusfc_green.iesDownload
    prolights_studiocobflusfc_green_18°.iesDownload
    prolights_studiocobflusfc_green_38°.iesDownload
    prolights_studiocobflusfc_green_60°.iesDownload
    prolights_studiocobflusfc_red.iesDownload
    prolights_studiocobflusfc_red_18°.iesDownload
    prolights_studiocobflusfc_red_38°.iesDownload
    prolights_studiocobflusfc_red_60°.iesDownload
    prolights_studiocobflusfc_white.iesDownload
    prolights_studiocobflusfc_white_18°.iesDownload
    prolights_studiocobflusfc_white_38°.iesDownload
    prolights_studiocobflusfc_white_60°.iesDownload
    Studiocobplusfcbk_PHOTOMETRICS.pdfDownload
    Studiocobplusfcbk_PHOTOMETRICS.pdfDownload

    Software Upgrades

    Tech Docs

    Studiocobplusfcbk_A4_DATASHEET.pdfDownload
    Studiocobplusfcbk_DMX_CHARTS.pdfDownload
    Studiocobplusfcbk_USER_MANUAL.pdfDownload
