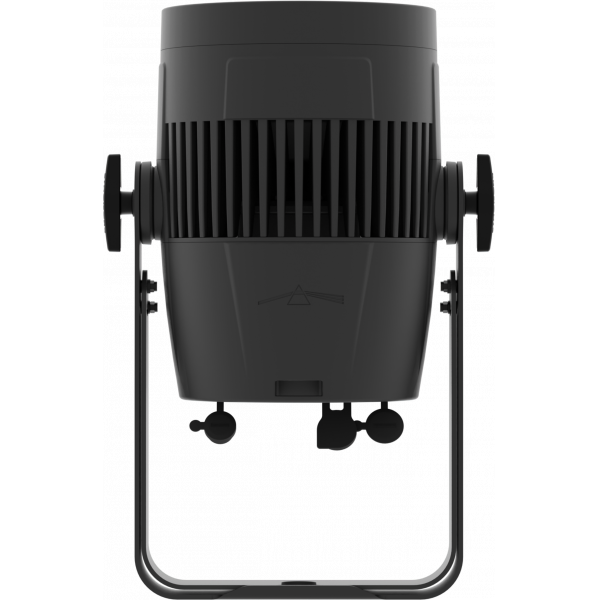

StudioCob PlusTU
ORDER CODE: STUDIOCOBPLUSTU
Share me

IP65

Immagine Principale
  • STUDIOCOBPLUSTU
  • STUDIOCOBPLUSTU
  • STUDIOCOBPLUSTU
  • STUDIOCOBPLUSTU
  • STUDIOCOBPLUSTU
  • STUDIOCOBPLUSTU
  • STUDIOCOBPLUSTU
  • STUDIOCOBPLUSTU
  • STUDIOCOBPLUSTU
    • StudioCob PlusTU
    Code Housing Avail.
    STUDIOCOBPLUSTUBK Black
    STUDIOCOBPLUSTUWH
    		 White

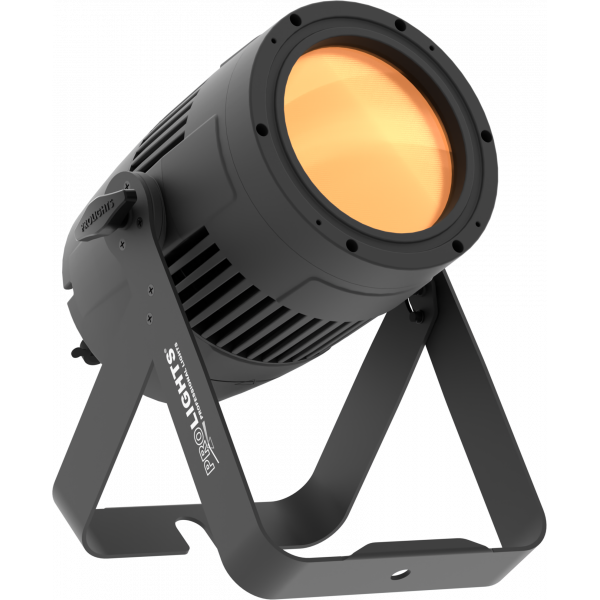

    StudioCob PlusTU is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

    Features:
    IP65 rated connectors for easy use both indoor and outdoor
    150W 3.000K Warm White COB LED source with HD dimming and high CRI
    Flexible lens options of 18° - 38° - 60°

    LIGHT SOURCE
    • Source:
      150
      W
      Tungsten White LED
    • CCT:
      3.000
    • Luminous flux:
      (18°) 8'419 - (38°) 7'837
      lm
    • Lux:
      (18°) 5'873
      lx
      @3 m
    • Lux:
      (38°) 1'483
      lx
      @3 m
    • CRI:
      > 90
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Beam angle:
      (on-board) 18° - (inc) 38° - (opt) 60
      °
    • Field angle:
      (on-board) 36° - (inc) 63
      °
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      flood (without lens) - 38° (inc)
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body

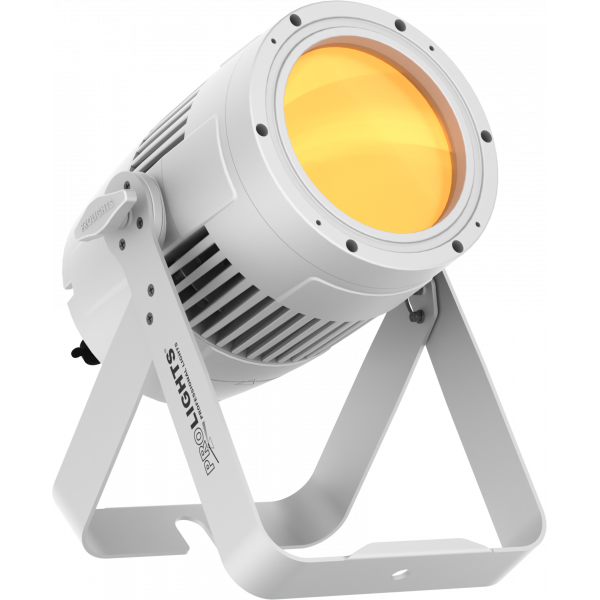

    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      1 / 2 / 5
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      black OLED touch display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -20° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      141
      W
    • Max power consumption (at 120V):
      147
      W
    • Output (at 230V):
      12
      units on a single power line
    PHYSICAL
    • IP rating:
      65
      for temporary outdoor application, not for fixed installations
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning

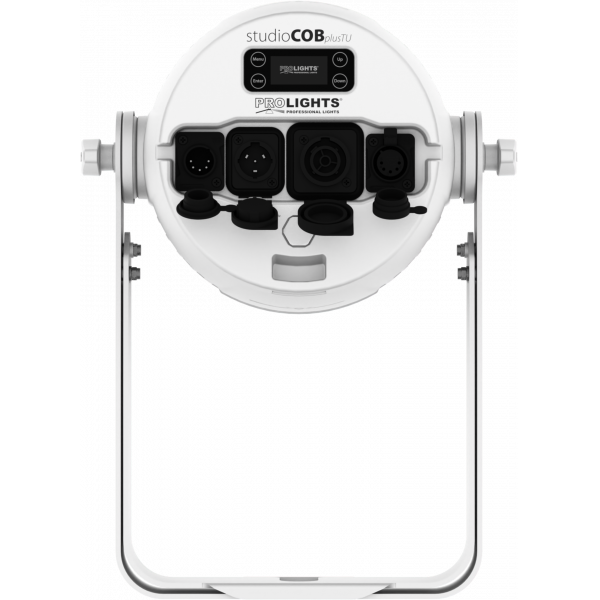

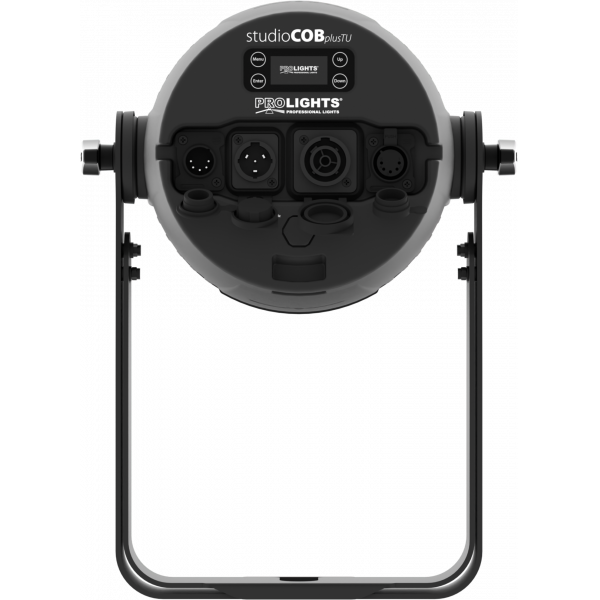

    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors
    • Dimensions (WxHxD):
      259x187x370
      mm
    • Weight:
      4,95
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x STUDIOCOBPLUSTU
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    STUDIOCOBPLUSTU (include)
    {ProdottiDaAccessorio}
    STUDIOCOBPLUSL18STUDIOCOBPLUSL18
    Optics for STUDIOCOBPLUS projectors series, 18°
    STUDIOCOBPLUSTU (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    STUDIOCOBPLUSTU (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    STUDIOCOBPLUSTU (include)
    {ProdottiDaAccessorio}
    STUDIOCOBPLUSL38STUDIOCOBPLUSL38
    Optics for STUDIOCOBLUS projectors series, 38°
    STUDIOCOBPLUSTU (optional)
    {ProdottiDaAccessorio}
    STUDIOCOBTPGSTUDIOCOBTPG
    Filter frame for STUDIOCOB projectors
    STUDIOCOBPLUSTU (optional)
    {ProdottiDaAccessorio}
    STUDIOCOBPLUSL60STUDIOCOBPLUSL60
    Optics for STUDIOCOBLUS projectors series, 60°
    STUDIOCOBPLUSTU (optional)
    {ProdottiDaAccessorio}
    STUDIOCOBBDSTUDIOCOBBD
    Barn door 4 directional flaps to adjust the light beam, f. frame included
    STUDIOCOBPLUSTU (optional)
    {ProdottiDaAccessorio}
    FCLCOBPLUSFCLCOBPLUS
    Flight case for 8 STUDIOCOBPLUS
    STUDIOCOBPLUSTU (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Studiocobplustu_A4_DATASHEET_(EN).pdf 178KB
    Studiocobplustu_A4_DATASHEET_(IT).pdf 181KB
    Studiocobplustu_LETTER_DATASHEET_(EN).pdf 178KB

    User manual

    File name File size Download
    Studiocobplustu_USER_MANUAL_ITEN.pdf 1MB

    DMX chart & personalities

    File name File size Download
    Studiocobplustu_DMX_CHARTS.pdf 45KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VECTORWORKS_SYMBOLS.vwx 627KB
    VECTORWORKS_SYMBOLS.vwx 536KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    STUDIOCOBPLUSTU Firmware rev. 2.3
    manufacturer fixture library (Link) Link
    prolights_studiocobplustu.d4Download
    manufacturer fixture library (Link) Link
    prolights_studiocobplustu_1ch.hedDownload
    prolights_studiocobplustu_2ch.hedDownload
    prolights_studiocobplustu_5ch.hedDownload

    Photometrics

    File name File size Download
    prolights_studiocobplustu.ies 30KB
    prolights_studiocobplustu_18°.ies 30KB
    prolights_studiocobplustu_38°.ies 30KB
    Studiocobplustu_PHOTOMETRICS.pdf 971KB
    Studiocobplustu_PHOTOMETRICS.pdf 247KB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    Studiocobplustubk_3D_REVIT.rfa 1MB
    Studiocobplustu_3D_SKETCHUP.skp 2MB
    Studiocobplustubk_2DSYMBOLS.dwg 65KB
    Studiocobplustu_TECHNICAL_DRAWING.pdf 226KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    2.4 STABLE 19/01/2022 Improvements:
    • Changed KEY LOCK on OFF as default.
