STUDIOCOBPLUSTW
Share me

IP65

Immagine Principale
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
  • STUDIOCOBPLUSTW
    Code Housing Avail.
    STUDIOCOBPLUSTWBK Black

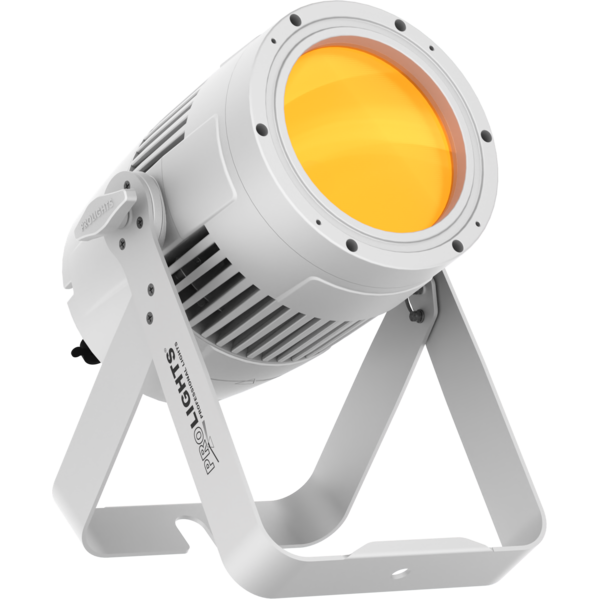

    STUDIOCOBPLUSTWWH White
    LIGHT SOURCE
    • Source:
      165
      W
      tunable white LED
    • CT:
      WW 3000K - CW 6000K - ALL4300
      K
    • CRI:
      WW/CW >95
    • Luminous flux:
      5741, 5383
      lm
    • Lux:
      WW 1537lux - CW 2208lux - ALL 3559
      lux
      @3m
    • Lux:
      WW 473,2lux - CW 576,1lux - ALL 1001
      lux
      @3m
    • Source life expectancy:
      >30.000 h
    COLOUR SYSTEM
    • Colour mixing:
      tunable white
    • CTC:
      CTC control through independent DMX channel
    • White presets:
      3000~6000
      K
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      2 / 4 / 7
      channel
    • RDM:
      RDM ready for fixture remote monitor and settings
    • Display:
      black OLED touch display
    • Firmware upgrade:
      yes, via USB-DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0~100% electronic dimmer
    • Dimmer curves:
      4
      different dimming curves available
    • Strobe / shutter:
      1-28
      Hz, electronic
    • Battery backup:
      battery backup for user operation without connecting to the main power
    • Operating temperature:
      -20° ~ +45°
    • Flicker:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600~25K Hz
    ELECTRICAL
    • Power supply:
      100-240V – 50/60Hz
    • Power consumption (at 230V):
      140
      W
    • Power consumption (at 120V):
      142,8
      W
    • Output (at 230V):
      12
      units on a single power line
    PHYSICAL
    • Cooling:
      forced air with low noise fan
    • Sospension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors
    • IP rating:
      65
      for outdoor installations
    • Dimensions (WxHxD):
      259x187x370
      mm
    • Weight:
      4.9
      kg
    Product Code
    Accessory Code
    Description
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBTU (optional)
    VERSAPAR (optional)
    Barn door 4 directional flaps to adjust the light beam, f. frame included
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBBD (include)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBTU (optional)
    Filter frame for STUDIOCOB projectors
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSUV (optional)
    Flight case for 8 STUDIOCOBPLUS
    STUDIOCOBPLUSTW (include)
    STUDIOCOBPLUSFC (include)
    STUDIOCOBPLUSTU (include)
    STUDIOCOBPLUSDY (include)
    STUDIOCOBPLUSUV (optional)
    Optics for STUDIOCOBPLUS projectors series, 18°
    STUDIOCOBPLUSTW (include)
    STUDIOCOBPLUSFC (include)
    STUDIOCOBPLUSTU (include)
    STUDIOCOBPLUSDY (include)
    STUDIOCOBPLUSUV (optional)
    Optics for STUDIOCOBLUS projectors series, 38°
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSUV (optional)
    Optics for STUDIOCOBLUS projectors series, 60°
    STUDIOCOBPLUSTW (optional)
    SMARTBOOK (optional)
    LUMI4COB (optional)
    WIFIBOX (optional)
    ARTNETNODE (optional)
    SUNBAR2000FC (optional)
    SUNBAR2500MAX (optional)
    BEAMSPOT10 (optional)
    PIXBAR3E (optional)
    PIXROLL12TRI (optional)
    HALUSTRIP (optional)
    POLAR3000 (optional)
    LUMIPIX15IP (optional)
    SUNRISE4 (optional)
    SUNRISE2 (optional)
    SUNRISE2L (optional)
    PIXPAN9E (optional)
    JETSPOT4Z (optional)
    UVSTRIP18 (optional)
    6BEAMQ (optional)
    LUMIPAR7QTOUR (optional)
    JETBEAM2 (optional)
    WDBOX (optional)
    ACCENT1Q (optional)
    LUMIPAR18QTOUR (optional)
    UVPANEL18 (optional)
    PINSPOTD (optional)
    LUMIPIX12QTOUR (optional)
    CHROMAPIX (optional)
    PIXIEZOOM (optional)
    POLAR500 (optional)
    POLAR1000 (optional)
    HALUROCK (optional)
    HALUPIX (optional)
    LUMIPIX6TRI (optional)
    CHROMAROCK (optional)
    Z8STRIP (optional)
    Z7SPOT (optional)
    TRUSSPOD3T (optional)
    SMARTDISK (optional)
    RA2000PROFILE (optional)
    SMARTTORCH (optional)
    TRUSSPOD3BAT (optional)
    ECLIPSEFRESNELJ (optional)
    TABLEDC (optional)
    PIXIEWASHXB (optional)
    PIXIEZOOMXB (optional)
    BATSTRIP160 (optional)
    BATPAR180 (optional)
    PIXPAN16 (optional)
    PIXIESPOT (optional)
    MINIVERSAPAR (optional)
    JETSPOT1 (optional)
    ECLIPSEJR (optional)
    FLATPAR3Q (optional)
    ECLIPSEFRESNELTW (optional)
    DISPLAYCOBWW (optional)
    DISPLAYCOBFC (optional)
    MINIECLFRFC (optional)
    ARCPOINT1 (optional)
    ECLFR2K (optional)
    ECLFR2KTW (optional)
    MINIECLFR (optional)
    JETBEAM1 (optional)
    VERSAPAR (optional)
    DISPLAYCOBDY (optional)
    LUMIPAR7HPRO (optional)
    FLATPAR3H (optional)
    FLATPAR6H (optional)
    MOBIBLAST (optional)
    LION (optional)
    LUMIPIX12UT (optional)
    ARCPAR7 (optional)
    LUMIPIX8H (optional)
    SOLAR21 (optional)
    QUADRO18UTRI (optional)
    ARIA700SPOT (include)
    ECLIPSEFRESNEL (optional)
    ARIA700PROFILE (optional)
    ECLIPSEJZIP (optional)
    STUDIOCOBPLUSUV (optional)
    LUMIPIX12UQPRO (optional)
    SUNBLAST3000FC (optional)
    SUNBLAST3500MAX (optional)
    DISPLAYCOBTRWDDY (optional)
    LUMIPAR12HPRO (optional)
    LUMIPAR18VWPRO (optional)
    FLATCOB80 (optional)
    FLATCOB40 (optional)
    FLATCOB80UV (optional)
    LUMIPIX12Q (optional)
    LUMIPIX12TRIIP (optional)
    POLAR700 (optional)
    LUMIPACK7UTRI (optional)
    LUMIPAR7UTRI (optional)
    DISPLAYCOBTRWDFC (optional)
    LUMIPAR12UQPRO (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12UAW (optional)
    LUMIPACK12UQ (optional)
    LUMIPAR6UQ (optional)
    LUMIPACK6UQ (optional)
    LUMIPACK12UTRI (optional)
    LUMIPAR12UTRI (optional)
    LUMIPIX12UQ (optional)
    STUDIOCOBPLUSDY (optional)
    LUMI4UTRI (optional)
    VISUALGOB (optional)
    AQUA (optional)
    PIXIEWASH (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSTU (optional)
    DISPLAYCOBTRWDWW (optional)
    ARCSHINE6 (optional)
    ARCSHINE12 (optional)
    ARCPOD36 (optional)
    ARCPOD21 (optional)
    ARCPAR18 (optional)
    ARCPOD8 (optional)
    LUMIPAR6Q (optional)
    ARENACOB4FC (optional)
    LUMIPIX16H (optional)
    ARENACOB4HALO (optional)
    LUMIPAR12UQ (optional)
    ECLIPSEPARFC (optional)
    ECLPANELTWC800 (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBTU (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBWW (optional)
    ECLIPSEPAR (optional)
    SMARTBATTENQ (optional)
    ECLIPSEHD2 (optional)
    SOLAR (optional)
    RA3000PROFILE (optional)
    ECLIPSEHD (optional)
    LUMIPIX12QIP (optional)
    ECLIPSE (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    ECLIPSEHDTWC (optional)
    SOLAR48Q (optional)
    ECLIPSEFC (optional)
    SMARTBAT (optional)
    SMARTBATHEX (optional)
    SMARTBATIP (optional)
    SOLAR27Q (optional)
    ARCPOD48Q (optional)
    ARCPOD27Q (optional)
    MOSAICO (optional)
    Firmware uploader kit, USB IN, 3-pin XLR DMX OUT, USB OUT
