    Code Housing Avail.
    STUDIOCOBTUBK Black
    STUDIOCOBTUCR Chrome
    STUDIOCOBTUWH White

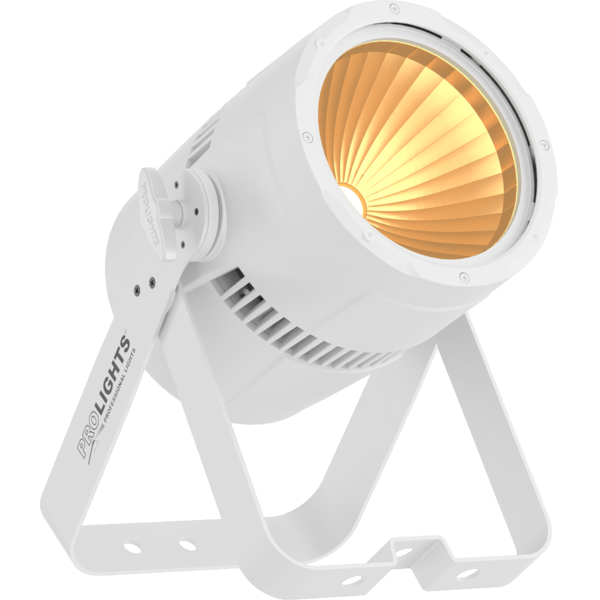

    StudioCob TU is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 3.100 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

    Features:
    100 W 3.100 K COB LED source with HD dimming and a high CRI
    Flexible lens options of 15° - 30° - 60°
    Functional barn doors for beam control

    LIGHT SOURCE
    • Source:
      100
      W
      high-power white LED
    • CCT:
      3.100
      K
    • CRI:
      94
    • R9:
      72
    • Luminous flux:
      5'221
      lm
    • Lux:
      (30°) 1'404
      lx
      @3 m
    • Source life expectancy:
      > 30.000 h
    • Other:
      TLCI (Qa): 96,5
    OPTICS
    • Beam angle:
      60
      °
    • Field angle:
      80
      °
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      30° (inc) - 15° (opt)
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      black, mirror and white finishing available
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      1 / 2 / 5
      channel
    • Display:
      black OLED high resolution display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      different dimming curves available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • Flicker:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      102
      W
    • Output (at 230 V):
      12
      units on a single power line
    • Power factor:
      0,9331
    PHYSICAL
    • Cooling:
      forced air with low noise fan
    • Sospension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      262x190x371
      mm
    • Weight:
      4,5
      kg
    Product Code
    Accessory Code
    Description
    STUDIOCOBTU (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBFC (optional)
    VERSAPAR (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPDY2 (optional)
    Barn door 4 directional flaps to adjust the light beam, f. frame included
    STUDIOCOBTU (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBDY (optional)
    Optics for STUDIOCOB projectors series, 15°
    STUDIOCOBTU (include)
    STUDIOCOBFC (include)
    STUDIOCOBWW (include)
    STUDIOCOBUV (include)
    STUDIOCOBCW (include)
    STUDIOCOBDY (include)
    Optics for STUDIOCOB projectors series, 30°
    STUDIOCOBTU (optional)
    VERSAPAR (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBDY (optional)
    Flight case for 8 STUDIOCOB, VERSAPAR
    STUDIOCOBTU (optional)
    VERSAPAR (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBDY (optional)
    Flight case with internal compartments to contain 6 pcs STUDIOCOB/VERSAPAR
    STUDIOCOBTU (optional)
    STUDIOCOBBD (include)
    STUDIOCOBPDY2 (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBFC (optional)
    Filter frame for STUDIOCOB projectors
    STUDIOCOBTU (optional)
    SMARTBOOK (optional)
    DATAMASTER (optional)
    LUMIPAR7IP (optional)
    JETBEAM2 (optional)
    SUNRISE4 (optional)
    UVPANEL18 (optional)
    SUNBAR2000FC (optional)
    PIXBAR3E (optional)
    WDBOX (optional)
    UVSTRIP18 (optional)
    LUMIPAR7QTOUR (optional)
    LUMIPIX15IP (optional)
    SUNRISE2L (optional)
    SUNRISE2 (optional)
    6BEAMQ (optional)
    LUMIPAR12IP (optional)
    HALUSTRIP (optional)
    WIFIBOX (optional)
    POLAR3000 (optional)
    PIXROLL12TRI (optional)
    SUNBAR2500MAX (optional)
    ACCENT1Q (optional)
    PINSPOTD (optional)
    LUMI4COB (optional)
    ARTNETNODE (optional)
    Z8STRIP (optional)
    Z7SPOT (optional)
    PIXIEZOOM (optional)
    CHROMAPIX (optional)
    POLAR500 (optional)
    PIXIEWASH (optional)
    LUMIPIX6TRI (optional)
    POLAR1000 (optional)
    PIXPAN16 (optional)
    CHROMAROCK (optional)
    RA2000PROFILE (optional)
    PIXIEWASHXB (optional)
    PIXIEZOOMXB (optional)
    TRUSSPOD3BAT (optional)
    BATPAR180 (optional)
    HALUPIX (optional)
    HALUROCK (optional)
    TRUSSPOD3T (optional)
    JETSPOT4Z (optional)
    ECLIPSEFRESNELJ (optional)
    BATSTRIP160 (optional)
    SMARTDISK (optional)
    SMARTTORCH (optional)
    PIXIESPOT (optional)
    MINIVERSAPAR (optional)
    MINIECLFRFC (optional)
    ECLFR2K (optional)
    MINIECLFR (optional)
    ECLIPSEFRESNELTW (optional)
    JETBEAM1 (optional)
    JETSPOT1 (optional)
    ECLIPSEJR (optional)
    ECLFR2KTW (optional)
    ARCPOINT1 (optional)
    ECLJRG2 (optional)
    FLATPAR3H (optional)
    DISPLAYCOBFC (optional)
    MOBIBLAST (optional)
    LUMIPAR7HPRO (optional)
    LION (optional)
    FLATPAR3Q (optional)
    FLATPAR6H (optional)
    VERSAPAR (optional)
    DISPLAYCOBDY (optional)
    DISPLAYCOBWW (optional)
    LUMIPIX12UQPRO (optional)
    FLATCOB80 (optional)
    ARIA700SPOT (optional)
    FLATCOB40 (optional)
    ECLIPSEFRESNEL (optional)
    ARIA700PROFILE (optional)
    LUMIPAR18VWPRO (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12UAW (optional)
    LUMIPAR7UTRI (optional)
    LUMIPIX12QTOUR (optional)
    LUMIPACK12UQ (optional)
    LUMIPAR6UQ (optional)
    LUMIPACK6UQ (optional)
    FLATCOB80UV (optional)
    LUMIPAR12UTRI (optional)
    LUMIPACK7UTRI (optional)
    LUMIPAR12HPRO (optional)
    STUDIOCOBPLUSUV (optional)
    SUNBLAST3000FC (optional)
    ARCPOD8 (optional)
    DISPLAYCOBTRWDWW (optional)
    ARCPOD36 (optional)
    LUMIPACK12UTRI (optional)
    ARCPAR18 (optional)
    ARCSHINE12 (optional)
    ARCSHINE6 (optional)
    LUMIPIX12TRIIP (optional)
    AQUA (optional)
    VISUALGOB (optional)
    ARCPOD21 (optional)
    DISPLAYCOBTRWDDY (optional)
    LUMI4UTRI (optional)
    SUNBLAST3500MAX (optional)
    SOLAR21 (optional)
    LUMIPIX12UQ (optional)
    QUADRO18UTRI (optional)
    LUMIPIX8H (optional)
    LUMIPIX12UT (optional)
    POLAR700 (optional)
    ARCPAR7 (optional)
    DISPLAYCOBTRWDFC (optional)
    LUMIPAR12UQ (optional)
    STUDIOCOBPDY2 (optional)
    LUMIPAR12UQPRO (optional)
    ECLIPSEJZIP (optional)
    STUDIOCOBPLUSTU (optional)
    LUMIPIX16H (optional)
    STUDIOCOBPLUSFC (optional)
    ARENACOB4FC (optional)
    ARENACOB4HALO (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBWW (optional)
    ECLIPSEPARFC (optional)
    SOLAR (optional)
    TABLEDW (optional)
    SMARTBATTENQ (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBDY (optional)
    ECLIPSEPAR (optional)
    LUMIPIX12QIP (optional)
    ECLIPSE (optional)
    RA3000PROFILE (optional)
    TABLEDC (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    SOLAR48Q (optional)
    SMARTBATIP (optional)
    SMARTBAT (optional)
    SMARTBATHEX (optional)
    ECLPANELTWC (optional)
    ECLIPSEHD (optional)
    ECLIPSEHD2 (optional)
    ECLIPSEFC (optional)
    ECLIPSEHDTWC (optional)
    SOLAR27Q (optional)
    ARCPOD27Q (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    Firmware uploader kit, USB IN, 3-pin XLR DMX OUT, USB OUT

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Studiocobtubk_3D.rvtDownload
    Studiocobtubk_3D.skpDownload
    Studiocobtubk_CAD_2D.dwgDownload
    Studiocobtubk_CAD_3D.dwgDownload
    Studiocobtubk_CAD_2DSYMBOLS.dwgDownload
    Studiocobtubk_TECHNICAL_DRAWING.pdfDownload
    Studiocobtubk_TECHNICAL_DRAWING.pdfDownload

    Fixture Libraries / DMX Charts

    STUDIOCOBTU Firmware rev. 3.2
    AVOLITES Titan
    prolights_studiocobtu.d4Download
    CHAMSYS
    prolights_studiocobtu_1ch.hedDownload
    prolights_studiocobtu_2ch.hedDownload
    prolights_studiocobtu_5ch.hedDownload
    STUDIOCOBTU Firmware rev. 2.2
    AVOLITES Titan
    prolights_studiocobtu.d4Download
    CHAMSYS
    prolights_studiocobtu_1ch.hedDownload
    prolights_studiocobtu_2ch.hedDownload
    prolights_studiocobtu_5ch.hedDownload
    VECTOR WORKS
    LIBRARY
    VECTORWORKS_LIBRARY.vwxDownload
    SYMBOLS
    Studiocobtubk_VECTORWORKS_SYMBOLS.vwxDownload

    Photometrics

    Studiocobtubk_PHOTOMETRICS.pdfDownload
    Studiocobtubk_PHOTOMETRICS.pdfDownload

    Software Upgrades

    Tech Docs


    Italian/English manual
    Download
