SunBlast 3500Max

ORDER CODE: SUNBLAST3500MAX

IP65 white LEDs graphic strobe and blinder

SunBlast 3500Max LED is an exceptionally powerful IP65 graphic strobe, blinder and flood. Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.

Main features:

  • Staggering 230'000 lumen output with 120° beam angle
  • Artnet and DMX control
  • Graphic effects from 48 individually controllable groups of 6.300 K white LED
  • IP65 rating

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 1.728x1,3W high-power white LED
  • Source CCT: full ON: 6.300K
  • Luminous flux: strobe: 230'000 lm - static ON: 50'638
  • Lux: strobe: 6'335 lx - static ON: 3'200lx @3 m
  • CRI: 85
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 110°
  • Field angle: 155°
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed static and dynamic pixel patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
GOBOS
  • Rotating gobos: dynamic patterns with speed and rotation control
CONTROL
  • Supported Protocols: DMX512, RDM, Art-Net, Kling-Net
  • Pixel control: 1 / 2 / 4 / 8 / 16 / 48 individually select and control sections
  • RDM: for remote addressing and parameter configuration
  • Display: black TFT touch display
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): strobe: 1.850 W (peak) - static: 633W
  • Output (at 230V): 2 units on a single power line
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 468x179x268mm / 18.43''x7.05''x10.55''
  • Weight: 14,3kg / 31.53lbs
INSTALLATION
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

OS26PLUS
OS26PLUS
(Optional)

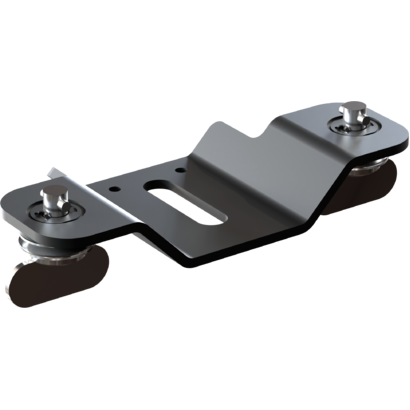

Quick-lock omega bracket, M12 hole
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
SUNBLASTFLR
SUNBLASTFLR
(Optional)

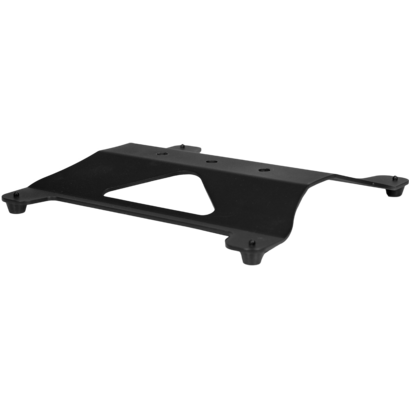

Hanging bracket for SUNBLAST floor positioning, quick-look
SUNBLASTBD
SUNBLASTBD
(Optional)

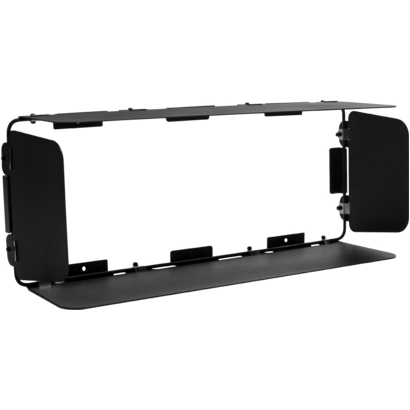

Barn door for SUNBLAST with 4 directional flaps to adjust the light beam
FCLSUNBLAST
FCLSUNBLAST
(Optional)

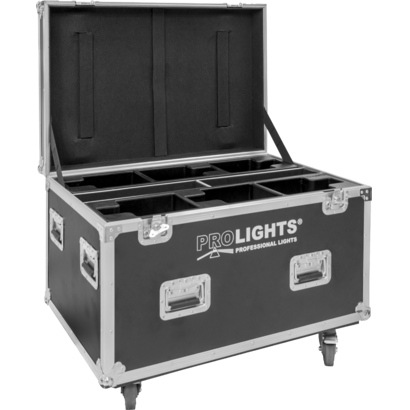

Flight case for 6x SUNBLAST, foam shells included
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSunblast3500max_LETTER_DATASHEET_(EN).pdf(28/09/2021)380KB
Letter datasheetSunblast3500max_A4_DATASHEET_(IT).pdf(30/04/2021)377KB
Letter datasheetSunblast3500max_A4_DATASHEET_(EN).pdf(02/09/2021)381KB

User manual

File name File size Download
User manualSunblast3500max_USER_MANUAL_ITEN.pdf(17/03/2023)4MB
User manualSunblast3500max_NET_PCB_Firmware_Update.pdf(08/01/2024)460KB

DMX chart & personalities

File name File size Download
DMX chartSunblast3500max_DMX_CHARTS.pdf(24/07/2018)173KB

SUNBLAST3500MAX Firmware rev. 1.7

prolights_sunblast 3500 max.d4Download
manufacturer fixture library (Link) Link
prolights_sunblast3500max_adv1.hedDownload
prolights_sunblast3500max_adv2.hedDownload
prolights_sunblast3500max_adv3.hedDownload
prolights_sunblast3500max_adv4.hedDownload
prolights_sunblast3500max_basic+pixel.hedDownload
prolights_sunblast3500max_basic+static.hedDownload
prolights_sunblast3500max_basic+strobe.hedDownload
prolights_sunblast3500max_pixel1.hedDownload
prolights_sunblast3500max_pixel2.hedDownload
prolights_sunblast3500max_pixel3.hedDownload
prolights_sunblast3500max_pixel12.hedDownload
prolights_sunblast3500max_pixel48.hedDownload
manufacturer fixture library (Link) Link
prolights@sunblast3500max_adv1@.xmlDownload
prolights@sunblast3500max_adv2@.xmlDownload
prolights@sunblast3500max_adv3@advanced3.xmlDownload
prolights@sunblast3500max_adv4@.xmlDownload
manufacturer fixture library (Link) Link
sunblast 3500 max advanced 1.fix2Download
sunblast 3500 max advanced 2.fix2Download
sunblast 3500 max advanced 3.fix2Download
sunblast 3500 max basic pixel.fix2Download
sunblast 3500 max basic static.fix2Download
sunblast 3500 max basic strobe.fix2Download
sunblast 3500 max pixels 1px.fix2Download
sunblast 3500 max pixels 2px.fix2Download
sunblast 3500 max pixels 3px.fix2Download
sunblast 3500 max pixels 12px.fix2Download
sunblast 3500 max pixels 48px.fix2Download

SUNBLAST3500MAX Firmware rev. 1.6

prolights_sunblast 3500 max.d4Download
manufacturer fixture library (Link) Link
prolights_sunblast3500max_adv1.hedDownload
prolights_sunblast3500max_adv2.hedDownload
prolights_sunblast3500max_adv3.hedDownload
prolights_sunblast3500max_adv4.hedDownload
prolights_sunblast3500max_basic+pixel.hedDownload
prolights_sunblast3500max_basic+static.hedDownload
prolights_sunblast3500max_basic+strobe.hedDownload
prolights_sunblast3500max_pixel1.hedDownload
prolights_sunblast3500max_pixel2.hedDownload
prolights_sunblast3500max_pixel3.hedDownload
prolights_sunblast3500max_pixel12.hedDownload
prolights_sunblast3500max_pixel48.hedDownload
manufacturer fixture library (Link) Link
prolights@sunblast3500max_adv1@.xmlDownload
prolights@sunblast3500max_adv2@.xmlDownload
prolights@sunblast3500max_adv3@advanced3.xmlDownload
prolights@sunblast3500max_adv4@.xmlDownload
manufacturer fixture library (Link) Link
sunblast 3500 max advanced 1.fix2Download
sunblast 3500 max advanced 2.fix2Download
sunblast 3500 max advanced 3.fix2Download
sunblast 3500 max basic pixel.fix2Download
sunblast 3500 max basic static.fix2Download
sunblast 3500 max basic strobe.fix2Download
sunblast 3500 max pixels 1px.fix2Download
sunblast 3500 max pixels 2px.fix2Download
sunblast 3500 max pixels 3px.fix2Download
sunblast 3500 max pixels 12px.fix2Download
sunblast 3500 max pixels 48px.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFASunblast3500max_3D.rfa(23/04/2021)520KB
3D SKPSunblast3500max_3D.skp(26/03/2020)221KB
3DSunblast3500max_CAD_3D.dwg(18/02/2020)636KB
2DSunblast3500max_CAD_2D.dwg(28/04/2021)4MB
2D cad symbolsSunblast3500max_CAD_2DSYMBOLS.dwg(09/03/2020)61KB
Technical drawingSunblast3500max_TECHNICAL_DRAWING.pdf(28/04/2021)626KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)288KB

Tech docs

File name File size Download
Noise ReportSunblast3500max_NOISE_REPORT.pdf(25/08/2022)130KB

Software

File name File size Download
SoftwareProfessional Uploader(03/03/2025)19MB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 28/03/2023 New functions:
  • LED Frequency selector added (range: 400Hz to 16kHz).

Fixed bugs:
  • Wrong RDM Model ID shown.
Rev. 1
