UVPANEL18
ORDER CODE: UVPANEL18
Share me

Immagine Principale
  • UVPANEL18
  • UVPANEL18
  • UVPANEL18
  • UVPANEL18
  • UVPANEL18
  • UVPANEL18

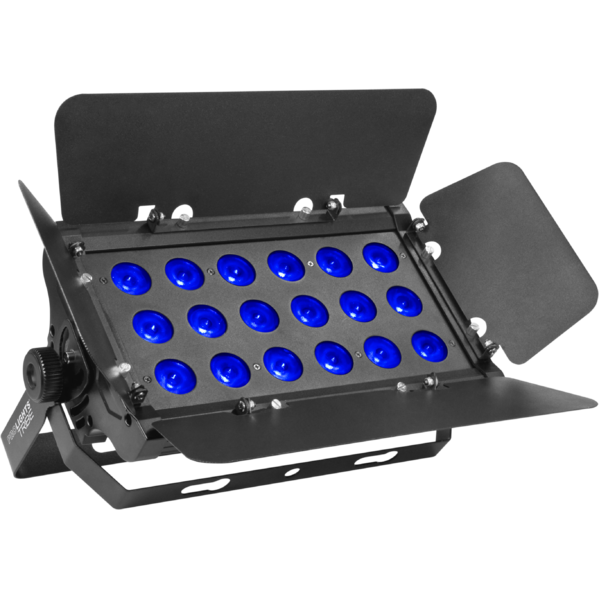

  • UVPANEL18 is a high-power UV LED batten equipped with 18 LED of 3 W each, conceived to replace the traditional fixtures based on UV lamps. UVPANEL18 is a flexible and user-friendly projector, controllable in DMX or through the auto and master/slave modes.

    Features:
    18x3 W UV LED
    Wavelength: 405 nm
    Flicker-free operations
    Average power consumption: 45 W

    LIGHT SOURCE
    • Source:
      18x3
      W
      UV LEDs
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      15
      °
    • Field angle:
      16
      °
    DYNAMIC EFFECTS
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Body:
      sturdy aluminum profile
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      2 / 5
      channel
    • Display:
      LED display user interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Operating temperature:
      0° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      48,6
      W
    • Max power consumption (at 120V):
      49,4
      W
    PHYSICAL
    • IP rating:
      30
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      XLR 3p IN/OUT connectors
    • Power connection:
      IEC IN/OUT connectors
    • Dimensions (WxHxD):
      389x197x187
      mm
    • Weight:
      4,1
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA
    BOX CONTENT
    • 1 x UVPANEL18
    • 1 x 1,5 meters BARE END - IEC power cable
    • User Manual
