WIFIBOX
TRIBEby TRIBE

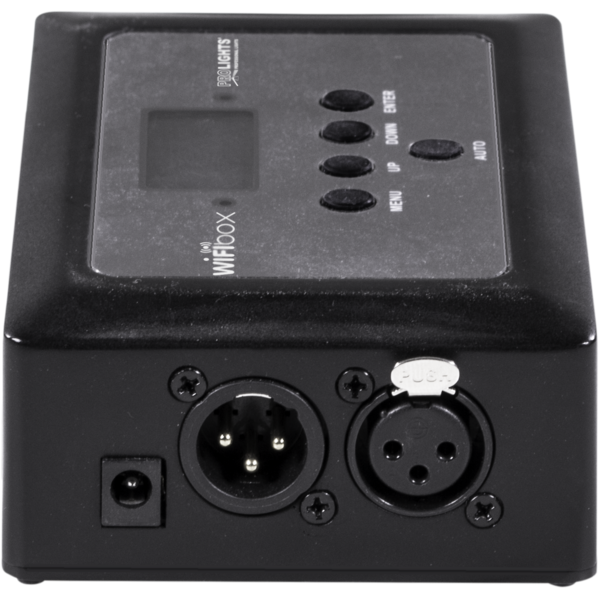

WIFI-Box

ORDER CODE: WIFIBOX

DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT

WIFIBOX is a new-generation light control system, designed to provide an easy and versatile platform for LED projectors. The signal transmission is managed both wired and wirelessly (through Wi-Fi), both input and output, even allowing to control the fixtures through the SmartColors app, available for IOS and Android devices.

Main features:

  • Transmitter and receiver (Wi-Fi) in a single compact unit
  • Wi-Fi connection for fixtures control through the SmartColors app
  • Manual or automatic channel operating options
  • 16 channels dedicated to the manual mode
  • Simple user interface with black OLED display and 5 buttons
  • DMX512 protocol and WIFI connection through mobile phone or tablet supported
  • DMX IN/OUT connectors: 3-pin XLR
  • Operating frequency: 2,4 GHz
  • Max unobstructed distance: 80 m
  • Power supply (included): input 100 - 240 V 50 / 60 Hz, output DC 9 V, 1000 mA
  • Weight: 0,6 kg
  • Dimensions (WxHxD): 102x82x41 mm
See variants

PHOTO GALLERY

WIFI-Box
WIFI-Box
WIFI-Box
WIFI-Box

Technical specifications

CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Wifibox_A4_DATASHEET_(EN).pdf 589KB

User manual

File name File size Download
User manual Wifibox_USER_MANUAL_ITEN.pdf 1MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2D Wifibox_CAD_2D.dwg 980KB
3D Wifibox_CAD_3D.dwg 3MB
Technical drawing Wifibox_TECHNICAL_DRAWING.pdf 318KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.3 STABLE 20/09/2019 Improved firmware functionality.
2.2 STABLE 14/06/2017 Improved WI-FI functionality.
