ARCPOD36
ARCHWORK

ARCPOD36

36x8 W outdoor compact wash light

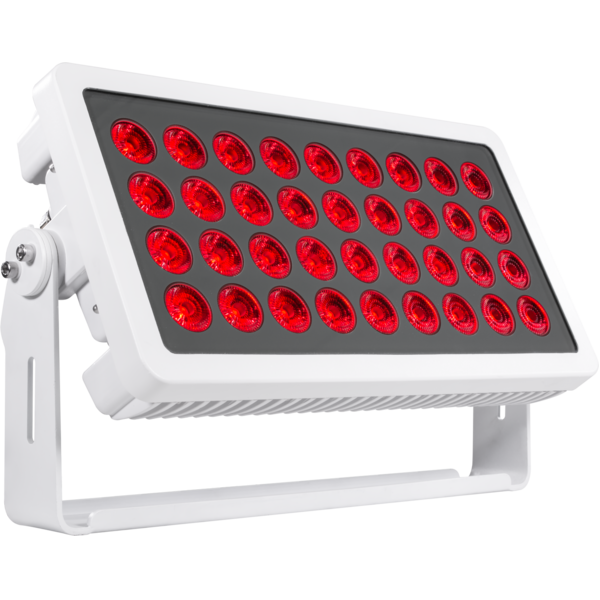

ARCPOD36 is a wash light with a 36x8 W RGBW / FC LEDs source designed for outdoor installations where a high performing projector with reliable brightness and chromatic precision is required. The rectangular shape design and the super-slim profile allow the ARCPOD36 to be easily integrated into any architectonic context whilst also integrate with outdoor (IP66) projects and installations due to the construction of chassis in die-cast aluminium and tempered glass with no fans for ventilation. ARCPOD36 is a compact projector capable of lighting large spaces, both as a stage wash in outdoor events and for architectural lighting projects

Main features:

  • 4D (RGBW) colour mixing
  • DMX virtual colour wheel
  • CTC
  • 235 W power consumption and LED source expected life of over 50.000 hours
  • User menu and settings are accessed through a 4 button touch-sensitive LED interface while 3 different DMX modes (4 - 10 channel) available

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 36x8W RGBW LEDs
  • Luminous flux: @full 7'769
  • Lux: 15° @full 9'429lx @3 m
  • Lux: 15° @full 3'395lx @5 m
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Field angle: 22°
  • Additional optics: 25° / 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 4 / 6 / 10ch
  • Display: touch - sensitive LED display
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: moulded IP signal IN/OUT connectors
  • Signal connection: moulded IP signal IN connector
  • Adaptors: XLR and BARE END 16A adaptors included
ELECTRICAL
  • Mains power supply: 100-240 V 50/60 Hz
  • Max power consumption (230V): 235W
  • Output (at 230V): 6 units on a single power line
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • Cooling: pressure equalisation through GORE membrane vents
  • Housing: Sturdy die-cast aluminium body
  • Finish: white (RAL 9003)
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 579x338x114mm / 22.8''x13.31''x4.49''
  • Weight: 16,66kg / 36.73lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA
BOX CONTENT

Versions

Code
Color Synthesis
ARCPOD36FC
ARCPOD36FC (END OF LIFE)
Full Color
ARCPOD36TU
ARCPOD36TU (DISCONTINUED)
Tungsten
ARCPOD36DY
ARCPOD36DY (DISCONTINUED)
Daylight

Accessories & Related Products

ARCLUMIL15D42
ARCLUMIL15D42
(Included)
Optic lens 22°, D.42mm
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
ARCLUMIL25D42
ARCLUMIL25D42
(Optional)
Optic lens 25°, D.42mm
ARCLUMIL45D42
ARCLUMIL45D42
(Optional)
Optic lens 45°, D.42mm
AWEXAC1
AWEXAC1
(Optional)
AWEXDC1
AWEXDC1
(Optional)
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArcpod36fc_USER_MANUAL_ITEN.pdf(08/06/2017)2MB

DMX chart & personalities

File name File size Download

ARCPOD36FC Firmware rev. 1.2

manufacturer fixture library (Link) Link
prolights_arcpod36.d4Download
manufacturer fixture library (Link) Link
prolights_arcpod36fc_4ch.hed Download
prolights_arcpod36fc_6ch.hed Download
prolights_arcpod36fc_10ch.hed Download
manufacturer fixture library (Link) Link
arcpod36_4ch.fdf Download
arcpod36_6ch.fdf Download
arcpod36_10ch.fdf Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
arcpod 36 4 channel.fix2 Download
arcpod 36 6 channel.fix2 Download
arcpod 36 10 channel.fix2 Download
manufacturer fixture library (Link) Link

CAD symbols & drawings

File name File size Download
3D RFAArcpod36fc_3D.rvt(09/03/2020)1MB
3D SKPArcpod36_3D.skp(27/03/2020)511KB
2DArcpod36_CAD_2D.dwg(11/05/2021)4MB
3DArcpod36_CAD_3D.dwg(19/02/2020)678KB
Technical drawingArcpod36_TECHNICAL_DRAWING.pdf(11/05/2021)863KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)250KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 28/10/2015 Improved firmware functionality.
