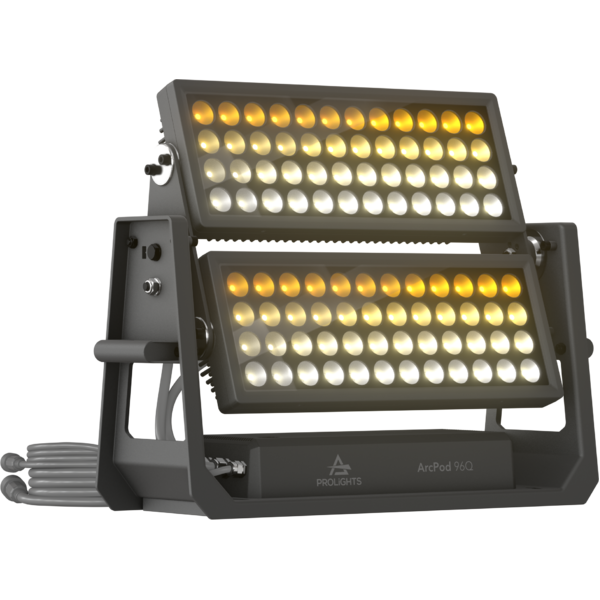

ArcPod 96Q

High power 96x10W (two-headed) RGBW/FC outdoor IP66 LED wash light for exterior installations

ArcPod 96Q is a two-headed bright outdoor wash light, designed for large scale outdoor installations and long throw projection. Equipped with 96x10W RGBW/FC LEDs, delivering a superior colour mixing and extreme brightness with two different optics on each head (10° top and 15° bottom). Despite its bright output, it was designed with a slim size, and offers a wide range of optics selection that can be customised or change to different options on each single head. This makes the ArcPod 96Q an indispensable architectural lighting fixtures for larger setups.

5 YEARS WARRANTY

Main features:

  • Two head with individual tilt adjustment and multiple lens options for fine focusing
  • 96x10W RGBW/FC LEDs
  • Compact form factor and fan-free design
See variants

PHOTO GALLERY

ArcPod 96Q
ArcPod 96Q
ArcPod 96Q
ArcPod 96Q
ArcPod 96Q
ArcPod 96Q
ArcPod 96Q

Technical specifications

LIGHT SOURCE
  • Source: 96x10W RGBW LEDs
  • Luminous flux: (15°) 46'094 lm - (25°) 41'570 lm - (45°) 33'410 @Full
  • Lux: (15°) 61'963 lx - (25°) 25'823 lx - (45°) 5'575lx @3 m full
  • Lux: (15°) 22'307 lx - (25°) 9'266 lx - (45°) 2'007lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: (bottom head) 15° - (top head) 10°
  • Additional optics: 25° - 45° (optional) - see available accessories
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 8 linear controllable sections
  • Static mode: selection of static colour
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 8 / 10 / 14 / 20 / 34 / 44ch
  • Pixel control: up to 8 linear controllable sections
  • RDM: for remote addressing and parameter configuration
  • Display: user interface through DATAMASTER external coder (not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
MOVEMENT
  • Tilt: 180° with manual adjustment
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Signal connection: 1,8 m moulded IP signal IN connector
  • Adaptors: XLR and BARE END 16A adaptors included
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 1020W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,96
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: IK08 impact rating
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: basalt grey (RAL 7012), also available with C5-M marine grade coating
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 670x513x220mm / 26.38''x20.2''x8.66''
  • Weight: 27kg / 59.52lbs
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Painting
ARCPOD96Q
ARCPOD96Q
Standard

Accessories & Related Products

<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
A48QFILTER20
A48QFILTER20
(Optional)
20° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER30
A48QFILTER30
(Optional)
30° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER40
A48QFILTER40
(Optional)
40° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER60
A48QFILTER60
(Optional)
60° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER80
A48QFILTER80
(Optional)
80° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER1090
A48QFILTER1090
(Optional)
10°x90° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER1060
A48QFILTER1060
(Optional)
10°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER3060
A48QFILTER3060
(Optional)
30°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER9010
A48QFILTER9010
(Optional)
90°x10° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER6010
A48QFILTER6010
(Optional)
60°x10° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER6030
A48QFILTER6030
(Optional)
60°x30° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
S27QLENS10
S27QLENS10
(Included)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(Included)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(Optional)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(Optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S48QBD
S48QBD
(Optional)
Black barn door 4 directional flaps to adjust the light beam, SOLAR4Q,ARCPOD48Q
<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcpod96q_LETTER_DATASHEET_(EN).pdf(13/06/2024)495KB
Letter datasheetArcpod96q_A4_DATASHEET_(IT).pdf(05/05/2021)445KB
Letter datasheetArcpod96q_A4_DATASHEET_(EN).pdf(13/06/2024)487KB
Tender SpecificationArcpod96q_ARCPOD96Q_Tender_Specification.pdf(22/08/2022)3MB

User manual

File name File size Download
User manualArcpod96q_USER_MANUAL_EN.pdf(31/01/2023)11MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities

File name File size Download
DMX chartArcpod96q_DMX_CHARTS.pdf(23/02/2021)155KB

ARCPOD96Q Firmware rev. 1.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@arcpod96q@rev_1.31.gdtfDownload
manufacturer fixture library (Link) Link
prolights@arcpod96q@8ch@rev_1.31.xmlDownload
prolights@arcpod96q@44ch@rev_1.31.xmlDownload
prolights@arcpod96q@34ch@rev_1.31.xmlDownload
prolights@arcpod96q@20ch@rev_1.31.xmlDownload
prolights@arcpod96q@14ch@rev_1.31.xmlDownload
prolights@arcpod96q@10ch@rev_1.31.xmlDownload
manufacturer fixture library (Link) Link

ARCPOD96Q Firmware rev. 1.3

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@arcpod96q@rev_1.31.gdtfDownload
manufacturer fixture library (Link) Link
prolights@arcpod96q@8ch@rev_1.31.xmlDownload
prolights@arcpod96q@44ch@rev_1.31.xmlDownload
prolights@arcpod96q@34ch@rev_1.31.xmlDownload
prolights@arcpod96q@20ch@rev_1.31.xmlDownload
prolights@arcpod96q@14ch@rev_1.31.xmlDownload
prolights@arcpod96q@10ch@rev_1.31.xmlDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPArcpod96q_3D.skp(09/08/2022)3MB
3D RFAArcpod96q_3D.rfa(23/04/2021)504KB
2DArcpod96q_CAD_2D.dwg(26/02/2021)21MB
3DArcpod96q_CAD_3D.dwg(09/08/2022)622KB
2D cad symbolsArcpod96q_CAD_2DSYMBOLS.dwg(05/11/2020)700KB
Technical drawingArcpod96q_TECHNICAL_DRAWING.pdf(26/02/2021)563KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(05/09/2022)438KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In(03/03/2025)192MB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 01/06/2023 Fixed bug:
  • Error reading the address of the new MCU.
1.3 STABLE 08/09/2021
  • Fixed bug on RDM UID.

Info Request

News

Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
March 24, 2026
Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
Under The Bridge Festival is a one-day open-air music event held beneath the Spijkenisserbrug, the iconic bridge that gives the festival its name and its unmistakable industrial backdrop. With five stages and six zones spanning EDM, house, techno and
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
March 19, 2026
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
The observation tower at Skolnity Ski & Bike Park in Wisła , Poland, part of the Wieża Widokowa network managed by Grupa Pingwina, has been equipped with a permanent architectural lighting installation featuring PROLIGHTS fixtures, supplied by Show
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
March 17, 2026
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
Teatro Scala in Quito , one of Ecuador's foremost venues for high-level artistic productions, has equipped its stage with a comprehensive PROLIGHTS lighting system, implemented by Sonotec , the official PROLIGHTS distributor in Ecuador.  The installation
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
March 12, 2026
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
Philadelphia's Walnut Street Theatre is one of the most historic venues in American theatre. Founded in 1808, it is the longest continually operating theatre in the English-speaking world and hosts a diverse program of productions each season, welcoming
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
March 10, 2026
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
Thirty years after the release of Het is een Nacht , Dutch singer-songwriter Guus Meeuwis headlined the AFAS DOME in Antwerp , one of Belgium's leading indoor arenas, for the first time with a major solo show. Across two memorable nights, his greatest
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
February 26, 2026
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
PROLIGHTS introduces Jet Beam120IP , a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive aerial looks without compromising on performance. Designed for professional indoor and outdoor productions, Jet Beam120IP
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
February 23, 2026
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
PROLIGHTS is pleased to announce the launch of  EclPar DotFC and EclPar DotVW , two new ultra-compact, fan-free pinspots engineered to bring true brightness and precision control to highlights, accents, and discreet scenic illumination without compromising
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
February 19, 2026
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
Italian singer-songwriter Ultimo has returned to Italy's major stadiums with “ Ultimo Stadi 2025 - La Favola Continua ”, a completely sold-out tour that once again confirms the artist's ability to connect with massive audiences through music and a
The Brightest Modular Blinder for Oasis' Big Return
February 17, 2026
The Brightest Modular Blinder for Oasis' Big Return
Oasis' Live '25 Tour marked one of the most highly anticipated comebacks in music history. Across 41 shows, the band performed a set of iconic hits, taking the tour across 13 countries over five months and bringing their unmistakable Britpop legacy back
Major Lighting Upgrade for St Hilda's Performing Arts Centre in Western Australia
February 11, 2026
Major Lighting Upgrade for St Hilda's Performing Arts Centre in Western Australia
A major lighting upgrade has been completed at the Joy Shepherd Performing Arts Centre , the centrepiece performance space of St Hilda's Anglican School for Girls in Perth , Western Australia. Led by Theatre Manager Noah Gliosca , the project introduces
Music & Lights presenta: LED Display & Lighting Open Day
February 11, 2026
Music & Lights presenta: LED Display & Lighting Open Day
Music & Lights è lieta di presentare l'evento LED Display & Lighting Open Day , due giornate interamente dedicate alle più recenti tecnologie LED display e lighting, rivolte ai professionisti del settore rental, system integrator, service e installatori.
PROLIGHTS is heading to ISE 2026 with the debut of four new products
January 30, 2026
PROLIGHTS is heading to ISE 2026 with the debut of four new products
PROLIGHTS will be at Integrated Systems Europe (ISE) from February 3-6, 2026 at Fira Barcelona for a dynamic showcase of its newest lighting solutions. At Booth 6Q500, visitors can join live demos and get access to exclusive previews, with four brand-new
Subscribe to our Newsletter
Loading...
