ArcPod 96Q
ORDER CODE: ARCPOD96Q
Share me

IP66

Immagine Principale
  • ARCPOD96Q
  • ARCPOD96Q
  • ARCPOD96Q
  • ARCPOD96Q
  • ARCPOD96Q
  • ARCPOD96Q
  • ARCPOD96Q

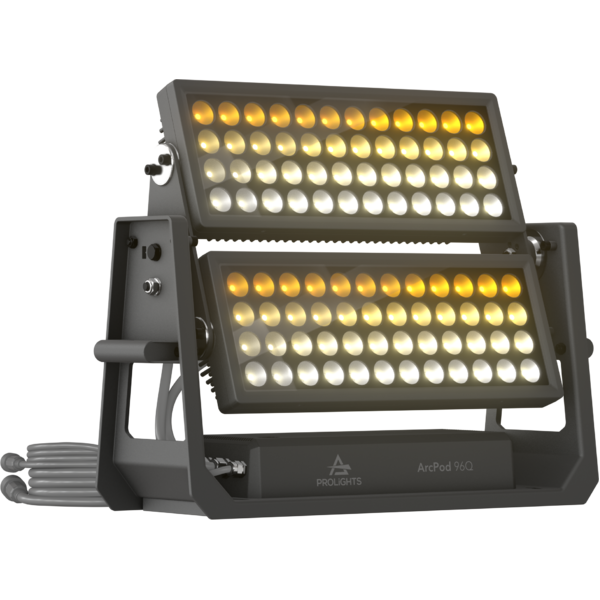

  • ArcPod 96Q is a two-headed bright outdoor wash light, designed for large scale outdoor installations and long throw projection. Equipped with 96x10W RGBW/FC LEDs, delivering a superior colour mixing and extreme brightness with two different optics on each head (10° top and 15° bottom). Despite its bright output, it was designed with a slim size, and offers a wide range of optics selection that can be customised or change to different options on each single head. This makes the ArcPod 96Q an indispensable architectural lighting fixtures for larger setups.

    Features:
    Two head with individual tilt adjustment and multiple lens options for fine focusing
    96x10W RGBW/FC LEDs
    Compact form factor and fan-free design

    LIGHT SOURCE
    • Source:
      96x10
      W
      RGBW / FC LEDs
    • Luminous flux:
      (15°) 46'094 lm - (25°) 41'570 lm - (45°) 33'410
      lm
      @full
    • Lux:
      (15°) 61'963 lx - (25°) 25'823 lx - (45°) 5'575
      lx
      @3 m full
    • Lux:
      (15°) 22'307 lx - (25°) 9'266 lx - (45°) 2'007
      lx
      @5 m full
    • Source life expectancy:
      50.000 hrs (L70 @25° C / 77° F)
    OPTICS
    • Beam angle:
      (bottom head) 15° - (top head) 10
      °
    • Additional optics:
      25° - 45° (optional)
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • FX generator:
      up to 8 linear
      controllable sections
    • Static colour mode:
      selection of static colour
    BODY
    • Tilt angle:
      180
      °
      with manual regulation
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 7012
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      8 / 10 / 14 / 20 / 34 / 44
      channel
    • Pixel control:
      up to 8 linear
      controllable sections
    • RDM:
      RDM ready for remote monitoring and settings
    • Display:
      user interface through DATAMASTER external coder (not included)
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 ~ 30
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      980
      W
    • Output (at 230V):
      2
      units on a single power line
    • Power factor:
      > 0,96
    PHYSICAL
    • Cooling:
      passive cooling and fan-free
    • Adaptors:
      XLR and Schuko 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP power IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • IK rating:
      08
    • Dimensions (WxHxD):
      670x513x220
      mm
    • Weight:
      27
      kg
    BOX CONTENT
    • 1 x ARCPOD96Q
    • 1 x SCHUKO - IP connection adapter
    • 1 x 5p XLR - IP connection male adapter
    • 1 x 5p XLR - IP connection female adapter
    • User Manual
