Chromapix

ORDER CODE: CHROMAPIX

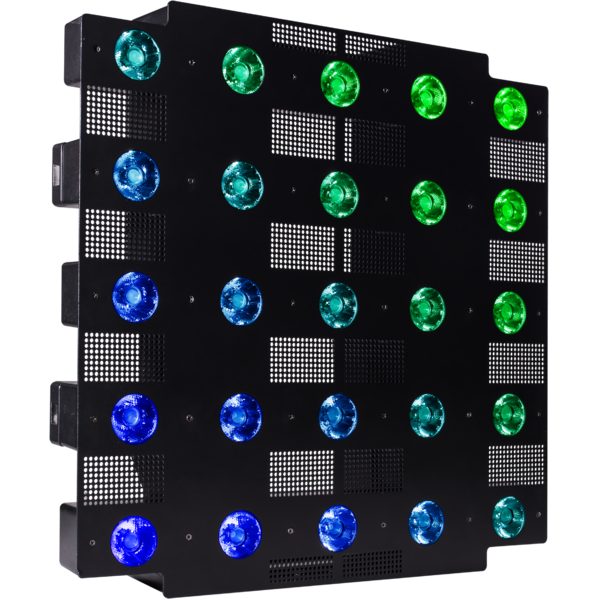

Chromapix is a LED matrix module capable of projecting volumetric graphics, simulating a 3D effect. The generated effect is a wall of LEDs, performing a long through projection of sharp beams in the air which are brighter than conventional LED screens. It offers great flexibility of control with various static alphanumeric and gobo pattern, dynamic pattern, with speed, index, rotation, background and foreground control, dimmer fade which can be controlled by DMX, ArtNet and KlingNet.

Main features:

  • 25(5x5 matrix)x10W Osram Ostar RGBW / FC LEDs
  • 9° Optics through high-definition narrow collimators
  • DMX, Art-Net and Kling-Net control protocol supported
  • Pixel control: individual control of each single LEDs
  • Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background colours, dimmer fade, speed and rotation
See variants

PHOTO GALLERY

Chromapix
Chromapix
Chromapix
Chromapix
Chromapix

Technical specifications

LIGHT SOURCE
  • Source: 25(5x5)x10W RGBW Osram LED
  • Luminous flux: 7'431
  • Lux: 26'204lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 6°
  • Field angle: 15°
  • Pixel pitch: 100mm / 3.94''
  • Lens diameter: 35mm / 1.38''
  • Lens type: HD anti-reflection lenses with achromatic coating
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed static and dynamic pixel patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, Art-Net, Kling-Net
  • DMX channels: 3 / 4 / 6 / 10 / 100 / 105ch
  • Pixel control: pixel2pixel control
  • Display: LCD display
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Signal connection: Neutrik XLR 3p + 5p IN/OUT connectors
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 315W
  • Output (at 230V): 6 units on a single power line
  • Max power consumption (120V): 320W
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 500x500x115mm / 19.69''x19.69''x4.53''
  • Weight: 12kg / 26.46lbs
INSTALLATION
  • Suspension and fixing: bracket for truss rigging and hardware for connection of more units
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetChromapix_A4_DATASHEET_(EN).pdf(11/09/2024)1MB

User manual

File name File size Download
User manualChromapix_USER_MANUAL_ITEN.pdf(22/11/2014)9MB

DMX chart & personalities

File name File size Download
DMX chartChromapix_DMX_CHARTS.pdf(07/11/2017)163KB

CHROMAPIX Firmware rev. 1.5

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
chromapix_3ch-1.fdfDownload
chromapix_3ch-2.fdfDownload
chromapix_4ch.fdfDownload
chromapix_6ch.fdfDownload
chromapix_10ch.fdfDownload
chromapix_100ch.fdfDownload
chromapix_105ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@chromapix@4_channel@initial.xmlpDownload
prolights@chromapix@6_channel@initial.xmlpDownload
prolights@chromapix@10_channel@initial.xmlpDownload
prolights@chromapix@100_channel@initial.xmlpDownload
prolights@chromapix@105_channel@ma_library_update_v15.0.xmlpDownload
prolights@chromapix@hsi@initial.xmlpDownload
prolights@chromapix@hsv@initial.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
chromapix 4 channel.fix2Download
chromapix 6 channel.fix2Download
chromapix 10 channel.fix2Download
chromapix 100 channel.fix2Download
chromapix 105 channel.fix2Download
chromapix hsi.fix2Download
chromapix hsv.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
2DChromapix_CAD_2D.dwg(11/05/2021)4MB
3DChromapix_CAD_3D.dwg(14/11/2017)37MB
Technical drawingChromapix_TECHNICAL_DRAWING.pdf(11/05/2021)910KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 05/03/2015 Improved DMX functionality. Rev. 1
